DOOR LOCK ACTUATOR

DLK-237

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> Replace front door lock actuator RH. Refer to

DLK-288, "DOOR LOCK : Removal and Installa-

tion"

.

NO

>> Repair or replace harness.

3.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

REAR LH
REAR LH : Description

INFOID:0000000009645392

Locks/unlocks the door with the signal from BCM.

REAR LH : Component Function Check

INFOID:0000000009645393

1.

CHECK FUNCTION

1. Use CONSULT to perform Active Test (“DOOR LOCK”).

2. Touch “ALL LOCK” or “ALL UNLOCK” to check that it works normally.
Is the inspection result normal?

YES

>> Door lock actuator is OK.

NO

>> Refer to

DLK-237, "REAR LH : Diagnosis Procedure"

.

REAR LH : Diagnosis Procedure

INFOID:0000000009645394

Regarding Wiring Diagram information, refer to

DLK-199, "Wiring Diagram"

.

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

Check voltage between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> GO TO 2

2.

CHECK DOOR LOCK ACTUATOR CIRCUIT

1. Disconnect BCM and rear door lock actuator LH connectors.

2. Check continuity between BCM connector and rear door lock actuator LH connectors.

3. Check continuity between BCM connector and ground.

Terminals

Condition of

door lock and
unlock switch

Voltage (V)

(Approx.)

(+)

(–)

BCM

connector

Terminal

M19

54

Ground

Lock

→ Battery voltage → 0

53

Unlock

→ Battery voltage → 0

BCM connector

Terminal

Door lock actuator

connector

Terminal

Continuity

M19

54

D205

1

Yes

53

2

DLK-238

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR LOCK ACTUATOR

Is the inspection result normal?

YES

>> Replace rear door lock actuator LH. Refer to

DLK-292, "DOOR LOCK : Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

REAR RH
REAR RH : Description

INFOID:0000000009645395

Locks/unlocks the door with the signal from BCM.

REAR RH : Component Function Check

INFOID:0000000009645396

1.

CHECK FUNCTION

1. Use CONSULT to perform Active Test (“DOOR LOCK”).

2. Touch “ALL LOCK” or “ALL UNLOCK” to check that it works normally.
Is the inspection result normal?

YES

>> Door lock actuator is OK.

NO

>> Refer to

DLK-238, "REAR RH : Diagnosis Procedure"

.

REAR RH : Diagnosis Procedure

INFOID:0000000009645397

Regarding Wiring Diagram information, refer to

DLK-199, "Wiring Diagram"

.

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

Check voltage between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> GO TO 2

2.

CHECK DOOR LOCK ACTUATOR CIRCUIT

1. Disconnect BCM and rear door lock actuator RH connectors.

2. Check continuity between BCM connector and rear door lock actuator RH connectors.

BCM connector

Terminal

Continuity

M19

54

Ground

No

53

Terminals

Condition of

door lock and
unlock switch

Voltage (V)

(Approx.)

(+)

(–)

BCM

connector

Terminal

M19

54

Ground

Lock

→ Battery voltage → 0

53

Unlock

→ Battery voltage → 0

DOOR LOCK ACTUATOR

DLK-239

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> Replace rear door lock actuator RH. Refer to

DLK-292, "DOOR LOCK : Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

BCM connector

Terminal

Door lock actuator

connector

Terminal

Continuity

M19

54

D305

2

Yes

53

1

BCM connector

Terminal

Continuity

M19

54

Ground

No

53

DLK-240

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

REMOTE KEYLESS ENTRY RECEIVER

REMOTE KEYLESS ENTRY RECEIVER

Description

INFOID:0000000009645398

Receives keyfob operation and transmits to BCM.

Component Function Check

INFOID:0000000009645399

1.

CHECK FUNCTION

With CONSULT

Check remote keyless entry receiver KEYLESS LOCK, KEYLESS UNLOCK, and KEYLESS PANIC in Data

Monitor mode with CONSULT.

Is the inspection result normal?

YES

>> Remote keyless entry receiver is OK.

NO

>> Refer to

DLK-240, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009645400

Regarding Wiring Diagram information, refer to

DLK-209, "Wiring Diagram"

.

1.

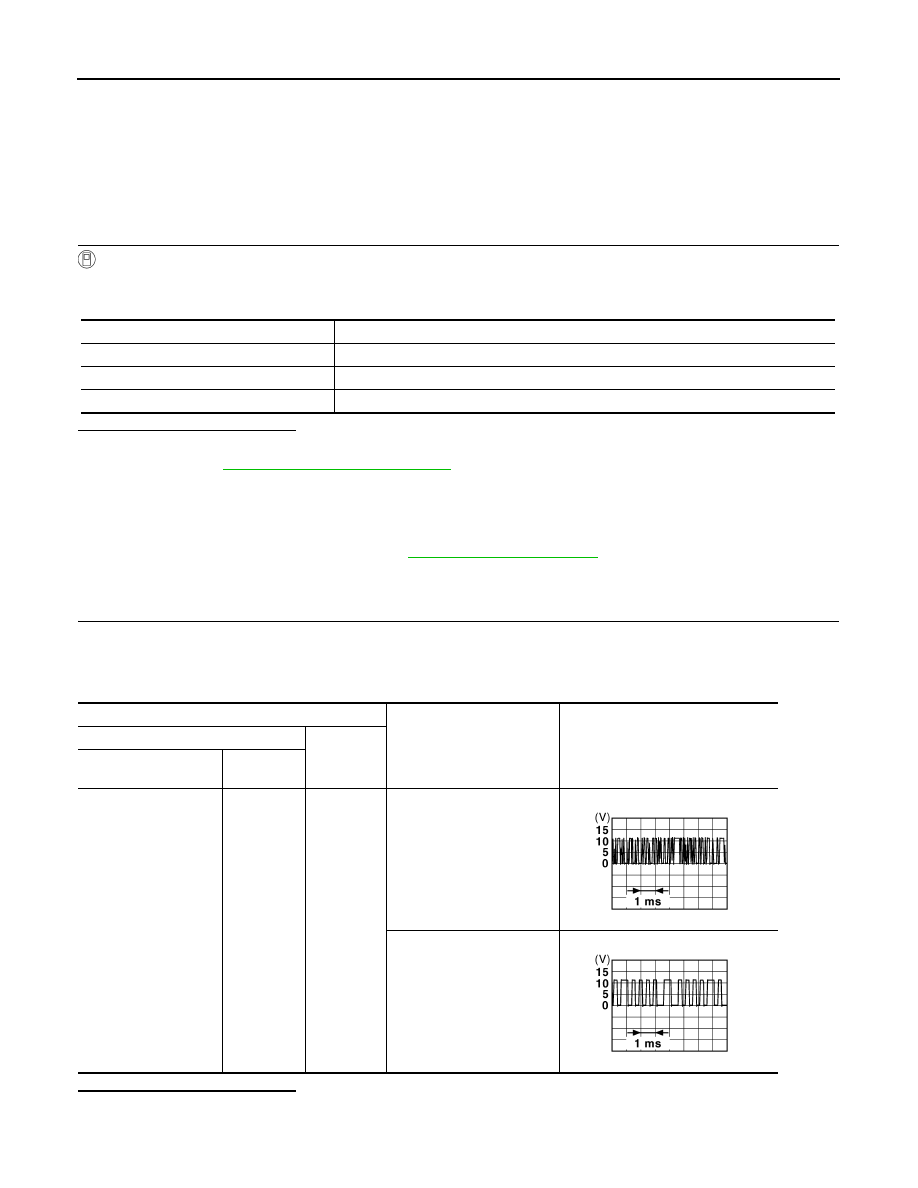

CHECK REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL

1. Turn ignition switch OFF.

2. Check signal between remote keyless entry receiver connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> GO TO 7

NO

>> GO TO 2

Monitor item

Condition

KEYLESS LOCK

Checks whether value changes from "Off" to "On" when operating keyfob lock button.

KEYLESS UNLOCK

Checks whether value changes from "Off" to "On" when operating keyfob unlock button.

KEYLESS PANIC

Checks whether value changes from "Off" to "On" when operating keyfob panic button.

Terminals

Condition

Signal

(Reference value)

(+)

(–)

Remote keyless entry

receiver connector

Terminal

M23

2

Ground

Waiting

(All doors closed)

When signal is received

(All doors closed)

JMKIA0064GB

JMKIA0065GB
