DIAGNOSIS SYSTEM (BCM)
DLK-197
< SYSTEM DESCRIPTION >

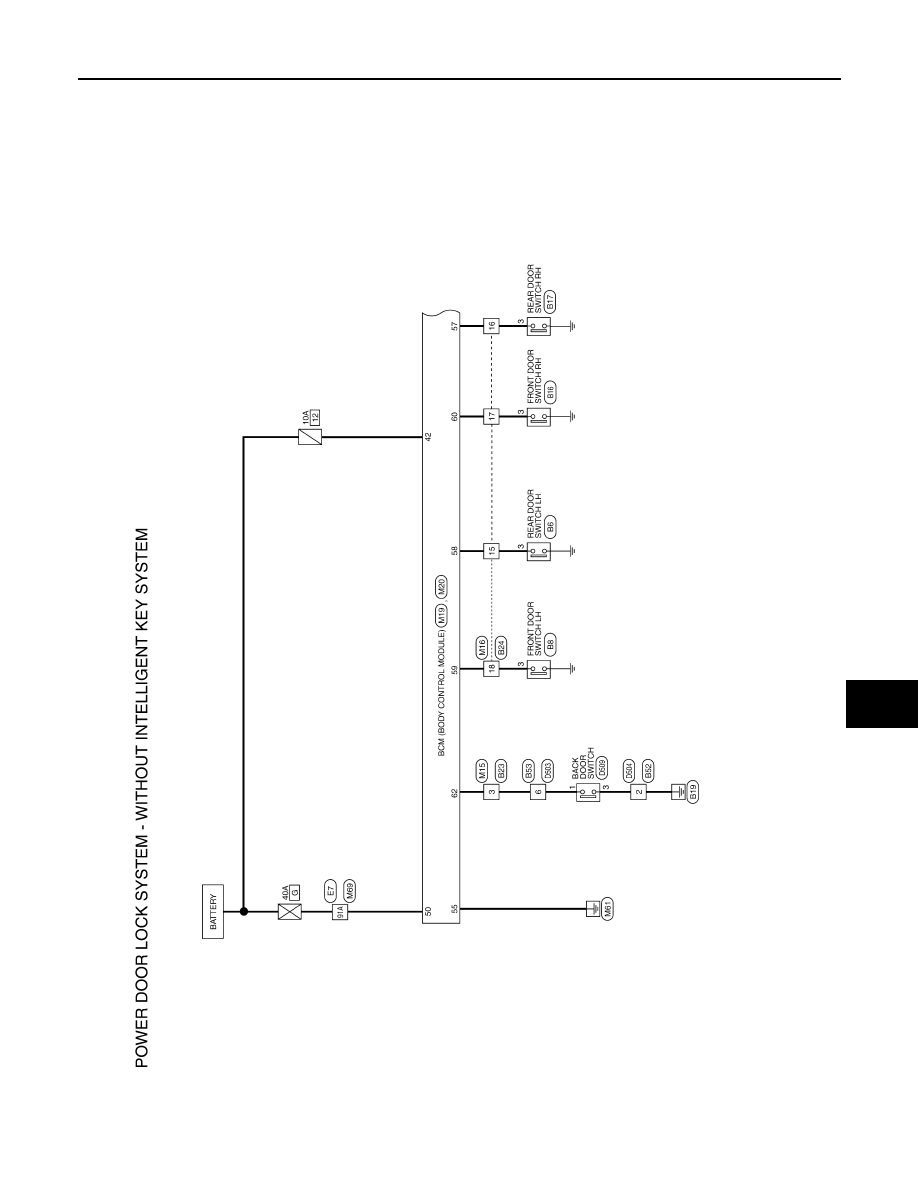

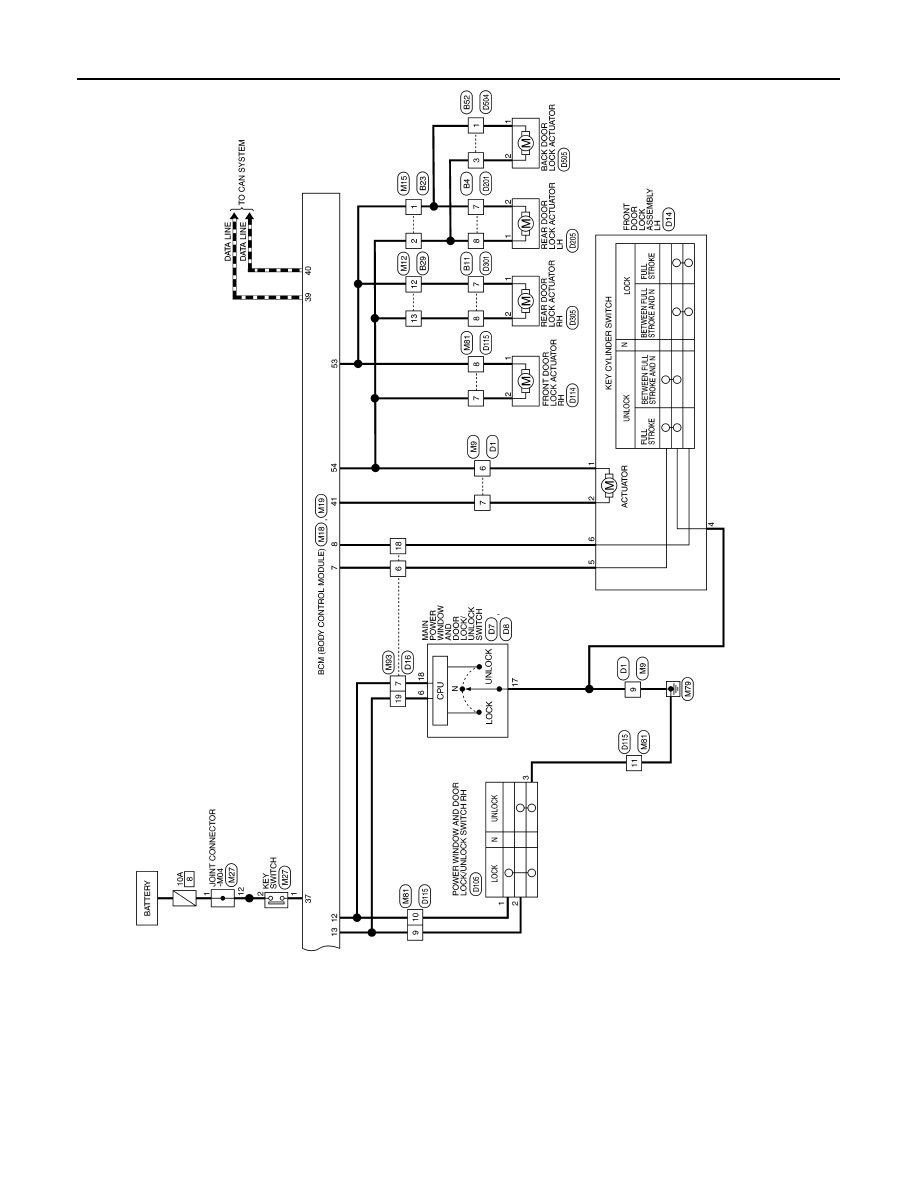

[WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
M
A
B
DLK
N
O
P
ACTIVE TEST
WORK SUPPORT
*: Initial setting
Monitor Item [Unit]
Description
IGN ON SW [On/Off]
Indicates condition of ignition switch ON position.
KEY ON SW [On/Off]
Indicates condition of key switch.
ACC ON SW [On/Off]
Indicates condition of ignition switch ACC position.
KEYLESS LOCK [On/Off]
Indicates condition of lock signal from keyfob.
KEYLESS UNLOCK [On/Off]
Indicates condition of unlock signal from keyfob.
DOOR SW-DR [On/Off]
Indicates condition of front door switch LH.
DOOR SW-AS [On/Off]
Indicates condition of front door switch RH.
DOOR SW-RR [On/Off]
Indicates condition of rear door switch RH.
DOOR SW-RL [On/Off]
Indicates condition of rear door switch LH.
DOOR SW-BK [On/Off]
Indicates condition of back door switch.
CDL LOCK SW [On/Off]
Indicates condition of lock signal from door lock and unlock switch.
CDL UNLOCK SW [On/Off]
Indicates condition of unlock signal from door lock and unlock switch.
KEYLESS PANIC [On/Off]
Indicates condition of panic signal from keyfob.
Test Item
Description
DOOR LOCK
This test is able to check door lock operation [/ALL ULK/ALL LCK].
INT LAMP
This test is able to check interior room lamp operation [On/Off].
FLASHER
This test is able to check hazard reminder operation [Off/LH/RH].
Support Item
Setting
Description
REMO CONT ID REGIST
—
Keyfob ID code can be registered.
REMO CONT ID ERASUR
—
Keyfob ID code can be erased.
REMO CONT ID CONFIR
—
Keyfob ID code registeration is displayed.
HORN CHIRP SET
Off
Horn chirp function can be changed in this mode.
On*
HAZARD LAMP SET
MODE4* Lock and Unlock
Hazard warning lamp function can be changed in this mode.
MODE3
Lock Only
MODE2
Unlock Only
MODE1
OFF
PANIC ALRM SET
MODE3
1.5 sec
Panic alarm operation can be changed in this mode.
MODE2
OFF
MODE1* 0.5 sec
AUTO LOCK SET
MODE7
5 min
Auto locking function can be changed in this mode.
MODE6
4 min
MODE5
3 min
MODE4
2 min
MODE3* 1 min
MODE2
30 sec
MODE1
OFF
