COMPONENT PARTS

DLK-189

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

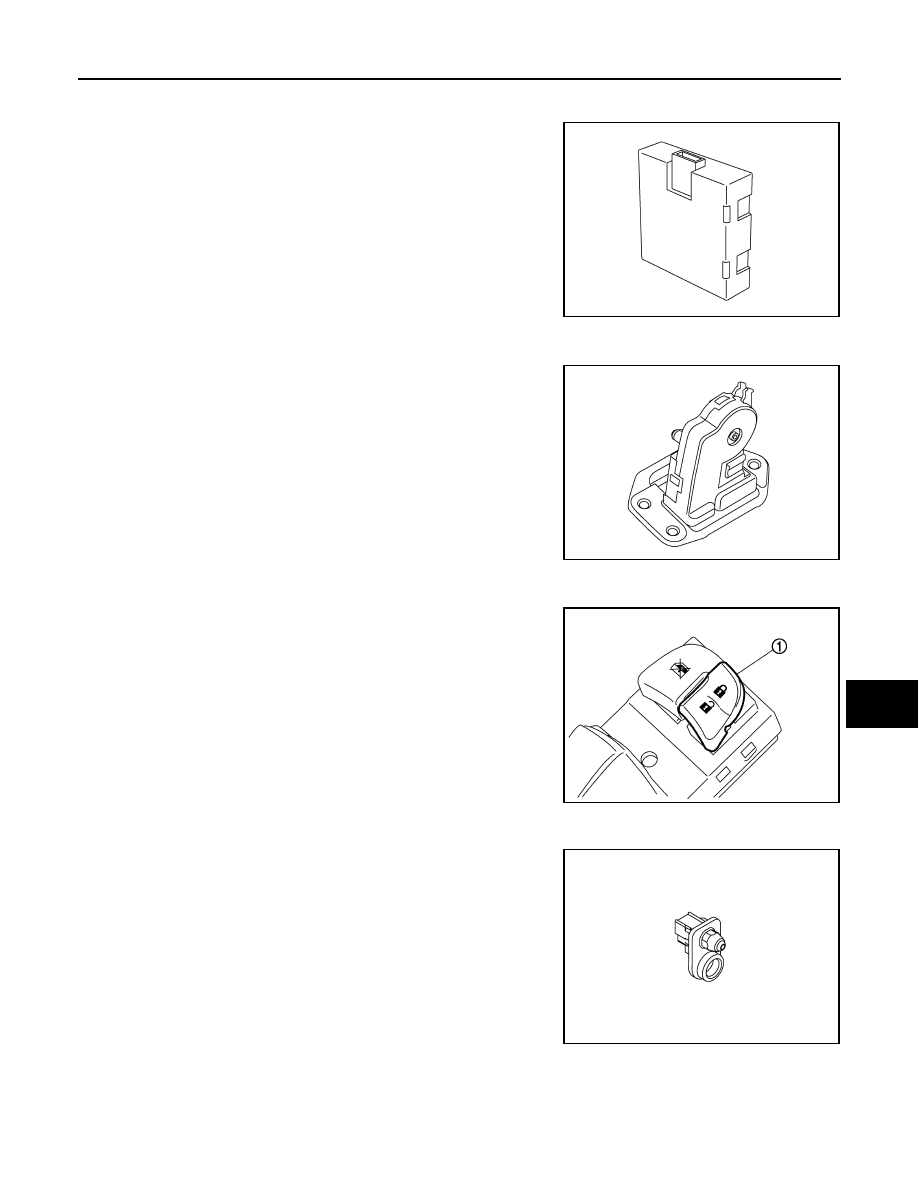

REMOTE KEYLESS ENTRY SYSTEM : Remote Keyless Entry Receiver

INFOID:0000000009681980

• Remote keyless entry receiver receives button operation signal

and key ID signal of Intelligent Key, and then transmits them to

BCM.

• Remote keyless entry receiver is installed in the rear of glove box

lid.

REMOTE KEYLESS ENTRY SYSTEM : Back Door Lock Assembly

INFOID:0000000009681981

• Back door lock assembly lock assembly integrates door lock actu-

ator and back door latch.

• Door lock actuator locks/unlocks the back door according to the

door lock/unlock signal from BCM.

REMOTE KEYLESS ENTRY SYSTEM : Door Lock and Unlock Switch

INFOID:0000000009681982

• Door lock and unlock switch transmits door lock/unlock signal

operation to BCM.

• Door lock and unlock switch (1) is integrated in the power window

main switch and front power window switch (passenger side).

REMOTE KEYLESS ENTRY SYSTEM : Door Switch

INFOID:0000000009681983

Door switch detects open/close status of door and transmits door

switch signal to BCM.

JMKIA8647ZZ

JMKIA8651ZZ

JMKIA9352ZZ

JMKIA6526ZZ

DLK-190

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

SYSTEM

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION

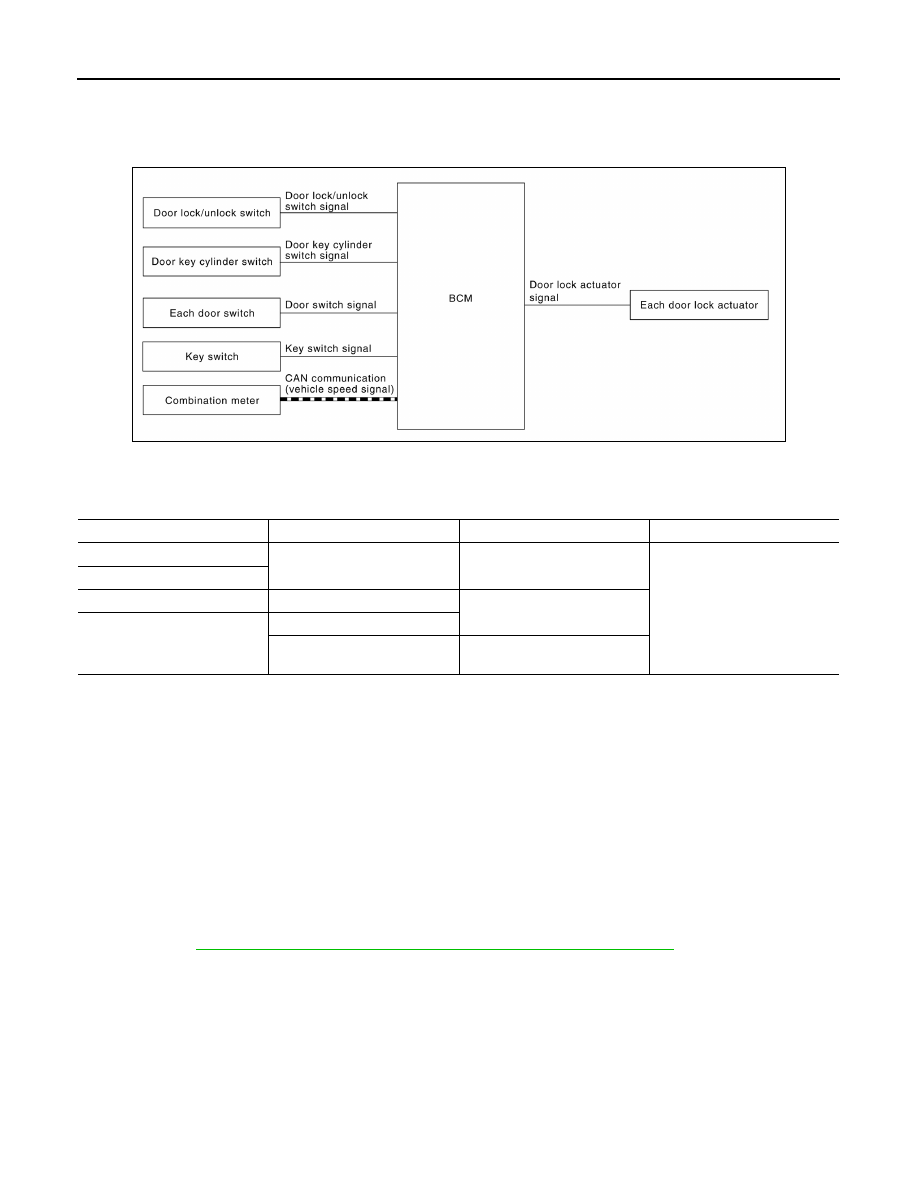

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION : System Diagram

INFOID:0000000009645351

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION : System Description

INFOID:0000000009645352

DOOR LOCK FUNCTION

• The door lock and unlock switch (driver side) is built into power window main switch.

• The door lock and unlock switch (passenger side) is on door trim.

• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors are

unlocked.

Door Key Cylinder

• With the door key inserted in the door key cylinder on driver side, turning it to “LOCK”, will lock door lock

actuator of all doors.

• With the door key inserted in the door key cylinder on driver side, turning it to “UNLOCK” once unlocks the

driver side door lock actuator; turning it to “UNLOCK” again within 60 seconds after the first unlock operation

unlocks all of the other doors. - (SELECTIVE UNLOCK OPERATION)

Selective unlock operation mode can be changed using “DOOR LOCK-UNLOCK SET” mode in “WORK SUP-

PORT”. Refer to

BCS-84, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

AUTOMATIC DOOR LOCKS (LOCK OPERATION)

The automatic door locks function is the function that locks all doors linked with the vehicle speed or shift posi-

tion.

Vehicle Speed Sensing Auto Door Lock

*1

All doors are locked when the vehicle speed reaches 24 km/h (15 MPH) or more.

BCM outputs the lock signal to all door lock actuators when it detects that the ignition switch is turned ON, all

doors are closed and the vehicle speed received from the combination meter via CAN communication

becomes 24 km/h (15 MPH) or more.

ALKIA2288GB

Input

Single

Function

Actuator

Door lock/unlock switch

Door lock/unlock signal

Door lock function

• Each door lock actuator

Door key cylinder switch

Each door switch

Door open/close signal

Key reminder function

Combination meter

Warning buzzer signal

Vehicle speed signal

Automatic door lock/unlock
function

SYSTEM

DLK-191

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

If a door is opened and closed at any time during one ignition cycle (OFF

→ ON), even after initial auto door

lock operation has taken place, the BCM will relock all doors when the vehicle speed reaches 24 km/h (15

MPH) or more again.

Setting change of Automatic Door Locks (LOCK) Function

The LOCK operation setting of the automatic door locks function can be changed.

With CONSULT

The ON/OFF switching of the automatic door locks (LOCK) function and the type selection of the automatic

door locks (LOCK) function can be performed at the WORK SUPPORT setting of CONSULT. Refer to

BCS-84,

"DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

Without CONSULT

The automatic door locks (LOCK) function can be switched ON/OFF by performing the following operation.
1. Close all doors (door switch OFF)
2. Push the ignition switch to the ON position
3. Press and hold the door lock and unlock switch for 5 seconds or more in the lock direction within 20 sec-

onds after turning the ignition switch ON.

4. The switching is completed when the hazard lamp blinks.

5. The ignition switch must be turned OFF and ON again between each setting change.

AUTOMATIC DOOR LOCKS (UNLOCK OPERATION)

The automatic door locks (UNLOCK) function is the function that unlocks all doors linked with the key position

or shift position.

IGN OFF Interlock Door Unlock

*1

All doors are unlocked when the power supply position is changed from ON to OFF.

BCM outputs the unlock signal to all door lock actuators when it detects that the power supply position is

changed from ignition switch ON to OFF.

Setting change of Automatic Door Locks (UNLOCK) Function

The UNLOCK operation setting of the automatic door locks function can be changed.

With CONSULT

The ON/OFF switching of the automatic door locks (UNLOCK) function and the type selection of the automatic

door locks (UNLOCK) function can be performed at the WORK SUPPORT setting of CONSULT. Refer to

BCS-

84, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

Without CONSULT

The automatic door locks (UNLOCK) function can be switched ON/OFF by performing the following operation.
1. Close all doors (door switch OFF)
2. Place the ignition switch in the ON position
3. Press and hold the door lock and unlock switch for 5 seconds or more in the unlock direction within 20

seconds after turning the power supply position ON.

4. The switching is completed when the hazard lamp blinks.

5. The ignition switch must be turned OFF and ON again between each setting change.

*1

: This function is set to ON before delivery.

POWER DOOR LOCK SYSTEM

OFF

→ ON

: 2 blinks

ON

→ OFF

: 1 blink

OFF

→ ON

: 2 blinks

ON

→ OFF

: 1 blink

DLK-192

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

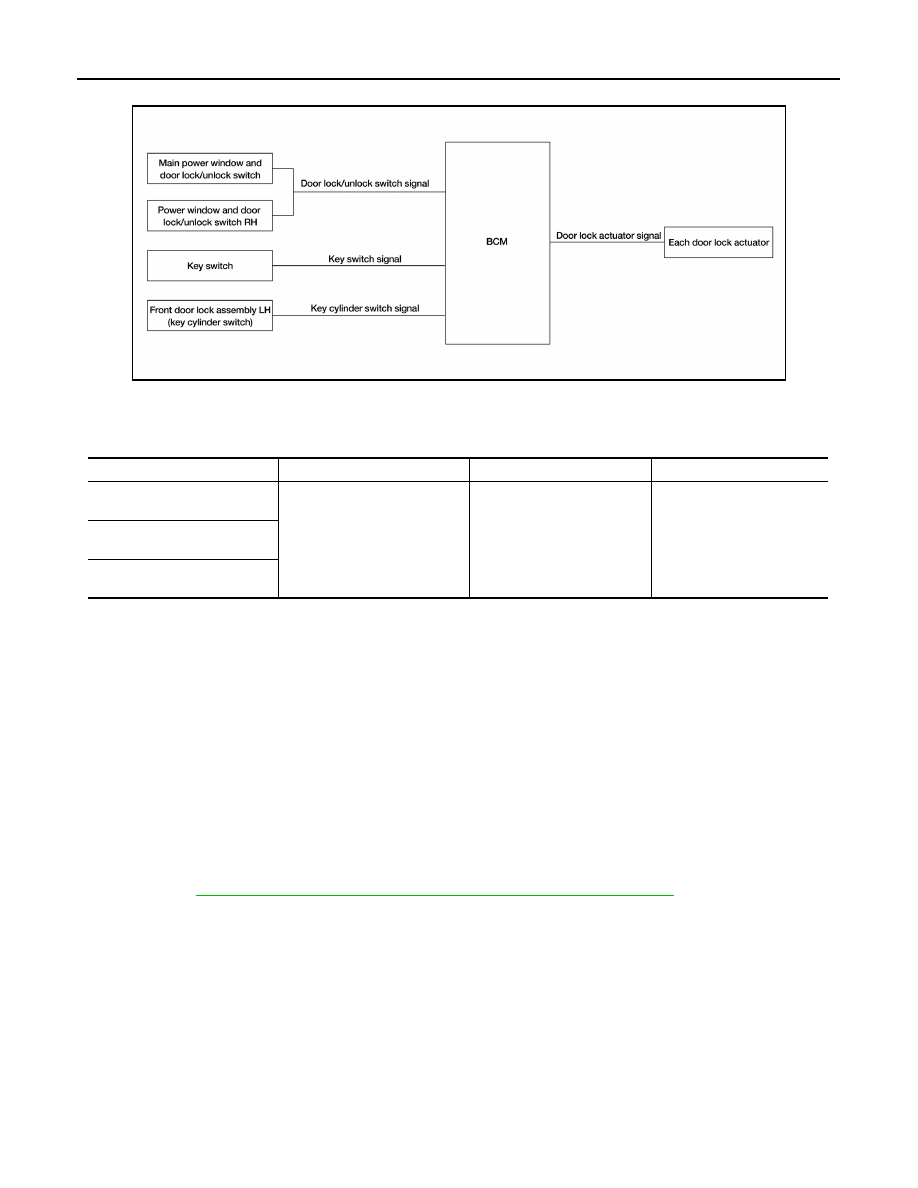

POWER DOOR LOCK SYSTEM : System Diagram

INFOID:0000000009645353

POWER DOOR LOCK SYSTEM : System Description

INFOID:0000000009645354

DOOR LOCK FUNCTION

Functions Available by Operating the Door Lock and Unlock Switches on Driver Door and Passenger Door

• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all door lock

actuators are locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all door lock

actuators are unlocked.

Functions Available by Operating the Key Cylinder Switch on Driver Door

• Interlocked with the locking operation of door key cylinder, door lock actuators of all door lock actuators are

locked.

Selective Unlock Operation

• When door key cylinder is unlocked, door lock actuator driver side is unlocked.

• When door key cylinder is unlocked for the second time within 5 seconds after the first operation, door lock

actuators on all doors are unlocked.

Select unlock operation mode can be changed using DOOR LOCK-UNLOCK SET mode in “WORK SUP-

PORT”. Refer to

BCS-84, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

REMOTE KEYLESS ENTRY SYSTEM

ALKIA2289GB

Switch

Input/output signal to BCM

BCM function

Actuator

Main power window and door
lock/unlock switch

Door lock/unlock signal

Door lock/unlock control

Door lock actuator

Power window and door lock/
unlock switch RH

Front door lock key cylinder
switch LH
