PREPARATION

DLK-185

< PREPARATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

PREPARATION

Special Service Tools

INFOID:0000000009645148

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

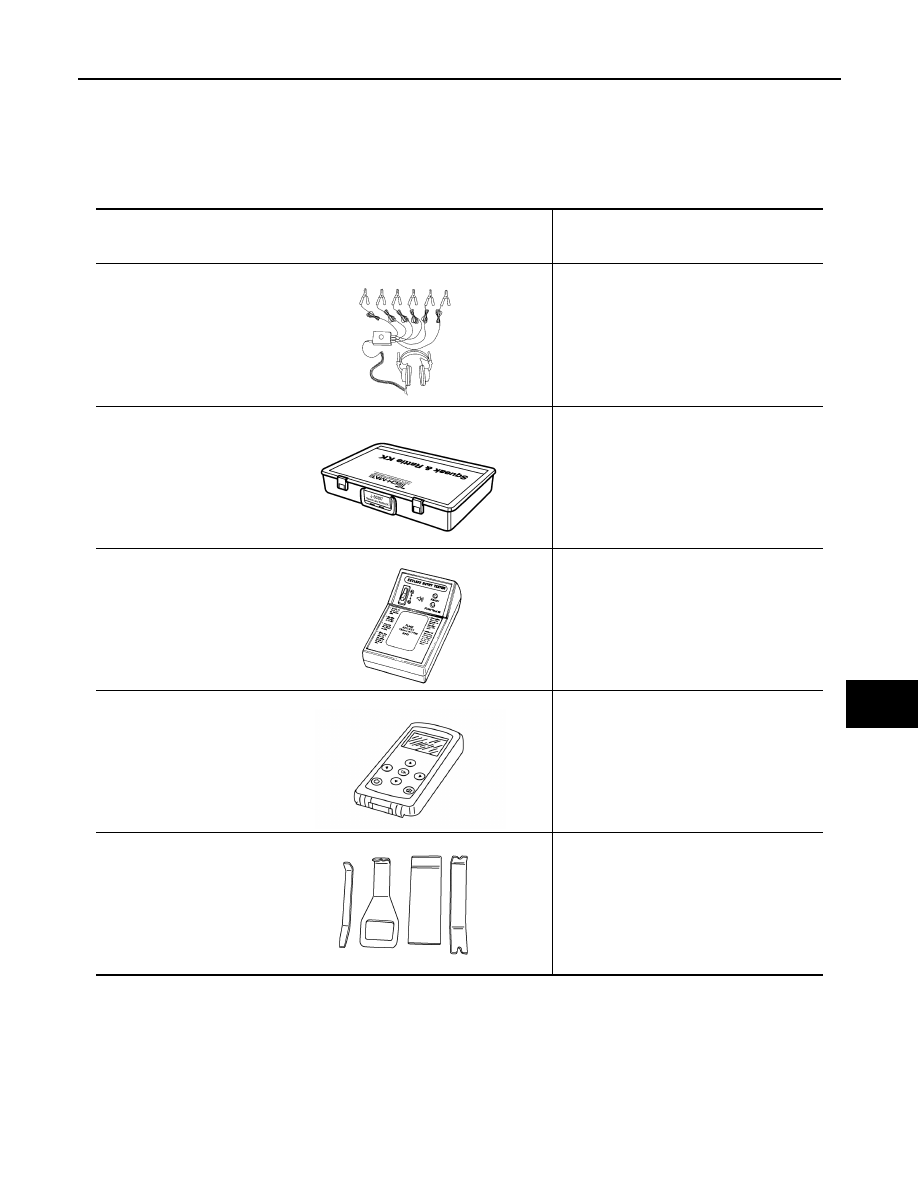

Commercial Service Tools

INFOID:0000000009645149

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis Ear

Locating the noise

—

(J-50397)
NISSAN Squeak and Rat-
tle Kit

Repairing the cause of noise

—

(J-43241)
Remote Keyless Entry
Tester

Used to test keyfobs

—

(J-50190)
Signal Tech II

• Activate and display TPMS transmitter

IDs

• Display tire pressure reported by the

TPMS transmitter

• Read TPMS DTCs
• Register TPMS transmitter IDs

—

(J-46534)
Trim Tool Set

Removing trim components

SIIA0993E

ALJIA1232ZZ

LEL946A

ALEIA0131ZZ

AWJIA0483ZZ

DLK-186

< PREPARATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

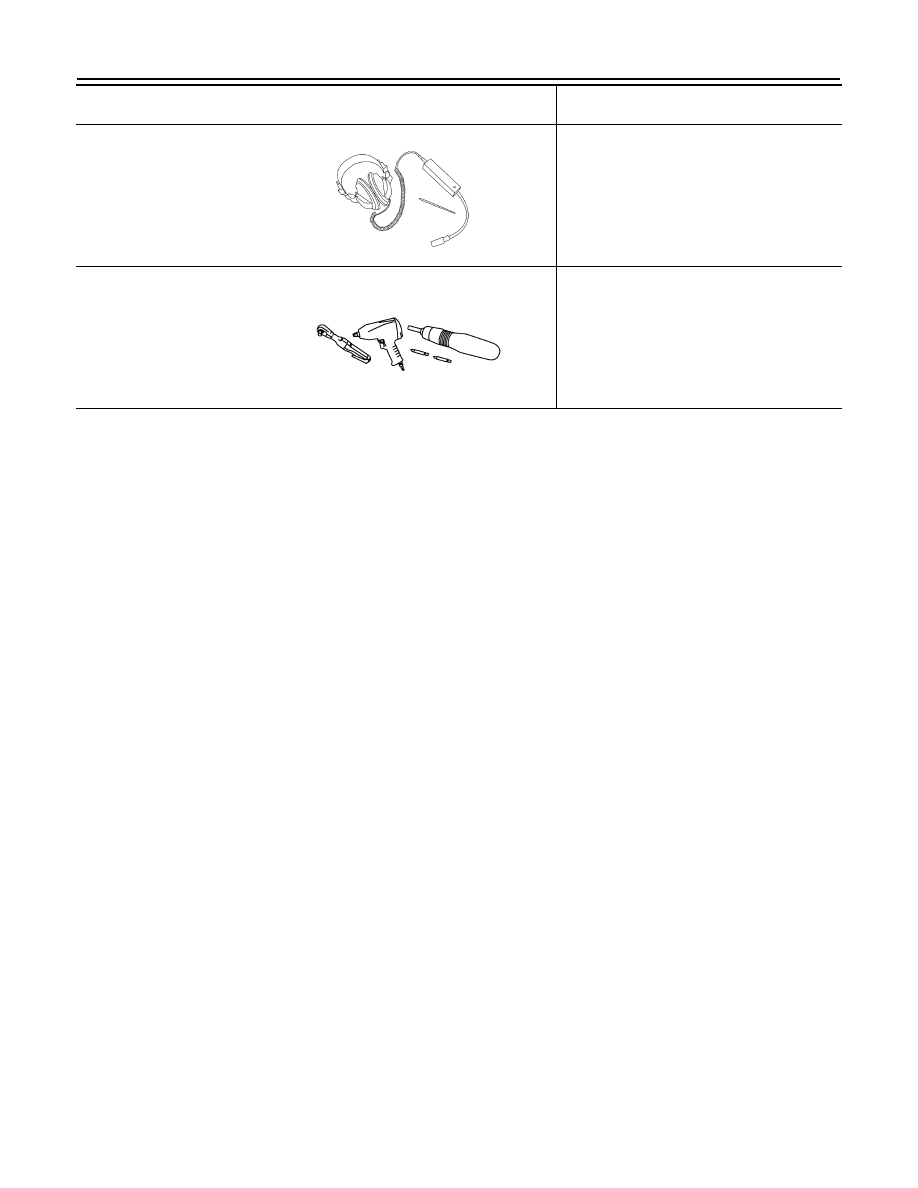

PREPARATION

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine Ear

Locating the noise

( — )
Power Tool

Loosening nuts, screws and bolts

SIIA0995E

PIIB1407E

COMPONENT PARTS

DLK-187

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DLK

SYSTEM DESCRIPTION

COMPONENT PARTS

REMOTE KEYLESS ENTRY SYSTEM

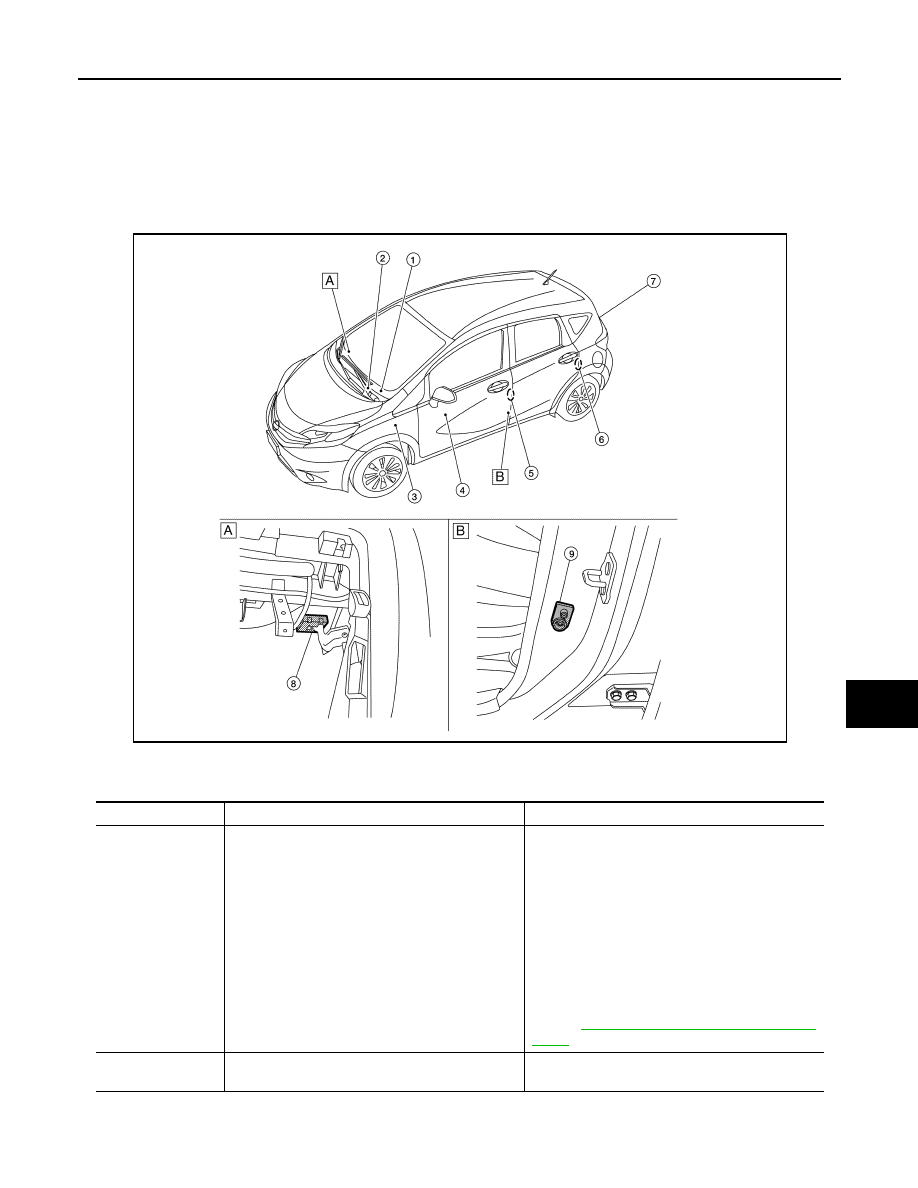

REMOTE KEYLESS ENTRY SYSTEM : Component Parts Location

INFOID:0000000009645349

View with glove box door removed

View of LH door switch (RH similar)

No.

Component

Function

Combination meter

Combination meter transmits the vehicle speed sig-
nal to BCM via CAN communication.
BCM also receives the vehicle speed signal from
ABS actuator and electric unit (control unit) via CAN
communication. BCM compares both signals to de-
tect the vehicle speed.
Security indicator lamp is located on combination
meter.
Security indicator lamp blinks when ignition switch
is in any position other than ON to warn that NIS-
SAN VEHICLE IMMOBILIZER SYSTEM-NATS
[NVIS (NATS)] is on board.
Refer to

MWI-6, "METER SYSTEM : Combination

Meter"

Ignition switch

Ignition switch transmits ON/OFF signal to BCM.
BCM maintains the ignition switch position status.

ALKIA3211ZZ

DLK-188

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

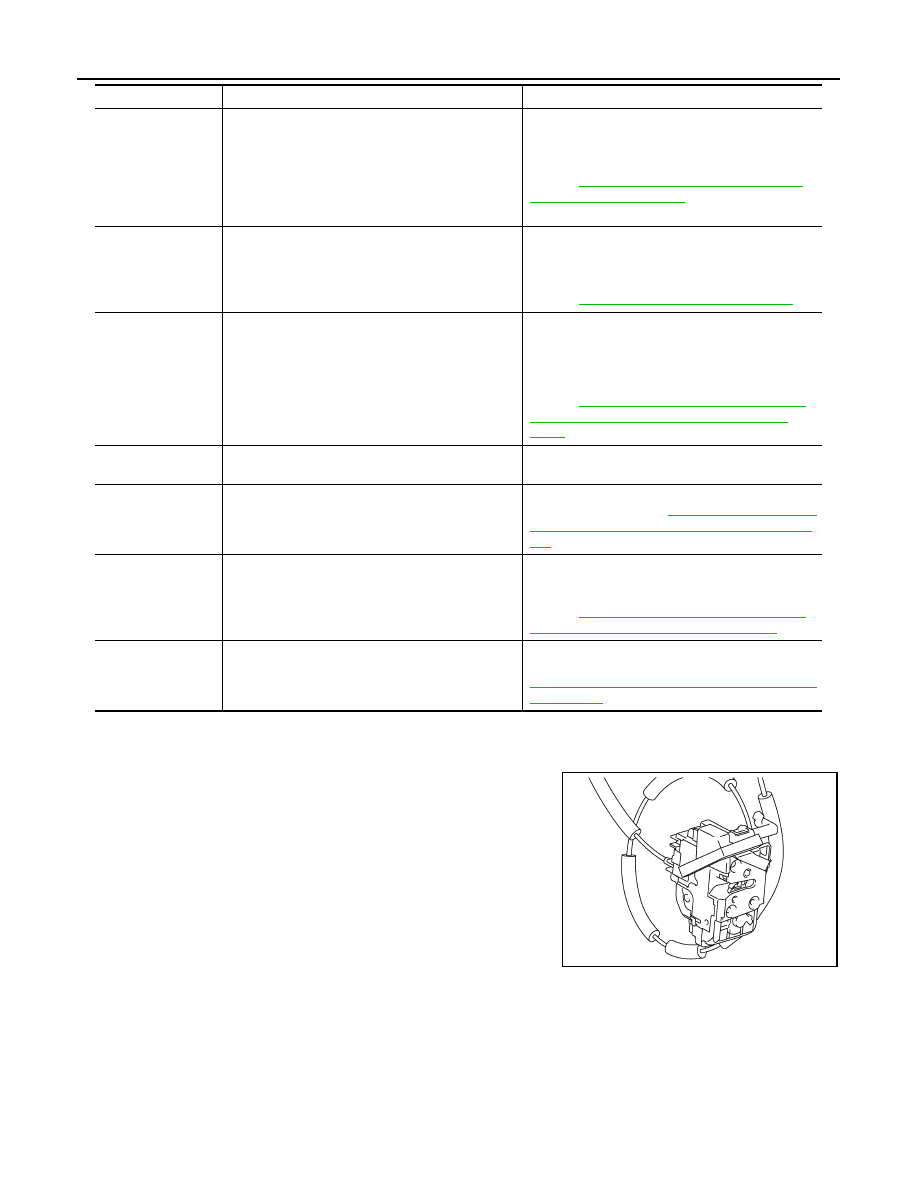

REMOTE KEYLESS ENTRY SYSTEM : Front Door Lock Assembly (Driver Side)

INFOID:0000000009681979

• Door lock actuator and unlock sensor are Integrated in driver door

lock assembly.

• Door lock actuator receives lock/unlock signal from BCM, and then

locks/unlocks driver door.

• Only front door lock assembly (driver side) integrates unlock sen-

sor. Unlock sensor transmits lock/unlock status of driver seat to

BCM.

BCM

Then, when the ignition switch is turned ON, BCM
performs ID verification between BCM and ECM. If
the ID verification result is OK, ECM can start en-
gine.
Refer to

BCS-73, "BODY CONTROL SYSTEM :

Component Parts Location"

for detailed installation

location.

Main power window and door lock/unlock switch

Door lock and unlock switch is integrated into the
power window main switch.
Door lock and unlock switch transmits door lock/un-
lock operation signal to BCM.
Refer to

PWC-7, "Power Window Main Switch"

Front door lock assembly LH

Door key cylinder switch is integrated into front door
lock assembly (driver side).
Door key cylinder switch detects door LOCK/UN-
LOCK operation using mechanical key, and then
transmits the operation signal to BCM.
Refer to

DLK-188, "REMOTE KEYLESS ENTRY

SYSTEM : Front Door Lock Assembly (Driver
Side)"

Rear door lock actuator LH

Rear door lock actuator locks/unlocks the rear door
latch assembly.

Back door lock actuator

Back door lock actuator locks/unlocks the back door
latch assembly. Refer to

DLK-189, "REMOTE KEY-

LESS ENTRY SYSTEM : Back Door Lock Assem-
bly"

Remote keyless entry receiver

Remote keyless entry receiver receives button op-
eration signal and key ID signal of Intelligent Key,
and them transmits them to the BCM.
Refer to

DLK-189, "REMOTE KEYLESS ENTRY

SYSTEM : Remote Keyless Entry Receiver"
