RADIATOR CORE SUPPORT

DLK-141

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

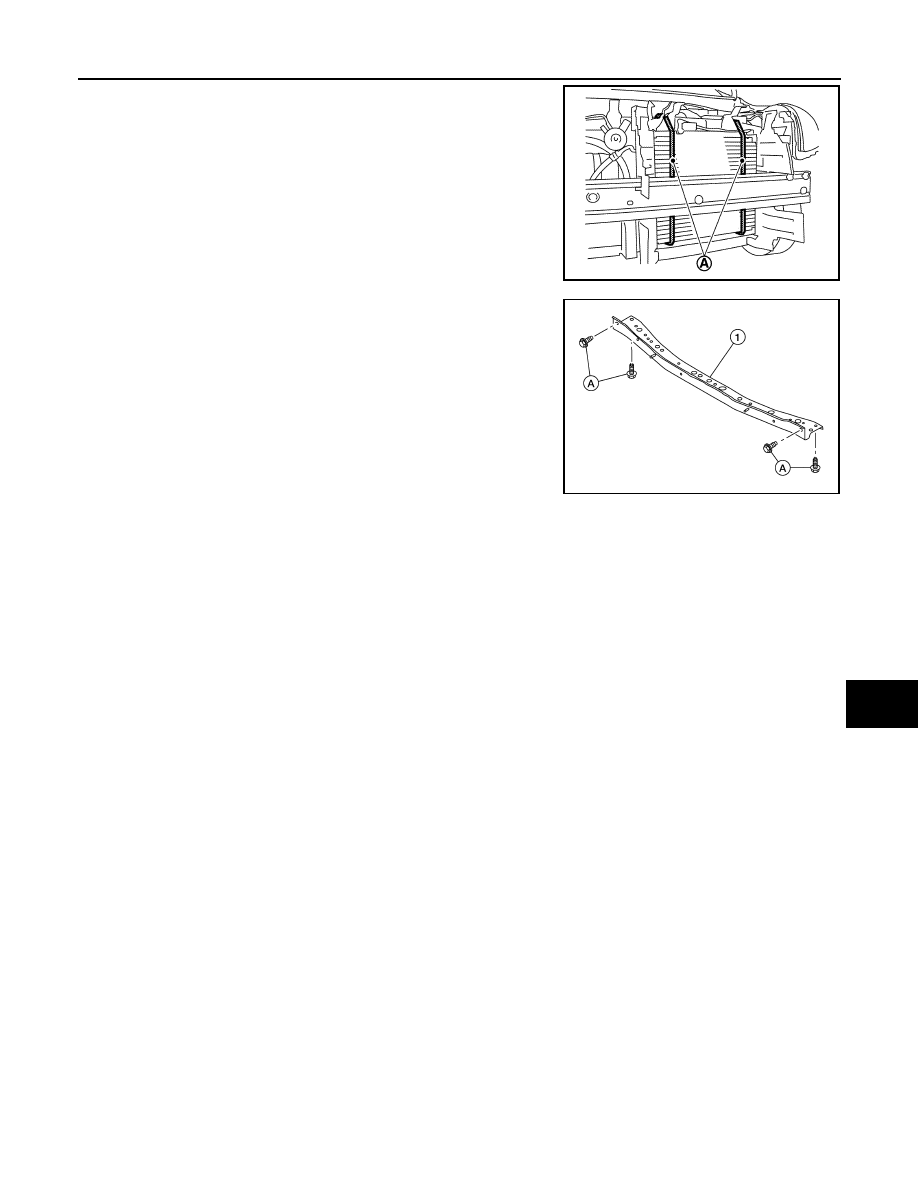

3. Using a suitable tool (A), suspend radiator and condenser to

prevent them from falling.

CAUTION:

Use care to avoid damaging radiator and condenser.

4. Remove bolts (A) and radiator core support lower (1).

INSTALLATION

Installation is in the reverse order of removal.

JMKIA8030ZZ

ALKIA3181ZZ

DLK-142

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FRONT FENDER

FRONT FENDER

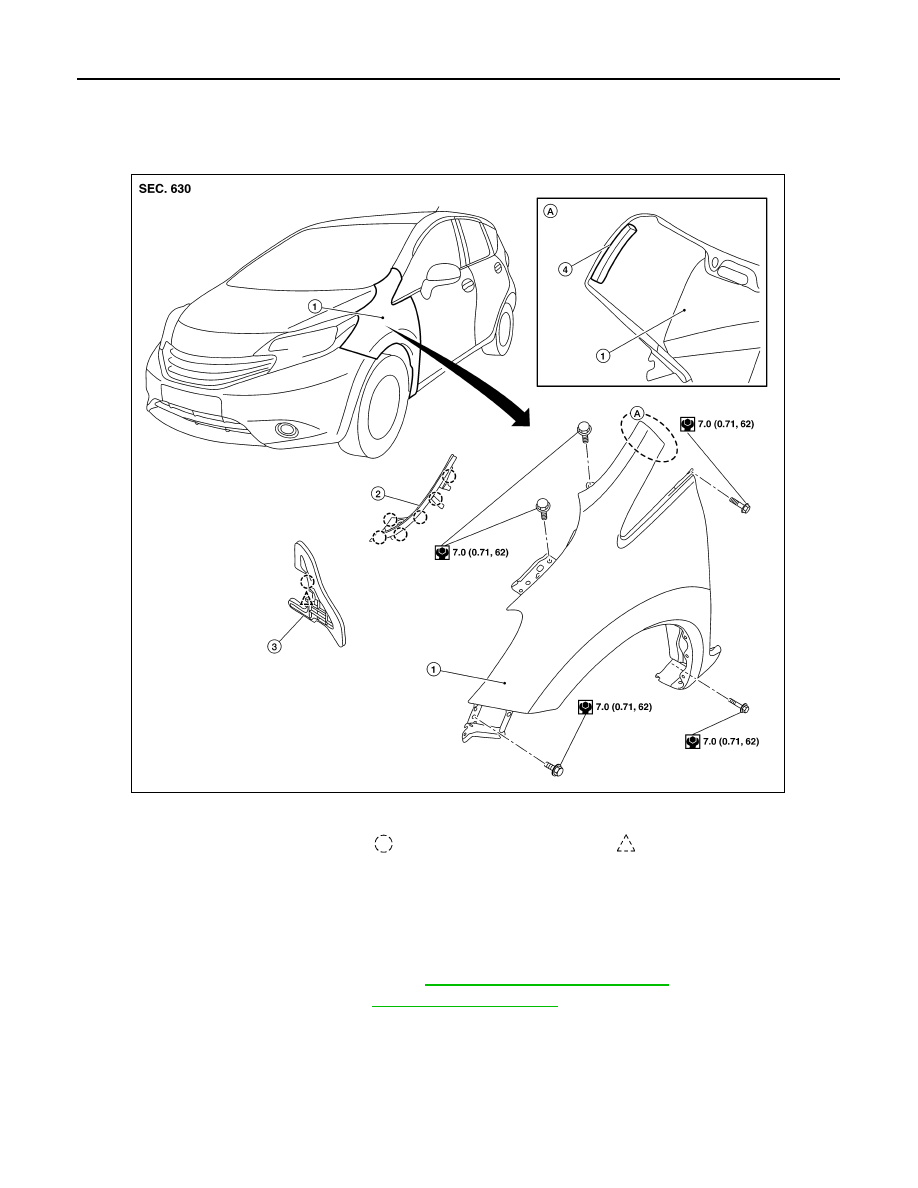

Exploded View

INFOID:0000000008969440

Removal and Installation

INFOID:0000000009486664

CAUTION:

Use a shop cloths to protect the body from being damaged during removal and installation.

REMOVAL

1. Remove the front combination lamp. Refer to

EXL-99, "Removal and Installation"

.

2. Remove cowl top side cover. Refer to

DLK-142, "Exploded View"

.

3. Remove front fender bolts.

1.

Front fender

2.

Cowl top side cover

3.

Front fender insulator

4.

Front fender stiffener

Pawl

Clip

AWKIA2569ZZ

FRONT FENDER

DLK-143

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4. Remove front fender stiffener (2) by carefully pulling upper por-

tion of front fender (1) away from body.

: Front

CAUTION:

Use care when removing the front fender. The front fender

stiffener foam adheres the front fender to the body. Care-

fully release the stiffener foam or damage to front fender

may occur.

5. Remove front fender.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, apply touch-up paint (body color) to the head of front fender bolts.

• After installation, adjust the following components as necessary:

- Hood assembly: Refer to

DLK-136, "HOOD ASSEMBLY : Adjustment"

.

- Front door assembly: Refer to

DLK-145, "DOOR ASSEMBLY : Adjustment"

.

JMKIA5633ZZ

DLK-144

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR

FRONT DOOR

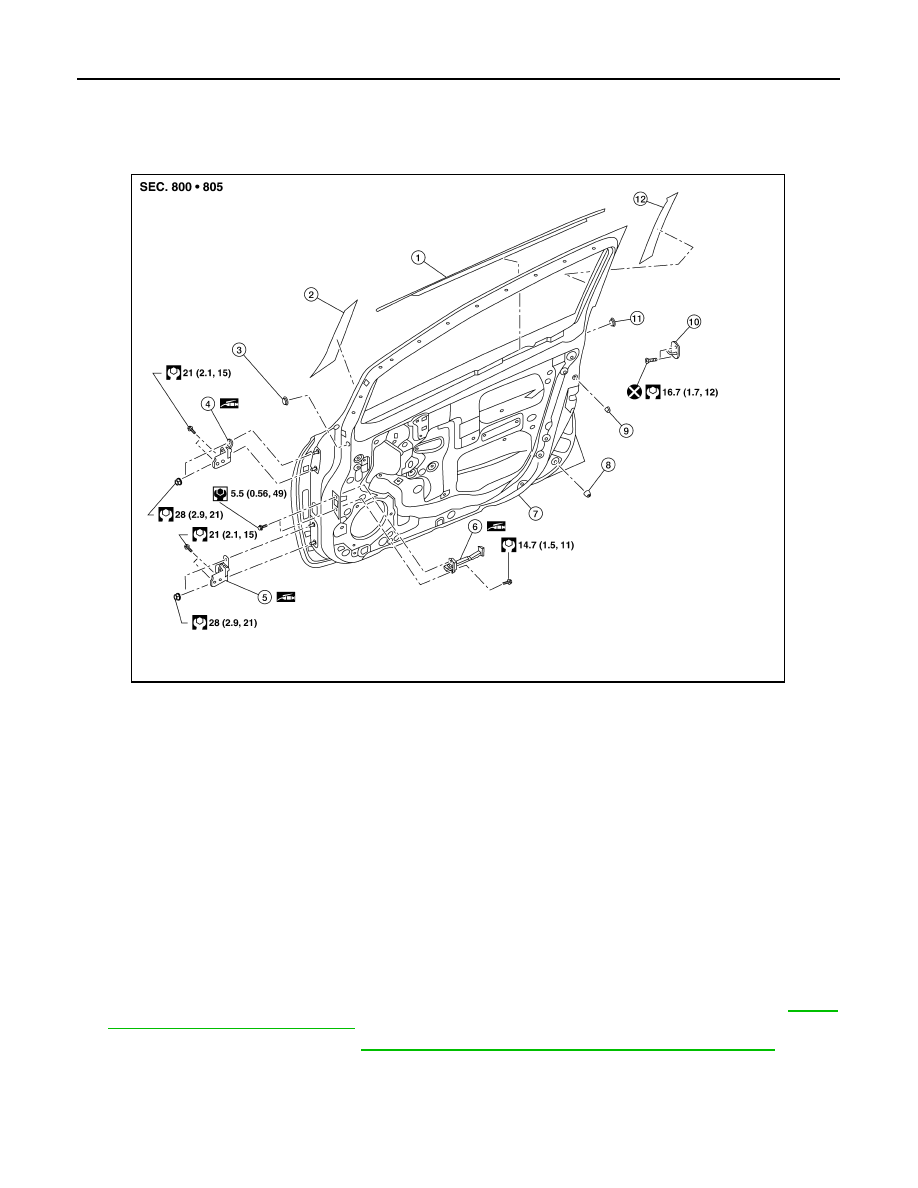

Exploded View

INFOID:0000000008969441

DOOR ASSEMBLY
DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009486665

CAUTION:

• Use two people when removing or installing front door due to its heavy weight

• When removing and installing front door assembly, support the door using a suitable tool.

• Do not use air tools or electric tools for servicing.

• Before servicing, turn ignition switch off, disconnect both battery terminals and wait at least three

minutes.

REMOVAL

1. Disconnect the battery positive and negative terminals and wait at least three minutes. Refer to

PG-67,

"Removal and Installation (Battery)"

.

2. Remove dash side finisher. Refer to

INT-24, "DASH SIDE FINISHER : Removal and Installation"

.

3. Disconnect the harness connectors from the front door.
4. Remove door check link bolt (body side).
5. Remove door hinge nuts (door side) and front door assembly.

INSTALLATION

1.

Inside seal

2.

Door sash front tape

3.

Grommet (driver side only)

4.

Door upper hinge

5.

Door lower hinge

6.

Door check link

7.

Front door panel

8.

Lower grommet

9.

Upper grommet

10. Door striker

11. Body panel plug

12. Door sash rear tape

AWKIA2492ZZ
