SQUEAK AND RATTLE TROUBLE DIAGNOSES

DLK-133

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

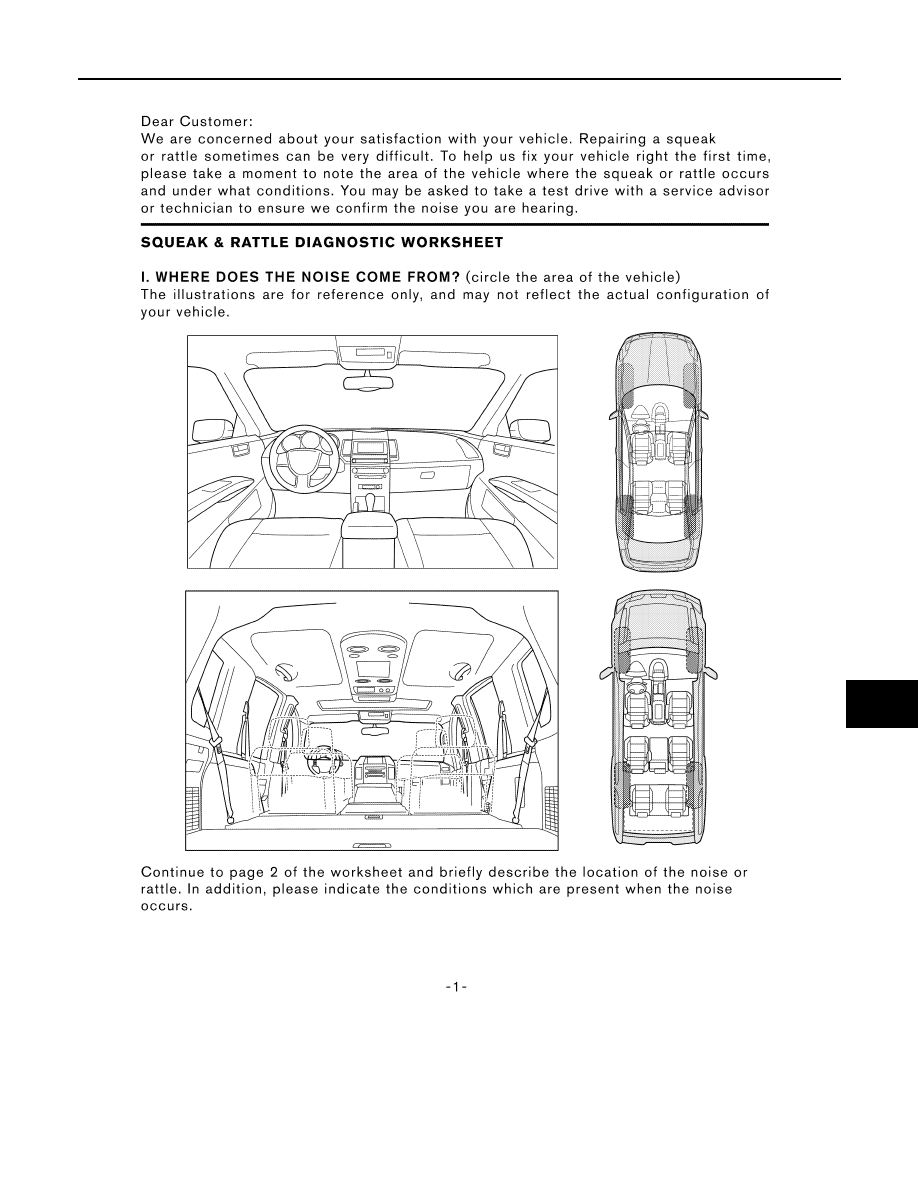

Diagnostic Worksheet

INFOID:0000000009671281

LAIA0072E

DLK-134

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

SQUEAK AND RATTLE TROUBLE DIAGNOSES

LAIA0071E

HOOD

DLK-135

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOVAL AND INSTALLATION

HOOD

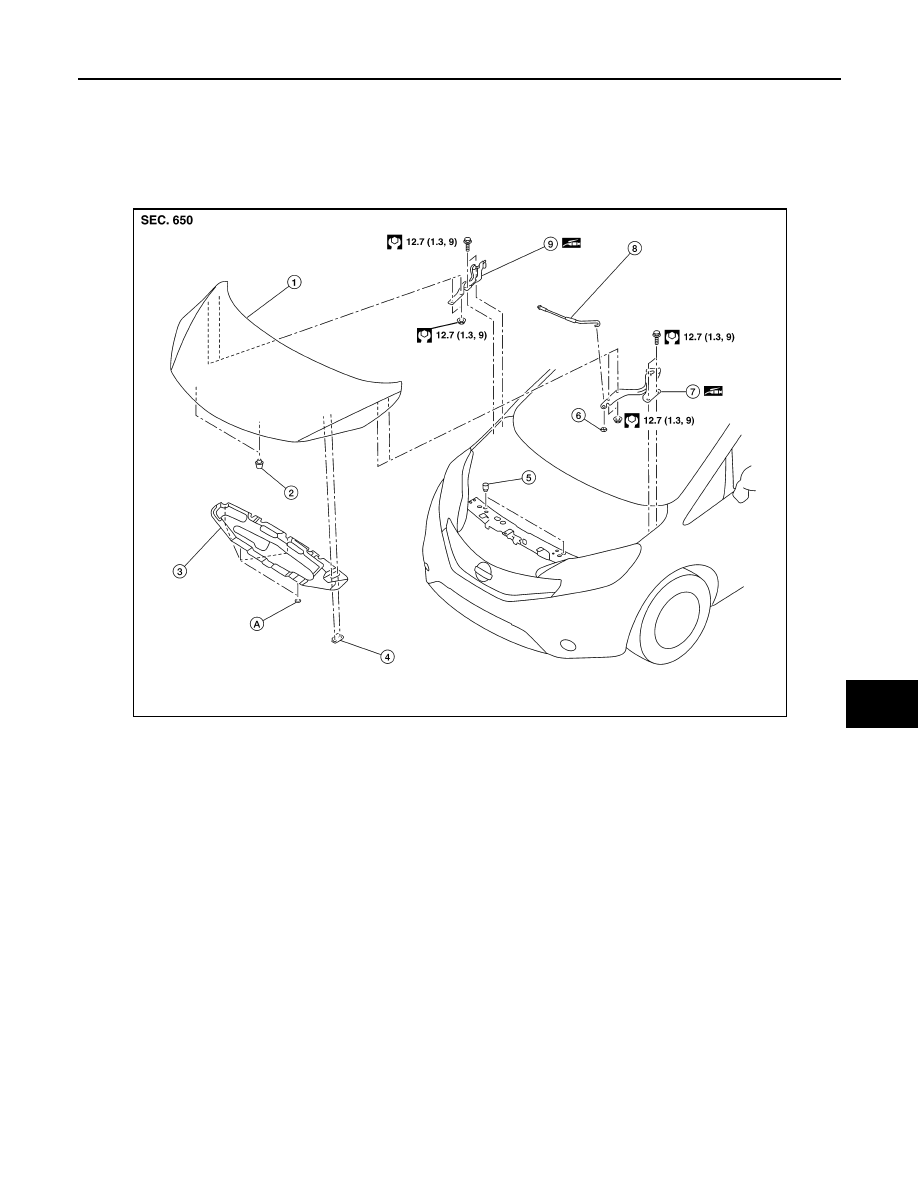

Exploded View

INFOID:0000000008969436

HOOD ASSEMBLY
HOOD ASSEMBLY : Removal and Installation

INFOID:0000000009486657

CAUTION:

• Use two people when removing or installing hood assembly due to its heavy weight.

• Use protective tape or shop cloths to protect surrounding components from damage during removal

and installation of hood assembly.

REMOVAL

1. Support hood assembly using a suitable tool.

WARNING:

Bodily injury may occur if hood assembly is not supported properly when removing hood assem-

bly.

2. Remove hood hinge nuts and hood assembly.
3. Remove clips and hood insulator (if necessary).

INSTALLATION

1.

Hood

2.

Bumper rubber (hood side)

3.

Hood insulator

4.

Hood rod clamp

5.

Bumper rubber (body side)

6.

Hood rod grommet

7.

Hood hinge (LH)

8.

Hood support rod

9.

Hood hinge (RH)

A.

Hood insulator clip

AWKIA2564ZZ

DLK-136

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

HOOD

Installation is in the reverse order of removal.

CAUTION:

• Before installing hood assembly, apply anticorrosive agent to the surface of hood hinge.

• After installation, perform the hood assembly adjustment procedure. Refer to

DLK-136, "HOOD

ASSEMBLY : Adjustment"

.

• After installation, apply touch-up paint (body color) to the head of hood hinge nuts.

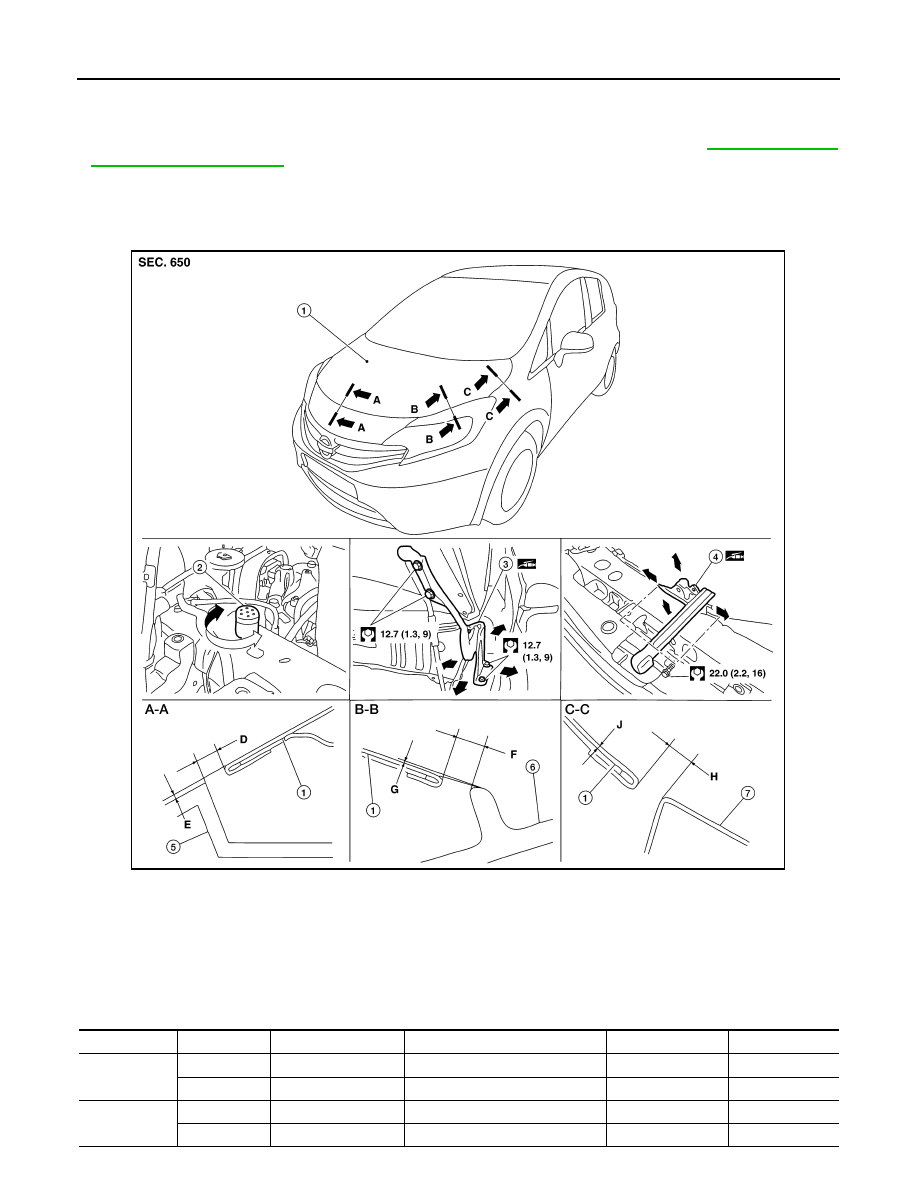

HOOD ASSEMBLY : Adjustment

INFOID:0000000009486658

Check the clearance and the surface height between hood and each part by visual inspection and tactile feel.

If the clearance and the surface height are out of specification, adjust them according to the adjustment proce-

dure.

Unit: mm (in)

1.

Hood assembly

2.

Bumper rubber (body side)

3.

Hood hinge (LH)

4.

Hood lock

5.

Front grille finisher

6.

Front combination lamp

7.

Front fender

AWKIA2565ZZ

Section

Item

Measurement

Standard

Parallelism

Equality

A – A

D

Clearance

4.4

± 2.0 (0.17 ± 0.08)

2.0 (0.08)

—

E

Surface height

-0.5 +2.0, -1.5 (0.02 +0.08, -0.06)

2.0 (0.08)

—

B – B

F

Clearance

4.0

± 2.0 (0.16 ± 0.08)

2.0 (0.08)

3.0 (0.12)

G

Surface height

—

—

—
