Nissan Versa Note. Manual - part 204
REMOTE KEYLESS ENTRY RECEIVER
DLK-101
< DTC/CIRCUIT DIAGNOSIS >
[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
M
A
B
DLK
N
O
P
REMOTE KEYLESS ENTRY RECEIVER
Component Function Check
INFOID:0000000009645329
1.
CHECK FUNCTION
1. Select “INTELLIGENT KEY” of “BCM” using CONSULT.
2. Select “RKE OPE COUN1” in “DATA MONITOR” mode.
3. Check that the function operates normally according to the following conditions.
Is the inspection result normal?
YES
>> Remote keyless entry receiver is OK.
NO for USA >>Refer to
DLK-101, "Diagnosis Procedure (For USA)"
.
NO for Canada>>Refer to
DLK-102, "Diagnosis Procedure (For Canada)"
.

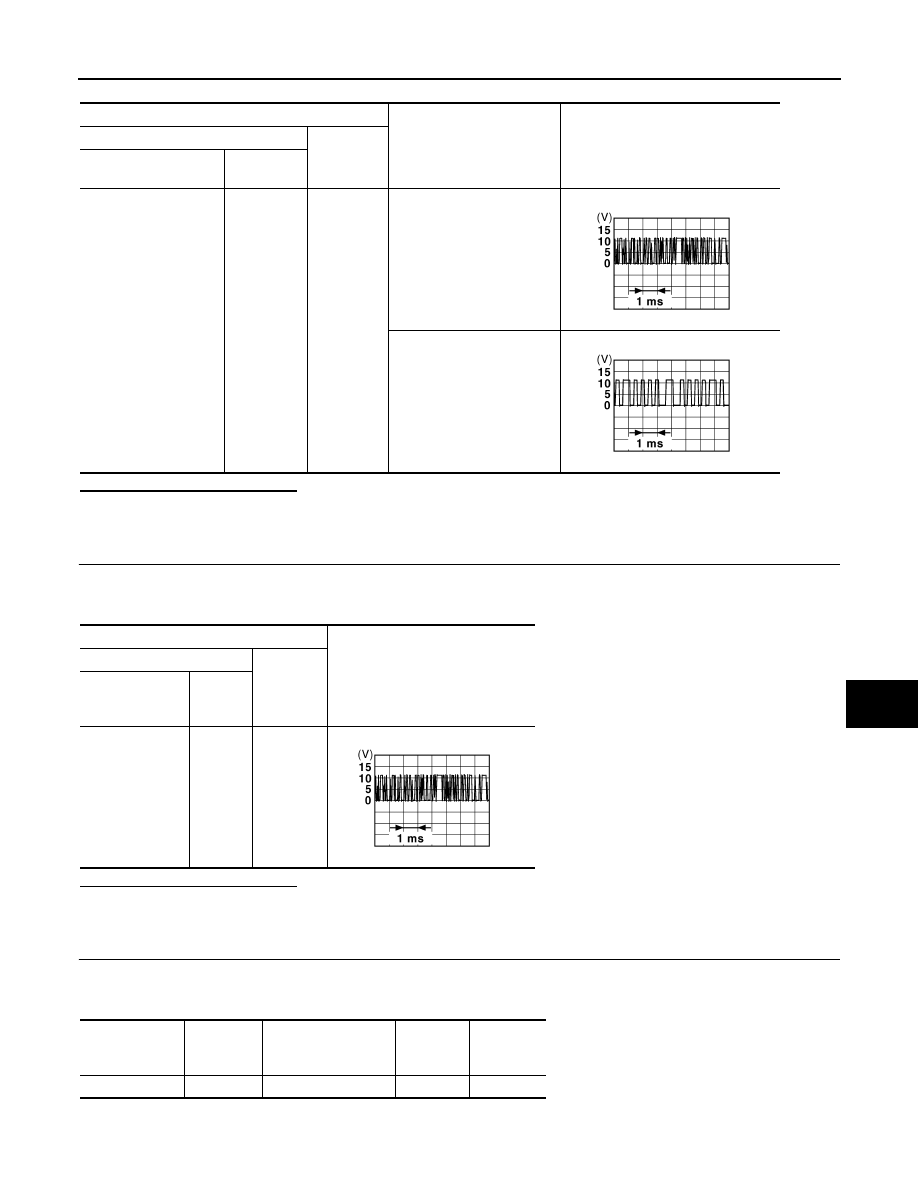

Diagnosis Procedure (For USA)
INFOID:0000000009645330
Regarding Wiring Diagram information, refer to
DLK-36, "INTELLIGENT KEY SYSTEM : Wiring Diagram"
.
1.
CHECK REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Check signal between BCM harness connector and ground.
Is the inspection result normal?
YES
>> Replace BCM. Refer to
BCS-70, "Removal and Installation"
NO
>> GO TO 2.
2.
CHECK REMOTE KEYLESS ENTRY RECEIVER CIRCUIT 1
1. Disconnect BCM and remote keyless entry receiver connectors.
2. Check continuity between BCM harness connector and remote keyless entry receiver harness connector.
3. Check continuity between BCM harness connector and ground.
Is the inspection result normal?
YES
>> GO TO 3.
Monitor item
Condition
RKE OPE COUN1
Checks whether value changes when operating Intelligent Key
(+)
(–)
Condition
Signal
(Reference value)
BCM
Connector
Terminal
M97
38
Ground
Push button ignition
ON
0-.5 Volt
Push button ignition
OFF or ACC
Battery voltage
BCM
Remote keyless entry receiver
Continuity
Connector
Terminal
Connector
Terminal
M97
38
M94
2
Yes
(+)
(–)
Continuity
BCM
Connector
Terminal
M97
38
Ground
No
