DOOR SWITCH

DLK-97

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

YES

>> Inspection End.

NO

>> Replace malfunction door switch.

DLK-98

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

HAZARD FUNCTION

HAZARD FUNCTION

Component Function Check

INFOID:0000000009645323

1.

CHECK FUNCTION

1. Select INTELLIGENT KEY of BCM using CONSULT.

2. Select FLASHER in ACTIVE TEST mode.

3. Touch LH or RH to check that it works normally.
Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

DLK-98, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009645324

1.

CHECK HAZARD SWITCH CIRCUIT

Refer to

DLK-98, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

INTELLIGENT KEY

DLK-99

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY

Component Function Check

INFOID:0000000009645325

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Check Intelligent Key relative signal strength.

• Confirm vehicle Intelligent Key antenna signal strength.

1.

CHECK FUNCTION

1. Select “INTELLIGENT KEY” of “BCM” using CONSULT.

2. Select “RKE OPE COUN1” in “DATA MONITOR” mode.

3. Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Intelligent Key is OK.

NO

>> Refer to

DLK-99, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009645326

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Check Intelligent Key relative signal strength.

• Confirm vehicle Intelligent Key antenna signal strength.

1.

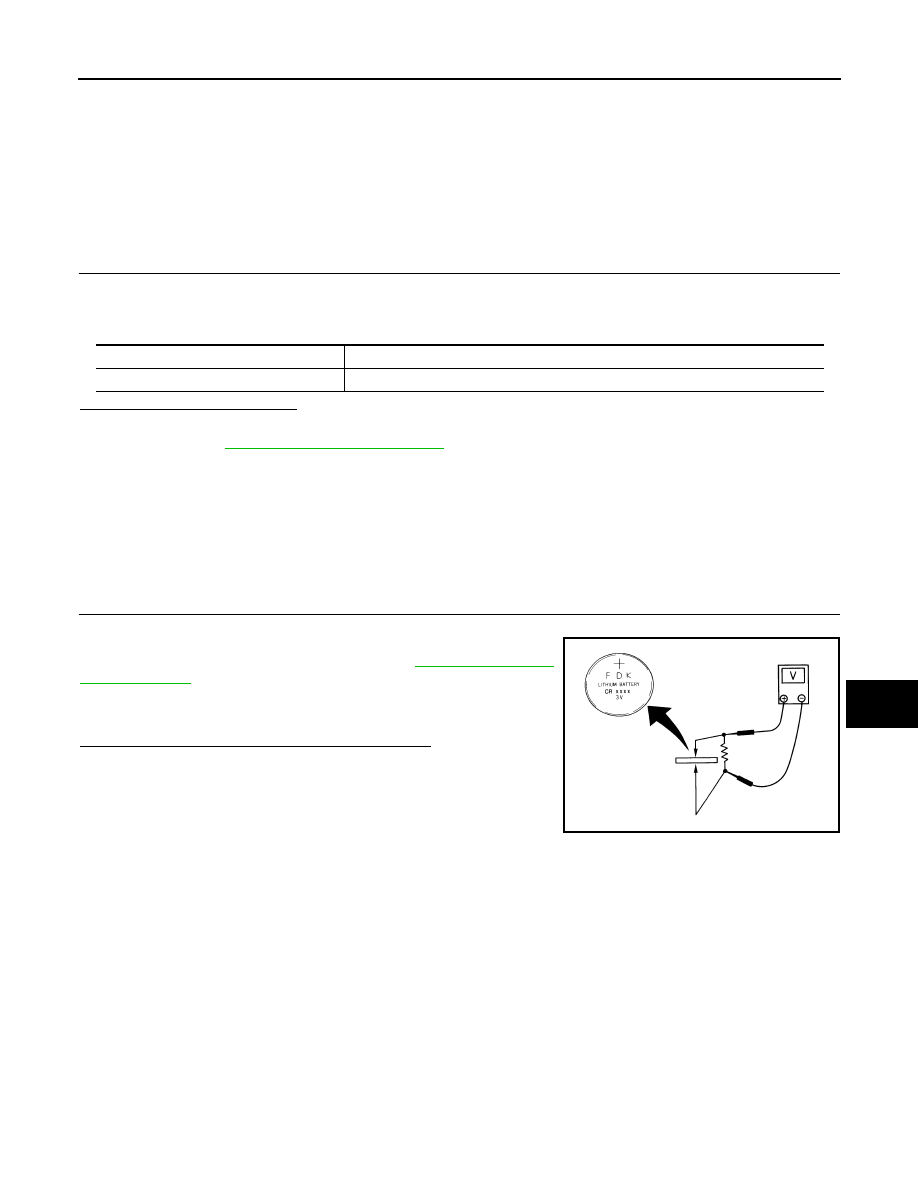

CHECK INTELLIGENT KEY BATTERY

Check by connecting a resistance (approximately 300

Ω) so that the

current value becomes about 10 mA. Refer to

DLK-182, "Removal

and Installation"

.

Is the measurement value within the specification?

YES

>> Replace Intelligent Key.

NO

>> Replace Intelligent Key battery.

Monitor item

Condition

RKE OPE COUN1

Check that the numerical value is changing while operating on the Intelligent Key.

Standard

: Approx. 2.5 - 3.0V

OCC0607D

DLK-100

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

KEY WARNING LAMP

KEY WARNING LAMP

Component Function Check

INFOID:0000000009645327

1.

CHECK FUNCTION

1. Select INTELLIGENT KEY of BCM using CONSULT.

2. Select INDICATOR in ACTIVE TEST mode.

3. Touch KEY IND or KEY ON to check that it works normally.
Is the inspection result normal?

YES

>> Key warning lamp is OK.

NO

>> Refer to

DLK-100, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009645328

1.

CHECK KEY WARNING LAMP

Refer to

DLK-27, "WARNING FUNCTION : System Description"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.
