PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009499816

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

DEF-4

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

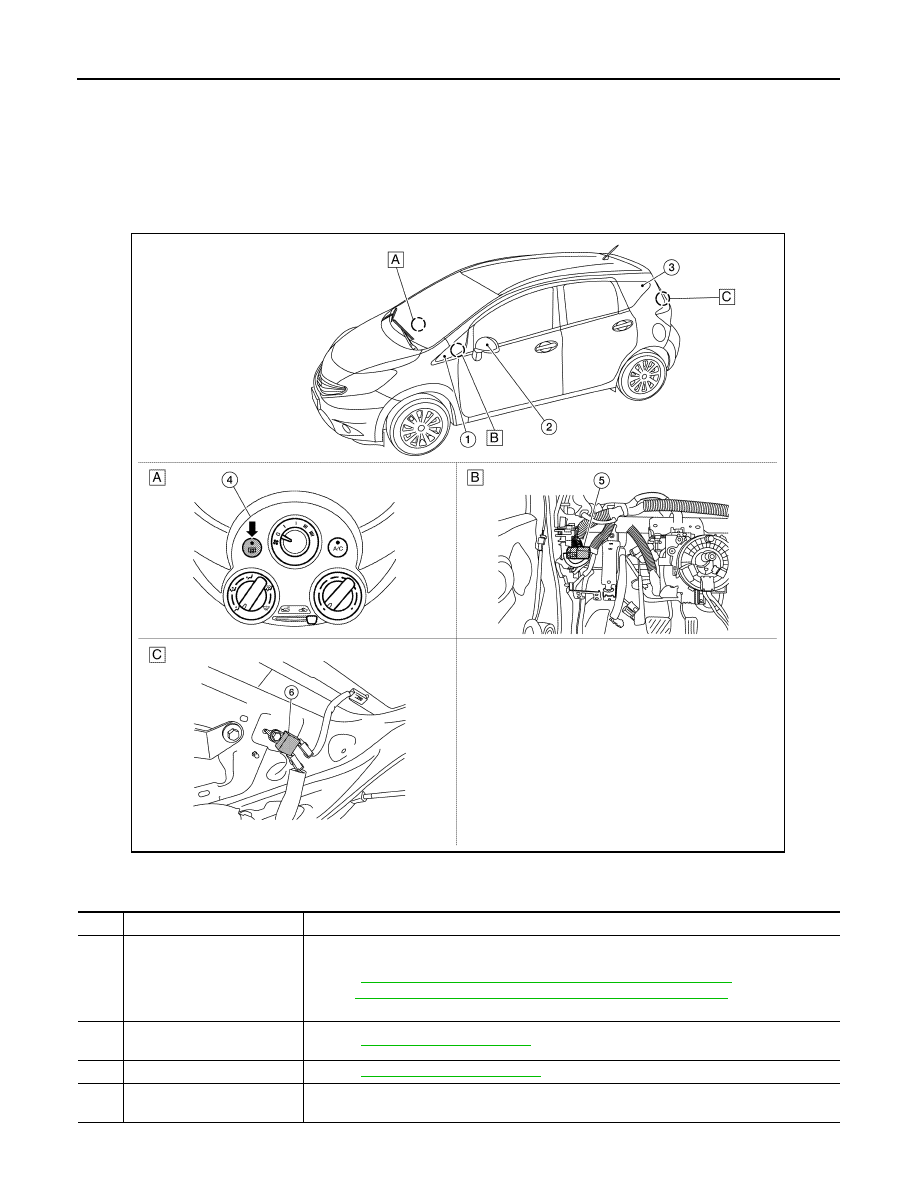

Component Parts Location

INFOID:0000000009549361

A.

Center of instrument panel

B.

Left side of instrument panel

C.

Back door lower finisher inside

ALLIA1323ZZ

No.

Component

Function

1.

BCM

• Operates the rear window defogger with the operation of rear window defogger switch.
• Performs the timer control of rear window defogger.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 (with Intelligent

Key) or

BCS-73, "BODY CONTROL SYSTEM : Component Parts Location"

 (without Intelligent

Key) for detailed installation location.

2.

Door mirror defogger LH (RH
side similar)

Refer to

DEF-5, "Door mirror defogger"

.

3.

Rear window defogger

Refer to

DEF-5, "Rear window defogger"

.

4.

Front air control (rear window
defogger switch)

• The rear window defogger switch is turned ON.
• Turns the indicator lamp ON when detecting the operation of rear window defogger.

COMPONENT PARTS

DEF-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

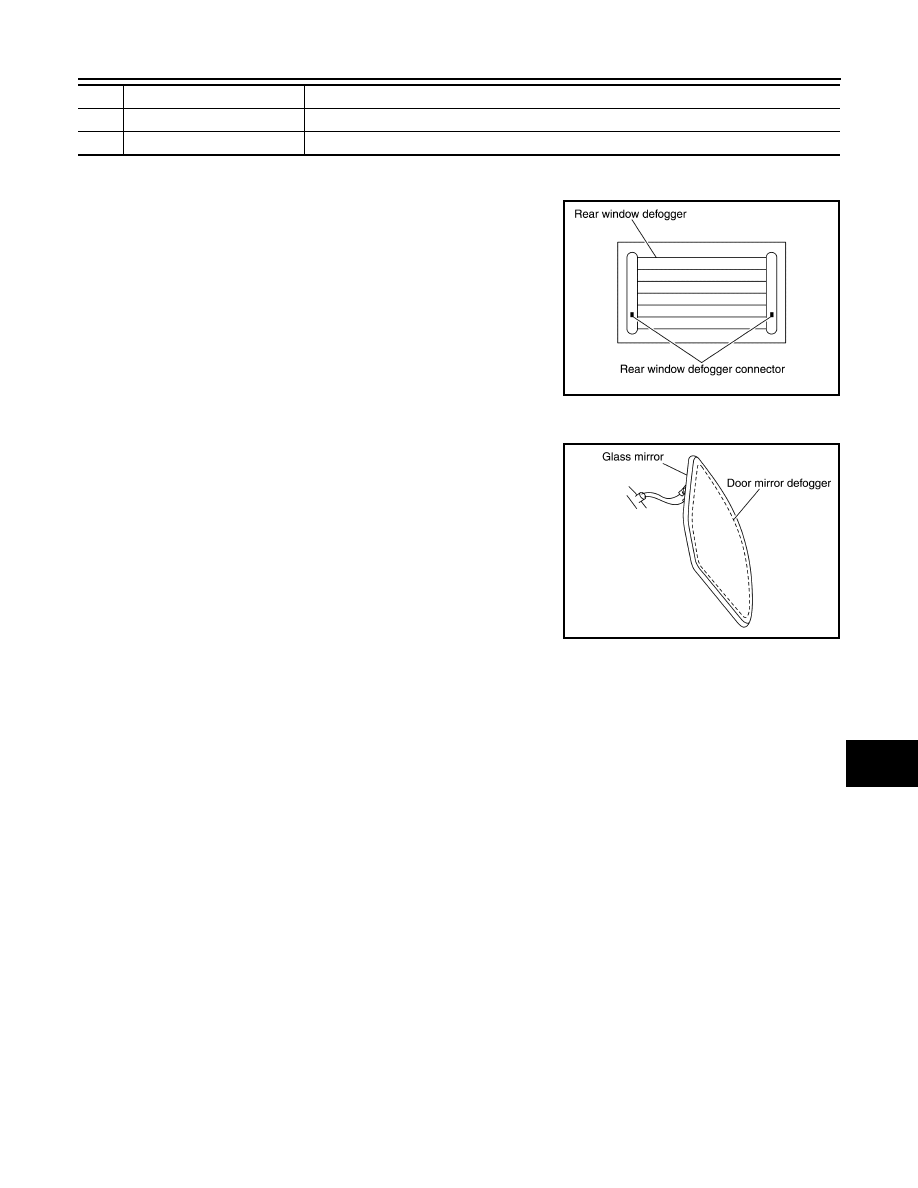

Rear window defogger

INFOID:0000000009549362

Heats the heating wire with the power supply from the rear window

defogger relay to prevent the rear window from fogging up.

Door mirror defogger

INFOID:0000000009549389

Heats the heating wire with the power supply from the rear window

defogger relay to prevent the door mirror from fogging up.

5.

Rear window defogger relay

Operates the rear window defogger with the control signal from BCM.

6.

Condenser

Removes the noise that is generated when the rear window defogger turns ON/OFF.

No.

Component

Function

JMLIA2595GB

JMLIA2596GB

DEF-6

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

System Description

INFOID:0000000009549363

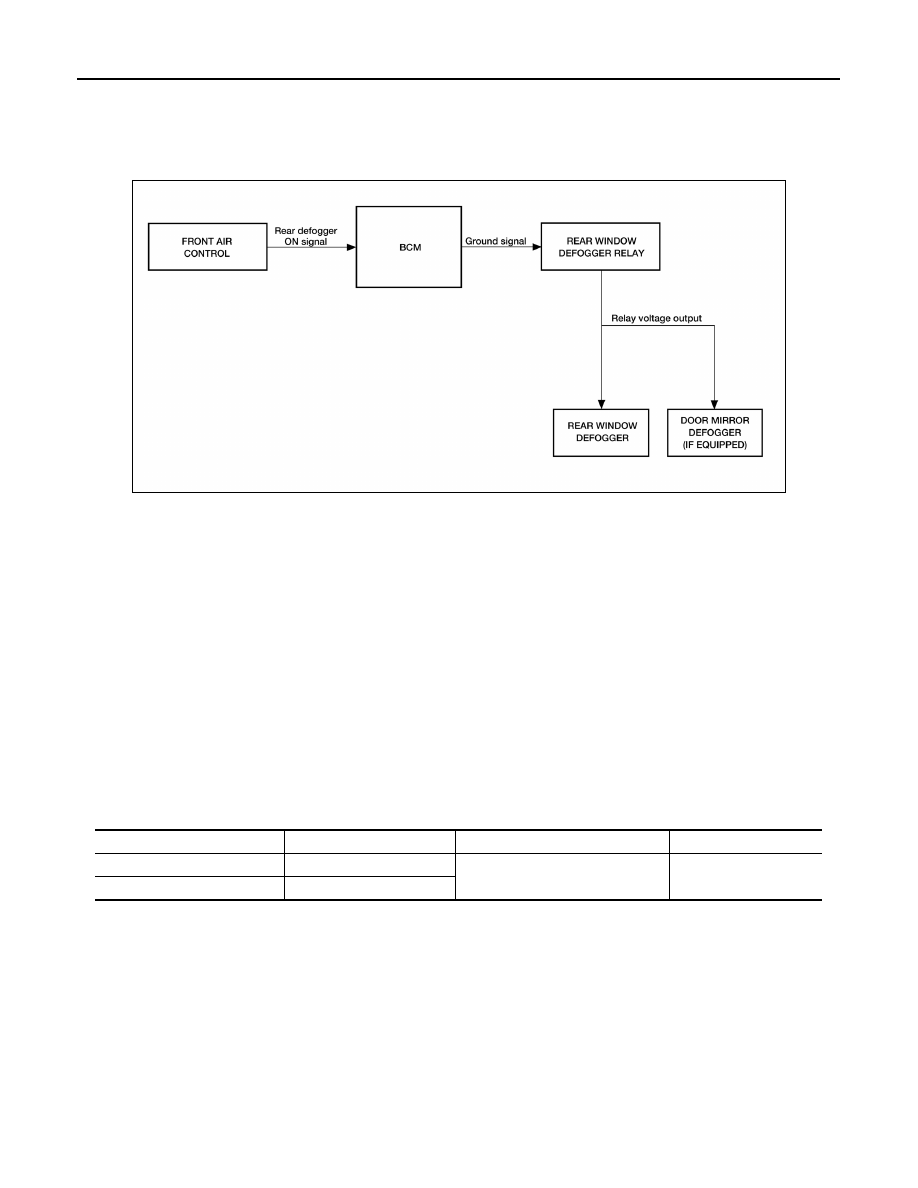

SYSTEM DIAGRAM

Operation Description

• When rear window defogger switch is turned ON while ignition switch is ON, the front air control (rear win-

dow defogger switch) transmits rear window defogger switch signal to BCM.

• BCM turns rear window defogger relay ON when rear window defogger switch signal is received.

• Rear window defogger and door mirror defogger (with door mirror defogger) are supplied with power and

operate when rear window defogger relay turns ON.

• Rear window defogger ON is displayed when front air control receives signals.

Timer function

• BCM turns rear window defogger relay ON for approximately 15 minutes when rear window defogger switch

is turned ON while ignition switch is ON. It makes rear window defogger and door mirror defogger (with door

mirror defogger) operate.

• Timer is canceled after pressing rear window defogger switch again during timer operation. Then BCM turns

rear window defogger relay OFF. The same reaction also occurs during timer operation, if the ignition switch

is turned OFF.

INPUT/OUTPUT SIGNAL CHART

*: With door mirror defogger

ALLIA1028GB

Switch

Input signal to BCM

BCM function

Actuator

Rear window defogger switch

Defogger switch signal

Rear window defogger and door

mirror defogger

*

 control

Rear window defogger

Door mirror defogger

*

Ignition switch

Ignition signal
