BRAKE PIPING

BR-25

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

CAUTION:

• All hoses and tubes must be free from excessive bending, twisting and pulling.

• Make sure there is no interference with other parts when turning steering clockwise and counter-

clockwise.

• The brake system is an important safety system. If a brake fluid leak is detected, always disassemble

the parts. Replace applicable part with a new one, if necessary.

• Do not bend or twist brake hose sharply, or strongly pull it.

• When removing components, cover connections so that no dirt, dust, or other foreign matter gets in.

• Do not reuse drained brake fluid.

REAR : Removal and Installation

INFOID:0000000009364839

CAUTION:

• Do not spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe

it off immediately and wash with water if it gets on a painted surface.

• Do not allow foreign matter (e.g. dust) and oils other than brake fluid to enter the reservoir tank.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove the wheel and tire using power tool.
2. Loosen the flare nut using a flare nut wrench and separate the brake tube from the brake hose.

CAUTION:

• Do not scratch the flare nut or the brake tube.

• Do not bend sharply, twist or strongly pull out the brake hoses and brake tubes.

3. Remove the lock plate and remove the brake hose from the vehicle.
4. Loosen the flare nut using a flare nut wrench and separate the brake tube from the wheel cylinder.

Remove the brake tube.

INSTALLATION

1. Connect the brake tube to the wheel cylinder. Temporarily tighten the flare nut by hand until it does not

rotate further.

2. Connect the brake hose to the brake tube. Temporarily tighten the flare nut by hand until it does not rotate

further. Secure the brake hose to the bracket with the lock plate.

CAUTION:

• Check that all brake hoses and brake tubes are not excessively bent, kinked or twisted.

• Make sure that interference does not exist between the brake hoses and other parts when the

suspension moves.

3. Tighten the flare nut to the specified torque using a crowfoot and torque wrench. Refer to

BR-24, "REAR :

Exploded View"

.

CAUTION:

Do not scratch the flare nut or the brake tube.

4. Refill with new brake fluid and perform the air bleeding. Refer to

BR-12, "Bleeding Brake System"

.

CAUTION:

Do not reuse drained brake fluid.

5. Install the wheel and tire. Refer to

WT-45, "Exploded View"

.

6. Perform inspection after installation. Refer to

BR-25, "REAR : Inspection"

.

REAR : Inspection

INFOID:0000000009364840

INSPECTION AFTER INSTALLATION

1.

ABS actuator and electric unit (con-
trol unit)

2.

Front disc brake

3.

Brake master cylinder

4.

Brake booster

5.

Brake tube connector

6.

Rear drum brake

A.

Brake tube

B.

Brake hose

: Flare nut

Union bolt

BR-26

< REMOVAL AND INSTALLATION >

BRAKE PIPING

1. Check the brake hoses and tubes for the following: no scratches; no twist and deformation; no looseness

at connections.

CAUTION:

Clearance with brake hose and each parts being secured more than 10 mm (0.39 in) in unladen
condition

*

.

*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in desig-

nated positions.

2. Depress the brake pedal with a force of 785 N (80.1 kg-f, 176.5 lb-f) and hold down the pedal for approxi-

mately 5 seconds with the engine running. Check for any fluid leaks.

CAUTION:

Retighten the applicable connection to the specified torque and repair any abnormal (damaged,

worn or deformed) part if any brake fluid leaks are present.

BRAKE MASTER CYLINDER

BR-27

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

BRAKE MASTER CYLINDER

Exploded View

INFOID:0000000009364841

Removal and Installation

INFOID:0000000009364842

CAUTION:

• Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is

splashed on painted areas, wash it away with water immediately.

• Do not scratch the piston of brake master cylinder when installing/removing because the piston is

exposed. Check for any dust on the piston, and wash with brake fluid if needed.

• Hold the brake master cylinder when handing the brake master cylinder. Do not hold the piston

because the piston might become detached if pulled strongly.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove battery tray. Refer to

PG-68, "Removal and Installation (Battery Tray)"

.

2. Remove air cleaner and air duct. Refer to

EM-26, "Removal and Installation"

.

3. Position the IPDM E/R aside to obtain access to the brake master cylinder. Refer to

PCS-31, "Removal

and Installation"

 (WITH I-KEY),

PCS-60, "Removal and Installation"

 (WITHOUT I-KEY).

4. Disconnect the harness connector from the brake fluid level switch.
5. Disconnect the brake tubes from the brake master cylinder using a flare nut wrench.

CAUTION:

Do not scratch the flare nut or the brake tubes.

6. Remove nuts and brake master cylinder.

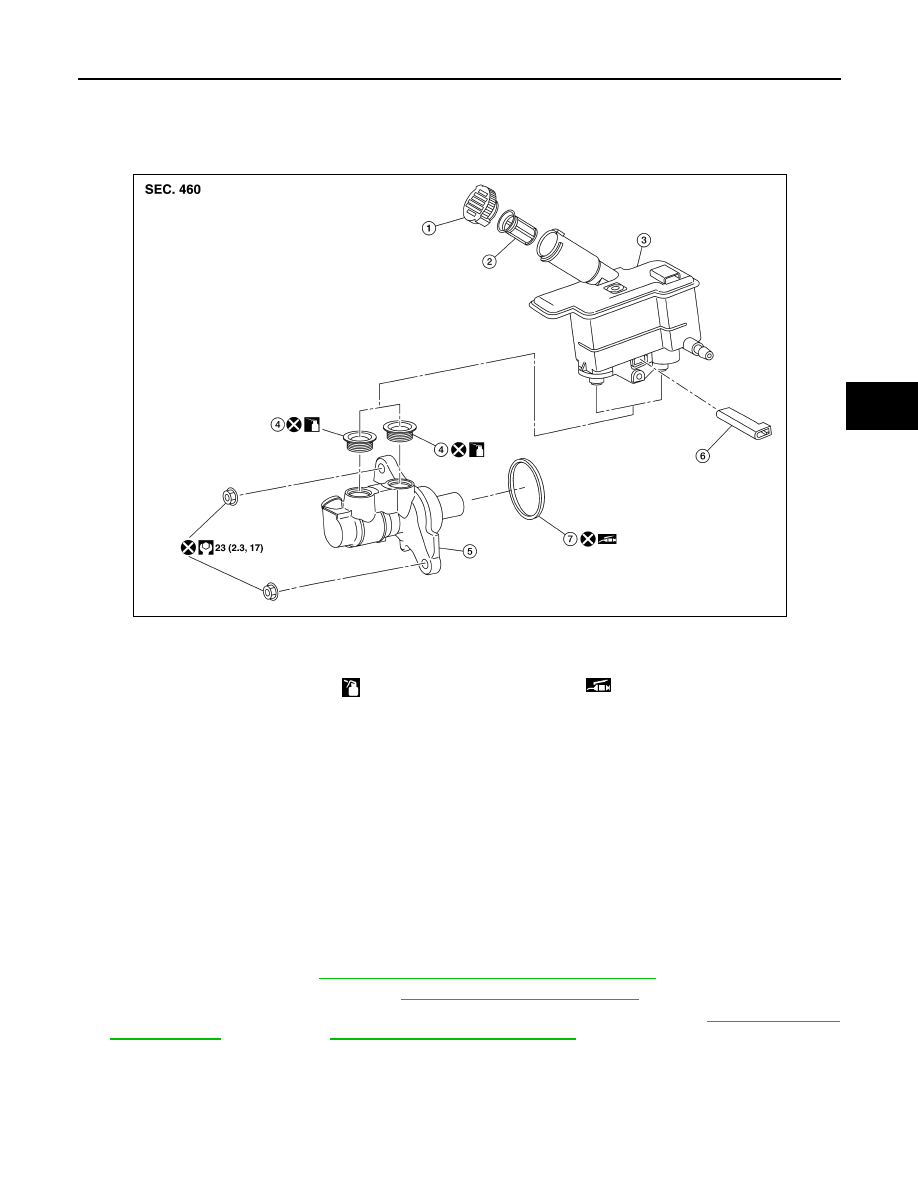

1.

Reservoir cap

2.

Brake fluid strainer

3.

Reservoir tank

4.

Grommet

5.

Brake master cylinder

6.

Brake fluid level switch

7.

O-ring

Apply brake fluid

PBC (Poly Butyl Cuprysil) grease or
silicone-based grease

AWFIA1021ZZ

BR-28

< REMOVAL AND INSTALLATION >

BRAKE MASTER CYLINDER

CAUTION:

• Do not bend sharply, twist, or strongly pull out the brake tubes.

• Do not depress the brake pedal after the brake master cylinder is removed.

• The piston of the brake master cylinder is exposed. Do not damage it when removing the brake

master cylinder.

7. Remove and discard the O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse the seal.

• Do not reuse the O-ring.

• Check that no dirt and dust are present on the piston before installation. Clean it with new brake fluid

if necessary.

• Check that all brake tubes are not excessively bent, kinked or twisted.

• Do not allow foreign matter (e.g. dust) and oils other than brake fluid to enter the sub tank and reser-

voir tank.

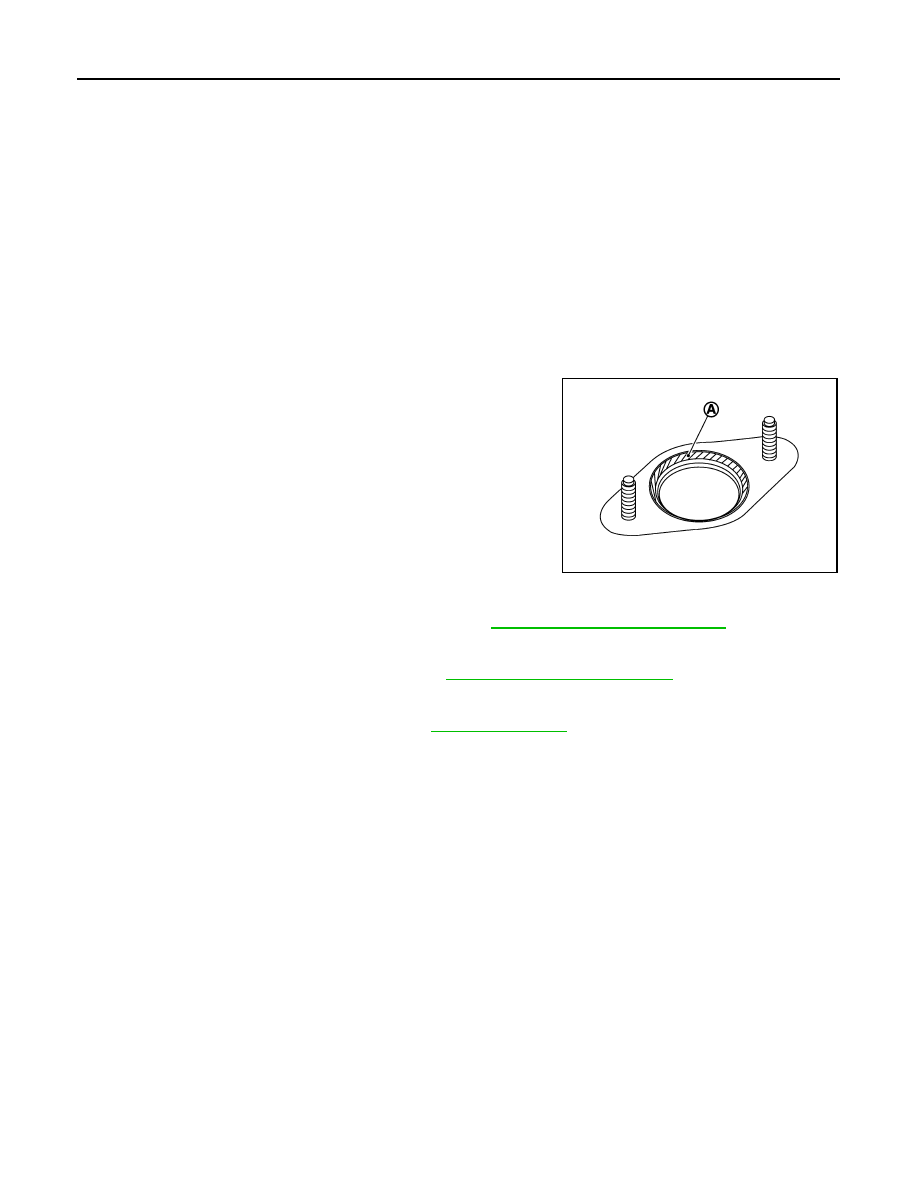

• Apply silicone grease to the brake booster (A) as shown when

installing the brake master cylinder to the brake booster.

• Temporarily tighten the brake tube flare nut to the brake master cylinder by hand. Then tighten it to the spec-

ified torque using a crowfoot and torque wrench. Refer to

BR-21, "FRONT : Exploded View"

.

CAUTION:

Do not scratch the flare nut or the brake tubes.

• After installation, perform the air bleeding. Refer to

BR-12, "Bleeding Brake System"

.

CAUTION:

Do not reuse drained brake fluid.

• Perform the inspection after installation. Refer to

BR-28, "Inspection"

.

Disassembly and Assembly

INFOID:0000000009364843

DISASSEMBLY

CAUTION:

• Do not disassemble the brake master cylinder.

• Remove the reservoir tank only when necessary.

Remove the reservoir tank and grommets from the brake master cylinder.

ASSEMBLY

CAUTION:

• Do not use mineral oils such as kerosene or gasoline and rubber grease during the cleaning and

assembly process.

• Do not drop the parts. The parts must not be reused if they are dropped.

• Do not allow foreign matter (e.g. dust) and oils other than brake fluid to enter the reservoir tank.
1. Apply new brake fluid to the grommets and install on brake master cylinder.

CAUTION:

Do not reuse the grommets.

2. Install the reservoir tank to the brake master cylinder.

Inspection

INFOID:0000000009364844

INSPECTION BEFORE REMOVAL
