REAR DRUM BRAKE

BR-17

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

REAR DRUM BRAKE

BRAKE LINING
BRAKE LINING : Inspection

INFOID:0000000009364828

INSPECTION

Brake Lining

1. Remove plug from back plate. Refer to

BR-40, "Exploded View"

.

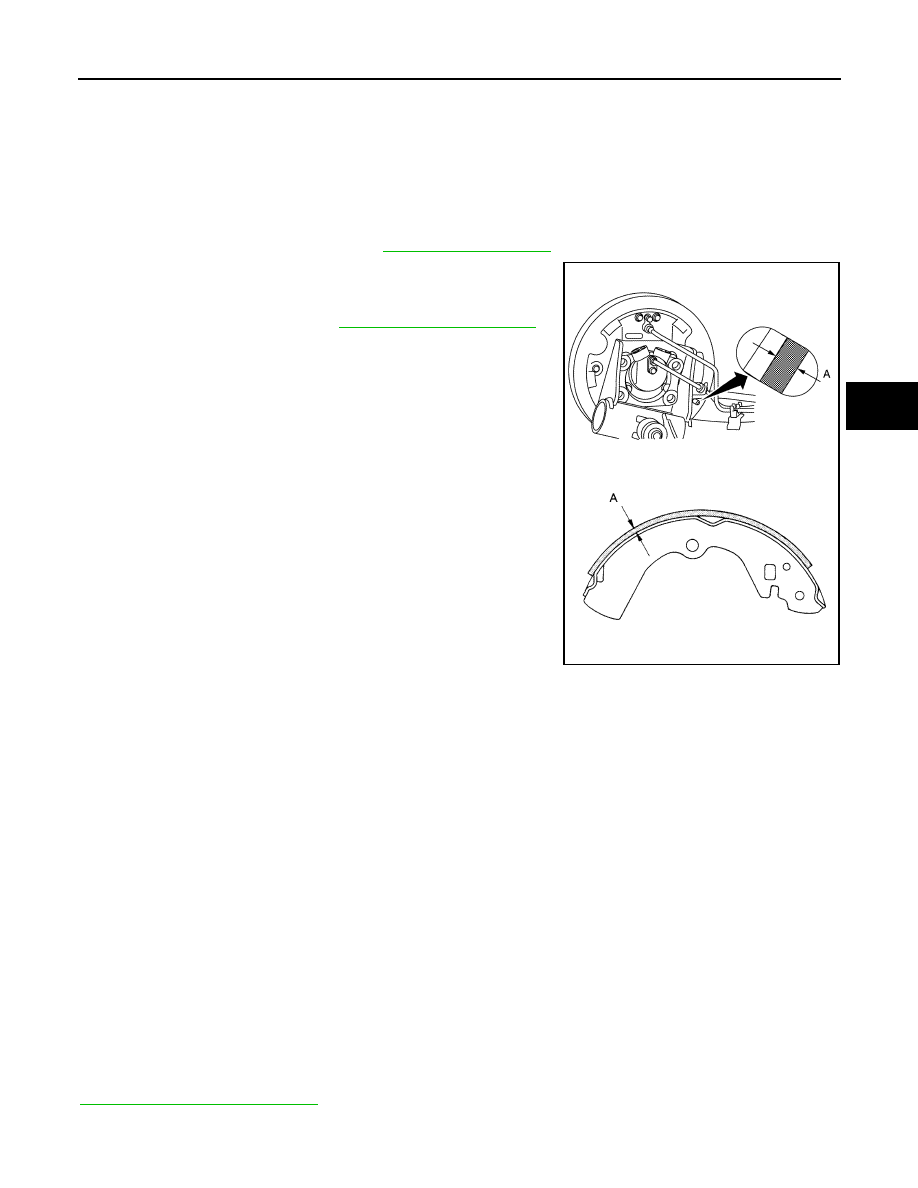

2. Check brake lining wear thickness (A) from an inspection hole

on back plate. Check using a scale if necessary.

BRAKE LINING : Brake Burnishing

INFOID:0000000009671190

BRAKE BURNISHING

Burnish contact surfaces between brake lining and brake drum according to the following procedure after

refinishing brake drum, replacing brake drum, replacing brake lining, or if a soft pedal occurs at very low mile-

age:

CAUTION:

• Be careful of vehicle speed because the brake pedal does not operate firmly/securely until brake lin-

ing and brake drum are securely seated.

• Only perform this procedure under safe road and traffic conditions. Use extreme caution.
1. Drive vehicle on straight, flat road.
2. Depress brake pedal with the power to stop vehicle within 3 to 5 seconds until the vehicle stops.
3. Drive without depressing brake pedal for a few minutes to cool the brake.
4. Repeat steps 1 to 3 until brake lining and brake drum are securely seated.

BRAKE DRUM
BRAKE DRUM : Inspection

INFOID:0000000009364829

INSPECTION

Appearance

Check surface of brake drum for uneven wear, cracks and serious damage. Replace it if necessary. Refer to

RAX-6, "Removal and Installation"

.

NOTE:

• Make sure the parking brake control is fully released prior to removal of the brake drum.

Wear thickness

: Refer to

BR-45, "Rear Drum Brake"

.

JSFIA1039ZZ

BR-18

< PERIODIC MAINTENANCE >

REAR DRUM BRAKE

• The rear wheel hub is part of the brake drum.

Brake Drum Inner Diameter

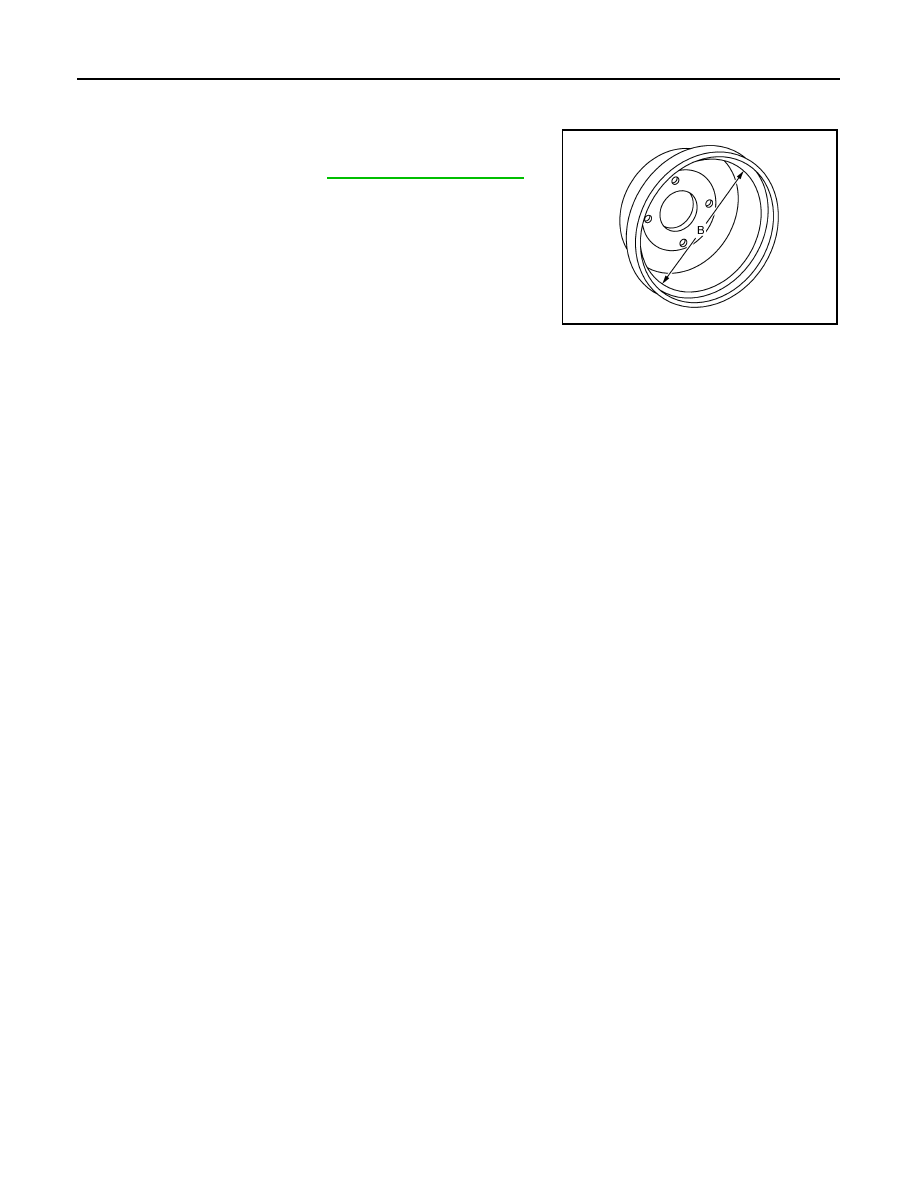

Check inner diameter (B) of the brake drum.

Inner diameter : Refer to

BR-45, "Rear Drum Brake"

.

JPFIA0113ZZ

BRAKE PEDAL

BR-19

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

REMOVAL AND INSTALLATION

BRAKE PEDAL

Exploded View

INFOID:0000000009364830

NOTE:

The CVT brake pedal is shown. The M/T brake pedal is similar.

Removal and Installation

INFOID:0000000009364831

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-24, "Removal and Installation"

.

2. Remove knee bolster. Refer to

IP-14, "Exploded View"

.

3. Disconnect the harness connector from the stop lamp switch.
4. Disconnect the harness connector from the ASCD cancel switch (if equipped).
5. Disconnect the harness connector from the accelerator pedal. Remove the accelerator pedal. Refer to

ACC-3, "Removal and Installation"

.

6. Separate the harness from brake pedal.
7. Rotate the stop lamp switch counter clockwise to remove.
8. Rotate the ASCD cancel switch (if equipped) counter clockwise to remove.
9. Remove snap pin and clevis pin from clevis.
10. Disconnect the power steering harness connector and position it aside.
11. Remove the brake pedal.

CAUTION:

Support the brake booster and master cylinder to prevent contact with other components.

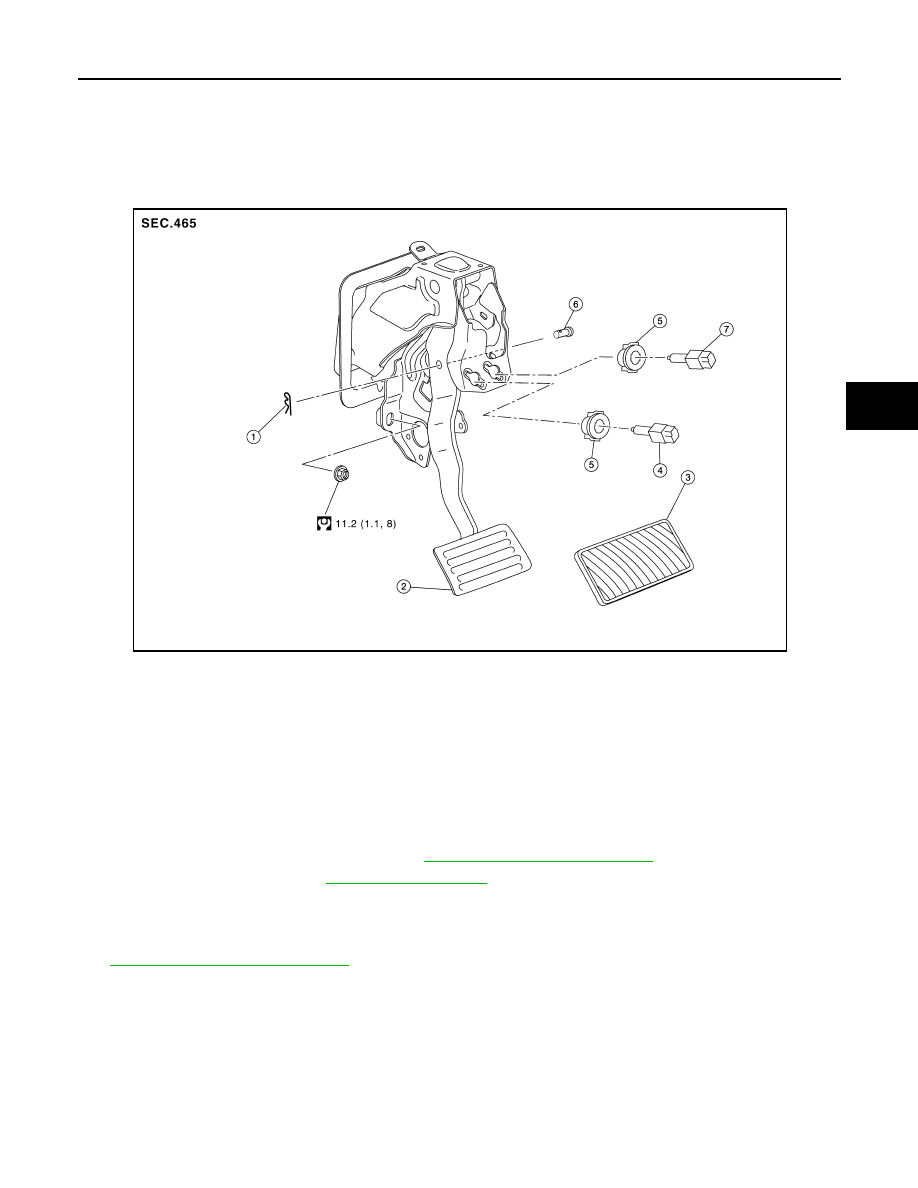

1.

Snap pin

2.

Brake pedal

3.

Brake pedal pad

4.

Stop lamp switch

5.

Clip

6.

Clevis pin

7.

ASCD cancel switch (if equipped)

AWFIA0875GB

BR-20

< REMOVAL AND INSTALLATION >

BRAKE PEDAL

12. Perform the inspection after removal. Refer to

BR-20, "Inspection and Adjustment"

.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the brake pedal if it has been dropped or sustained an impact.

• Apply the multi-purpose grease to the clevis pin and the mating faces. (Not necessary if grease has been

already applied)

NOTE:

The clevis pin may be inserted in either direction.

• Perform the adjustment after installation. Refer to

BR-20, "Inspection and Adjustment"

.

Inspection and Adjustment

INFOID:0000000009364832

INSPECTION AFTER REMOVAL

• Check the brake pedal for damage and cracks on the welded parts, and replace the brake pedal if neces-

sary.

ADJUSTMENT AFTER INSTALLATION

• Inspect the brake pedal height and play. Adjust it if the measurement value is not the standard. Refer to

BR-

8, "Inspection and Adjustment"

.

• Perform the accelerator pedal released position learning procedure. Refer to

EC-126, "Work Procedure"

.
