FAIL-SAFE CONTROL OF COMBINATION SWITCH READING FUNCTION CAUSED BY LOW
POWER SUPPLY VOLTAGE

If voltage of battery power supply lower, BCM maintains combination switch reading to the status when input

voltage is less than approximately 9 V.

NOTE:

When voltage of battery power supply is approximately 9 V or more, combination switch reading function

returns to normal operation.

DTC Inspection Priority Chart

INFOID:0000000009693641

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority

chart.

DTC Index

INFOID:0000000009693642

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

→ ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch

OFF

→ ON after returning to the normal condition if the malfunction is detected again.

B2195: ANTI SCANNING

Inhibit engine cranking

Ignition switch ON

→ OFF

B2196: DONGLE NG

Inhibit engine cranking

Erase DTC

Display contents of CONSULT

Fail-safe

Cancellation

Priority

DTC

1

• U1000: CAN COMM
• U1010: CONTROL UNIT (CAN)

2

• B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2195: ANTI SCANNING
• B2196: DONGLE NG

3

• C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1716: [PRESS DATA ERR] FL
• C1717: [PRESS DATA ERR] FR
• C1718: [PRESS DATA ERR] RR
• C1719: [PRESS DATA ERR] RL
• C1729: VHCL SPEED SIG ERR

CONSULT display

Fail-safe

Tire pressure monitor

warning lamp ON

Reference

U1000: CAN COMM

—

—

BCS-118

U1010: CONTROL UNIT (CAN)

—

—

BCS-119

B2190: NATS ANTENNA AMP

×

—

SEC-167

B2191: DIFFERENCE OF KEY

×

—

SEC-170

B2192: ID DISCORD BCM-ECM

×

—

SEC-171

B2193: CHAIN OF BCM-ECM

×

—

SEC-173

BCS-110

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM

B2195: ANTI SCANNING

×

—

SEC-174

B2196: DONGLE NG

×

—

SEC-175

C1704: LOW PRESSURE FL

—

×

WT-25

C1705: LOW PRESSURE FR

—

×

C1706: LOW PRESSURE RR

—

×

C1707: LOW PRESSURE RL

—

×

C1708: [NO DATA] FL

—

×

WT-26

C1709: [NO DATA] FR

—

×

C1710: [NO DATA] RR

—

×

C1711: [NO DATA] RL

—

×

C1716: [PRESS DATA ERR] FL

—

×

WT-28

C1717: [PRESS DATA ERR] FR

—

×

C1718: [PRESS DATA ERR] RR

—

×

C1719: [PRESS DATA ERR] RL

—

×

C1729: VHCL SPEED SIG ERR

—

×

WT-29

CONSULT display

Fail-safe

Tire pressure monitor

warning lamp ON

Reference

BCS

BCM

BCS-111

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

WIRING DIAGRAM

BCM

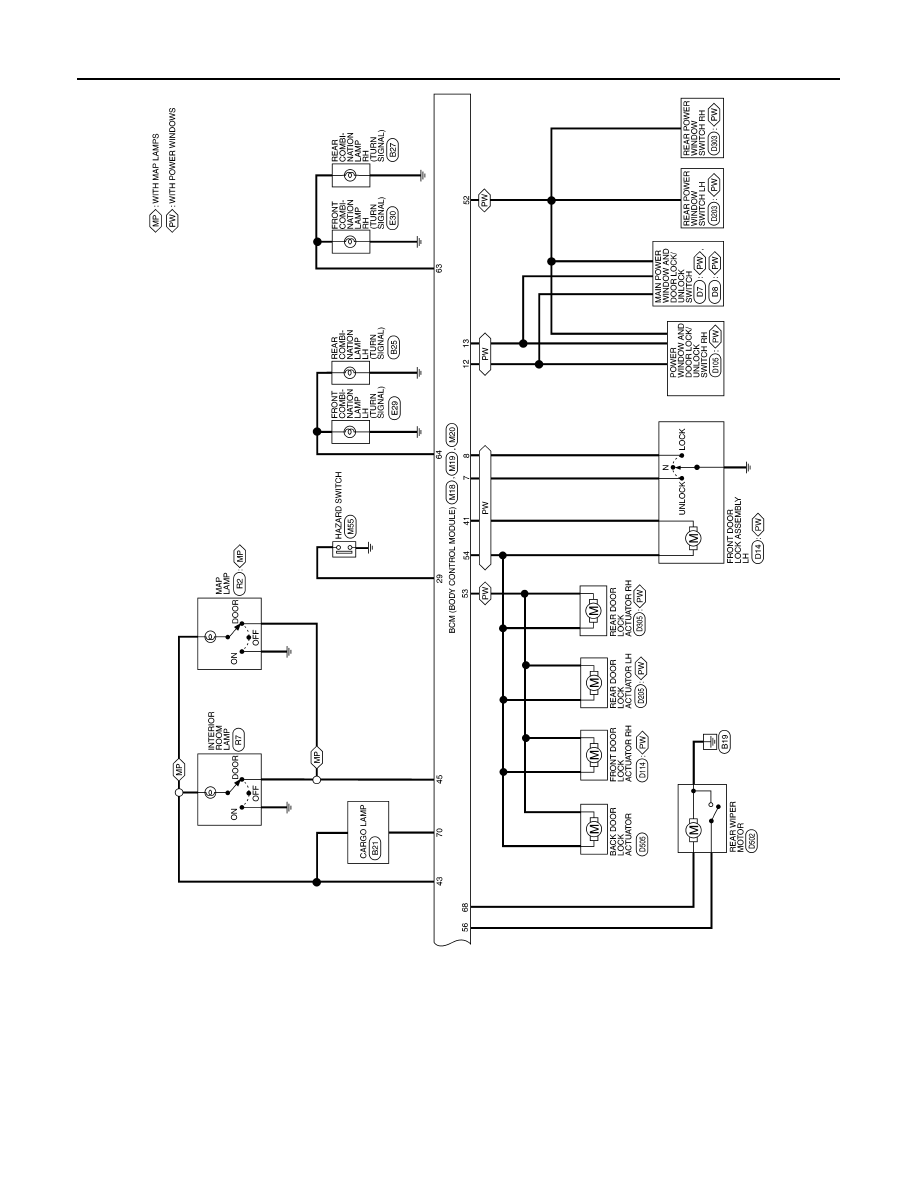

Wiring Diagram

INFOID:0000000009693643

AAMWA0799GB

BCS-112

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM

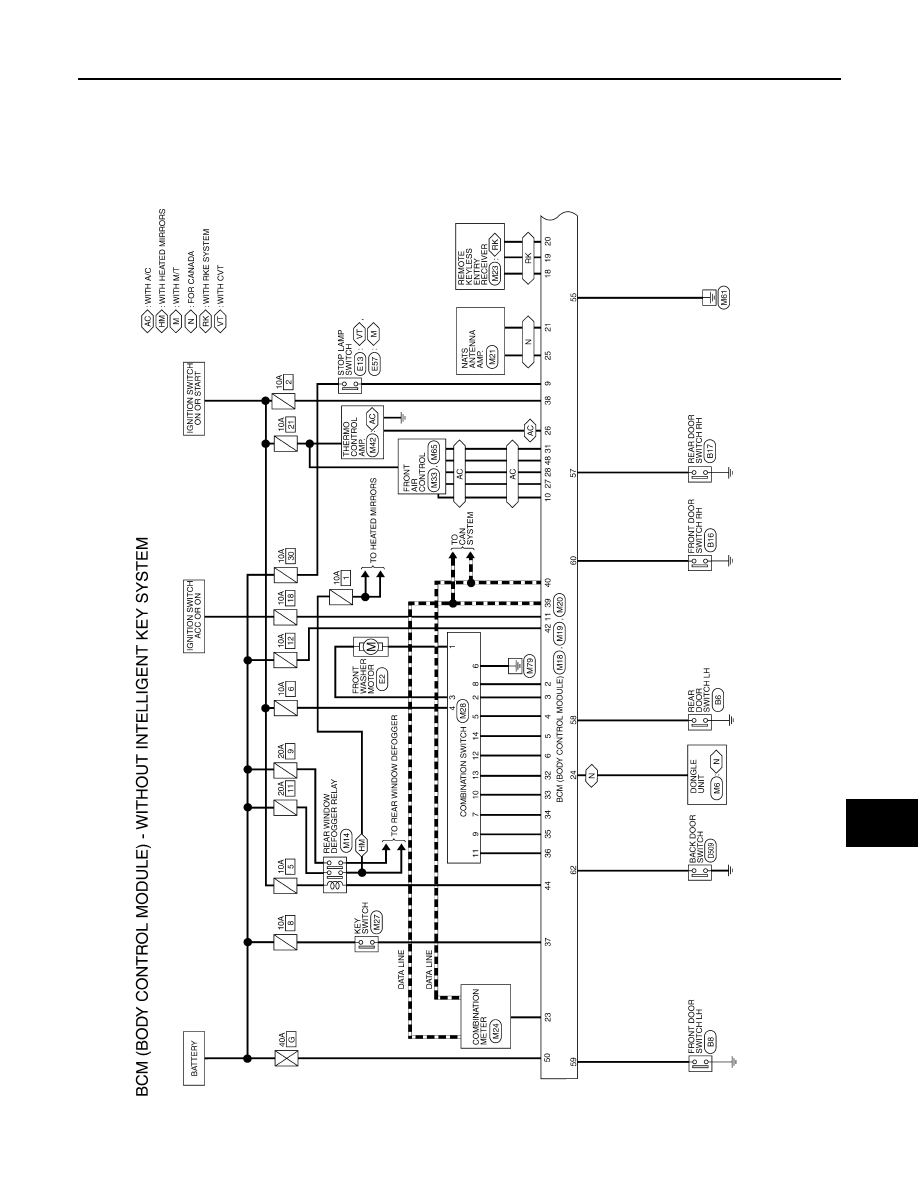

AAMWA0800GB
