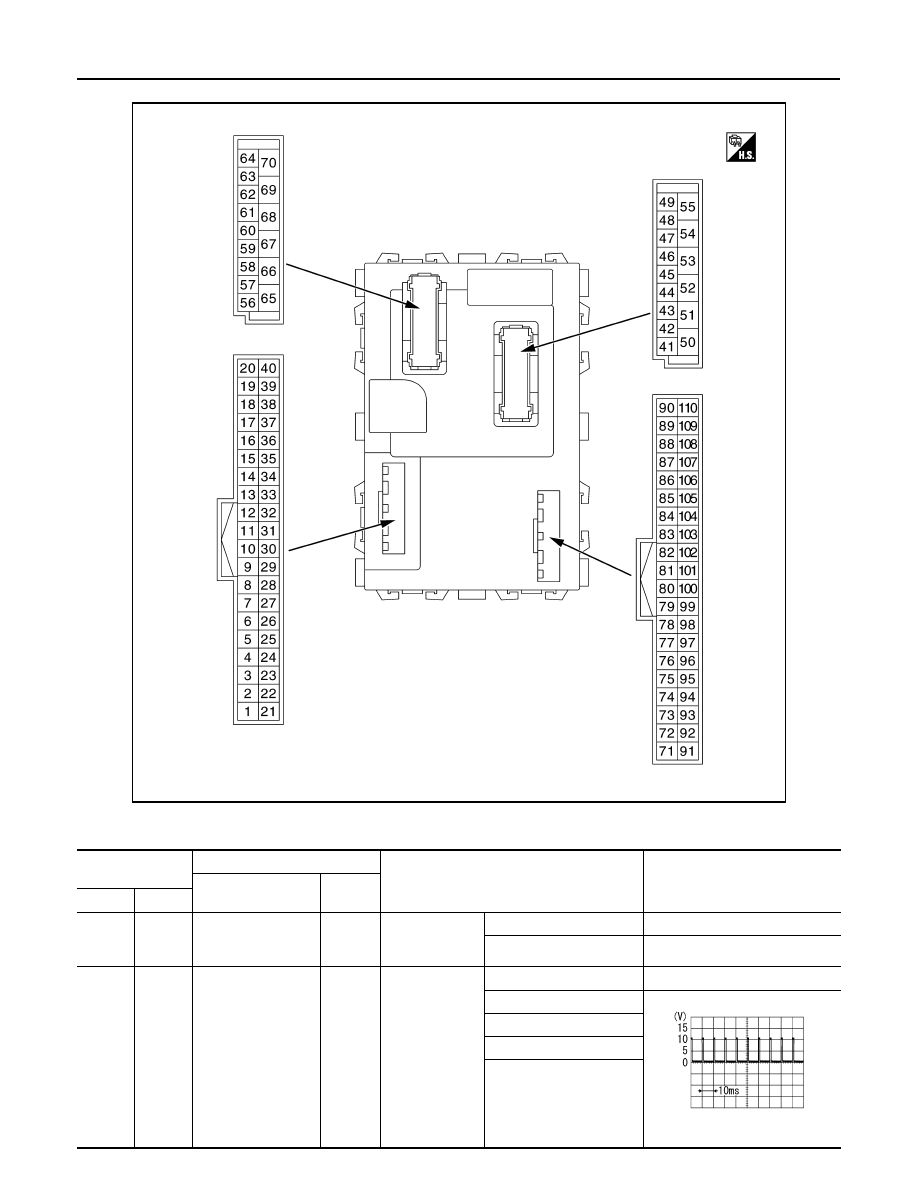

![]() BCS BCM BCS-29 < ECU DIAGNOSIS INFORMATION > [WITH INTELLIGENT KEY SYSTEM] C D E F G H I J K L B A O P N DOOR STAT-AS Passenger door LOCK status LOCK Passenger door UNLOCK status UNLK Wait with selective UNLOCK operation (5 seconds) READY DOOR STAT-DR Driver door LOCK status LOCK Driver door UNLOCK status UNLK Wait with selective UNLOCK operation (5 seconds) READY DOOR SW-AS Front door RH closed Off Front door RH opened On DOOR SW-BK Back door closed Off Back door opened On DOOR SW-DR Front door LH closed Off Front door LH opened On DOOR SW-RL Rear door LH closed Off Rear door LH opened On DOOR SW-RR Rear door RH closed Off Rear door RH opened On ENGINE STATE Engine stopped Stop While the engine stalls Stall At engine cranking Crank Engine running Run FAN ON SIG Blower motor fan switch OFF Off Blower motor fan switch ON On FR FOG SW Front fog lamp switch OFF Off Front fog lamp switch ON On FR WASHER SW Front washer switch OFF Off Front washer switch ON On FR WIPER LOW Front wiper switch OFF Off Front wiper switch LO On FR WIPER HI Front wiper switch OFF Off Front wiper switch HI On FR WIPER INT Front wiper switch OFF Off Front wiper switch INT On FR WIPER STOP Any position other than front wiper stop position Off Front wiper stop position On HAZARD SW When hazard switch is not pressed Off When hazard switch is pressed On HEAD LAMP SW 1 Headlamp switch OFF Off Headlamp switch 1st On HEAD LAMP SW 2 Headlamp switch OFF Off Headlamp switch 1st On HI BEAM SW High beam switch OFF Off High beam switch HI On ID OK FLAG Ignition switch ACC or ON Reset Ignition switch OFF Set Monitor Item Condition Value/Status |
