Nissan Versa Note. Manual - part 32

AV-120

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000009541251

REMOVAL

1. Remove the rear door finisher. Refer to

INT-18, "Removal and Installation"

.

2. Disconnect the harness connector from the rear door speaker.

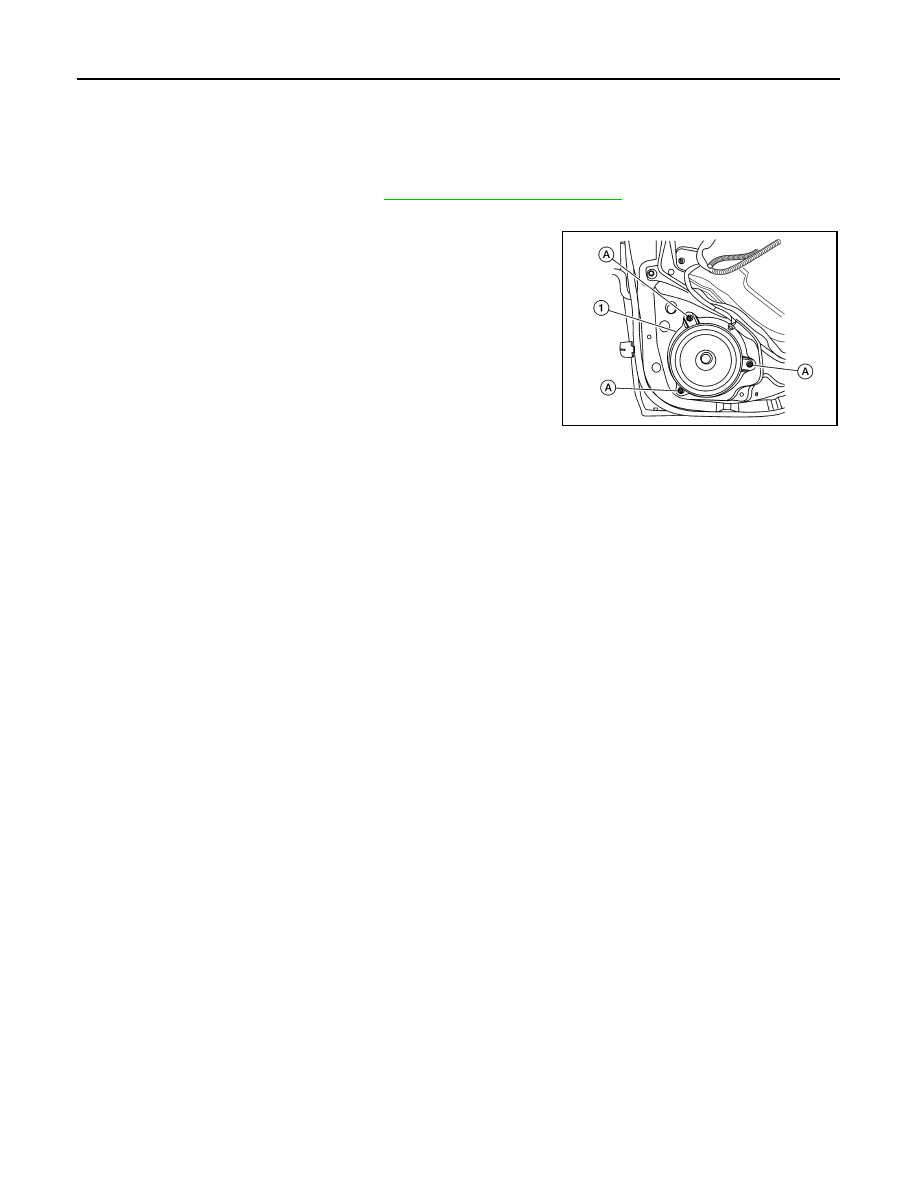

3. Remove the rear door speaker screws (A).
4. Remove the rear door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3089ZZ

AV

USB INTERFACE

AV-121

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

USB INTERFACE

Removal and Installation

INFOID:0000000009459976

REMOVAL

1. Remove the center console assembly. Refer to

IP-18, "Removal and Installation"

.

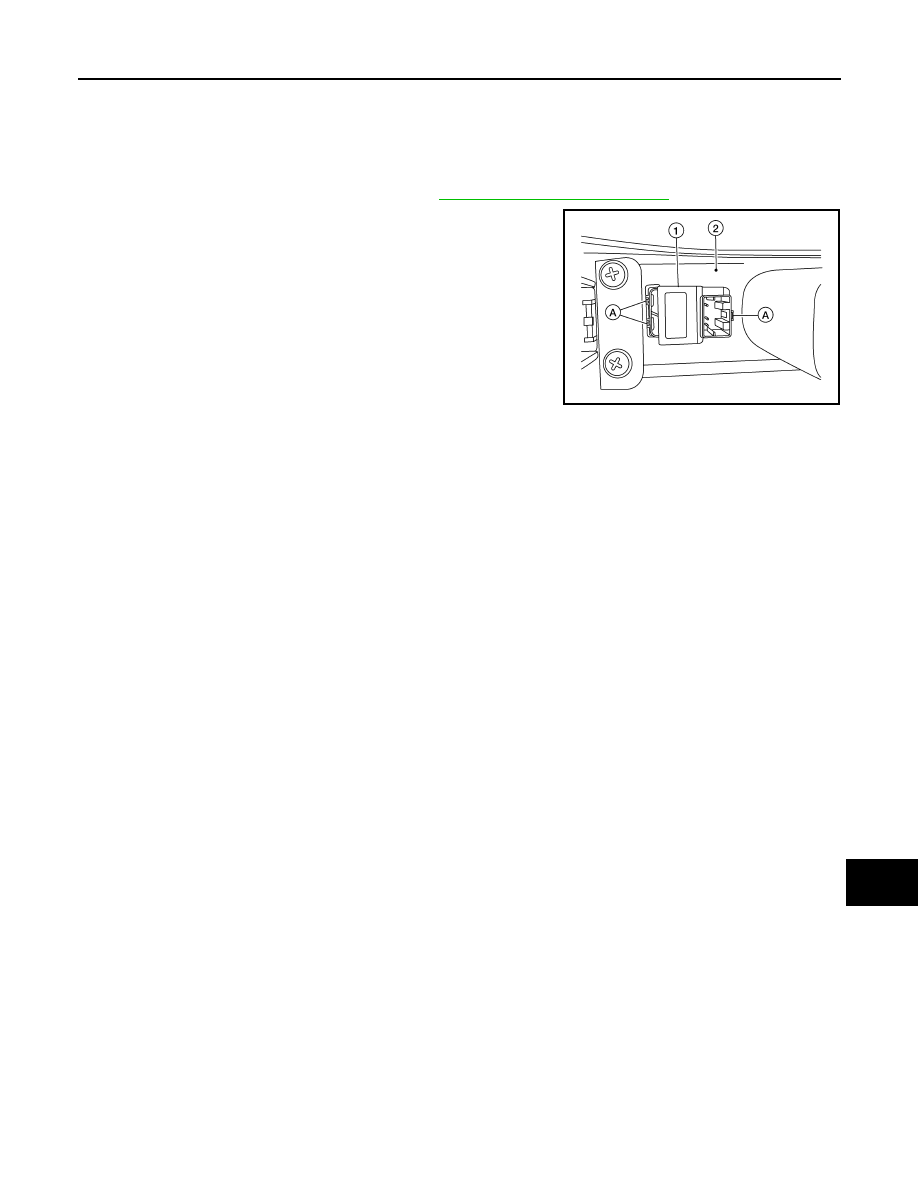

2. Release the pawls (A) from the back of the center console

assembly (2) using a suitable tool and remove the USB interface

(1).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3069ZZ

AV-122

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000009460058

REMOVAL

1. Remove the back door outer finisher. Refer to

EXT-46, "Removal and Installation"

.

2. Disconnect the harness connector from rear view camera.

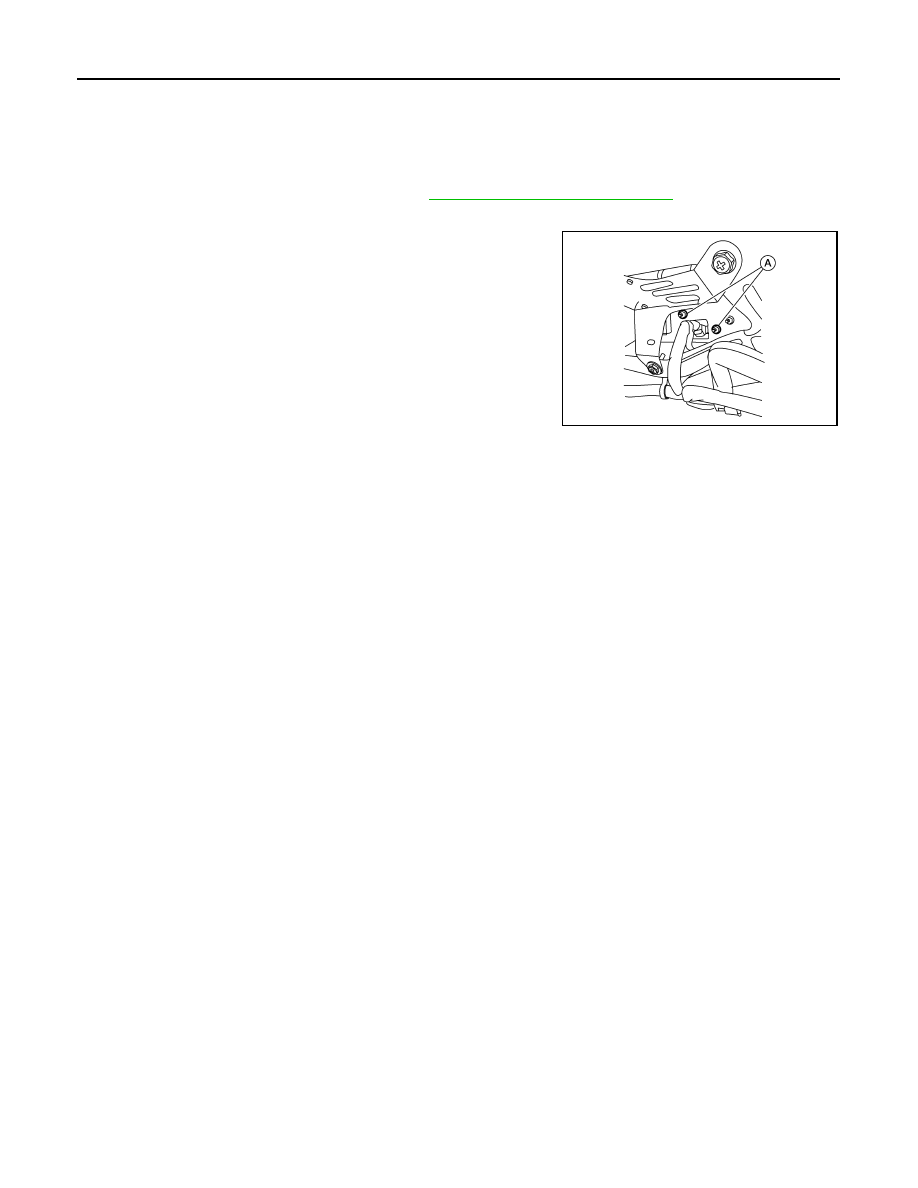

3. Remove the nuts (A) from the rear view camera and remove.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3070ZZ

AV

BLUETOOTH® CONTROL UNIT

AV-123

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BLUETOOTH® CONTROL UNIT

Removal and Installation

INFOID:0000000009541253

REMOVAL

1. Remove the luggage side lower finisher (RH). Refer to

INT-34, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2. Disconnect the harness connectors from the Bluetooth® control unit.

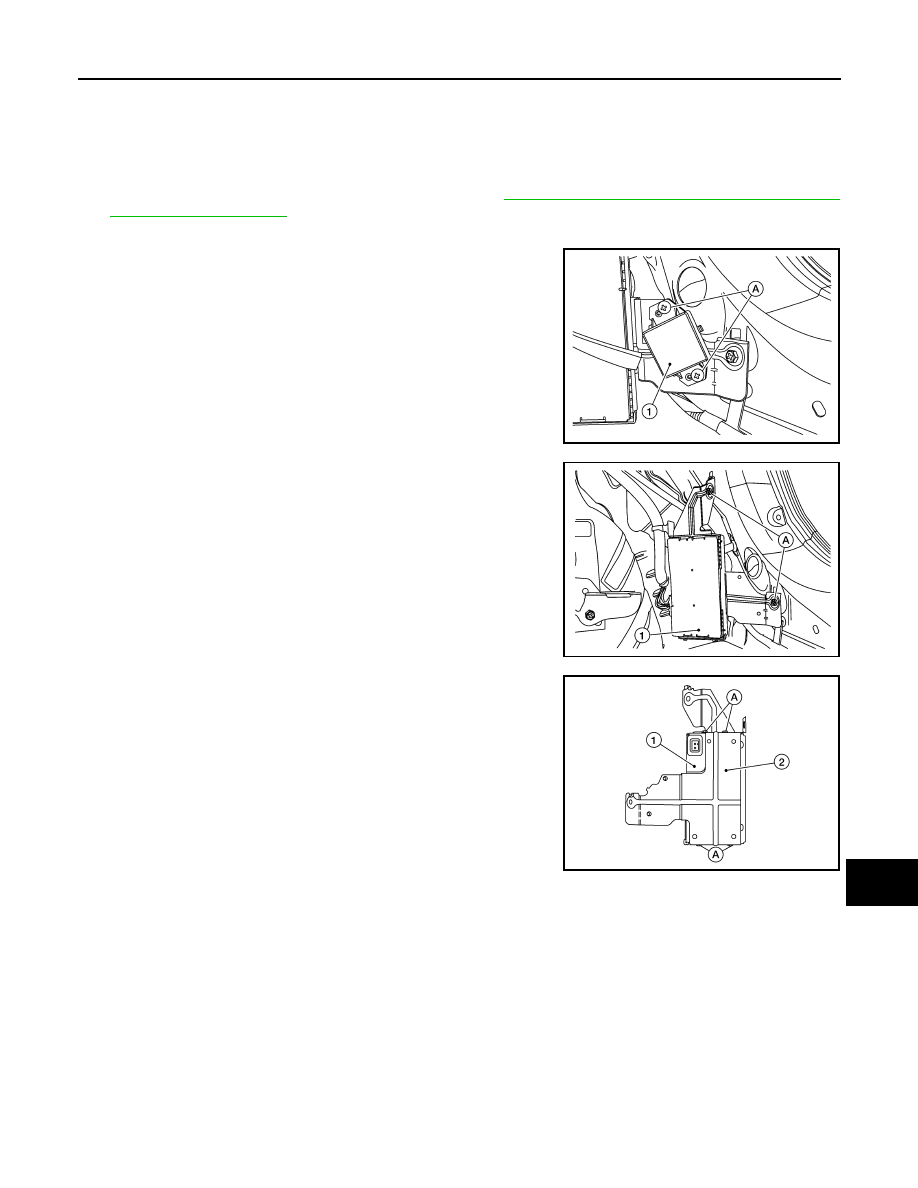

3. Remove the Bluetooth® antenna screws (A) and the Bluetooth®

antenna (1).

4. Remove the Bluetooth® control unit bracket screws (A) and the

Bluetooth® control unit (1).

5. Remove the Bluetooth® control unit screws (A) and separate

the Bluetooth® control unit (1) from the bracket (2).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3095ZZ

AWNIA3122ZZ

AWNIA3097ZZ
