BLUETOOTH® CONTROL UNIT

BLUETOOTH® CONTROL UNIT

Removal and Installation

INFOID:0000000009459939

REMOVAL

1. Remove the luggage side lower finisher (RH). Refer to

INT-34, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2. Disconnect the harness connectors from the Bluetooth® control unit.

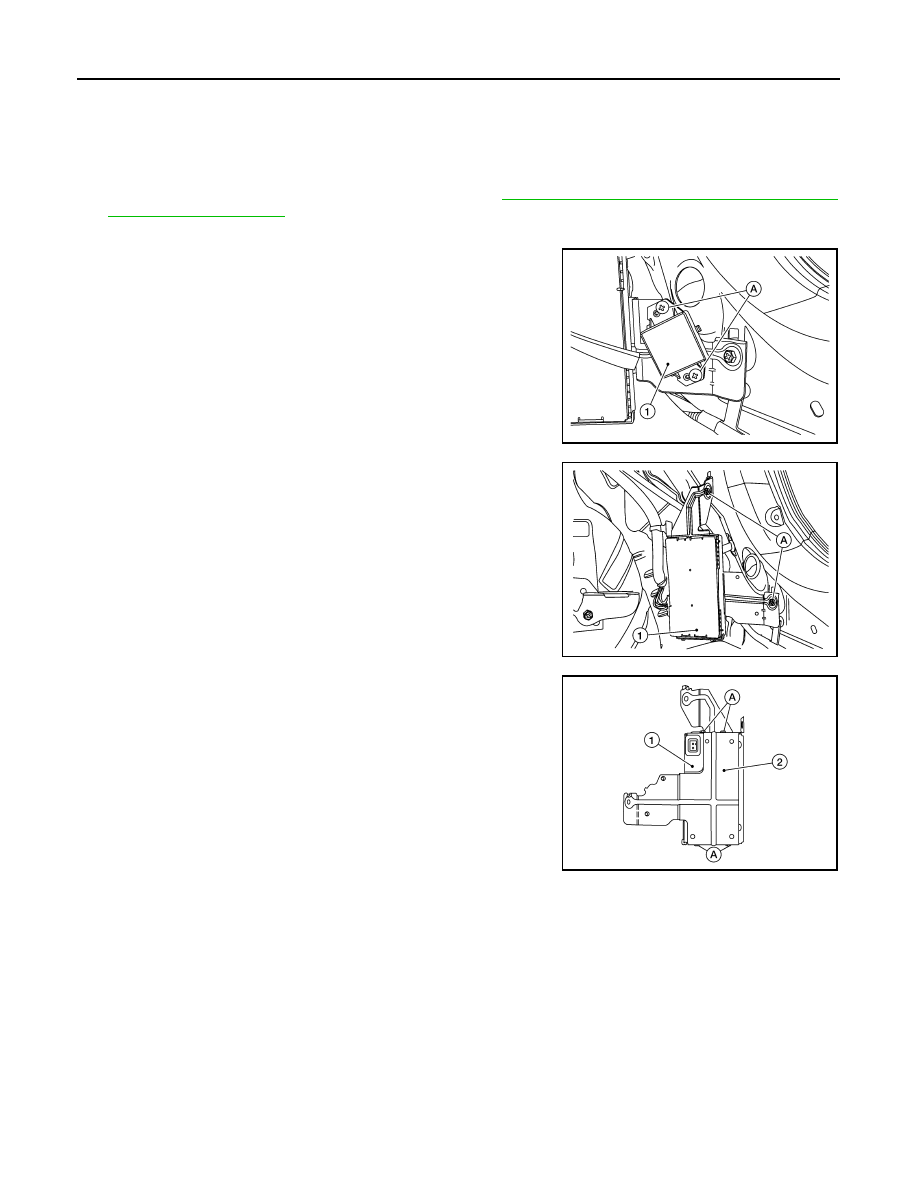

3. Remove the Bluetooth® antenna screws (A) and the Bluetooth®

antenna (1).

4. Remove the Bluetooth® control unit bracket screws (A) and the

Bluetooth® control unit (1).

5. Remove the Bluetooth® control unit screws (A) and separate

the Bluetooth® control unit (1) from the bracket (2).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3095ZZ

AWNIA3122ZZ

AWNIA3097ZZ

AV

BLUETOOTH® ANTENNA

AV-57

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BLUETOOTH® ANTENNA

Removal and Installation

INFOID:0000000009459938

REMOVAL

1. Remove the luggage side lower finisher (RH). Refer to

INT-34, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2. Disconnect the Bluetooth® antenna harness connector from the Bluetooth® control unit.

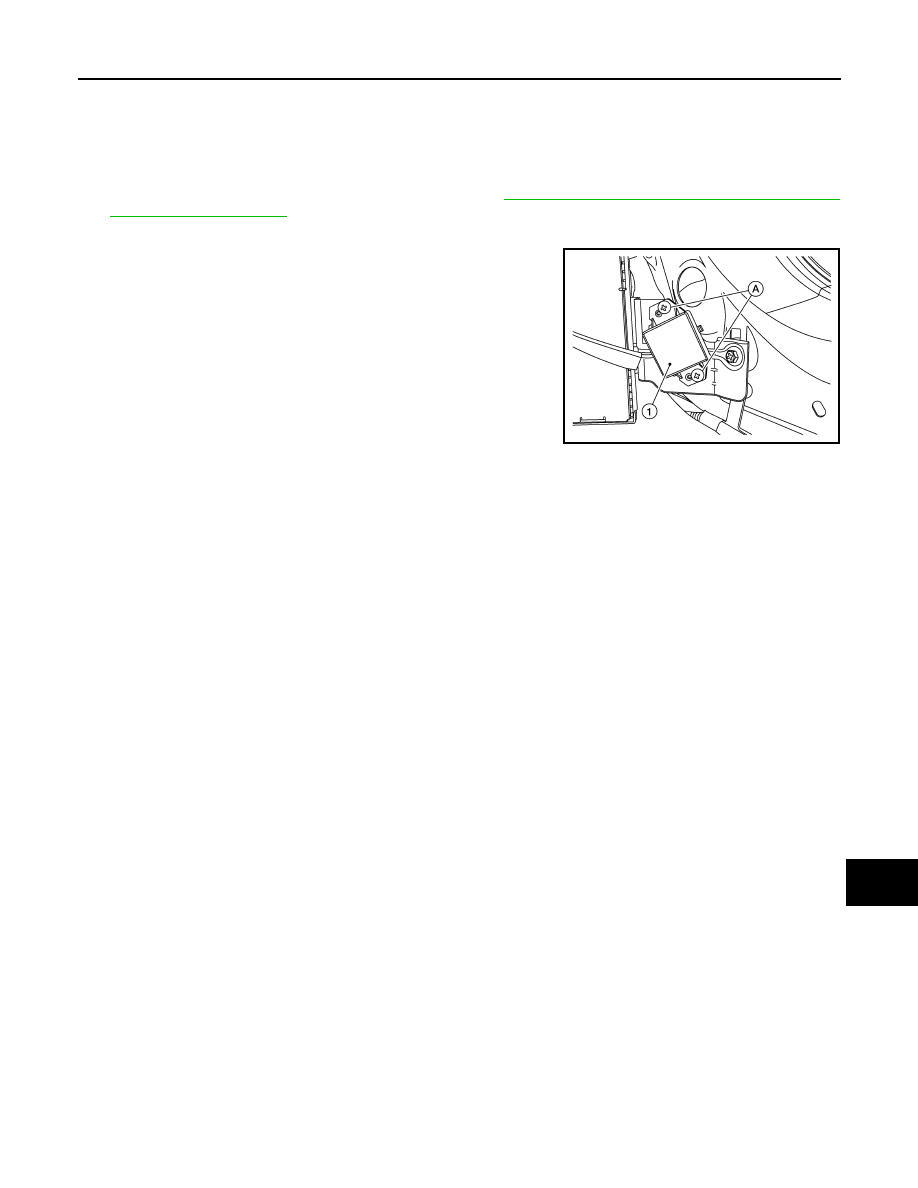

3. Remove the Bluetooth® antenna screws (A) and the Bluetooth®

antenna (1).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3095ZZ

AV-58

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

STEERING SWITCH

STEERING SWITCH

Removal and Installation

INFOID:0000000009459937

REMOVAL

1. Remove the steering wheel. Refer to

ST-8, "Removal and Installation"

.

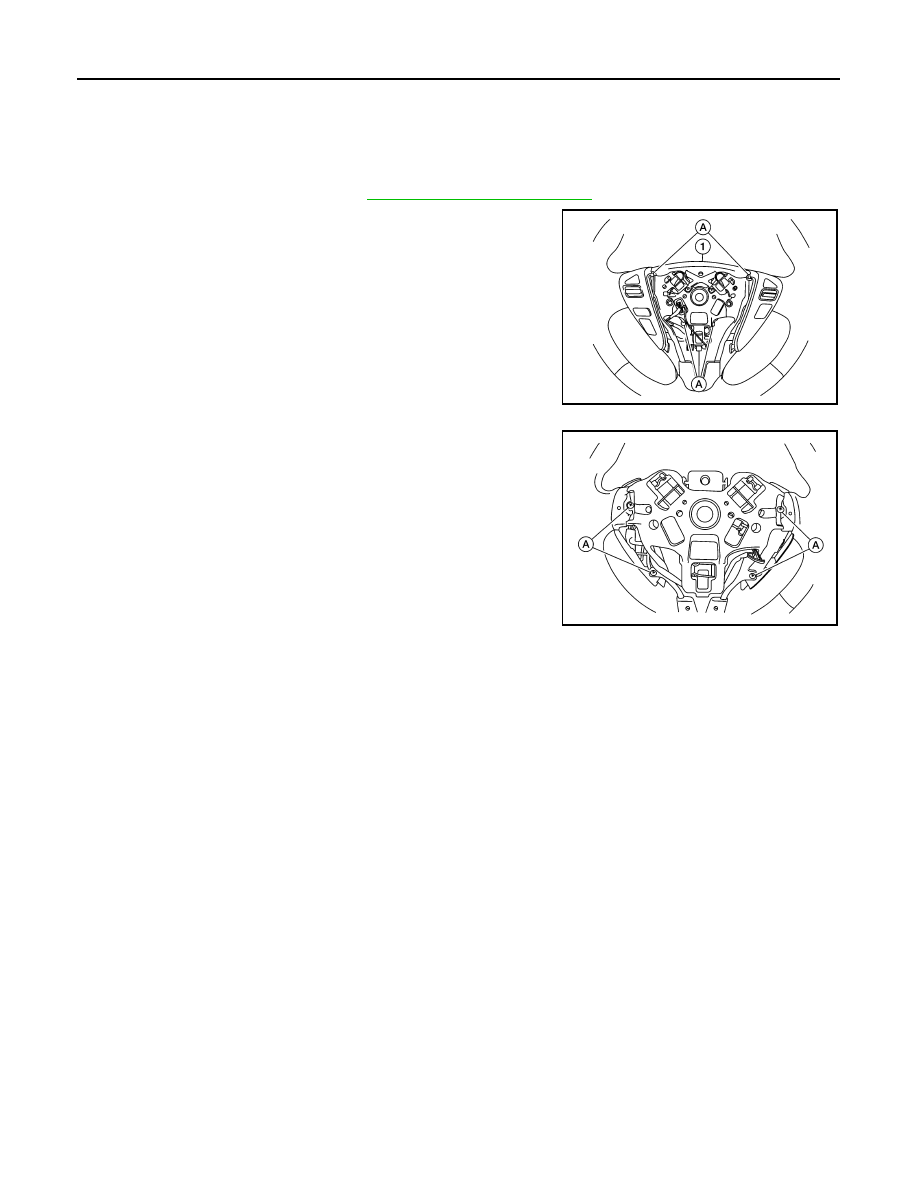

2. Remove the steering wheel rear finisher (1) by releasing pawls

(A).

3. Remove the steering wheel audio control switch screws (A) from

the back of the steering wheel.

4. Remove the steering wheel audio control switches from the steering wheel.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3063ZZ

AWNIA3064ZZ

AV

MICROPHONE

AV-59

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000009459940

REMOVAL

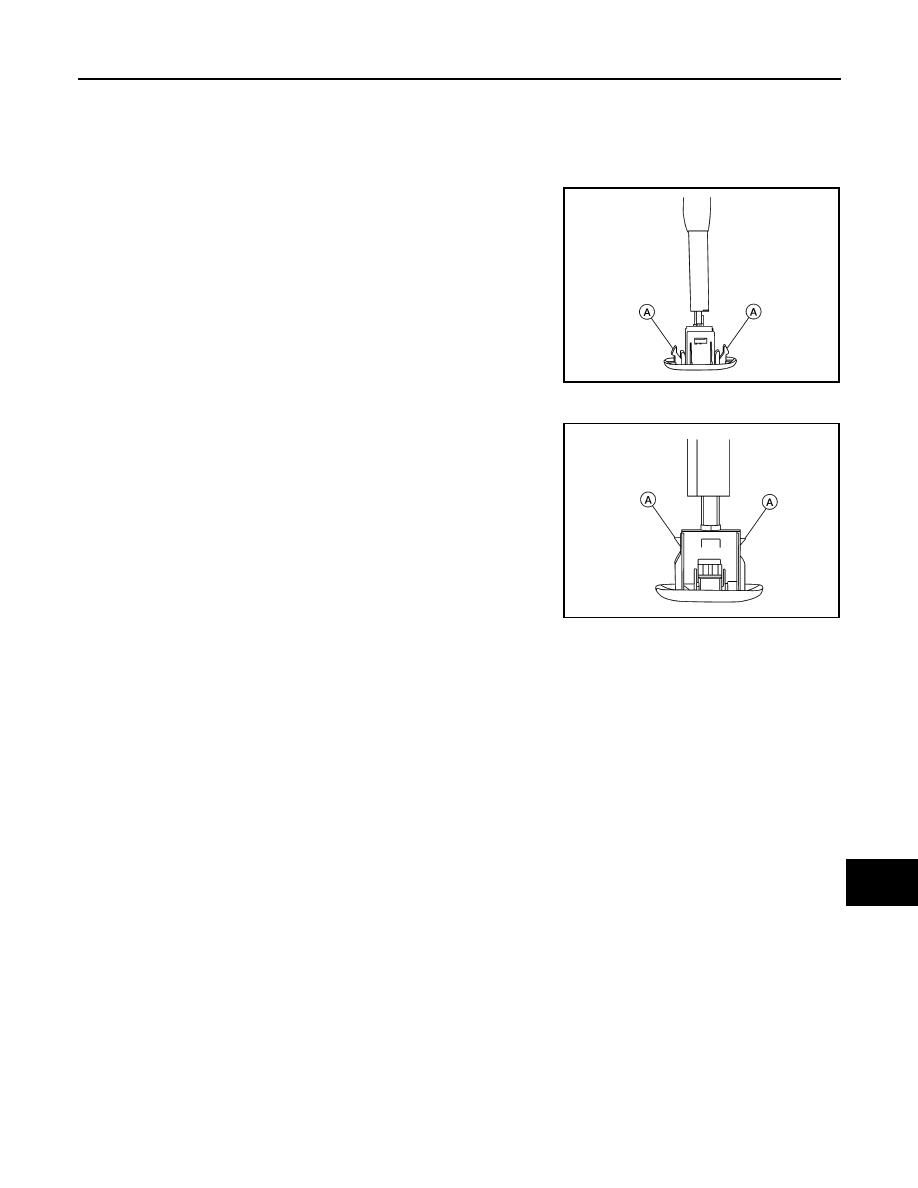

1. Remove the microphone finisher from the headlining by releas-

ing pawls (A) using a suitable tool.

2. Disconnect the harness connector from microphone and remove.
3. Separate the microphone from the finisher by releasing pawls

(A) using a suitable tool.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Make sure to align the rib on the finisher with the slot in the microphone.

Make sure to install the microphone with the arrows pointing toward the RH side of the vehicle.

AWNIA3153ZZ

AWNIA3154ZZ
