AV-52

< SYMPTOM DIAGNOSIS >

[BASE AUDIO]

NORMAL OPERATING CONDITION

The other party’s voice cannot be heard by hands-free phone.

When the radio wave condition is not ideal or ambient sound is too
loud, it may be difficult to hear the other person’s voice during a
call.

Poor sound quality.

Do not place the cellular phone in an area surrounded by metal or
far away from the in-vehicle phone module to prevent tone quality
degradation and wireless connection disruption.

Symptom

Cause and Counter measure

AV

AUDIO UNIT

AV-53

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

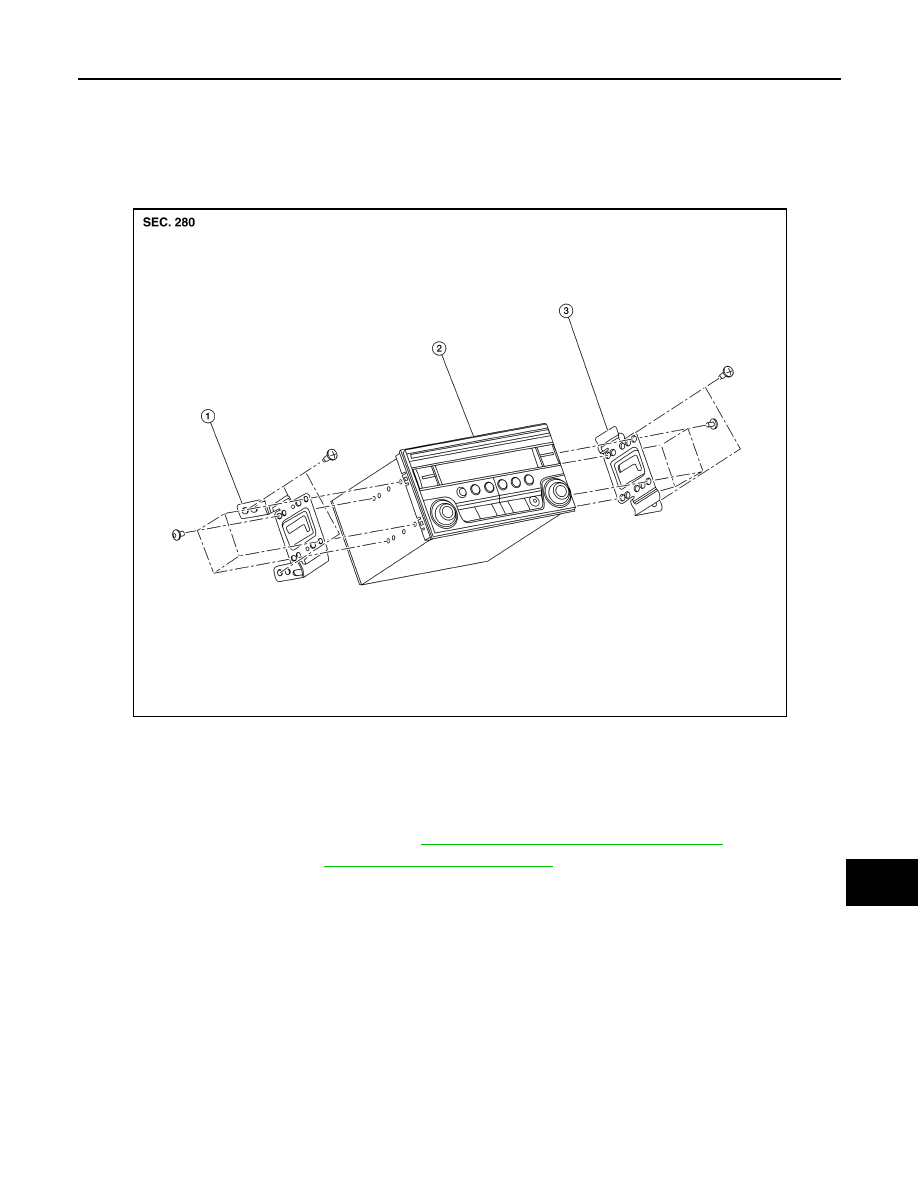

AUDIO UNIT

Exploded View

INFOID:0000000009541372

Removal and Installation

INFOID:0000000009459930

REMOVAL

1. Remove the negative battery cable. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Remove cluster lid C. Refer to

IP-22, "Removal and Installation"

.

3. Remove the audio unit screws.
4. Partially remove the audio unit to gain access to the harness connectors.
5. Disconnect the harness connectors from the audio unit and remove.
6. Remove the audio unit bracket screws from each side of the audio unit (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

1. Audio unit bracket (LH)

2.

Audio unit

3.

Audio unit bracket (RH)

AWNIA3121ZZ

AV-54

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

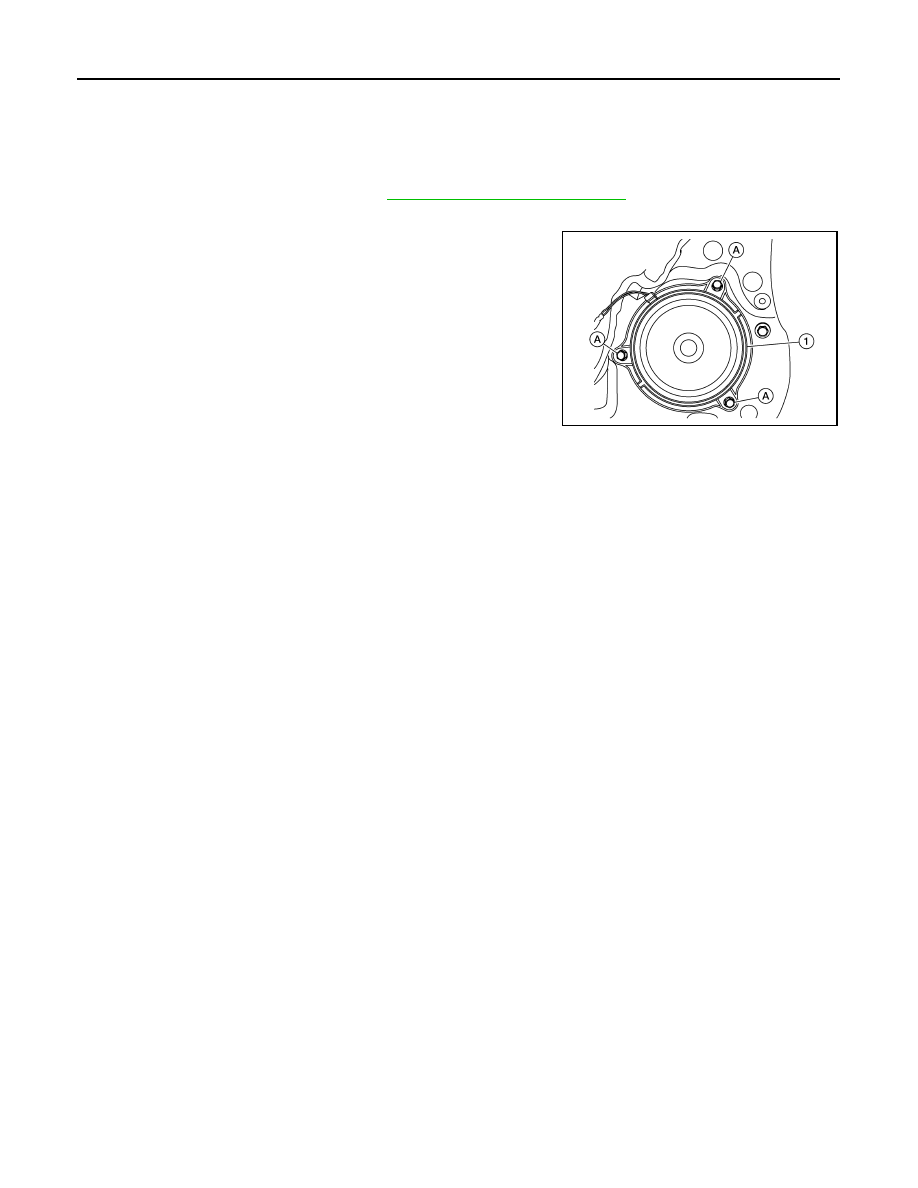

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000009459933

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Disconnect the harness connector from front door speaker.
3. Remove the front door speaker screws (A).
4. Remove the front door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3062ZZ

AV

REAR DOOR SPEAKER

AV-55

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

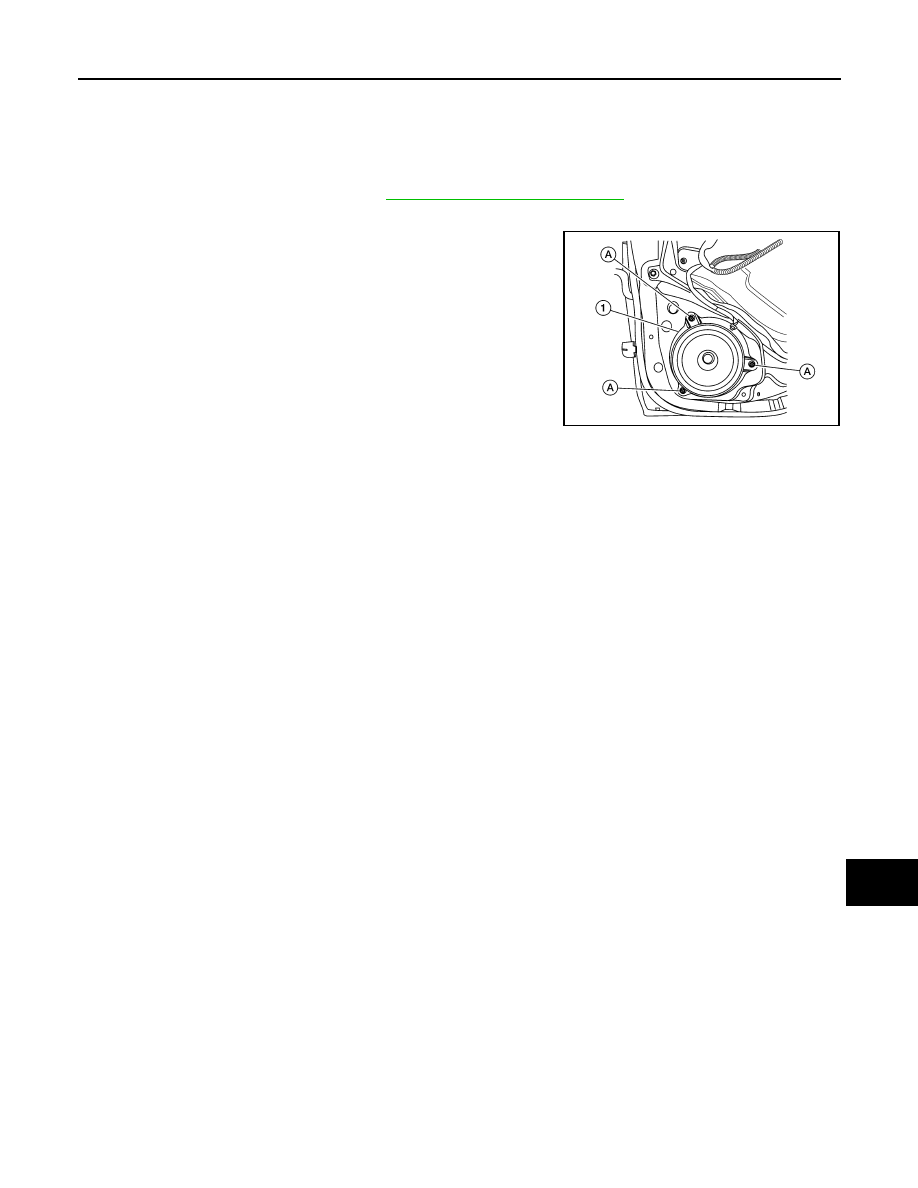

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000009459934

REMOVAL

1. Remove the rear door finisher. Refer to

INT-18, "Removal and Installation"

.

2. Disconnect the harness connector from the rear door speaker.
3. Remove the rear door speaker screws (A).
4. Remove the rear door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

AWNIA3089ZZ
