TM-50

< UNIT DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

MAINSHAFT AND GEAR

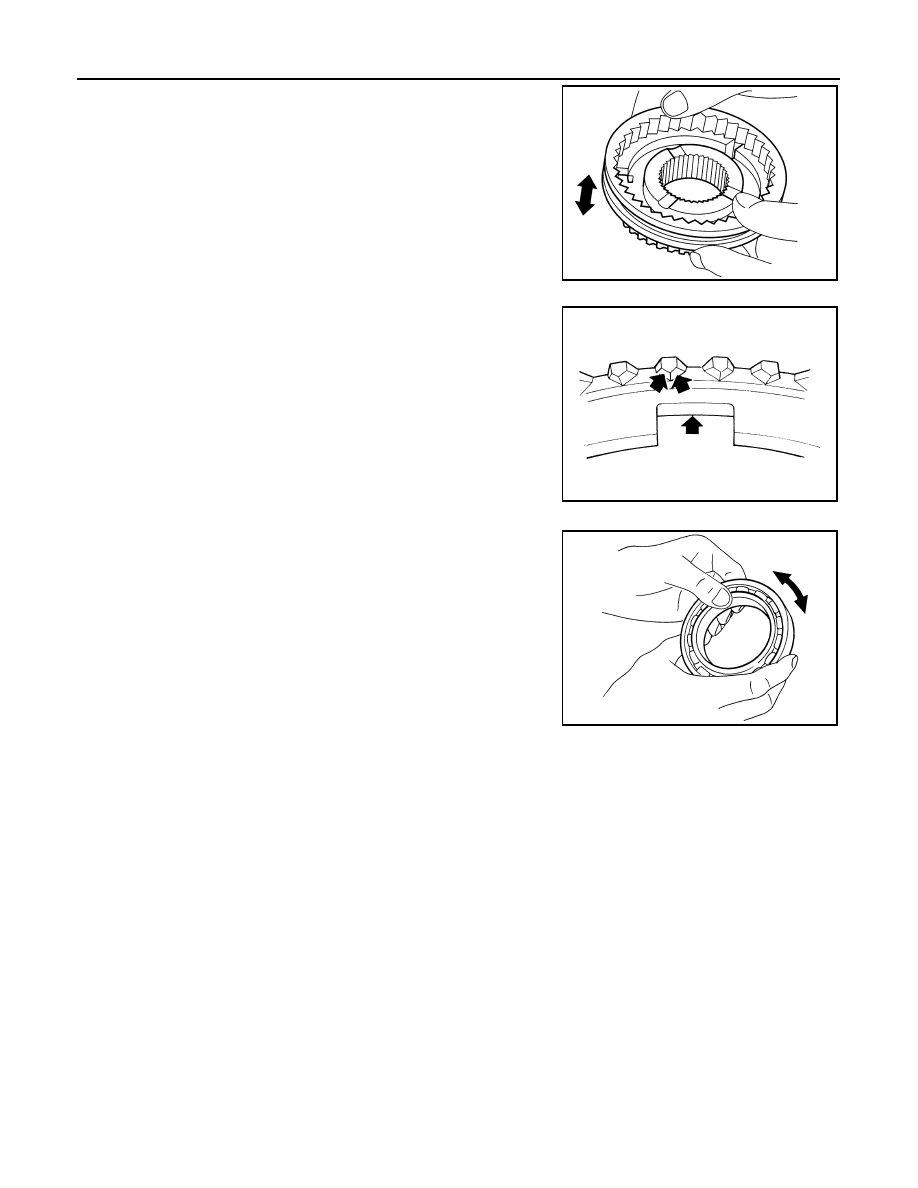

• Contact surface breakage, damage, and unusual wear of coupling

sleeve, synchronizer hub, insert key, and spring.

• Coupling sleeve and synchronizer hub move smoothly.

• Breakage, damage, and excessive wear of baulk ring cam surface

and insert contact surface.

Bearing

Check bearing for damage and rough rotation. Replace if necessary.

SCIA1753J

SCIA0608J

MTF0041D

FINAL DRIVE

TM-51

< UNIT DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FINAL DRIVE

Exploded View

INFOID:0000000009417616

Disassembly

INFOID:0000000009417617

• Remove differential side bearings, using Tool (A) and suitable tool.

Assembly

INFOID:0000000009417618

• Install differential side bearings, using Tool (A).

CAUTION:

Replace differential side bearing outer race and differential

side bearing as a set.

Inspection

INFOID:0000000009417619

INSPECTION AFTER DISASSEMBLY

Gear and Final Drive

1.

Differential side bearing outer race

2.

Differential side bearing

3.

Final drive

: Replace the parts as a set.

JPDIC0481ZZ

Tool number

: ST33052000 ( — )

PCIB1568E

Tool number

: KV40104920 ( — )

PCIB1570E

TM-52

< UNIT DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

FINAL DRIVE

Check the sliding surfaces for wear, crack, or damage. Replace if necessary.

Bearing

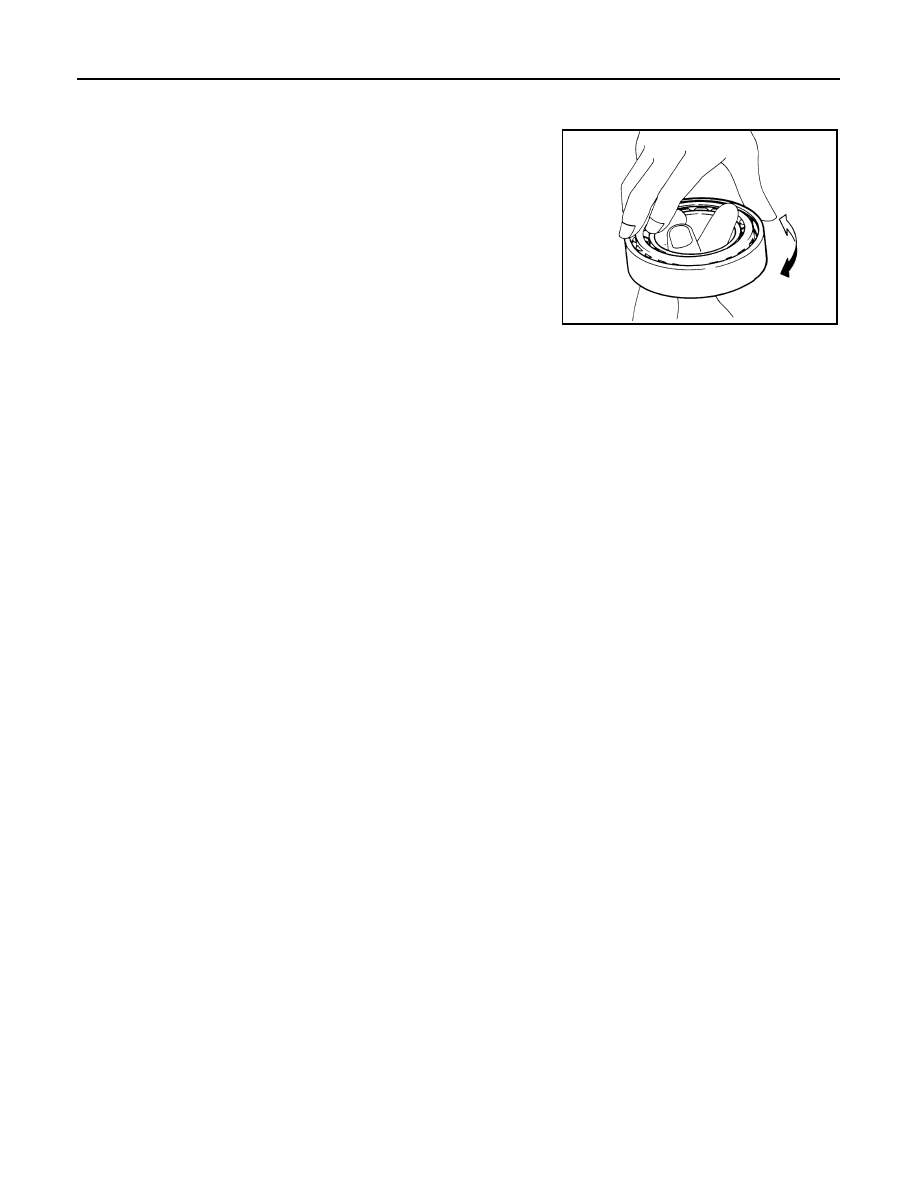

Check bearing for damage and rough rotation. Replace if necessary.

SPD715

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-53

< SERVICE DATA AND SPECIFICATIONS (SDS)

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000009417620

Transaxle type

RS5F91R

Engine type

HR16DE

Model code number

3AM0C

3VB0B

Number of speed

5

Synchromesh type

Warner

Shift pattern

Gear ratio

1st

3.7273

2nd

2.0476

3rd

1.3929

4th

1.0294

5th

0.8205

Reverse

3.5455

Final gear

4.0667

4.2143

Number of
teeth

Input gear

1st

11

2nd

21

3rd

28

4th

34

5th

39

Reverse

11

Main gear

1st

41

2nd

43

3rd

39

4th

35

5th

32

Reverse

39

Reverse idler gear

26

Final gear

Final gear/Pinion

61/15

59/14

Side gear/Pinion mate gear

13/9

Gear oil capacity (Reference)

 (US pt, Imp pt)

Approx. 2.67 (5-5/8, 4-3/4)

Remarks

Reverse brake

Installed

Double-cone synchronizer

1st and 2nd

Speedometer drive gear

Not installed
