Nissan Note E12. Manual - part 444

MA-24

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE

OIL FILTER : Inspection

INFOID:0000000009670494

INSPECTION AFTER INSTALLATION

1. Check the engine oil level. Refer to

MA-21, "ENGINE OIL : Inspection"

.

SPARK PLUG
SPARK PLUG : Exploded View

INFOID:0000000009670488

SPARK PLUG : Removal and Installation

INFOID:0000000009670489

REMOVAL

1. Remove ignition coil. Refer to

EM-48, "Removal and Installation"

.

CAUTION:

Do not drop or shock ignition coil.

2. Remove spark plug using a suitable tool.

CAUTION:

Do not drop or shock spark plug.

INSPECTION AFTER REMOVAL

• If the spark plug tip is covered with carbon, a spark plug cleaner may be used.

CAUTION:

1.

Ignition coil

2.

Spark plug

3.

Rocker cover

Front

AWBIA1599ZZ

Diameter (a)

: 14 mm (0.55 in)

JPBIA0030ZZ

Cleaner air pressure

: Less than 588 kPa (6 kg/cm

2

, 85 psi)

Cleaning time

: Less than 20 seconds

ENGINE MAINTENANCE

MA-25

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

Do not use a wire brush for cleaning.

• Checking and adjusting spark plug gap is not required between

change intervals. Do not adjust the gap; replace the spark plug as

necessary if out of specification.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not drop or shock the spark plug.

*: Always check with the Parts Department for the latest parts information.

CAUTION:

Always tighten the spark plug to specified torque to align the orientation of electrodes. The ground

electrode of a genuine spark plug is positioned in the area of maximum ignitability by tightening to the

specified torque. When replacing spark plugs, use genuine spark plugs of which the ground electrode

is adjusted.

NOTE:

SMA773C

SMA806CA

Make

NGK

Standard type*

PLZKAR6A-11

Gap (nominal)

1.1 mm (0.043 in)

MA-26

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE

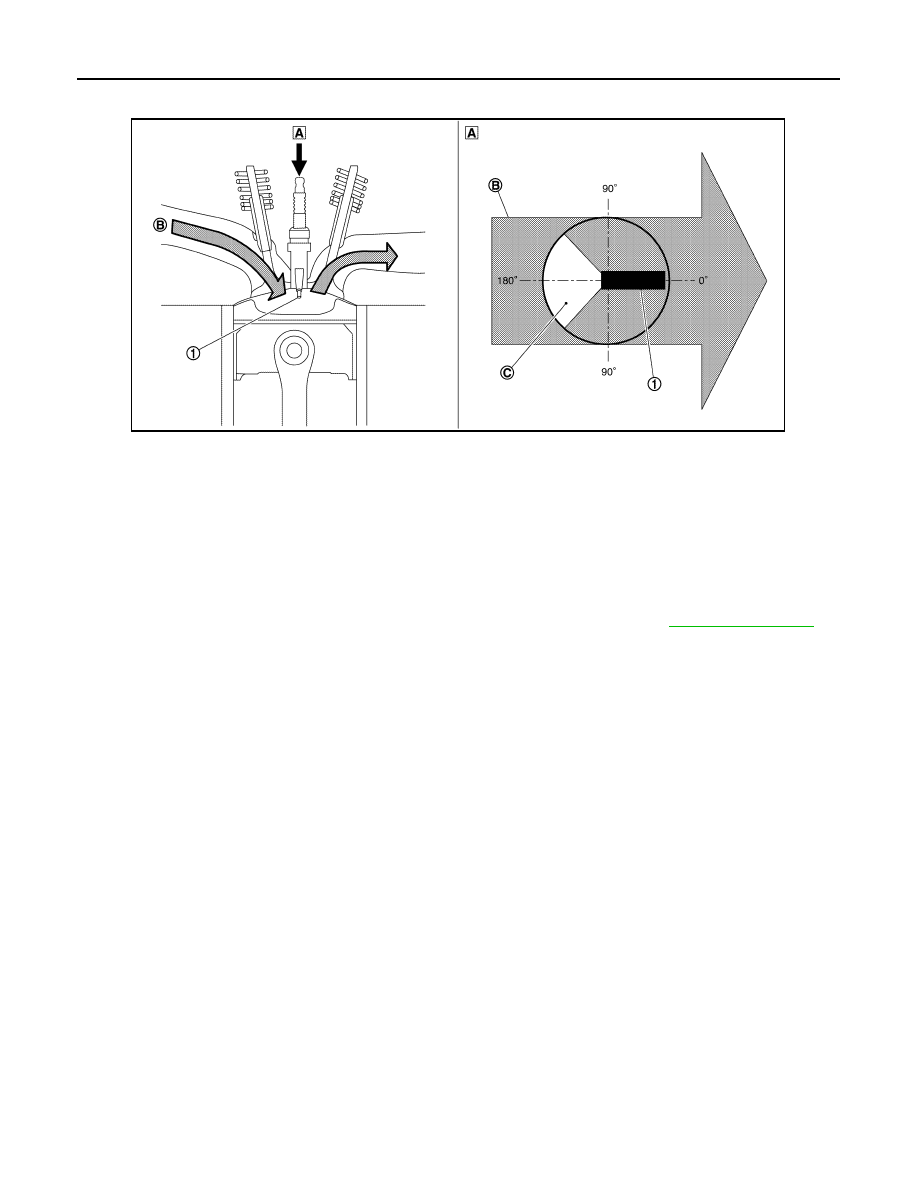

The ground electrode of the spark plug is positioned in the area of maximum ignitability to improve combustion

eficiency in the cylinder, reduce CO2 (carbon dioxide) emission and improve fuel economy.

EVAP VAPOR LINES
EVAP VAPOR LINES : Inspection

INFOID:0000000009417648

1. Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,

chafing and deterioration.

2. Inspect fuel tank filler cap vacuum relief valve for clogging, sticking, etc. Refer to

EC-336, "Inspection"

.

1.

Ground electrode of spark plug

A.

Top view

B.

Air-fuel mixture flow

C.

Poor ignitability region

JPBIA5996GB

CHASSIS AND BODY MAINTENANCE

MA-27

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

CHASSIS AND BODY MAINTENANCE

EXHAUST SYSTEM
EXHAUST SYSTEM : Inspection

INFOID:0000000009670503

Check exhaust pipes, muffler, and mounting for improper attach-

ment, leaks, cracks, damage or deterioration.

• If anything is found, repair or replace damaged parts.

CVT FLUID
CVT FLUID : Inspection

INFOID:0000000009670504

FLUID LEAKAGE

• Check transaxle surrounding area (oil seal and plug etc.)for fluid

leakage.

• If anything is found, repair or replace damaged parts and adjust

CVT fluid level. Refer to

MA-29, "CVT FLUID : Adjustment"

.

CVT FLUID : Replacement

INFOID:0000000009670505

CAUTION:

• Use only Genuine NISSAN CVT Fluid NS-3. Using transmission fluid other than Genuine NISSAN

CVT Fluid NS-3 will damage the CVT, which is not covered by the (NISSAN new vehicle limited) war-

ranty.

• Always use shop paper. Never use shop cloth.

• Replace a drain plug gasket with new ones at the final stage of the operation when installing.

• Use caution when looking into the drain hole as there is a risk of dripping fluid entering the eye.

• After replacement, always perform CVT fluid leakage check.
1. Select “Data Monitor” in “TRANSMISSION” using CONSULT.
2. Select “FLUID TEMP” and confirm that the CVT fluid temperature is 40

°C (104°F) or less.

3. Check that the selector lever is in the “P” position, then completely engage the parking brake.
4. Lift up the vehicle.
5. Remove the drain plug and overflow tube and drain the CVT fluid from the oil pan.

TM-238, "Removal and

Installation"

.

SMA211A

SMA146B

CVT fluid

: Refer to

TM-254, "General Specification"

.

Fluid capacity

: Refer to

TM-254, "General Specification"

.
