SYSTEM DESCRIPTION

COMPONENT PARTS

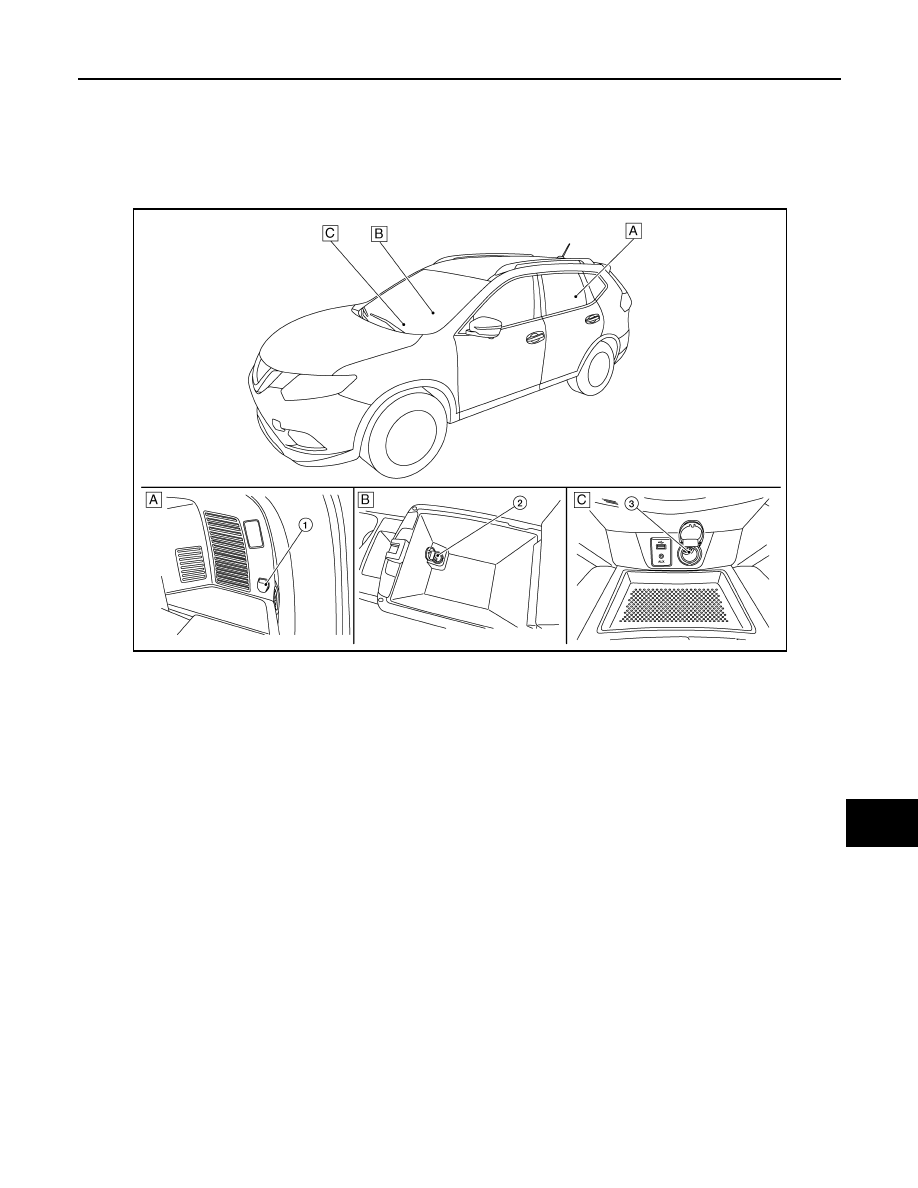

Component Parts Location

INFOID:0000000011278433

A.

Luggage side lower finisher RH

B.

Center console

C.

Cluster lid C

1.

Rear cargo power socket

2.

Console power socket

3.

Front power socket

AWMIA1588ZZ

PWO-4

< WIRING DIAGRAM >

POWER SOCKET

WIRING DIAGRAM

POWER SOCKET

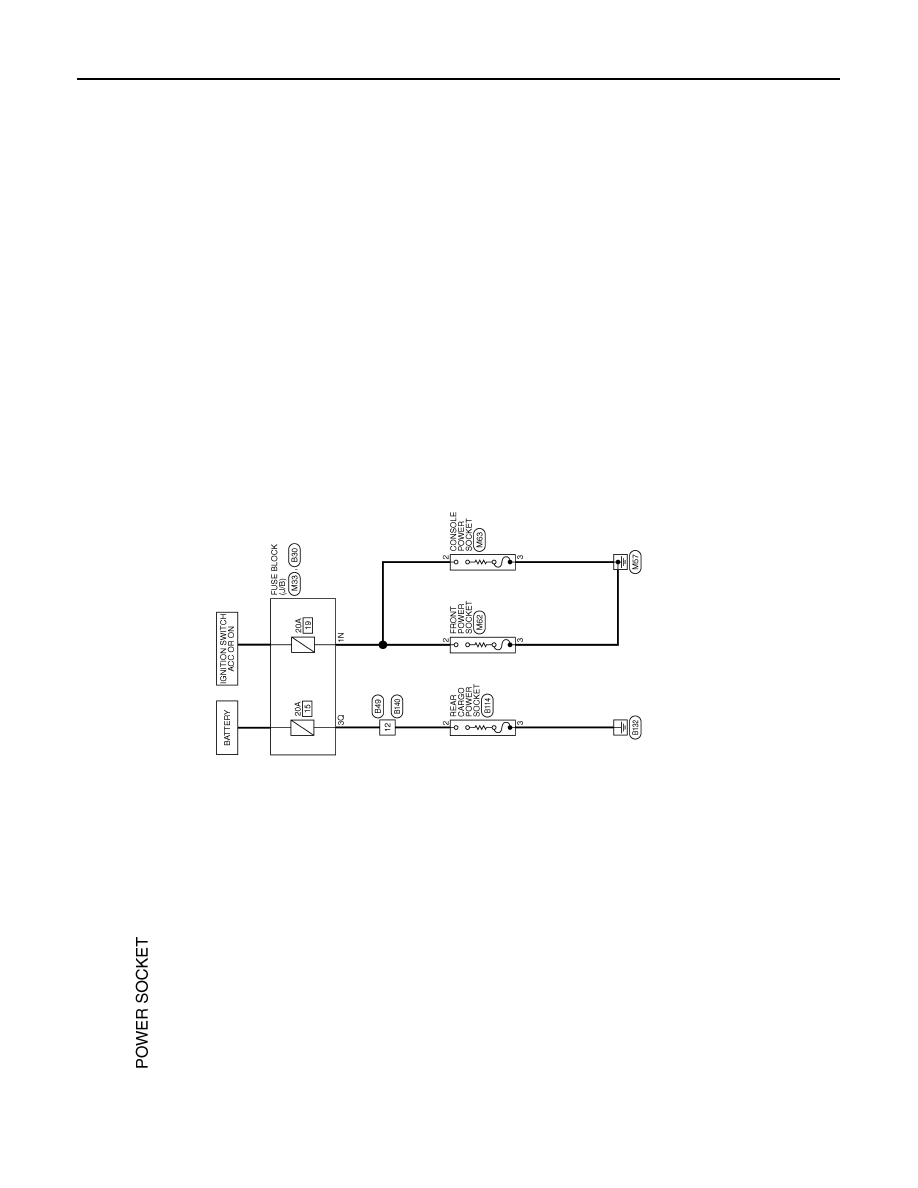

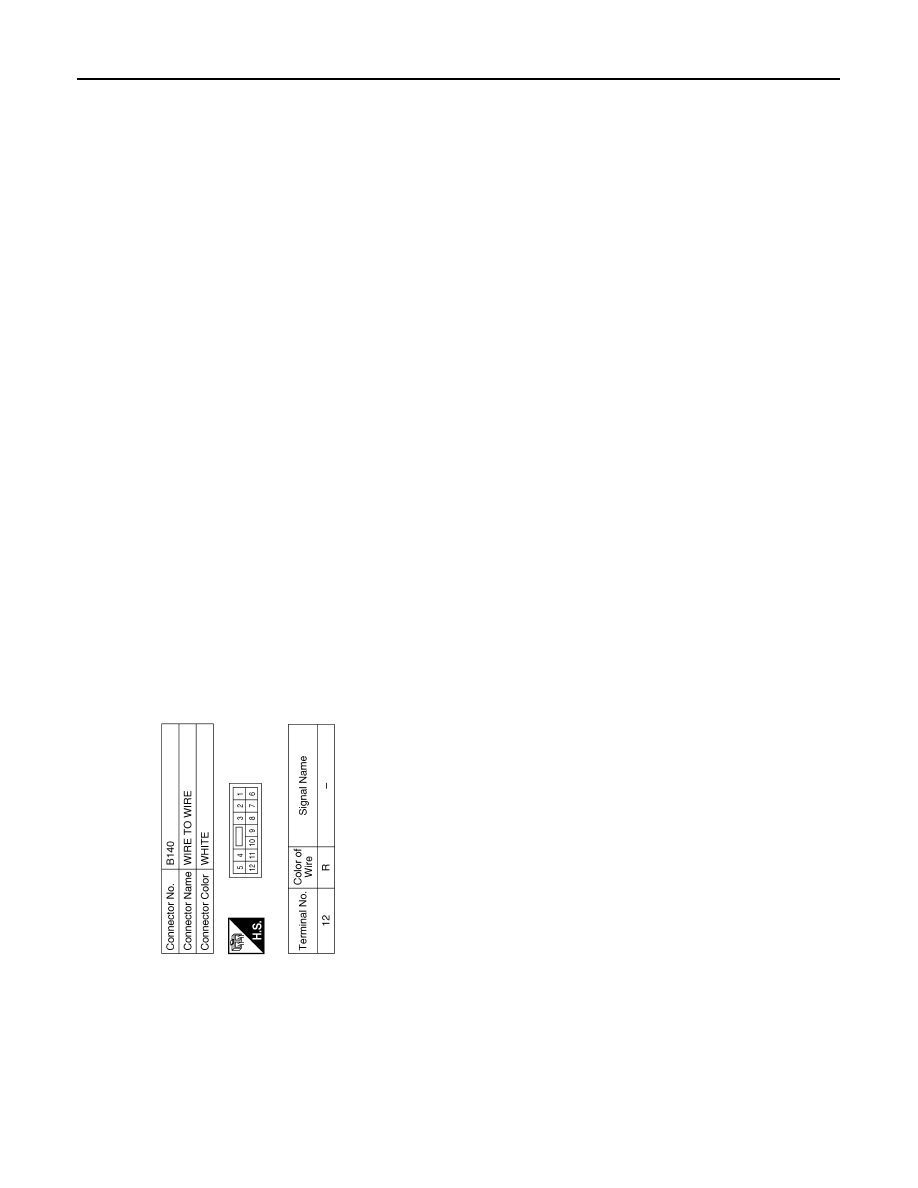

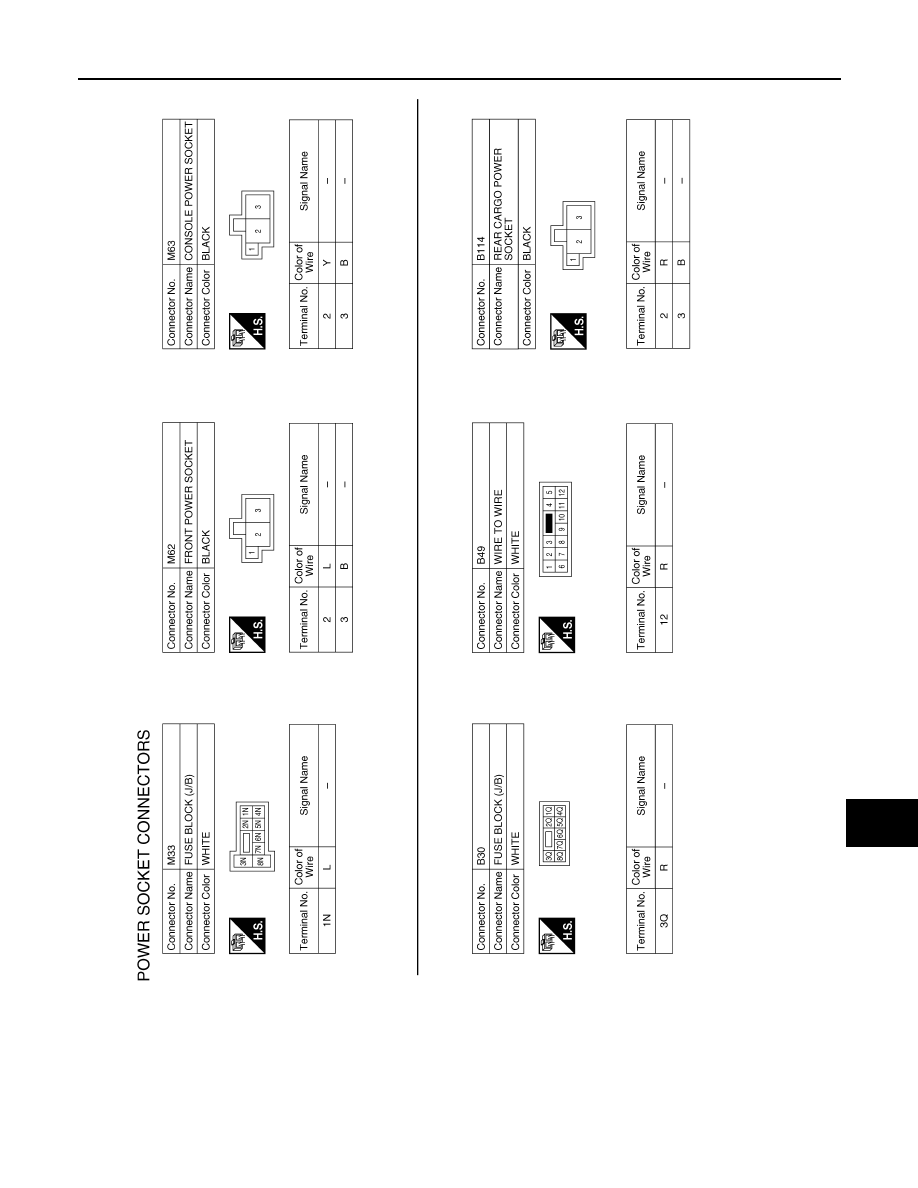

Wiring Diagram

INFOID:0000000011278434

AAMWA1408GB
