DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

Monitor Item [Unit]

Description

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

BCM (BODY CONTROL MODULE)

PWC-15

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000011278680

ECU

Reference

BCM (with Intelligent Key system)

BCS-28, "Reference Value"

BCS-46, "Fail Safe"

BCS-46, "DTC Inspection Priority Chart"

BCS-47, "DTC Index"

BCM (without Intelligent Key system)

BCS-96, "Reference Value"

BCS-107, "Fail Safe"

BCS-107, "DTC Inspection Priority Chart"

BCS-108, "DTC Index"

PWC-16

< ECU DIAGNOSIS INFORMATION >

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Reference Value

INFOID:0000000011278681

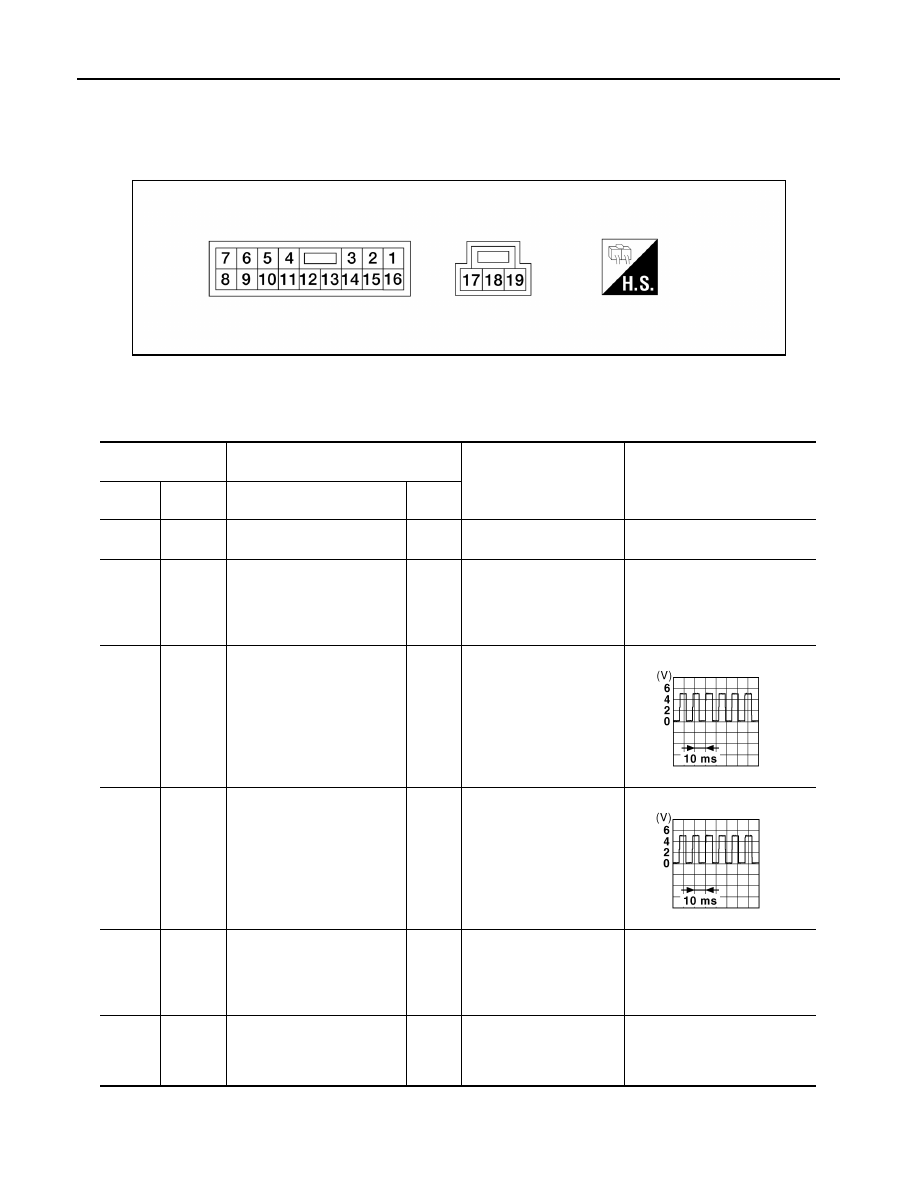

TERMINAL LAYOUT

PHYSICAL VALUES

AWKIA2145ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage

(Approx.)

+

-

Signal name

Input/

Output

1

(B)

Ground

Ground

—

—

0

2

(LA/GR)

16

(LA/SB)

Front power window motor
RH DOWN signal

Output

When the front RH switch
on the main power window
and door lock/unlock is op-
erated in the DOWN posi-
tion.

 Battery voltage

4

(R)

12

(Y)

Encoder pulse signal 2

Input

When the power window
motor operates.

5

(W)

12

(Y)

Encoder pulse signal 1

Input

When the power window
motor operates.

6

(P)

Ground

Rear power window motor RH
DOWN signal

Output

When the rear RH switch
on the main power window
and door lock/unlock is op-
erated in the DOWN posi-
tion.

Battery voltage

7

(LG)

Ground

Rear power window motor RH
UP signal

Output

When the rear RH switch
on the main power window
and door lock/unlock is op-
erated in the UP position.

Battery voltage

JMKIA0070GB

JMKIA0070GB

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

PWC-17

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

8

(LA/Y)

Ground

Rear power window motor LH
DOWN signal

Output

When the rear LH switch
on the main power window
and door lock/unlock is op-
erated in the DOWN posi-
tion.

Battery voltage

9

(LA/W)

Ground

Rear power window motor LH
UP signal

Output

When the rear LH switch
on the main power window
and door lock/unlock is op-
erated in the UP position.

Battery voltage

10

(SB)

Ground

Ignition power supply

Input

IGN SW ON

Battery voltage

IGN SW OFF

0

12

(Y)

Ground

Encoder ground

—

—

0

14

(G)

Ground

Encoder power supply

Output

When ignition switch ON or
power window timer
operates.

10

16

(LA/SB)

2

(LA/GR)

Front power window motor
RH UP signal

Output

When the front RH switch
on the main power window
and door lock/unlock is op-
erated in the UP position.

 Battery voltage

17

(LA/L)

19

(LA/BR)

Front power window motor LH
UP signal

Output

When the front LH switch
on the main power window
and door lock/unlock is op-
erated in the UP position.

Battery voltage

18

(LA/R)

Ground

Battery power supply

Input

—

Battery voltage

19

(LA/BR)

17

(LA/L)

Front power window motor LH
DOWN signal

Output

When the front LH switch
on the main power window
and door lock/unlock is op-
erated in the DOWN posi-
tion.

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Voltage

(Approx.)

+

-

Signal name

Input/

Output
