Nissan Rogue. Manual - part 981





PWC-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

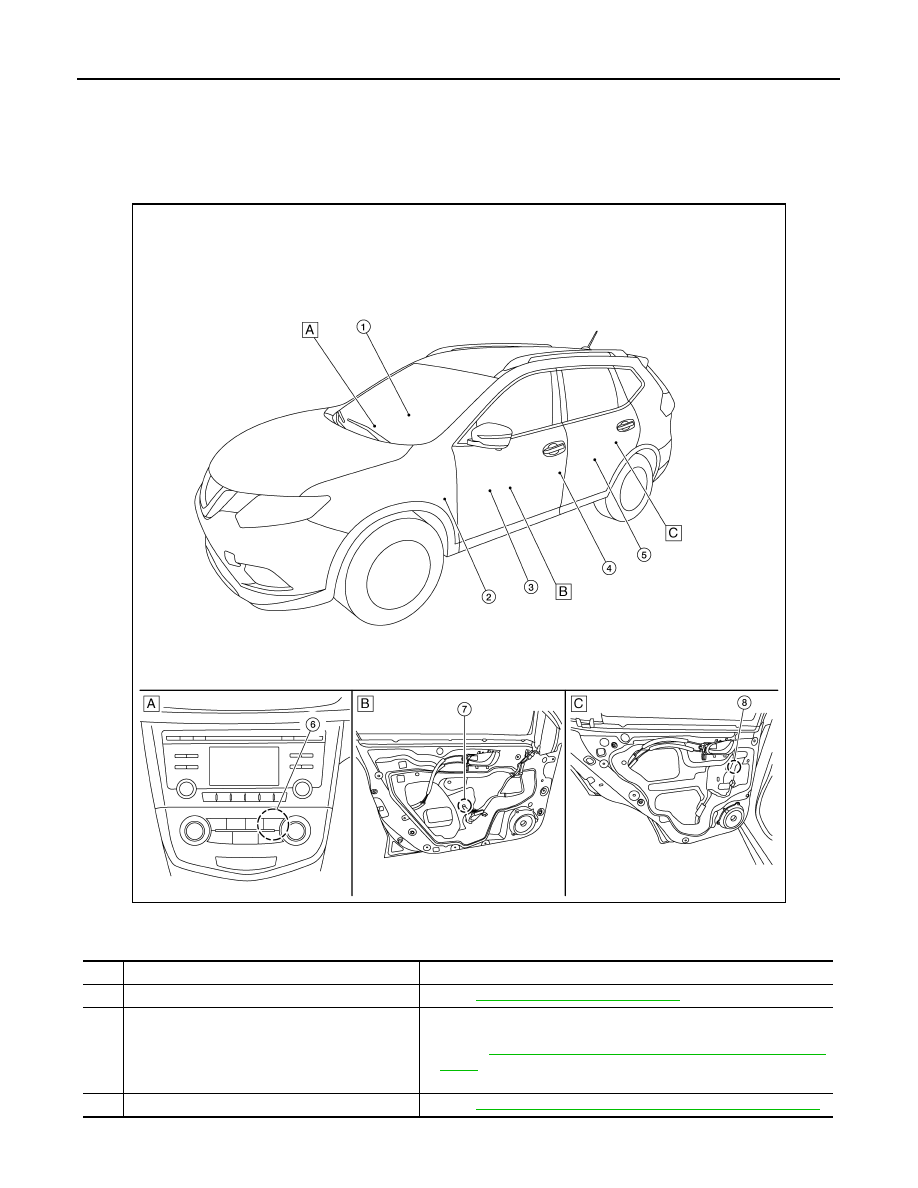

Component Parts Location

INFOID:0000000011278669

AWKIA3139ZZ

A.

A/C switch assembly

B.

View with front door finisher removed C. View with rear door finisher removed

No.

Component parts

Function

1.

Power window and door lock/unlock switch RH

Refer to

PWC-7, "Power Window Switch RH"

.

2.

BCM

• Supplies power supply to power window relay.
• Controls retained power.
• Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Lo-

cation"

 for detailed installation

location.

3.

Main power window and door lock/unlock switch

Refer to

PWC-7, "Main Power Window And Door Lock/Unlock Switch"

.

COMPONENT PARTS

PWC-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

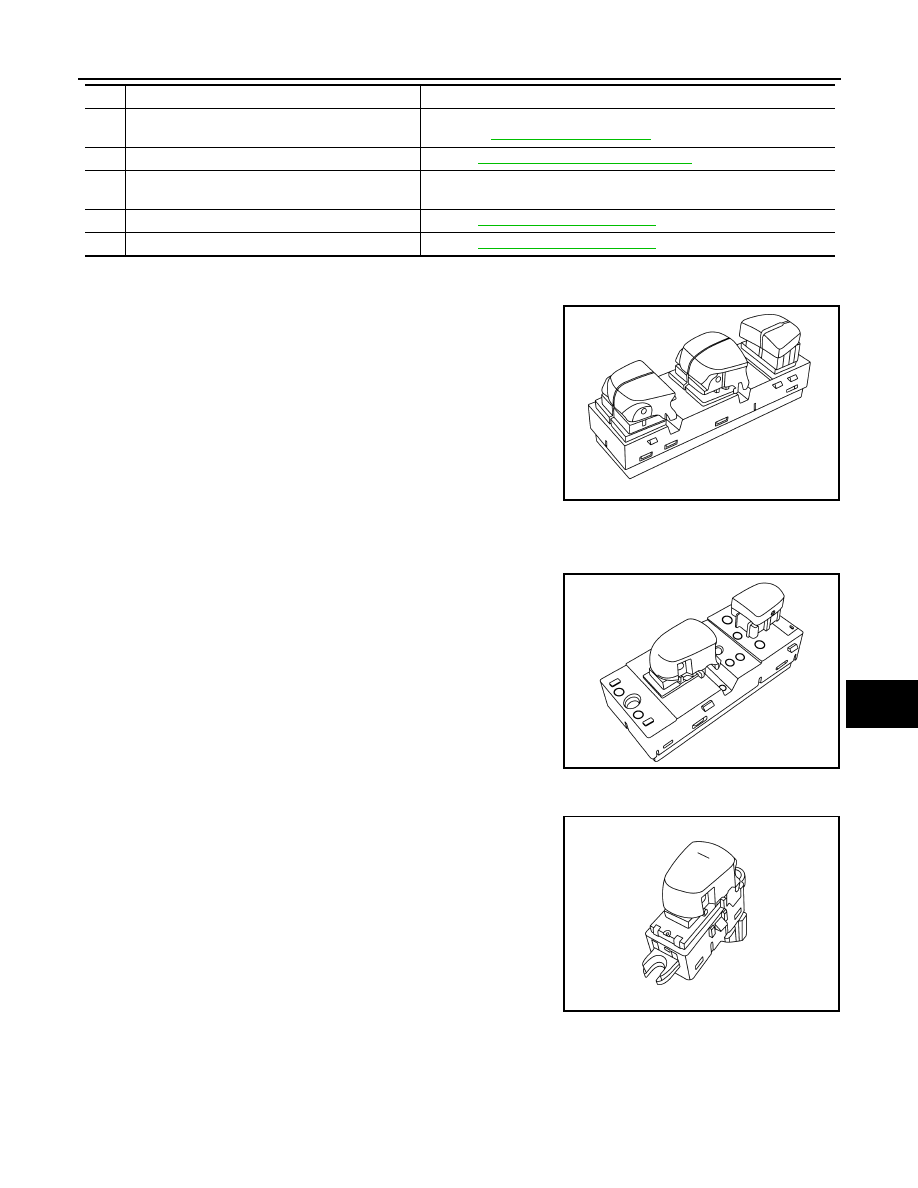

Main Power Window And Door Lock/Unlock Switch

INFOID:0000000011278670

• Main power window and door lock/unlock switch controls all power

windows.

• Main power window and door lock/unlock switch integrates UP/

DOWN switch, power window lock switch, and door lock/unlock

switch.

• Main power window and door lock/unlock switch controls power

window lock function, AUTO UP/DOWN function, and anti-pinch

function.

Power Window Switch RH

INFOID:0000000011278671

• Power window and door lock/unlock switch RH transmits UP/

DOWN signal to front power window motor RH.

• Power window and door lock/unlock switch RH transmits UP/

DOWN signal from main power window and door lock/unlock

switch to front power window motor RH.

• Power window and door lock/unlock switch RH integrates UP/

DOWN switch and door lock/unlock switch.

Rear Power Window Switch

INFOID:0000000011278672

• Each rear power window switch transmits UP/DOWN signal to

each rear power window motor.

• Each rear power window switch transmits UP/DOWN signal from

main power window and door lock/unlock switch to each rear

power window motor.

4.

Front door switch LH (RH similar)

• Inputs door open/close condition to BCM.
• Refer to

DLK-23, "Front Door Switch"

.

5.

Rear power window switch LH (RH similar)

Refer to

PWC-7, "Rear Power Window Switch"

.

6.

Power window relay

Operates the power window system with the control signal from the
BCM.

7.

Front power window motor LH (RH similar)

Refer to

PWC-8, "Power Window Motor"

.

8.

Rear power window motor LH (RH similar)

Refer to

PWC-8, "Power Window Motor"

.

No.

Component parts

Function

JMKIB1375ZZ

JMKIB1377ZZ

JMKIB1379ZZ

PWC-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

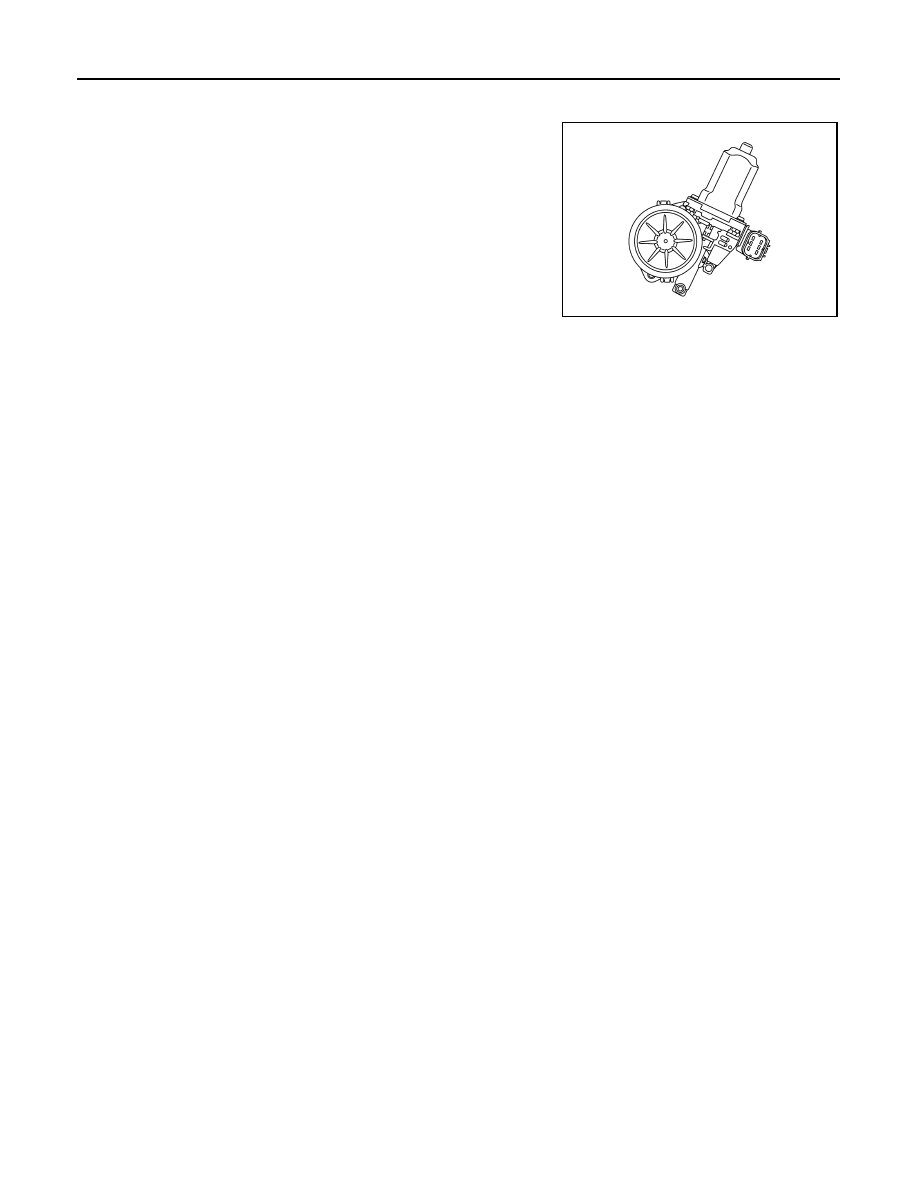

Power Window Motor

INFOID:0000000011278673

• Integrates the encoder and power window motor LH.

• Starts operation according to signals from the main power window

and door lock/unlock switch.

• Transmits front power window motor LH rotation as a pulse signal

to main power window and door lock/unlock switch.

• Excepting power window motor for driver door, starts operation

according to signals from main power window and door lock/unlock

switch or each power window switches.

JMKIB2745ZZ

SYSTEM

PWC-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

SYSTEM

System Description

INFOID:0000000011278674

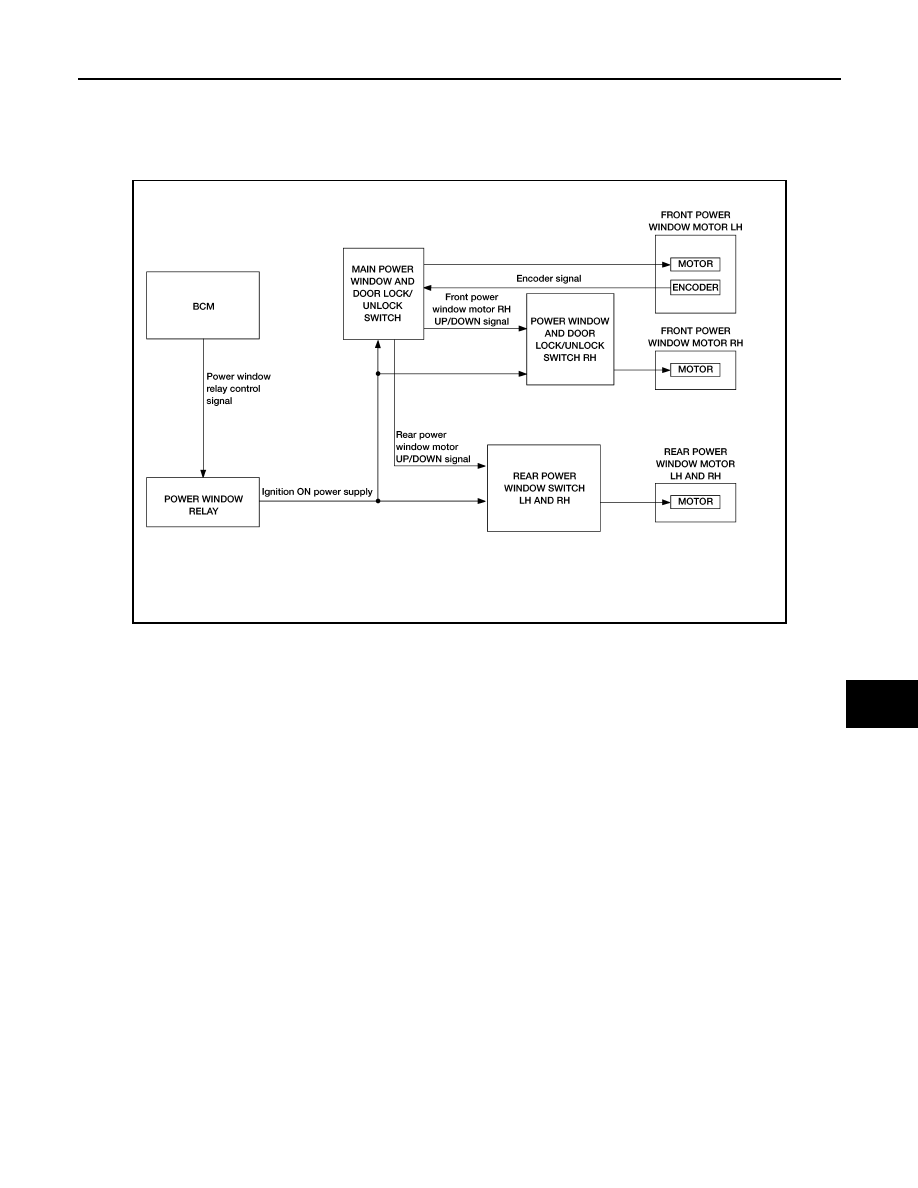

SYSTEM DIAGRAM

POWER WINDOW OPERATION

• Main power window and door lock/unlock switch can open/close all windows.

• Front and rear power window switches can open/close the corresponding windows.

POWER WINDOW AUTO-OPERATION (FRONT DRIVER SIDE)

• AUTO UP/DOWN operation can be performed when main power window and door lock/unlock switch turns

to AUTO.

• Encoder continues detecting the movement of power window motor and transmits to power window switch

as the encoder pulse signal while power window motor is operating.

• Power window switch reads the changes of encoder signal and stops AUTO operation when door glass is at

fully opened/closed position.

• Power window motor is operable in case encoder is malfunctioning.

RETAINED POWER OPERATION

Retained power operation is an additional power supply function that enables power window system to oper-

ate for 45 seconds even when power switch is turned OFF.

RETAINED POWER CANCEL CONDITIONS:

• Front door CLOSE (door switch OFF)

→ OPEN (door switch ON).

• When power switch is ON again.

• When timer time passes (45 seconds).

POWER WINDOW LOCK

Ground circuit inside main power window and door lock/unlock switch shuts off when power window lock

switch is ON. This inhibits power window switch operation except with the main power window and door lock/

unlock switch.

ANTI-PINCH SYSTEM (FRONT DRIVER SIDE)

• Pinch foreign material in the door glass during AUTO-UP operation, and it is the anti-pinch function that low-

ers the door glass 150 mm (5.9 in.) when detected.

AWKIA3140GB
