PCS-30

< WIRING DIAGRAM >

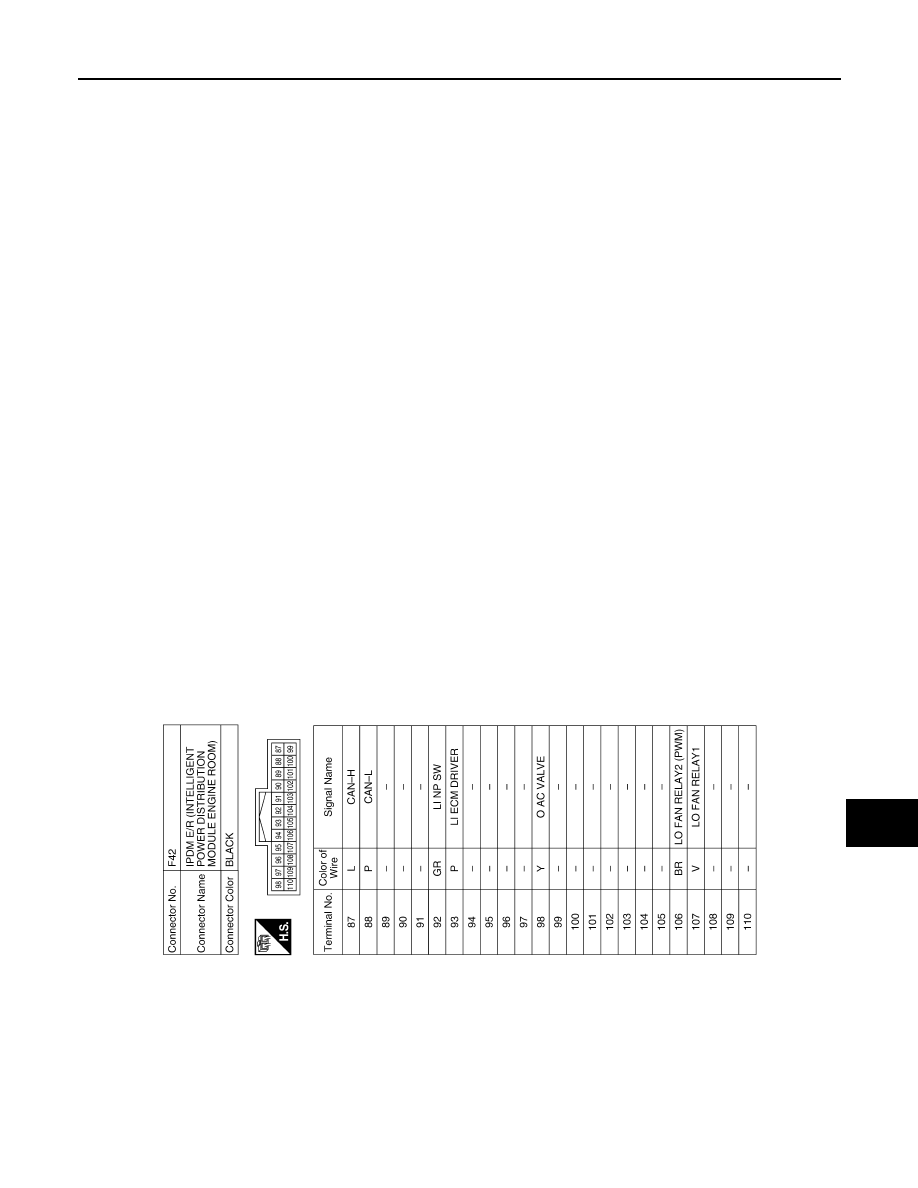

[IPDM E/R]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

AAMIA2836GB

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-31

< WIRING DIAGRAM >

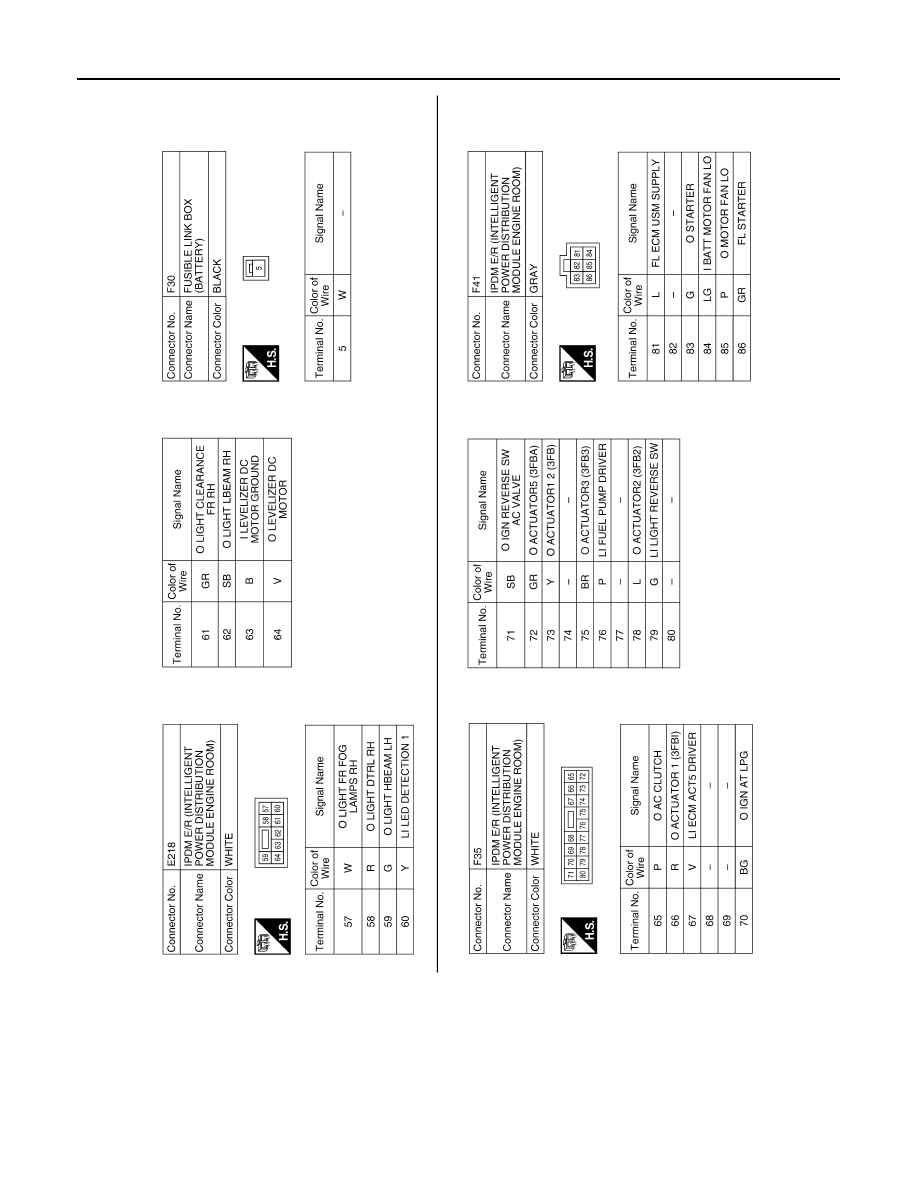

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA2837GB

PCS-32

< BASIC INSPECTION >

[IPDM E/R]

ADDITIONAL SERVICE WHEN REPLACING IPDM E/R

BASIC INSPECTION

ADDITIONAL SERVICE WHEN REPLACING IPDM E/R

Description

INFOID:0000000011277081

After replacing IPDM E/R, it is necessary to perform control unit configuration and height sensor initialize (For

LED headlamp models) with CONSULT.

Work Procedure

INFOID:0000000011277082

1.

REPLACE IPDM E/R

Replace IPDM E/R. Refer to

PCS-40, "Removal and Installation"

.

>> GO TO 2.

2.

WRITING VEHICLE SPECIFICATION (IPDM E/R)

CONSULT Configuration

Perform “After Replace ECU” of “Read/Write Configuration” or “Manual Configuration” to write vehicle specifi-

cation. Refer to

PCS-33, "Work Procedure"

.

>> GO TO 3.

3.

CHECK HEADLAMP TYPE

Check headlamp type.

LED headlamp>>GO TO 4.

Halogen headlamp>>Work End.

4.

HEIGHT SENSOR INITIALIZE

Perform height sensor initialize. Refer to

EXL-221, "SENSOR INITIALIZE : Special Repair Requirement"

.

>> Work End.

PCS

CONFIGURATION (IPDM E/R)

PCS-33

< BASIC INSPECTION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CONFIGURATION (IPDM E/R)

Description

INFOID:0000000011277083

There is no vehicle specification in new IPDM E/R, so the vehicle specification needs to be written in IPDM E/

R with CONSULT.

CAUTION:

• When replacing IPDM E/R, always perform “Manual Configuration” with CONSULT. Or not doing so,

IPDM E/R control function does not operate normally.

• Never perform “Manual Configuration” except for new IPDM E/R or the control function may not

operate normally.

Work Procedure

INFOID:0000000011277084

1.

WRITING MODE SELECTION

CONSULT Configuration

Select “CONFIGURATION” of IPDM E/R.

>> GO TO 2.

2.

PERFORM “MANUAL CONFIGURATION”

CONSULT Configuration

1. Select “MANUAL CONFIGURATION”.

2. Identify the correct model and configuration list. Refer to

PCS-33, "Configuration list"

.

CAUTION:

• Thoroughly read and understand the vehicle specification. ECU control may not operate nor-

mally if the setting is not correct.

• Make sure to select “SETTING” even if the indicated configuration of brand new IPDM E/R is

same as the desirable configuration. If not, configuration which is set automatically by selecting

vehicle model cannot be memorized

3. Sets the displayed item and then select “NEXT”.

NOTE:

If item is not displayed, select “NEXT”.

4. Check that the configuration has been successfully written and touch “End”.

>> GO TO 3.

3.

OPERATION CHECK

Confirm that each function controlled by IPDM E/R operates normally.

>> Work End.

Configuration list

INFOID:0000000011277085

CAUTION:

Check vehicle specifications before servicing.

IPDM E/R

Type ID

How to identify Type ID

Key type

HEAD LAMP type

284B7-4BA1A

non Intelligent Key

Halogen

284B7-4BA1B

Intelligent Key

Halogen

284B7-4BA1C

Intelligent Key

LED
