INSIDE MIRROR

MIR-7

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

Wiring Diagram - Without Homelink Universal Transceiver

INFOID:0000000011280686

AALWA0785GB

MIR-8

< WIRING DIAGRAM >

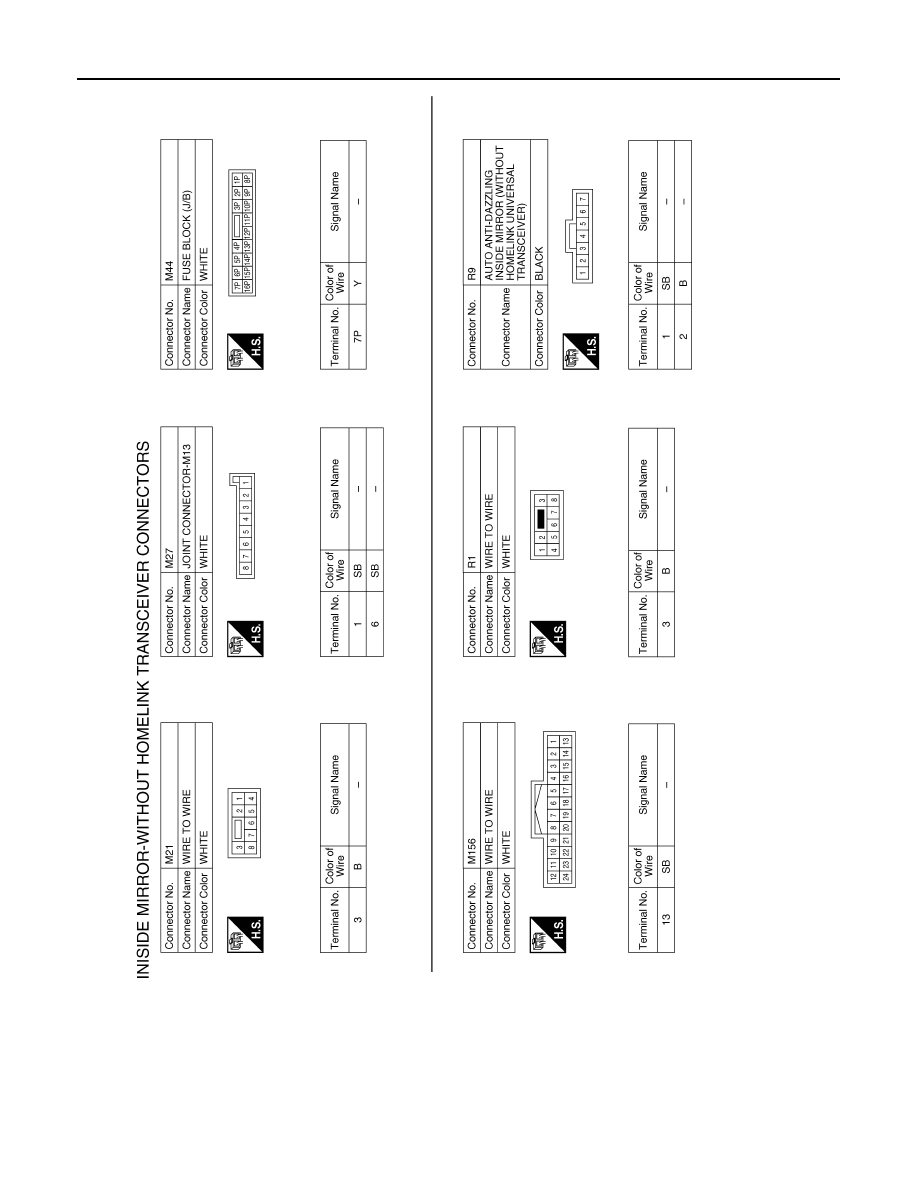

INSIDE MIRROR

AALIA2171GB

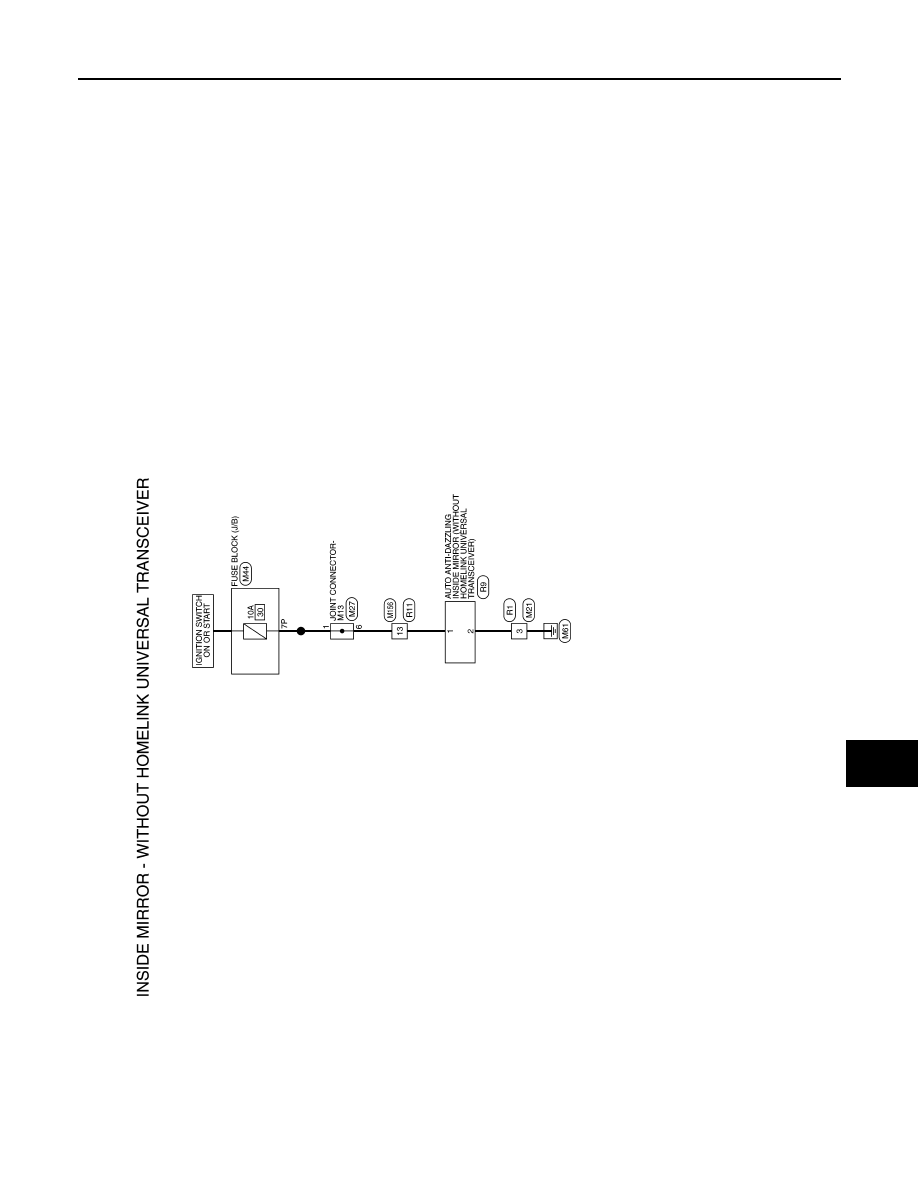

INSIDE MIRROR

MIR-9

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

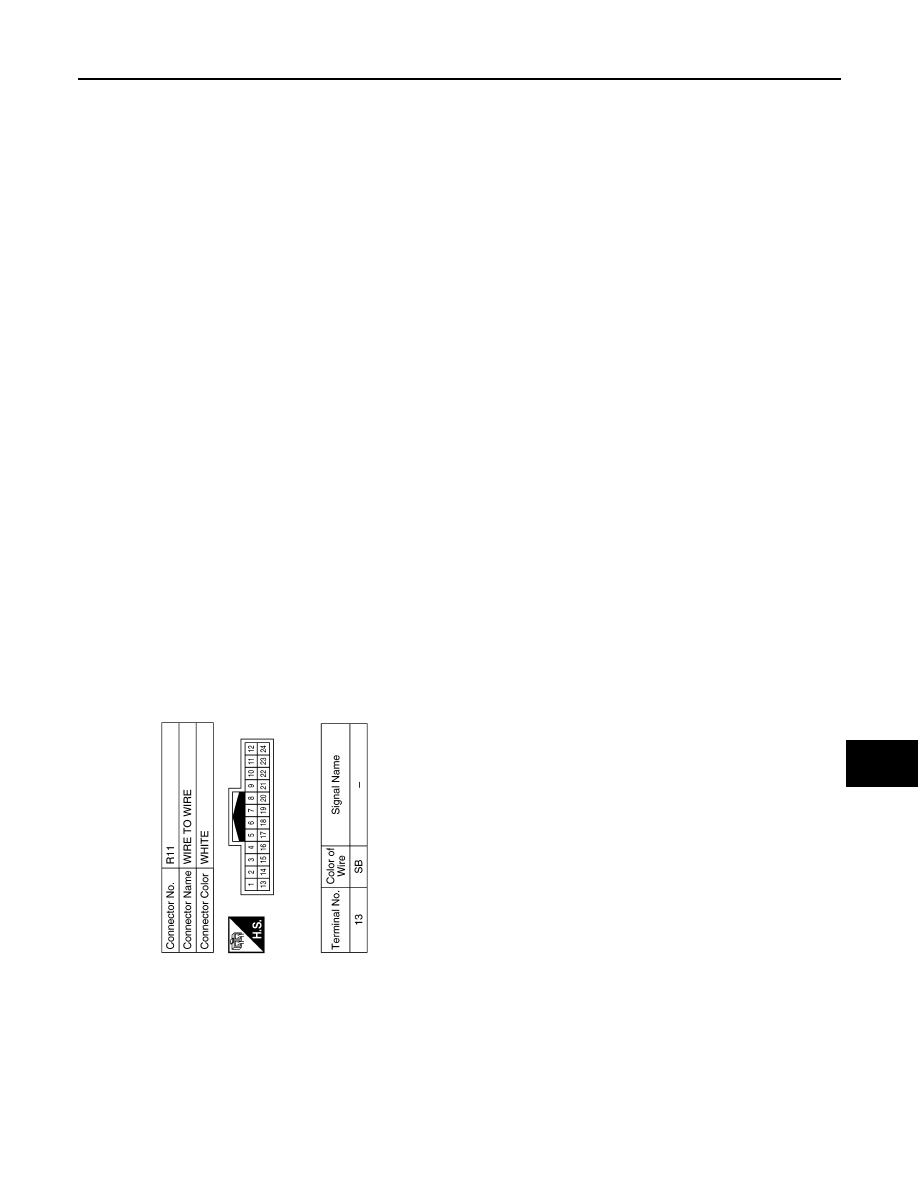

AALIA2172GB

MIR-10

< WIRING DIAGRAM >

DOOR MIRROR

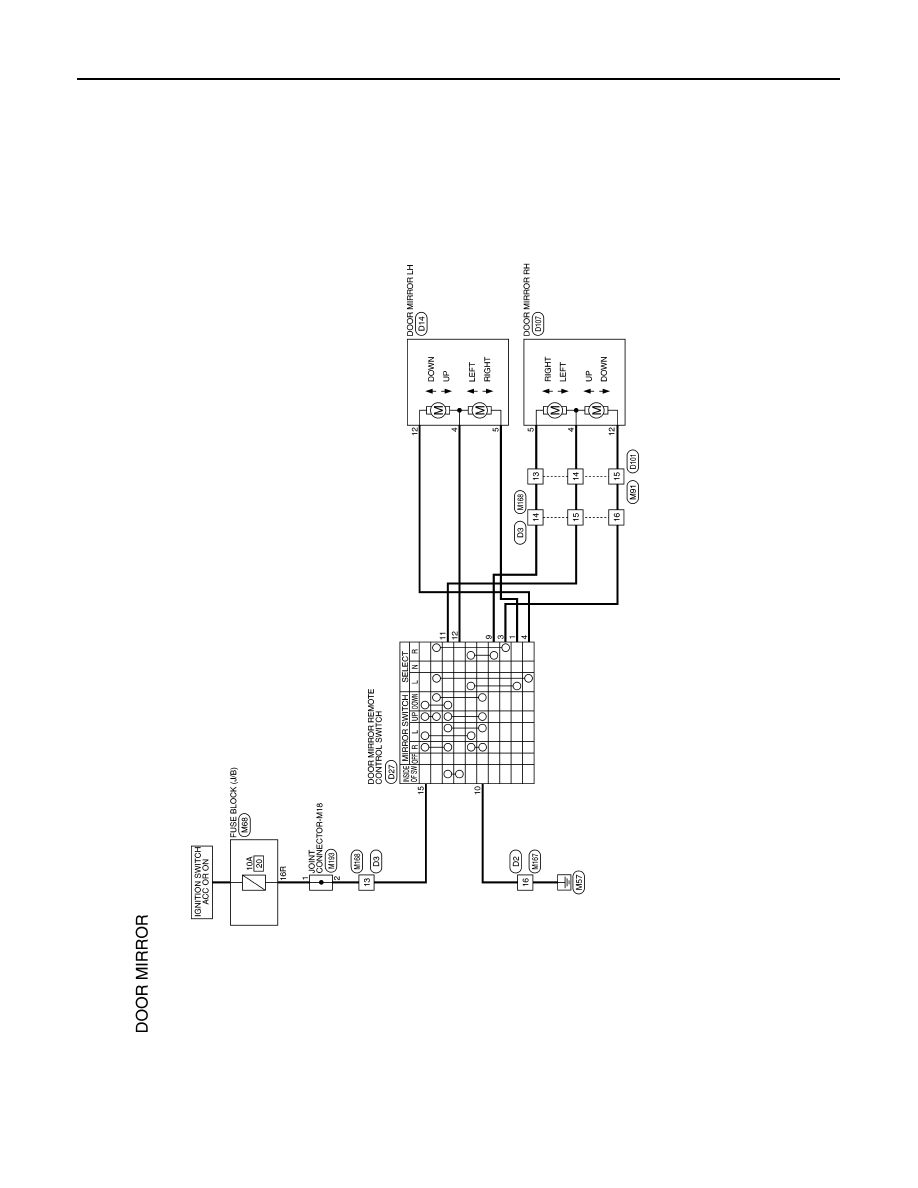

DOOR MIRROR

Wiring Diagram

INFOID:0000000011280687

AALWA0972GB
