CHASSIS MAINTENANCE

MA-27

< PERIODIC MAINTENANCE >

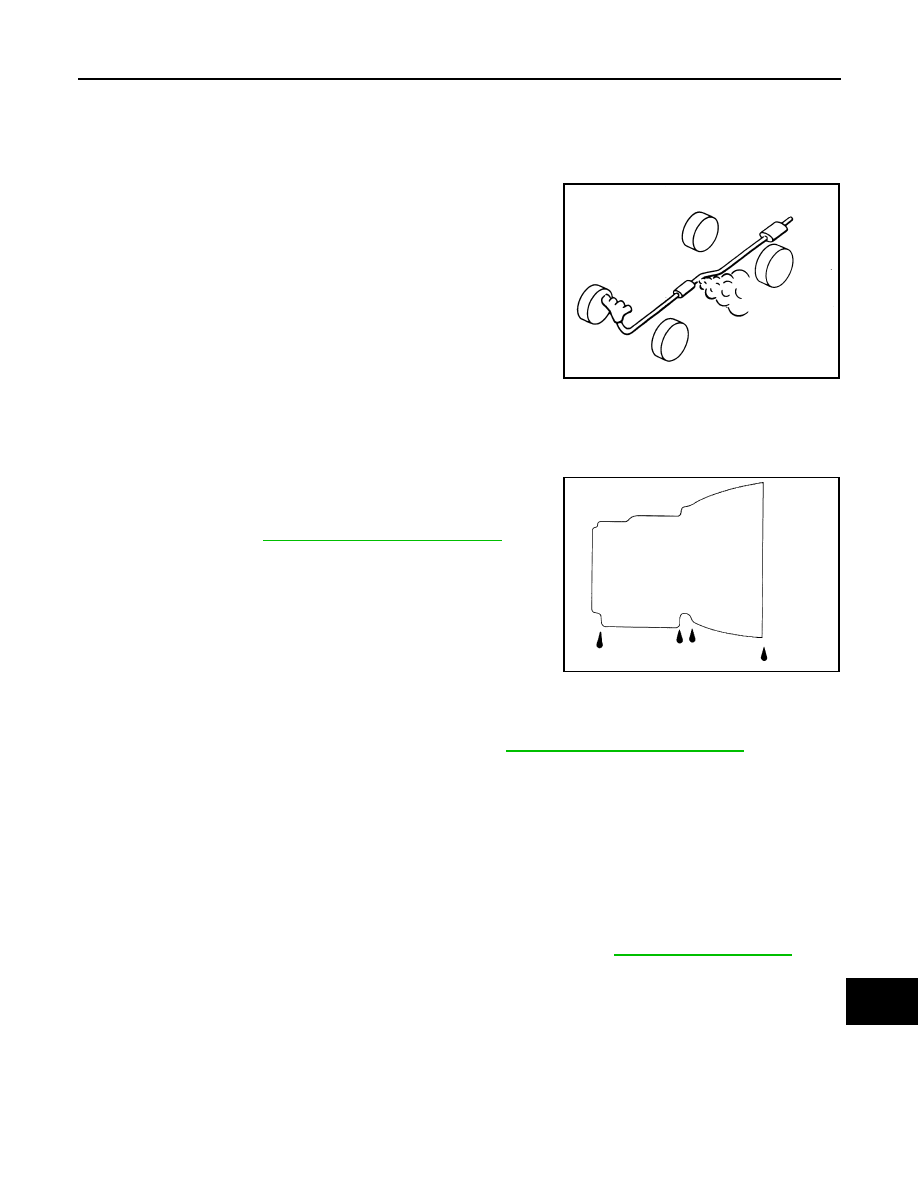

CHASSIS MAINTENANCE

EXHAUST SYSTEM
EXHAUST SYSTEM : Inspection

INFOID:0000000011277788

Check exhaust pipes, muffler, and mounting for improper attach-

ment, leakage, cracks, damage or deterioration.

• If anything is found, repair or replace damaged parts.

CVT FLUID
CVT FLUID : Inspection

INFOID:0000000011277789

FLUID LEAKAGE

• Check transaxle surrounding area (oil seal and plug etc.)for fluid

leakage.

• If anything is found, repair or replace damaged parts and adjust

CVT fluid level. Refer to

MA-29, "CVT FLUID : Adjustment"

CVT FLUID : Replacement

INFOID:0000000011277790

CAUTION:

• Always use shop paper. Never use shop cloth.

• Replace a drain plug gasket with new ones at the final stage of the operation when installing.

• Use caution when looking into the drain hole as there is a risk of dripping fluid entering the eye.

• After replacement, always perform CVT fluid leakage check.
1. Select “Data Monitor” in “TRANSMISSION” using CONSULT.
2. Select “FLUID TEMP” and confirm that the CVT fluid temperature is 40

°C (104°F) or less.

3. Check that the selector lever is in the “P” position, then completely engage the parking brake.
4. Lift up the vehicle.
5. Remove the drain plug and drain the CVT fluid from the oil pan. Refer to

TM-205, "Exploded View"

6. Install the drain plug to oil pan.

CAUTION:

Drain plug gasket use the old one.

SMA211A

SMA146B

Recommended fluid and fluid capacity : Refer to

TM-226, "General Specification"

MA-28

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

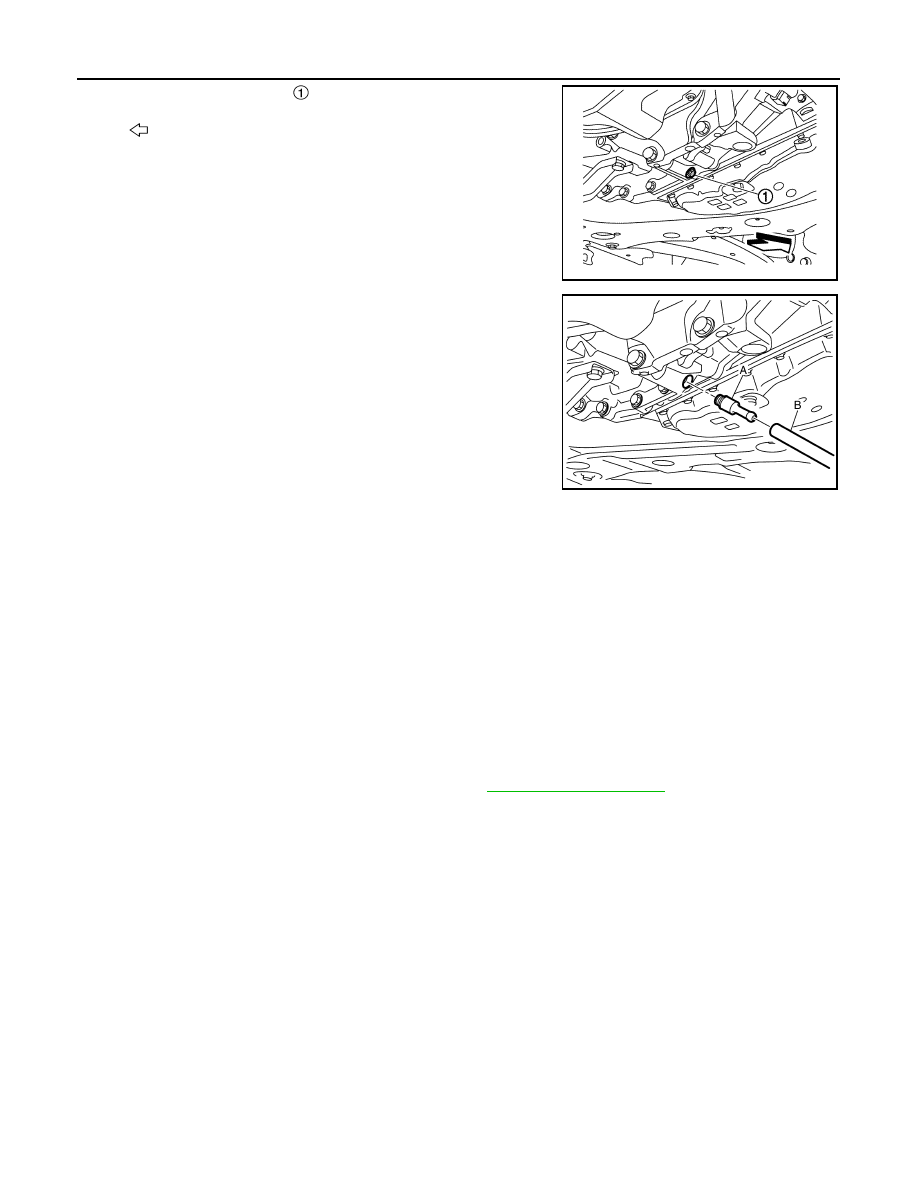

7. Remove the overflow plug from converter housing.

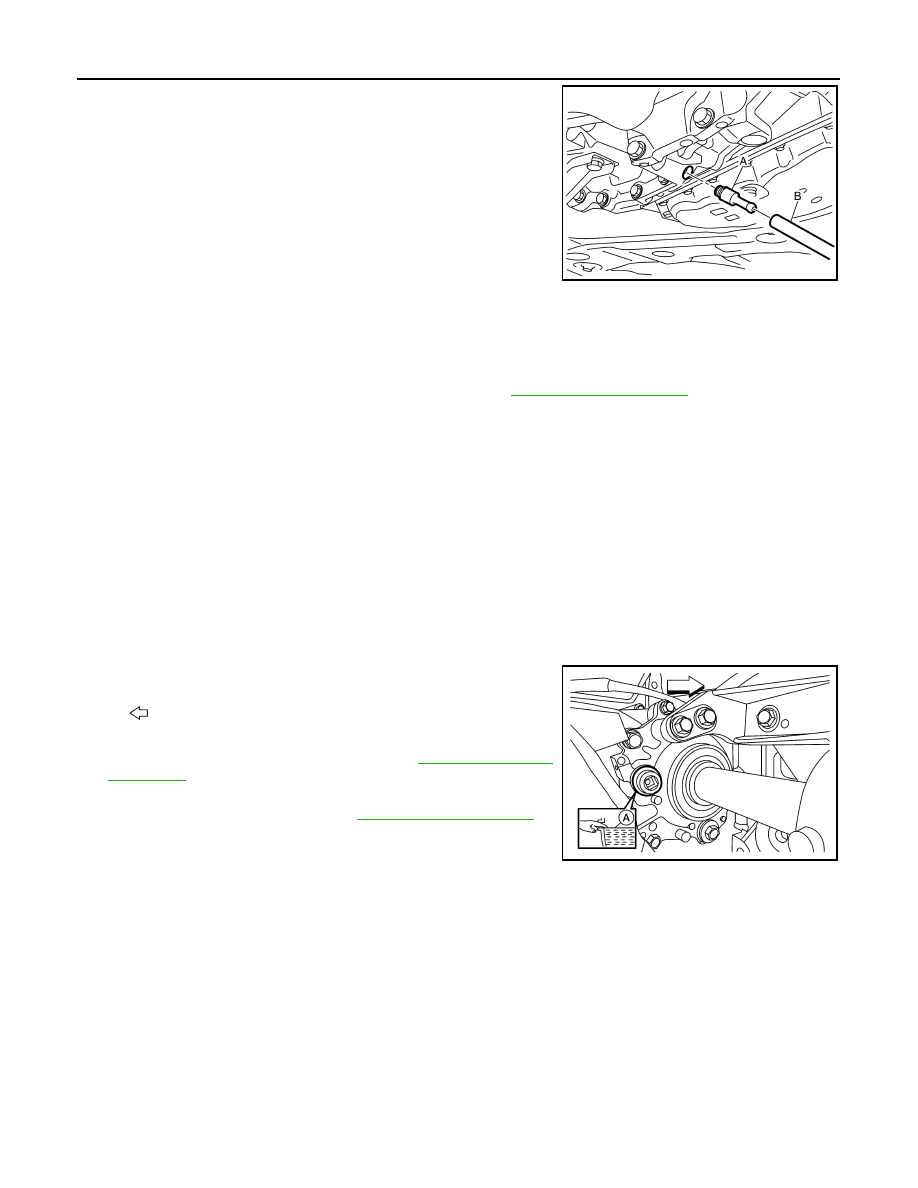

8. Install the charging pipe set (KV311039S0) (A) into the overflow

plug hole.

CAUTION:

Tighten the charging pipe by hand.

9. Install the ATF changer hose (B) to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging

pipe until it stops.

10. Fill approximately 3 liter (3-1/8 US qt, 2-5/8 lmp qt) of the CVT

fluid.

11. Remove the ATF changer hose and charging pipe, then install

the overflow plug.

NOTE:

Perform this work quickly because CVT fluid leaks.

12. Lift down the vehicle.
13. Start the engine.
14. While depressing the brake pedal, shift the selector lever to the entire position from “P” to “L”, and shift it

to the “P” position.

NOTE:

Hold the lever at each position for 5 seconds.

15. Check that the CONSULT “Data Monitor” in “FLUID TEMP” is 35

°C (95°F) to 45°C (113°F).

16. Stop the engine.
17. Lift up the vehicle.
18. Remove the drain plug, and then drain CVT fluid from oil pan.
19. Repeat steps 8 to 18 (one time).
20. Tighten the drain plug to the specified torque. Refer to

TM-205, "Exploded View"

21. Remove the overflow plug.
22. Install the charging pipe set (KV311039S0) into the overflow plug hole.

CAUTION:

Tighten the charging pipe by hand.

23. Install the ATF changer hose to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging pipe until it stops.

24. Fill approximately 3 liter (3-1/8 US qt, 2-5/8 lmp qt) of the CVT fluid.
25. Remove the ATF changer hose and charging pipe, then install the overflow plug.

NOTE:

Perform this work quickly because CVT fluid leaks.

26. Lift down the vehicle.
27. Start the engine.
28. While depressing the brake pedal, shift the selector lever to the entire position from “P” to “L”, and shift it

to the “P” position.

NOTE:

Hold the lever at each position for 5 seconds.

29. Check that the CONSULT “Data Monitor” in “FLUID TEMP” is 35

°C (95°F) to 45°C (113°F).

: Vehicle front

JSDIA3714ZZ

JSDIA3713ZZ

CHASSIS MAINTENANCE

MA-29

< PERIODIC MAINTENANCE >

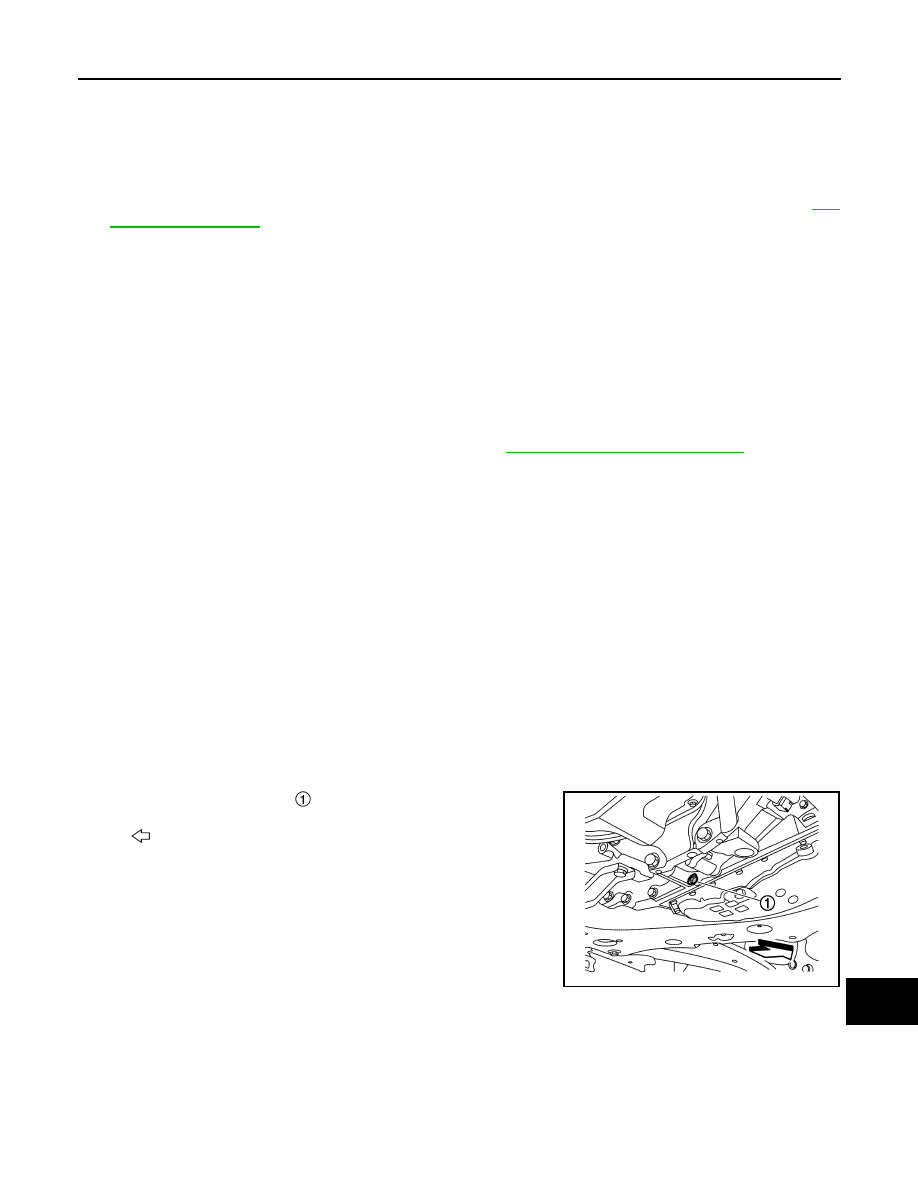

30. Lift up the vehicle.
31. Remove the overflow plug and confirm that the CVT fluid is drained from the overflow plug hole.

CAUTION:

Perform this work with the vehicle idling.

NOTE:

If the CVT fluid is not drained, refer to “Adjustment” and refill with the CVT fluid.

32. When the flow of CVT fluid slows to a drip, tighten the overflow plug to the specified torque. Refer to

TM-

205, "Exploded View"

CAUTION:

Never reuse O-ring.

33. Lift down the vehicle.
34. Select “Data Monitor” in “TRANSMISSION” using CONSULT.
35. Select “CONFORM CVTF DETERIORTN”.
36. Select “Erase”.
37. Stop the engine.

CVT FLUID : Adjustment

INFOID:0000000011277791

CAUTION:

• During adjustment of the CVT fluid level, check CONSULT so that the oil temperature may be main-

tained from 35 to 45

°C (95 to 113°F).

• During adjustment of the CVT fluid level, check that the engine speed is maintaining 500 rpm.

• Use caution when looking into the drain hole as there is a risk of dripping fluid entering the eye.
1. Check that the selector lever is in the “P” position, then completely engage the parking brake.
2. Start the engine.
3. Adjust the CVT fluid temperature to be approximately 40

°C (104°F).

NOTE:

The CVT fluid is largely affected by temperature. Therefore be sure to use CONSULT and check the

“FLUID TEMP” under “TRANSMISSION” in “Data Monitor” while adjusting.

4. While depressing the brake pedal, shift the selector lever to the entire position from “P” to “L”, and shift it

to the “P” position.

NOTE:

Hold the lever at each position for 5 seconds.

5. Lift up the vehicle.
6. Check that there is no CVT fluid leakage.
7. Remove the overflow plug from converter housing.

Recommended fluid and fluid capacity : Refer to

TM-226, "General Specification"

: Vehicle front

JSDIA3714ZZ

MA-30

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

8. Install the charging pipe set (KV311039S0) (A) into the overflow

plug hole.

CAUTION:

Tighten the charging pipe by hand.

9. Install the ATF changer hose (B) to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging

pipe until it stops.

10. Fill approximately 0.5 liter (1/2 US qt, 1/2 lmp qt) of the CVT

fluid.

11. Remove the ATF changer hose from the charging pipe, and

check that the CVT fluid drains out from the charging pipe. If it

does not drain out, perform charging again.

CAUTION:

Perform this work with the vehicle idling.

12. When the flow of CVT fluid slows to a drip, remove the charging pipe from the converter housing.
13. Tighten the overflow plug to the specified torque. Refer to

TM-205, "Exploded View"

CAUTION:

Never reuse O-ring.

14. Lift down the vehicle.
15. Stop the engine.

TRANSFER OIL
TRANSFER OIL : Inspection

INFOID:0000000011277792

TRANSFER OIL LEAKS

Check that transfer oil is not leaking from transfer assembly or around it.

TRANSFER OIL LEVEL

CAUTION:

Do not start engine while checking transfer oil level.
1. Remove filler plug and gasket.

2. Transfer oil level (A) should be level with bottom of filler plug
