OIL COOLER

LU-13

< REMOVAL AND INSTALLATION >

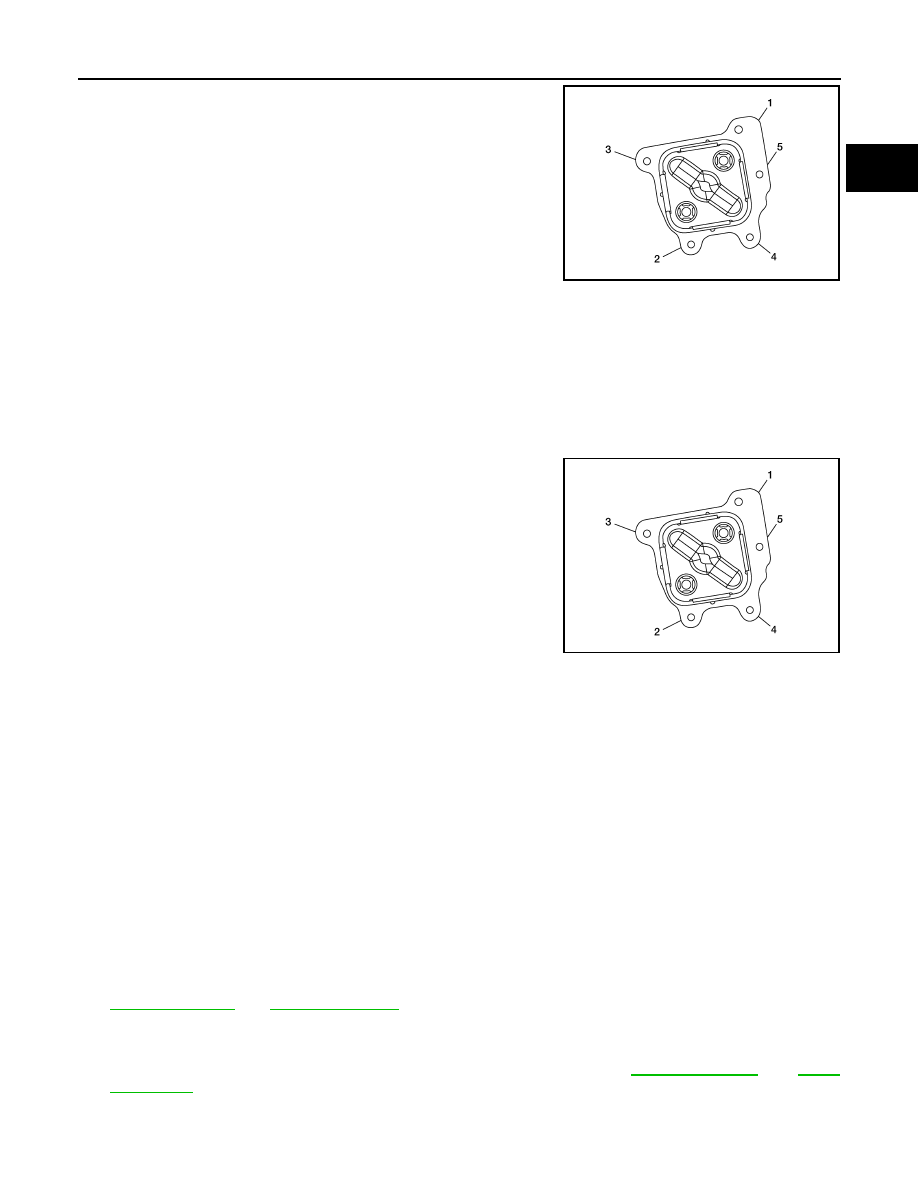

5. Remove oil cooler bolts in reverse numerical order.

6. Remove oil cooler and gasket.

CAUTION:

• Be careful not to get burned when engine and engine oil may be hot.

• When removing, prepare a shop cloth to absorb any engine oil leaks or spillage.

• Completely wipe off any engine oil that adheres to engine and vehicle.

7. Remove relief valve.

INSTALLATION

Installation is in the reverse order of removal.
1. Tighten oil cooler to specification as shown.

CAUTION:

• Do not reuse gasket.

• Ensure gasket and oil cooler sealing surface is free from dust, flaws, or deformation.

• Ensure water hose assembly is installed without kinks or areas of collapse.

• Replace relief valve, if removed.

Inspection

INFOID:0000000011277150

INSPECTION AFTER REMOVAL

Oil Cooler

Check oil cooler for cracks. Check oil cooler for clogging by blowing through engine coolant inlet. If necessary,

replace oil cooler.

Relief valve

Inspect relief valve for movement, cracks, and breaks by pushing the ball. If replacement is necessary, remove

the valve by prying it out using a suitable tool. Install a new valve by tapping it in place.

INSPECTION AFTER INSTALLATION

1. Check the engine oil level and the engine coolant level and add engine oil and engine coolant. Refer to

LU-7, "Inspection"

and

CO-8, "Inspection"

2. Start the engine, and check that there are no leaks of engine oil or engine coolant.
3. Stop the engine and wait for 5 minutes.
4. Check the engine oil level and the engine coolant level again. Refer to

LU-7, "Inspection"

and

CO-8,

"Inspection"

AWBIA1874ZZ

Oil cooler

: 9.0 N·m (0.92 kg-m, 80 in-lb)

AWBIA1874ZZ

LU-14

< REMOVAL AND INSTALLATION >

OIL PUMP

OIL PUMP

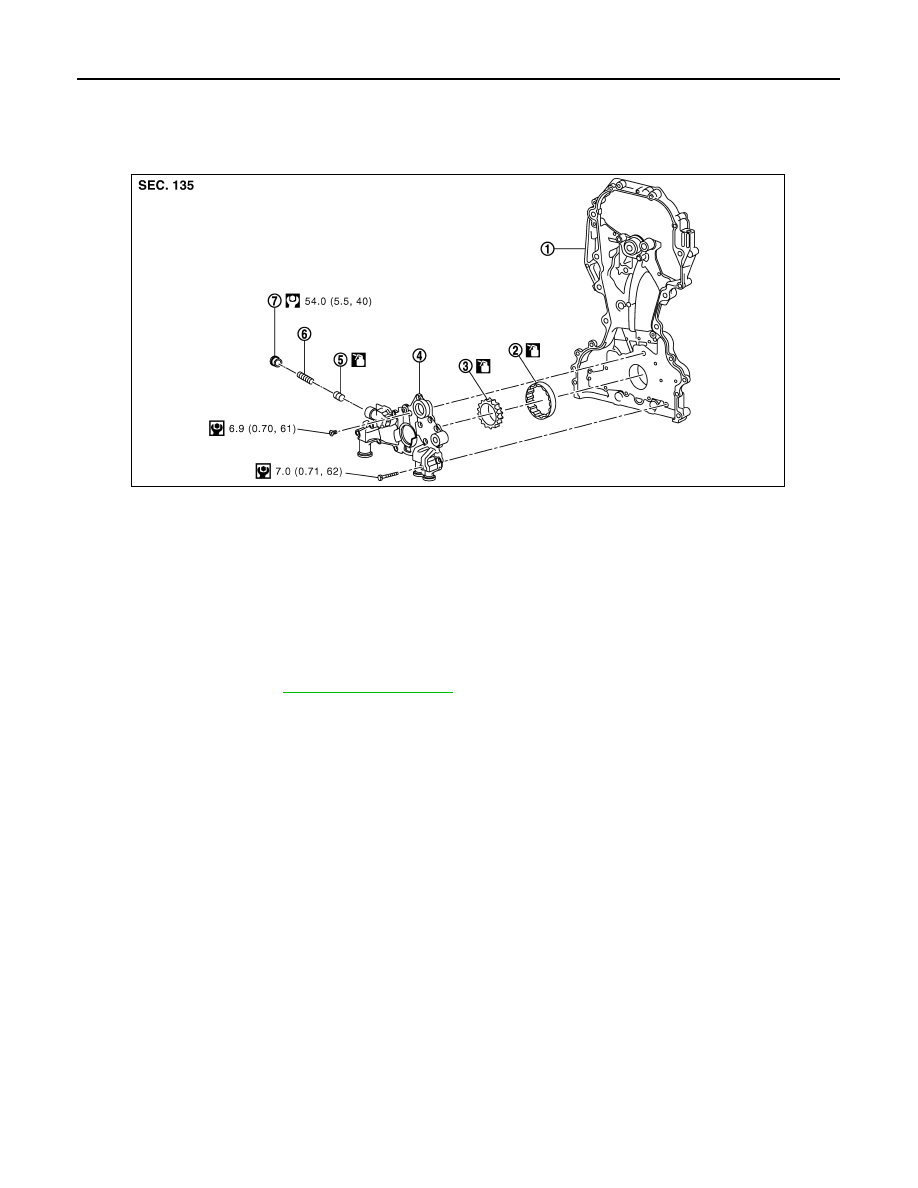

Exploded View

INFOID:0000000011277151

CAUTION:

Before assembly, apply new engine oil to the parts as shown above.

Removal and Installation

INFOID:0000000011277152

REMOVAL

Remove front cover. Refer to

EM-49, "Exploded View"

NOTE:

Oil pump is built into front cover.

INSTALLATION

Installation is in the reverse order of removal.

• When installing, align crankshaft flat faces with inner rotor flat faces.

Disassembly and Assembly

INFOID:0000000011277153

DISASSEMBLY

1. Remove bolts and oil pump cover.
2. Remove inner rotor and outer rotor from front cover.
3. After removing regulator valve plug, remove regulator valve spring and regulator valve.

ASSEMBLY

Assembly is in the reverse order of disassembly.

Front cover (Oil pump body united)

Outer rotor

Inner rotor

Oil pump cover

Regulator valve

Regulator valve spring

Regulator valve plug

JPBIA0577GB

OIL PUMP

LU-15

< REMOVAL AND INSTALLATION >

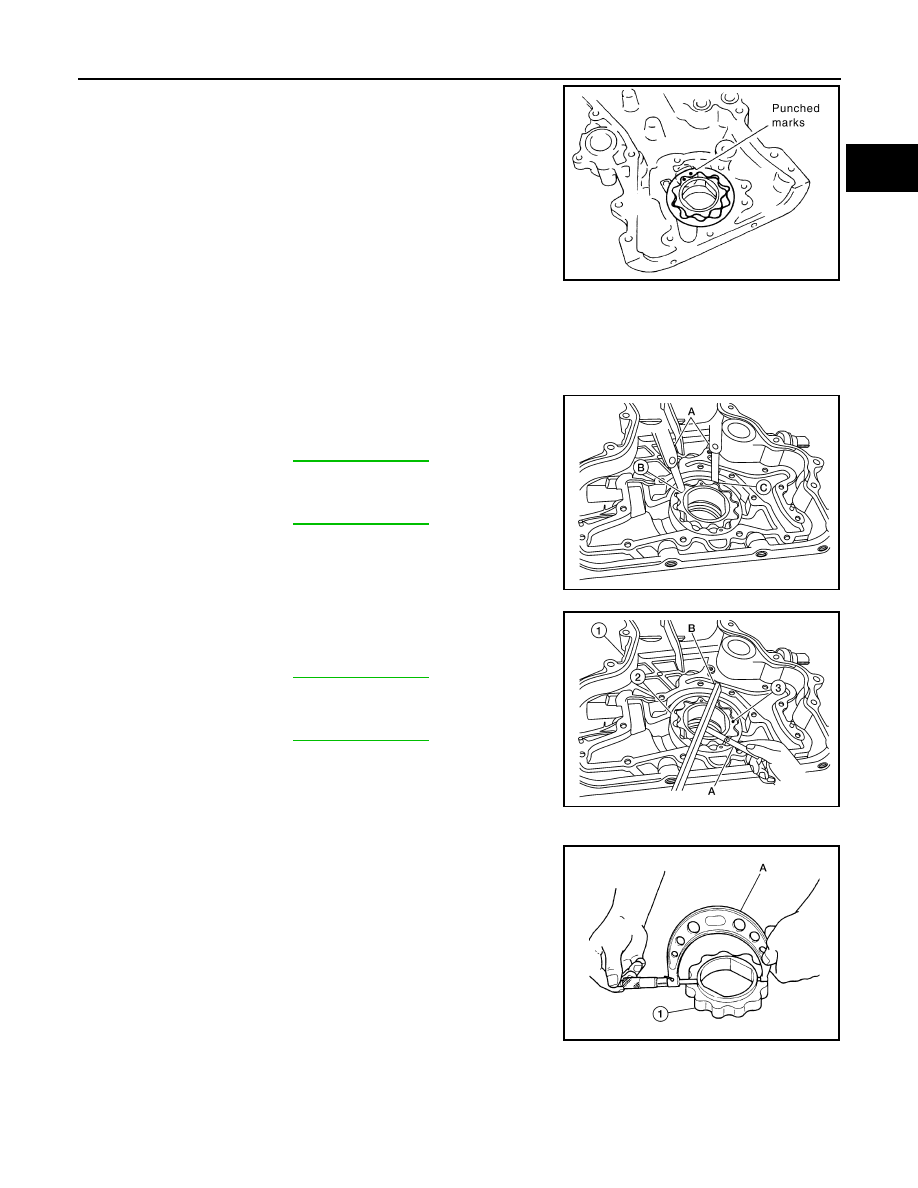

• Install the inner rotor and outer rotor with the punched marks on

the oil pump cover side.

CAUTION:

Before assembly apply new engine oil to the parts specified.

Inspection

INFOID:0000000011277154

INSPECTION AFTER DISASSEMBLY

OIL PUMP CLEARANCE

• Measure the clearance using a suitable tool (A).

- Clearance between outer rotor (B) and front cover (C)

- Tip clearance between inner rotor and outer rotor (B)

• Measure the clearance using suitable tools (A/B).

- Side clearance between inner rotor (3) and front cover (1)

- Side clearance between outer rotor (2) and front cover (1)

• Calculate the clearance between oil pump inner rotor and oil pump body as follows:

- Measure the outer diameter of protruded portion of inner rotor (1)

using a suitable tool (A).

PBIC0255E

Standard

: Refer to

LU-18, "Oil Pump"

Standard

: Refer to

LU-18, "Oil Pump"

ALBIA0815ZZ

Standard

: Refer to

LU-18, "Oil Pump"

Standard

: Refer to

LU-18, "Oil Pump"

ALBIA0816ZZ

ALBIA0817ZZ

LU-16

< REMOVAL AND INSTALLATION >

OIL PUMP

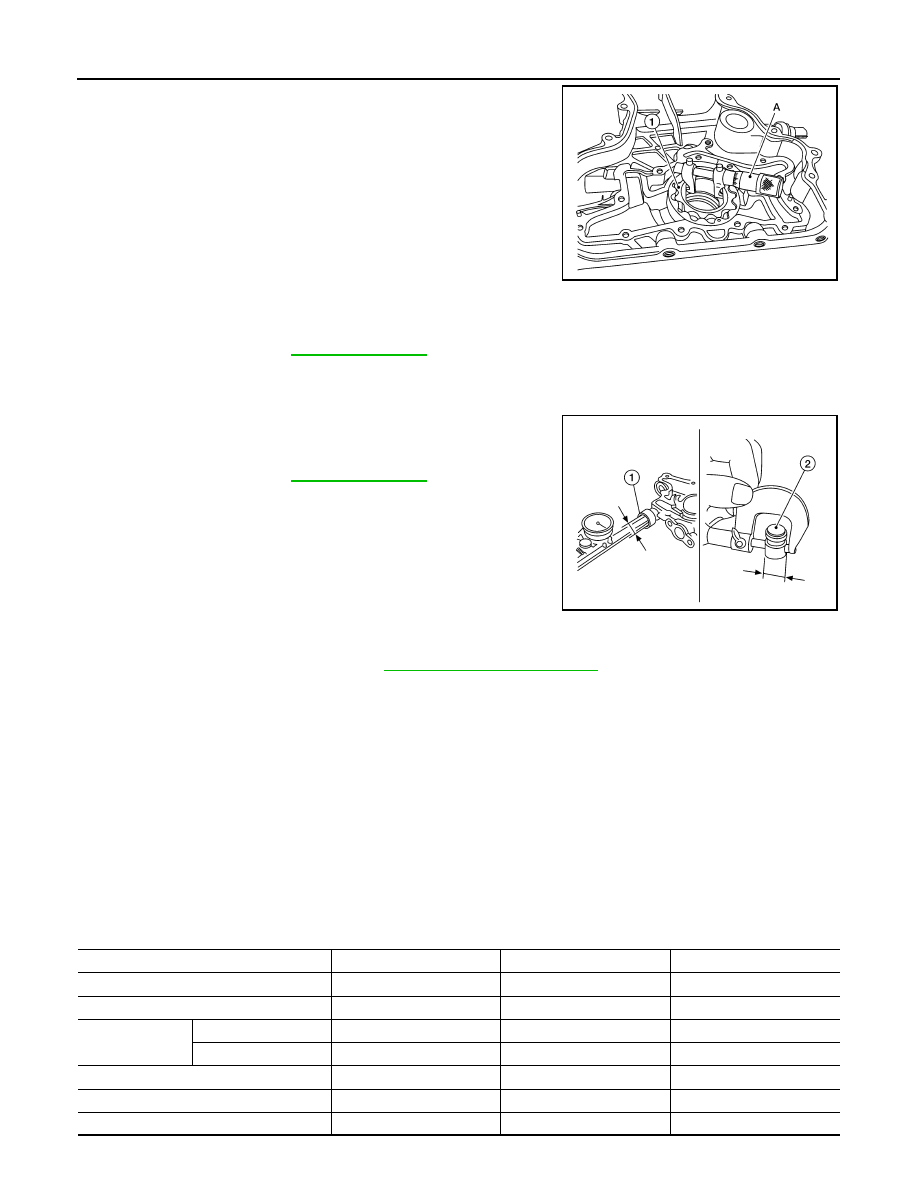

- Measure the inner diameter of inner rotor (1) using a suitable tool

(A).

- (Clearance) = (Inner rotor inner diameter) – (Oil pump inner rotor outer diameter)

• If measured/calculated values are out of the standard, replace front cover and oil pump assembly.

REGULATOR VALVE TO OIL PUMP COVER CLEARANCE

- (Clearance) = (Regulator valve hole (1) diameter) – (Regulator

valve (2) outer diameter)

• If the calculated value is out of the standard, replace front cover

and oil pump assembly.

CAUTION:

• Coat regulator valve with engine oil.

• Make sure that it falls smoothly into valve hole by its own

weight.

INSPECTION AFTER INSTALLATION

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-11, "Fluids and Lubricants"

• Use procedure below to check for fuel leaks.

• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leaks

at connection points.

• Start engine. With engine speed increased, check again for fuel leaks at connection points.

• Run engine to check for unusual noise and vibration.

NOTE:

If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide

may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop

after hydraulic pressure rises.

• Warm up engine thoroughly to make sure there are no leaks of fuel, exhaust gas, or any oils/fluids including

engine oil and engine coolant.

• Bleed air from passages in lines and hoses, such as in cooling system.

• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to spec-

ified level, if necessary.

• Summary of the inspection items:

ALBIA0818ZZ

Standard

: Refer to

LU-18, "Oil Pump"

Standard

: Refer to

LU-18, "Oil Pump"

ALBIA0819ZZ

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Transmission/
transaxle fluid

A/T and CVT Models

Leakage

Level/Leakage

Leakage

M/T Models

Level/Leakage

Leakage

Level/Leakage

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Exhaust gas

—

Leakage

—
