Nissan Rogue. Manual - part 843

LAN

CAN COMMUNICATION CIRCUIT 2

LAN-71

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CAN COMMUNICATION CIRCUIT 2

Diagnosis Procedure

INFOID:0000000011277548

1.

CONNECTOR INSPECTION

1. Turn the ignition switch OFF.

2. Disconnect the battery cable from the negative terminal.

3. Check the terminals and connectors of the BCM for damage, bend and loose connection (unit side and

connector side).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1. Disconnect the connector of BCM.

2. Check the continuity between the BCM harness connector terminals.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check the harness and repair or replace the root cause.

3.

CHECK HARNESS CONTINUITY (SHORT CIRCUIT)

1. Disconnect all the unit connectors on CAN communication circuit 2.

2. Check the continuity between the BCM harness connector terminals.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Check the harness and repair or replace the root cause.

4.

CHECK HARNESS CONTINUITY (SHORT CIRCUIT)

Check the continuity between the BCM and the ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Check the harness and repair or replace (if shield line is short) the root cause.

5.

CHECK BCM TERMINATION CIRCUIT

1. Remove the BCM.

2. Check the resistance between the BCM terminals.

BCM harness connector

Continuity

Connector No.

Terminal No.

M18

6

8

Existed

5

9

Existed

BCM harness connector

Continuity

Connector No.

Terminal No.

M18

6

5

Not existed

BCM harness connector

Ground

Continuity

Connector No.

Terminal No.

M18

6

Not existed

5

Not existed

BCM

Resistance (

Ω)

Terminal No.

LAN-72

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

CAN COMMUNICATION CIRCUIT 2

Is the measurement value within the specification?

YES

>> GO TO 6.

NO

>> Replace the chassis control module.

6.

CHECK SYMPTOM

Connect all the connectors. Check if the symptoms described in the “Symptom (Results from interview with

customer)” are reproduced.
Inspection result

Reproduced>>GO TO 7.

Non-reproduced>>Start the diagnosis again. Follow the trouble diagnosis procedure when past error is

detected.

7.

CHECK UNIT REPRODUCTION

Perform the reproduction test as per the following procedure for each unit.

1. Turn the ignition switch OFF.

2. Disconnect the battery cable from the negative terminal.

3. Disconnect one of the unit connectors of CAN communication circuit 2.

NOTE:

BCM has two termination circuits. Check other units first.

4. Connect the battery cable to the negative terminal. Check if the symptoms described in the “Symptom

(Results from interview with customer)” are reproduced.

NOTE:

Although unit-related error symptoms occur, do not confuse them with other symptoms.

Inspection result

Reproduced>>Connect the connector. Check other units as per the above procedure.

Non-reproduced>>Replace the unit whose connector was disconnected.

6

5

Approx. 108 – 132

8

9

Approx. 108 – 132

LAN

PRECAUTIONS

LAN-73

< PRECAUTION >

[CAN GATEWAY]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011506881

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

LAN-74

< SYSTEM DESCRIPTION >

[CAN GATEWAY]

SYSTEM

SYSTEM DESCRIPTION

SYSTEM

System Description

INFOID:0000000011277550

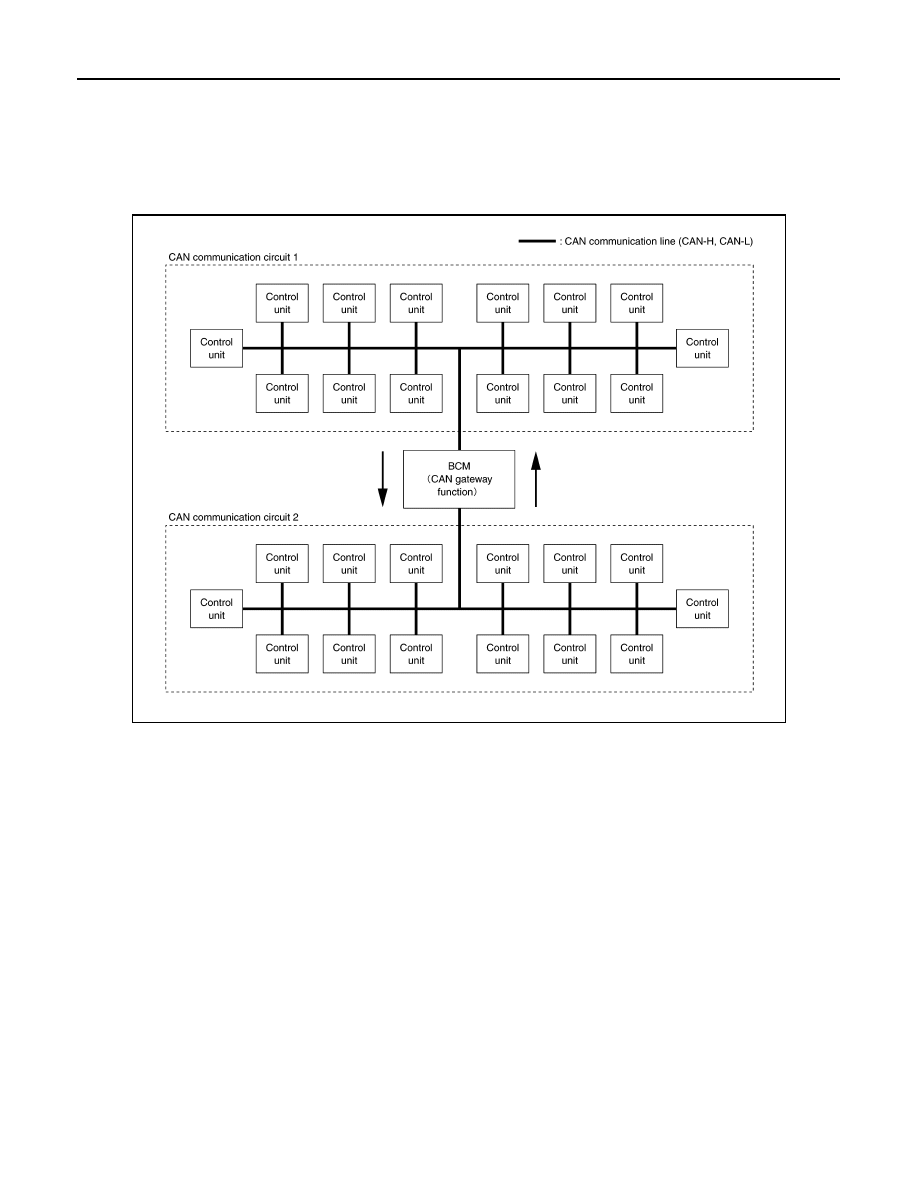

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

• The BCM has a CAN gateway function.

• The BCM communicates between two CAN communication circuits.

• The BCM selects and transmits only necessary information.

JSMIA1666GB
