PERSONAL LAMP

Removal and Installation

INFOID:0000000011279231

The personal lamp is serviced as part of headlining. Refer to

INT-30, "Removal and Installation"

.

Bulb or Lens Replacement

INFOID:0000000011279232

WARNING:

Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.

CAUTION:

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from

bulb surface.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture, smoke, etc. may

affect the performance of lamp.

• Do not attempt to separate the personal lamp from the headlining or damage may occur.
1. Insert a suitable tool into the gap between the lens and personal lamp, then gently release the lens pawls

and remove.

2. Grasp the bulb and pull straight out from its socket to remove.
3. Install personal lamp bulb to personal lamp.
4. Install the personal lamp lens.

INL-60

< REMOVAL AND INSTALLATION >

LUGGAGE ROOM LAMP

LUGGAGE ROOM LAMP

Removal and Installation

INFOID:0000000011279233

REMOVAL

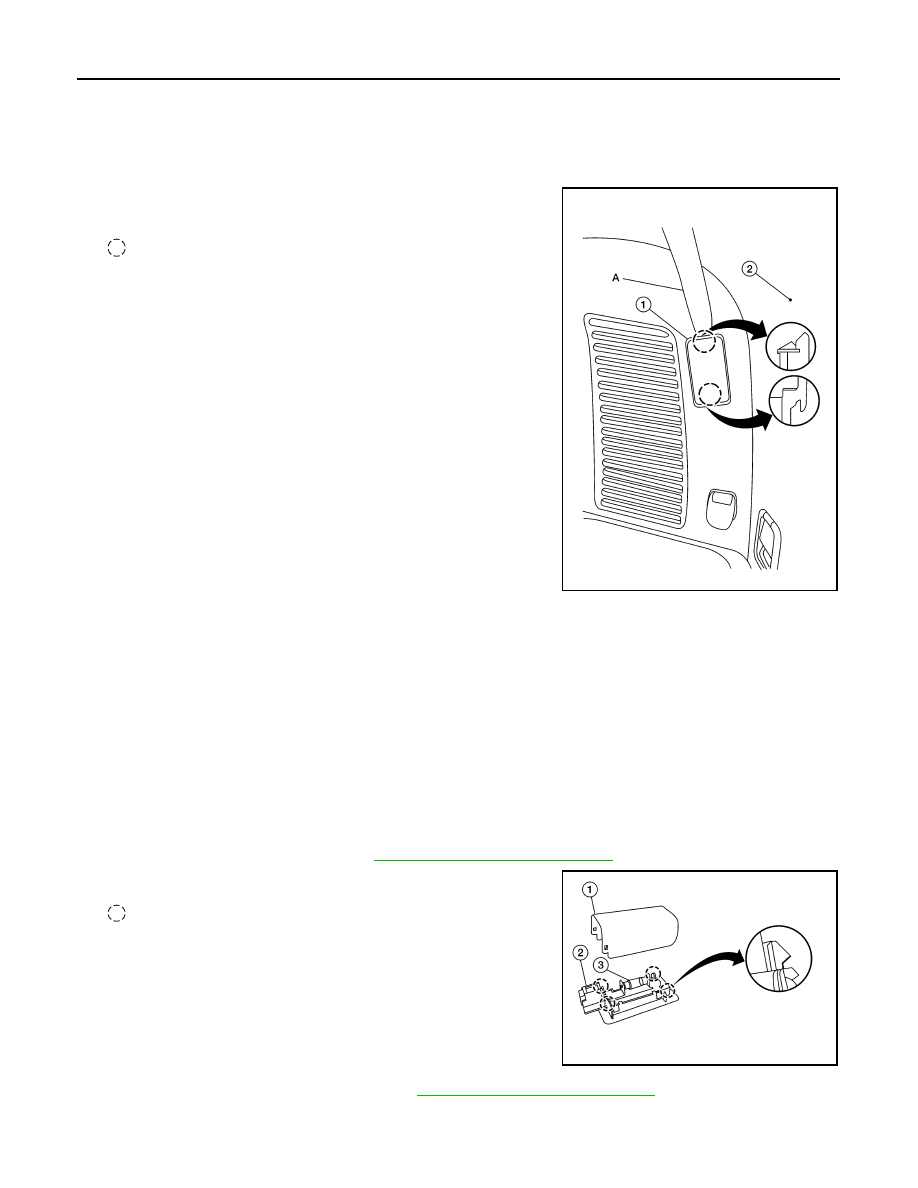

1. Insert a suitable tool (A) into the gap between the luggage lower

finisher (RH) (2) and the top of luggage room lamp (1) to release

the pawl.

: Pawl

2. Disconnect the harness connector from the luggage room lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

Bulb Replacement

INFOID:0000000011279234

WARNING:

Do not touch the glass surface of a bulb while it is lit or right after being turned OFF to prevent burns.

CAUTION:

• Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from

bulb surface.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture, smoke, etc. may

affect the performance of lamp.

1. Remove luggage room lamp. Refer to

INL-60, "Removal and Installation"

.

2. Release pawls using a suitable tool and remove luggage room

lamp cover (1).

: Pawl

3. Push the tab to release one bulb end, then grasp the luggage

room lamp bulb (3) and pull out the second end to remove.

4. Install luggage room lamp bulb (3) to luggage room lamp (2).
5. Install luggage room lamp cover (1).

6. Install luggage room lamp. Refer to Refer to

INL-60, "Removal and Installation"

.

ALLIA1385ZZ

ALLIA1387ZZ

METER CONTROL SWITCH

INL-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

METER CONTROL SWITCH

Removal and Installation

INFOID:0000000011279235

REMOVAL

1. Remove the instrument finisher A. Refer to

IP-15, "INSTRUMENT FINISHER A : Removal and Installa-

tion"

.

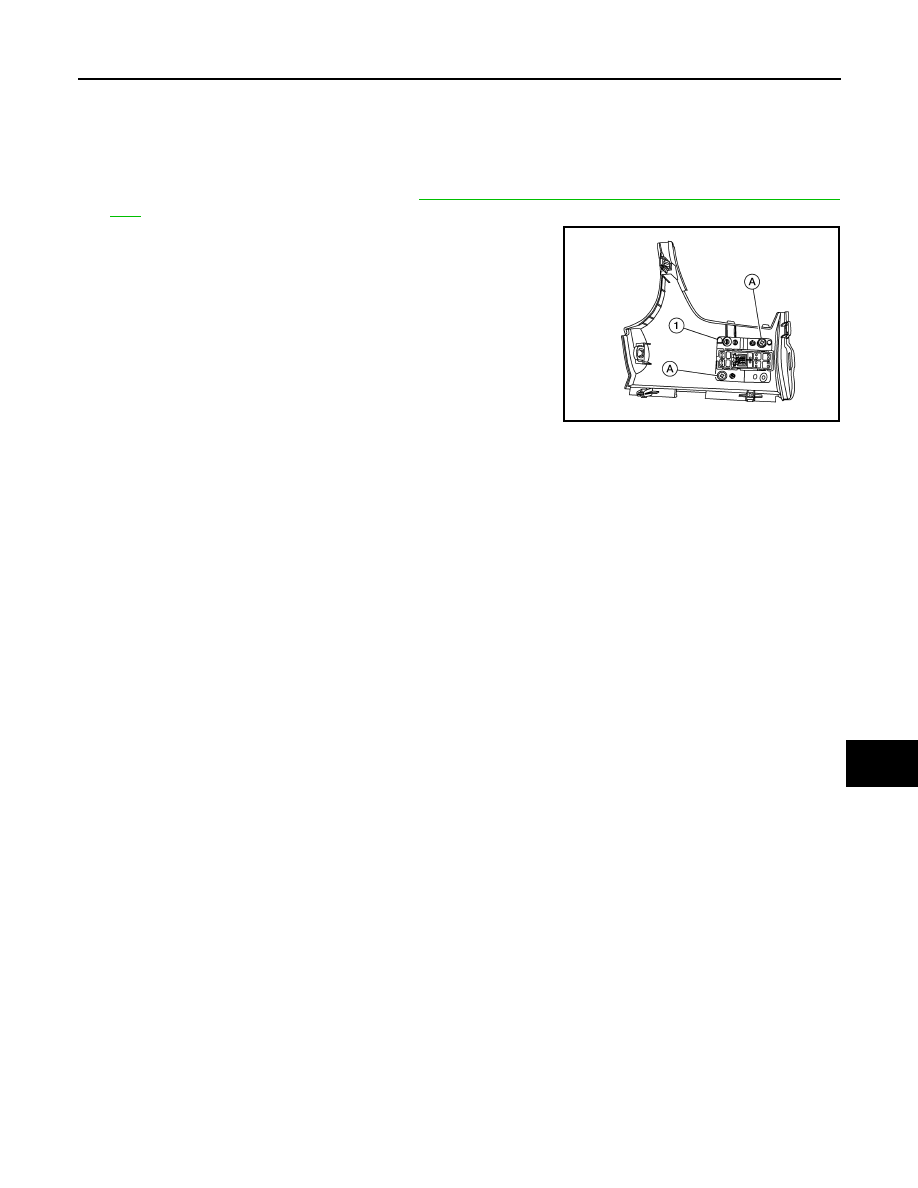

2. Remove the screws (A) and the meter control switch (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1585ZZ

INL-62

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000011279236

*:Always check with the parts department for the latest parts information.

Item

Wattage (W)*

Map lamp

( – )

Room lamp (if equipped)

8

Vanity mirror lamp

1.8

Personal lamp (if equipped)

8

Luggage room lamp

5
