GW-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

SECTION

CONTENTS

GLASS & WINDOW SYSTEM

PRECAUTION ...............................................

PRECAUTIONS ...................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

Procedure without Cowl Top Cover .......................

Handling for Adhesive and Primer ............................

Precaution for Work ..................................................

PREPARATION ............................................

PREPARATION ...................................................

Special Service Tool .................................................

Commercial Service Tool ..........................................

SYMPTOM DIAGNOSIS ...............................

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

Work Flow .................................................................

Generic Squeak and Rattle Troubleshooting ............

Diagnostic Worksheet ...............................................

REMOVAL AND INSTALLATION ...............

WINDSHIELD GLASS ........................................

Exploded View ........................................................

Removal and Installation .........................................

FRONT DOOR GLASS ......................................

Exploded View .........................................................

Removal and Installation .........................................

FRONT REGULATOR .......................................

Exploded View .........................................................

Removal and Installation .........................................

Inspection and Adjustment ......................................

FRONT POWER WINDOW MOTOR .................

Removal and Installation .........................................

REAR DOOR GLASS .......................................

Exploded View .........................................................

Removal and Installation .........................................

REAR REGULATOR .........................................

Exploded View .........................................................

Removal and Installation .........................................

REAR POWER WINDOW MOTOR ...................

Removal and Installation .........................................

QUARTER WINDOW GLASS ...........................

Exploded View .........................................................

Removal and Installation .........................................

Inspection ................................................................

BACK DOOR WINDOW GLASS ......................

Exploded View .........................................................

Removal and Installation .........................................

Inspection ................................................................

GW-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011276499

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Procedure without Cowl Top Cover

INFOID:0000000011276500

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc. to prevent damage to

the windshield.

Handling for Adhesive and Primer

INFOID:0000000011276501

• Do not use an adhesive which is past its usable date. Shelf life of this product is limited to six months after

the date of manufacture. Carefully adhere to the expiration or manufacture date printed on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Open the seal of the primer and adhesive just before application. Discard the remainder.

• Before application, be sure to shake the primer container to stir the contents. If any floating material is found,

do not use it.

• If any primer or adhesive contacts the skin, wipe it off with gasoline or equivalent and wash the skin with

soap.

• When using primer and adhesive, always observe the precautions in the instruction manual.

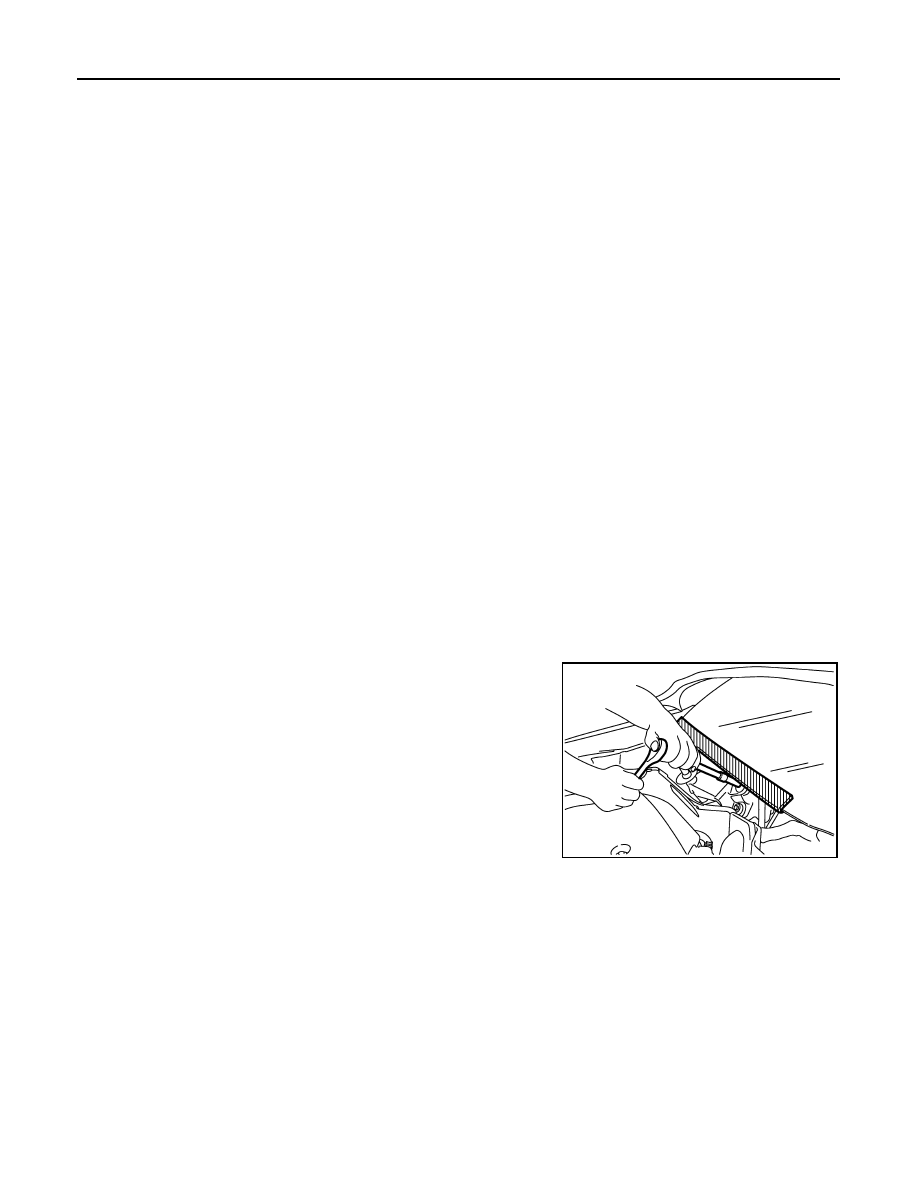

Precaution for Work

INFOID:0000000011276502

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

PIIB3706J

PRECAUTIONS

GW-3

< PRECAUTION >

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

GW-4

< PREPARATION >

PREPARATION

PREPARATION

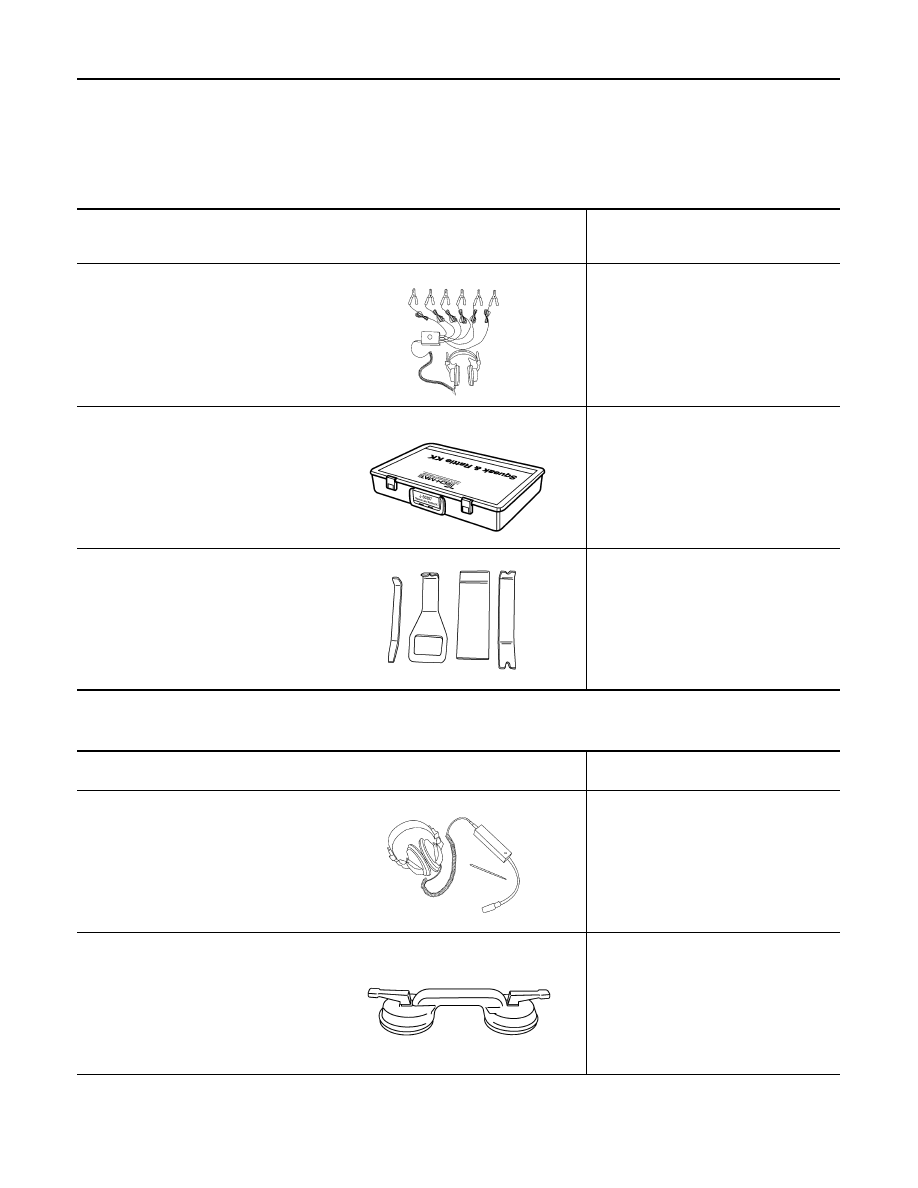

Special Service Tool

INFOID:0000000011276503

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000011276504

Tool number
(TechMate No.)
Tool name

Description

—

(J-39570)
Chassis Ear

Locating the noise

—

(J-50397)
NISSAN Squeak and Rattle Kit

Repairing the cause of noise

—

(J-46534)
Trim Tool Set

Removing trim components

SIIA0993E

ALJIA1232ZZ

AWJIA0483ZZ

(TechMate No.)
Tool name

Description

(J-39565)
Engine Ear

Locating the noise

(

—

)

Suction lifter

Holding the door glass

SIIA0995E

PIIB1805J
