QUICK REFERENCE CHART: ROGUE NAM
Brake Pedal
INFOID:0000000011657433
Unit: mm (in)
Front Disc Brake
INFOID:0000000011657432
Unit: mm (in)
Rear Disc Brake
INFOID:0000000011657431
Unit: mm (in)
Fluids and Lubricants
INFOID:0000000011657430
The following are approximate capacities. The actual capacities may be slightly different.When refilling, follow
the procedures described elsewhere in this manual.
Item
Standard
Brake pedal height (H)
175.9 – 185.9 (6.93 – 7.32)
Clearance (A) between brake pedal stopper bracket (2), stop lamp switch (4) and brake
pedal position switch (1) contact ends
0.20 – 1.96 (0.0079 – 0.0772)
Brake pedal full stroke (S)
135.1 (5.32)
Brake pedal play
—

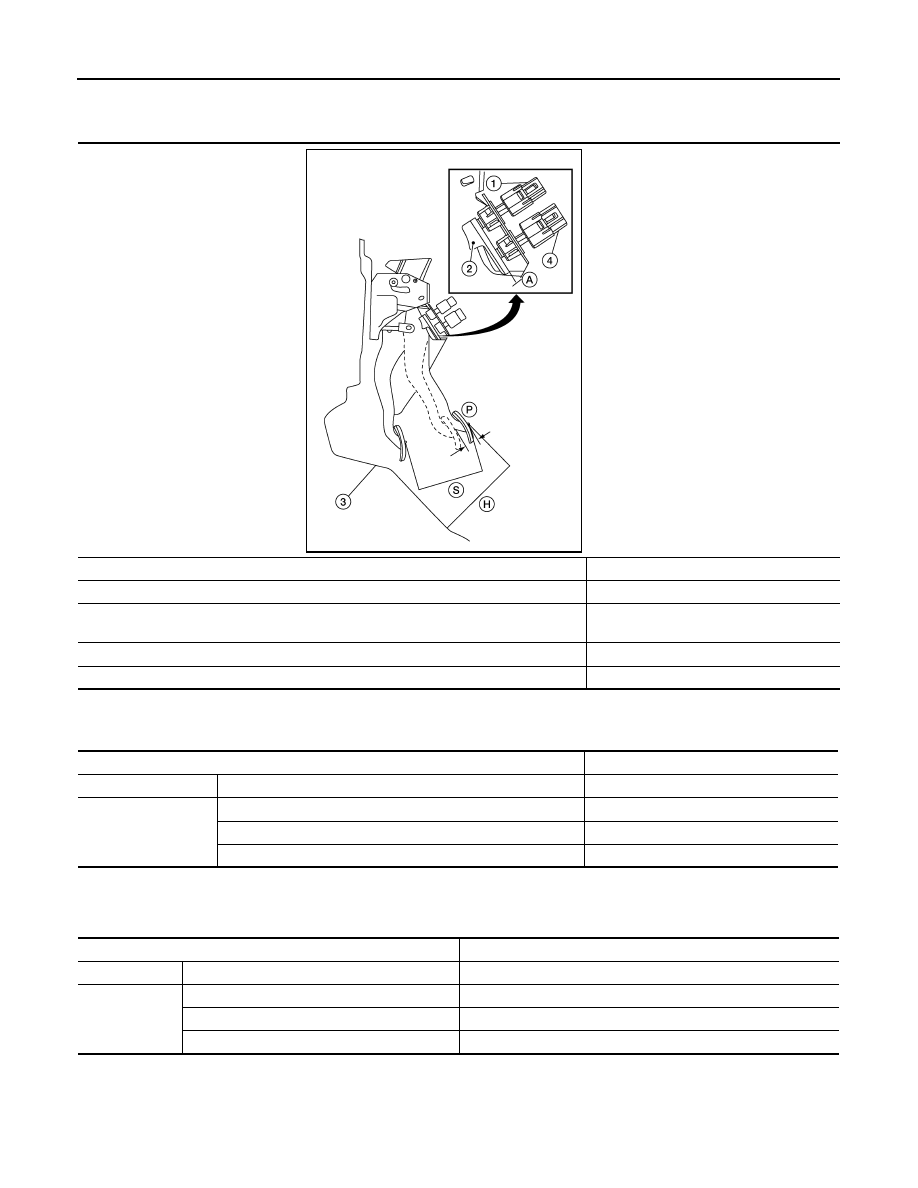

ALFIA0437ZZ
Item
Limit
Brake pad
Wear limit thickness
2.0 (0.079)
Disc brake rotor
Wear limit thickness
24.0 (0.945)
Thickness variation (measured at 8 positions)
0.020 (0.0008)
Runout limit (with it attached to the vehicle)
0.035 (0.0014)
Item
Limit
Brake pad
Wear limit thickness
1.5 (0.059)
Disc brake rotor
Wear limit thickness
14.0 (0.551)
Thickness variation (measured at 8 positions)
0.020 (0.0008)
Runout limit (with it attached to the vehicle)
0.070 (0.0028)
