SERVICE DATA AND SPECIFICATIONS (SDS)
FSU-29
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
D
F
G
H
I
J
K
L
M
A
B
FSU
N
O
P
*1: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
Ball Joint
INFOID:0000000011277068
Wheelarch Height (Unladen*)
INFOID:0000000011277069
Unit: mm (in)
*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.
Caster
Degree minute (Decimal
degree)
Minimum
5
° 0′ (5.00°)
4
° 50′ (4.83°)
Nominal
5
° 45′ (5.75°)
5
° 35′ (5.58°)
Maximum
6
° 30′ (6.50°)
6
° 20′ (6.33°)
(LH) and (RH) dif-
ference
0
° 35′ (–0.58°) - –0° 35′ (–0.58°)
Kingpin inclination
Degree minute (Decimal
degree)
Minimum
11
° 05′ (11.08°)
10
° 55′ (10.92°)
Nominal
11
° 50′ (11.83°)
11
° 40′ (11.67°)
Maximum
12
° 35′ (12.58°)
12
° 25′ (12.42°)
Total
toe-in
Distance (A - B)
Minimum
Out 0.9 mm (Out 0.035 in)
In 0.4 mm (In 0.016 in)
Nominal
In 0.1 mm (In 0.004 in)
In 1.4 mm (In 0.055 in)
Maximum
In 1.1 mm (In 0.043 in)
In 2.4 mm (In 0.094 in)
Angle (LH and RH)
Degree minute
(Decimal degree)
Minimum
Out 0
° 06′ (Out 0.10°)
In 0
° 00′ (In 0.00°)
Nominal
In 0
° 00′ (In 0.00°)
In 0
° 06′ (In 0.10°)
Maximum
In 0
° 06′ (In 0.10°)
In 0
° 12′ (In 0.20°)

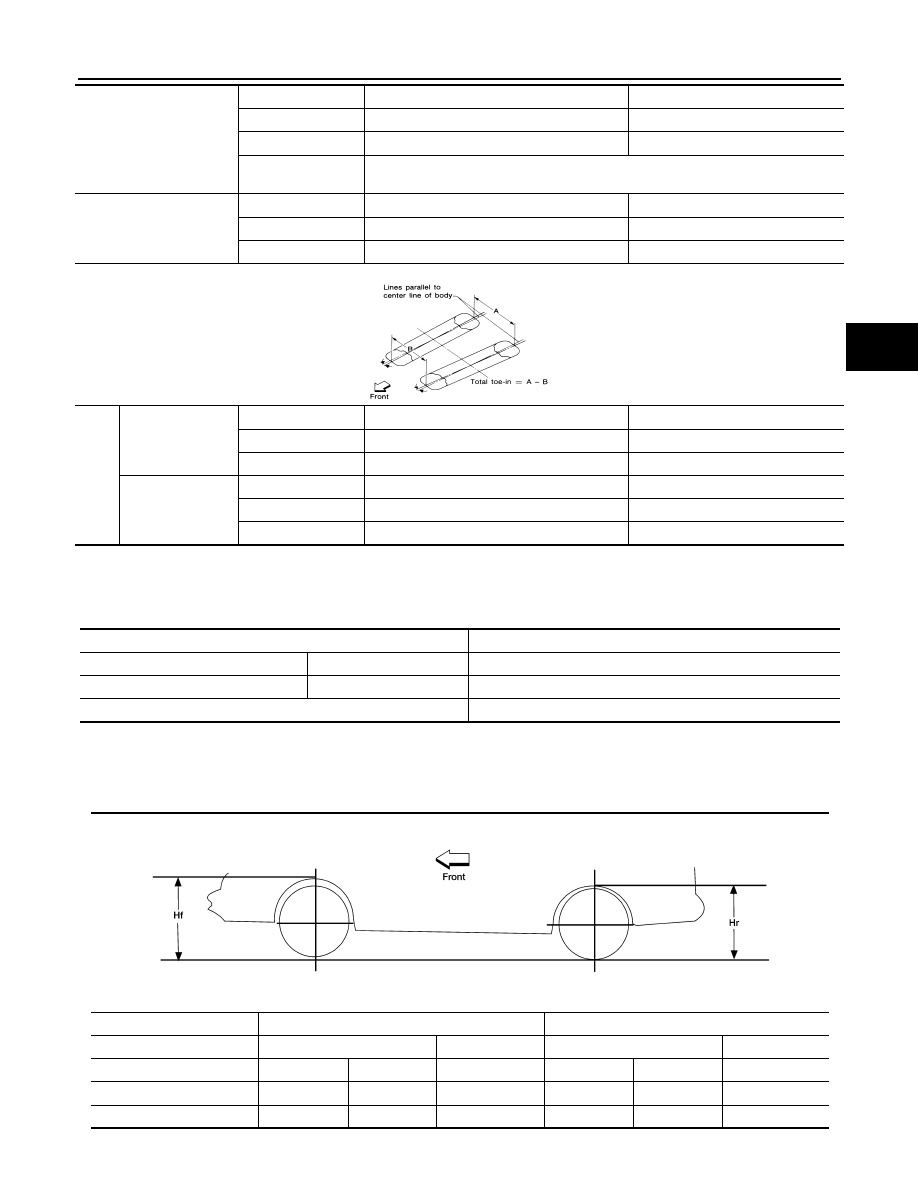

SFA234AC
Item
Standard
Swinging torque
Transverse link
0.5 – 3.4 N·m (0.05 – 0.35 kg-m, 4 – 30 in-lb)
Rotating torque
Transverse link
0.5 – 3.4 N·m (0.05 – 0.35 kg-m, 4 – 30 in-lb)
Axial end play
0 mm (0 in)
Axle type
FWD
AWD
Body type
2 ROW
3 ROW
2 ROW
3 ROW
Tire size
225/65R17
225/60R18
225/65R17 RF
225/65R17
225/60R18
225/65R17 RF
Front (Hf)
788 (31.02)
790 (31.10)
790 (31.10)
797 (31.38)
799 (31.46)
800 (31.50)
Rear (Hr)
785 (30.91)
787 (30.98)
786 (30.94)
794 (31.26)
796 (31.34)
795 (31.30)
LEIA0085E
