DIAGNOSIS SYSTEM (IPDM E/R)
EXL-25
< SYSTEM DESCRIPTION >

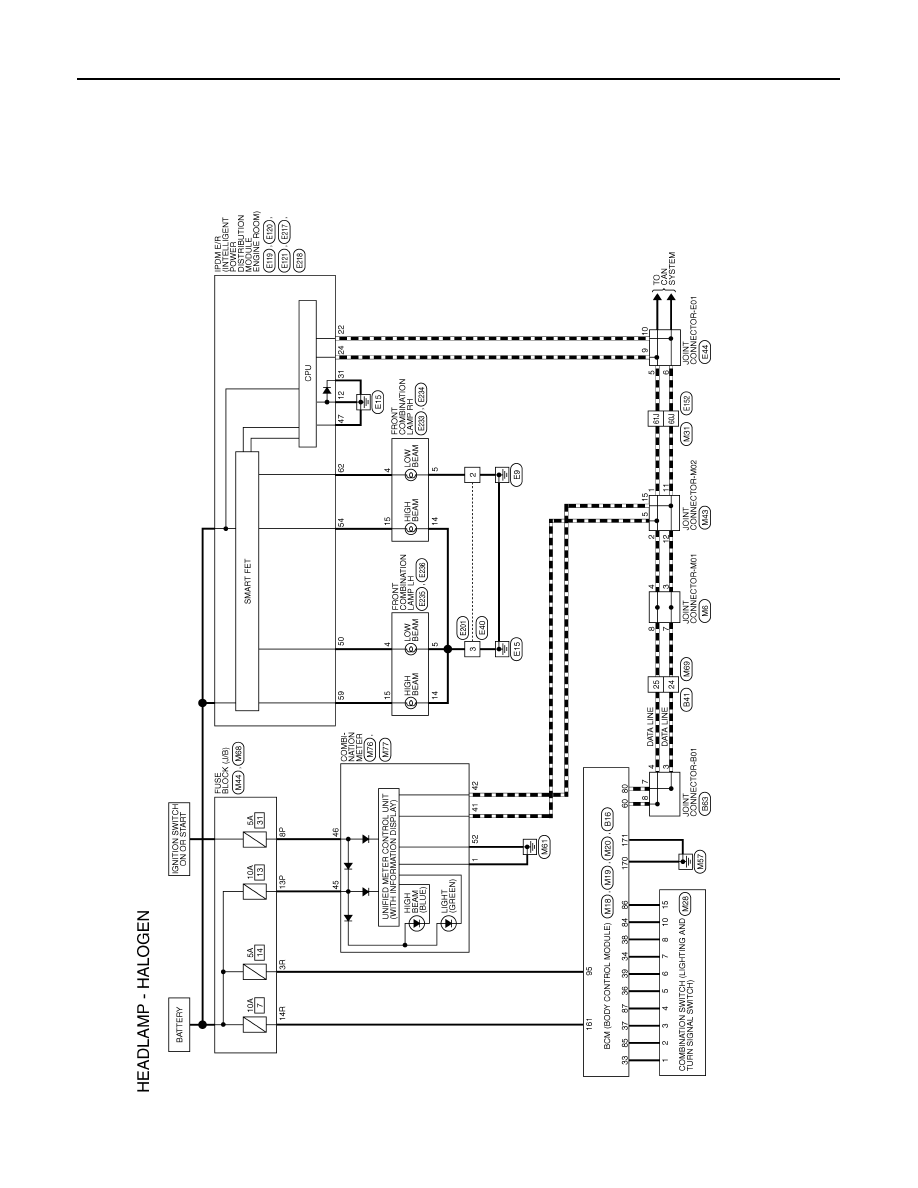

[HALOGEN HEADLAMP]
C
D
E
F
G
H
I
J
K
M
A
B
EXL
N
O
P
HEADLAMP (HI) RH [%]
Indicates condition of headlamp high beam RH.
HEADLAMP (LO) LH [%]
Indicates condition of headlamp low beam LH.
HEADLAMP (LO) RH [%]
Indicates condition of headlamp low beam RH.
A/C RELAY STUCK [NG/OK]
Indicates condition of A/C relay.
A/C RELAY [Off/On]
Indicates condition of A/C relay.
COMP ECV STATUS [NG/OK]
Indicates condition of A/C compressor.
VEHICLE SECURITY HORN [Off/On]
Indicates condition of horn relay.
BATTERY CURRENT SENSOR [NG/OK]
Indicates condition of battery current sensor.
FRONT FOG LAMP [Off/On]
Indicates condition of front fog lamps.
COMP ECV CURRENT [A]
Indicates condition of A/C compressor current.
BATTERY VOLTAGE [V]
Indicates condition of battery voltage.
COOLING FAN DUTY [%]
Indicates condition of cooling fans.
HOOD SW (CAN) [OPEN/CLOSE]
Indicates condition of hood switch.
FRONT WIPER [STOP/LOW/HIGH]
Indicates condition of front wiper motor.
FR WIPER STOP POSITION [STOP P/ACTIVE P]
Indicates condition of front wiper motor stop.
HEADLAMP (HI) [Off/On]
Indicates condition of headlamp high beams.
HEADLAMP (LO) [Off/On]
Indicates condition of headlamp low beams.
IGNITION RELAY STATUS [Off/On]
Indicates condition of ignition relay-1.
IGN RELAY MONITOR [Off/On]
Indicates condition of ignition relay-1 feedback.
IGNITION POWER SUPPLY [Off/On]
Indicates condition of ignition relay-1.
INTERLOCK/PNP SW (CAN) [Off/On]
Indicates condition of transmission range switch P (Park) and N
(Neutral) positions.
PUSH-BUTTON IGN SW (CAN) [Off/On]
Indicates condition of push-button ignition switch.
TAIL LAMP [Off/On]
Indicates condition of tail lamps.
REVERSE SIGNAL (CAN) [Off/On]
Indicates condition of transmission range switch R (Reverse) po-
sition.
ST&ST CONT RELAY STATUS [Off/ST R On]
Indicates condition of starter cut and starter relays.
STARTER MOTOR STATUS [Off/On]
Indicates condition of starter motor.
STARTER RELAY (CAN) [LOW/HIGH]
Indicates condition of starter relay.
IPDM NOT SLEEP [NO RDY/RDY]
Indicates condition of IPDM E/R sleep status.
AFTER COOLING TIME [No request/Request]
Indicates condition of cooling fan request.
AFTER COOLING SPEED [%]
Indicates condition of cooling fans.
COOLING FAN TYPE [NISSAN/RENAULT]
Indicates cooling fan type.
COMPRESSOR REQ1 [Off/On]
Indicates condition of A/C compressor request.
VHCL SECURITY HORN REQ [Off/On]
Indicates condition of horn relay request.
DTRL REQ [Off/On]
Indicates condition of daytime running light request.
SLEEP/WAKE UP [WAKEUP/SLEEP]
Indicates condition of IPDM E/R sleep/wake.
CRANKING ENABLE-TCM [NG/OK]
Indicates condition of crank enable from TCM.
CRANKING ENABLE-ECM [NG/OK]
Indicates condition of crank enable from ECM.
CAN DIAGNOSIS [NG/OK]
Indicates condition of CAN diagnosis.
FRONT FOG LAMP REQ [Off/On]
Indicates condition of front fog lamp request.
HIGH BEAM REQ [Off/On]
Indicates condition of headlamp high beam request.
HORN CHIRP [Off/On]
Indicates condition of horn relay request.
COOLING FAN REQ [%]
Indicates condition of cooling fan request.
ENGINE STATUS [STOP/RUN/IDLING]
Indicates condition of engine status.
Monitor Item [Unit]
Description
