INSTALLATION

1. Install valve timing control cover with the following procedure.
a. Install intake valve timing intermediate lock control solenoid valve, intake valve timing control solenoid

valve and exhaust valve timing control solenoid valve to valve timing control cover.

b. Install O-ring to front cover side.

CAUTION:

Do not reuse O-ring.

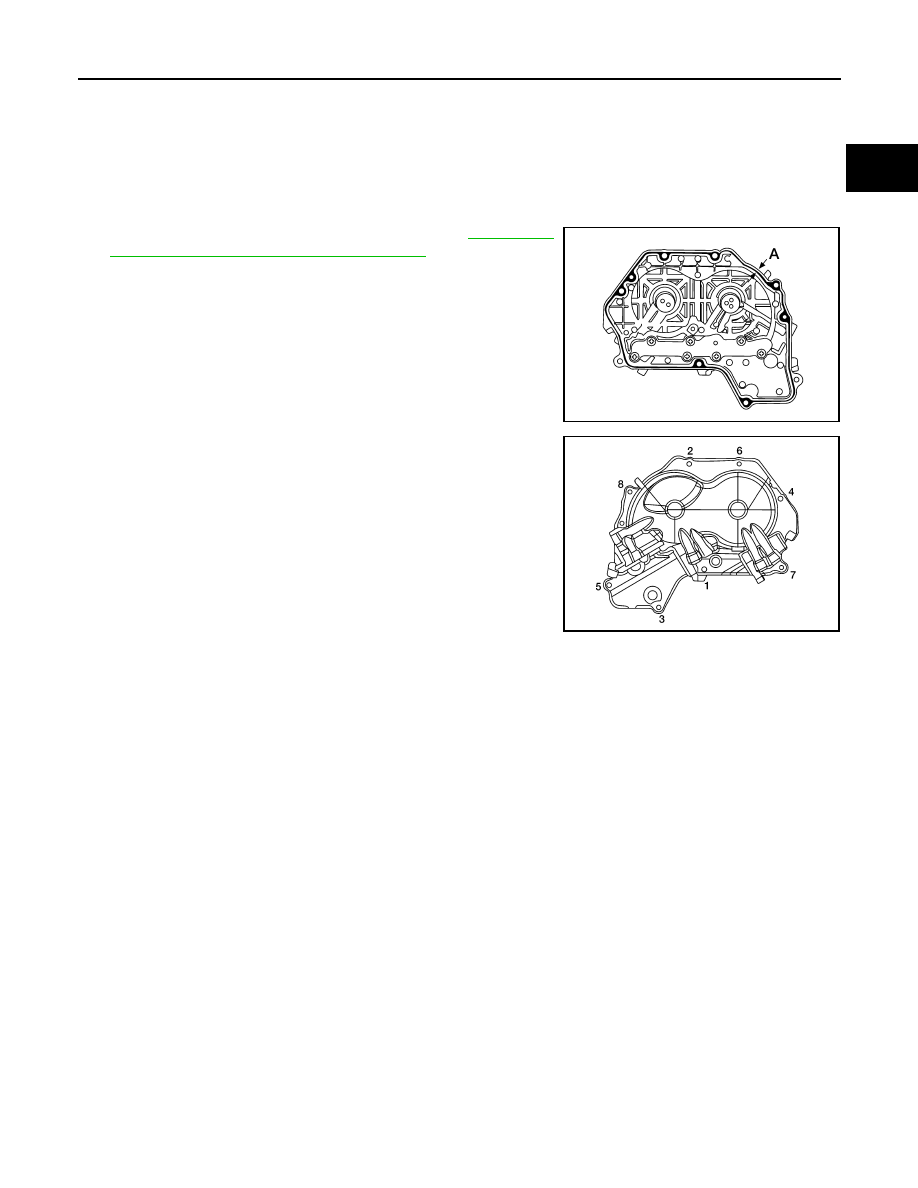

c. Apply liquid gasket to the positions shown. Refer to

GI-22, "Rec-

ommended Chemical Products and Sealants"

.

d. Install valve timing control cover.

• Tighten the bolts to specification in the numerical order shown.

Diameter (A)

: 3.4 - 4.4 mm (0.134 - 0.173 in)

AWBIA1362ZZ

ALBIA0839GB

EM-82

< REMOVAL AND INSTALLATION >

OIL SEAL

OIL SEAL

VALVE OIL SEAL
VALVE OIL SEAL : Removal and Installation

INFOID:0000000011279972

REMOVAL

1. Remove camshafts. Refer to

EM-69, "Removal and Installation"

.

2. Remove valve lifters. Refer to

EM-61, "Disassembly and Assembly"

.

3. Rotate crankshaft, and set piston whose valve oil seal is to be removed to TDC. This will prevent valve

from dropping into cylinder.

CAUTION:

When rotating crankshaft, be careful to avoid scarring front cover with timing chain.

4. Remove valve collet.

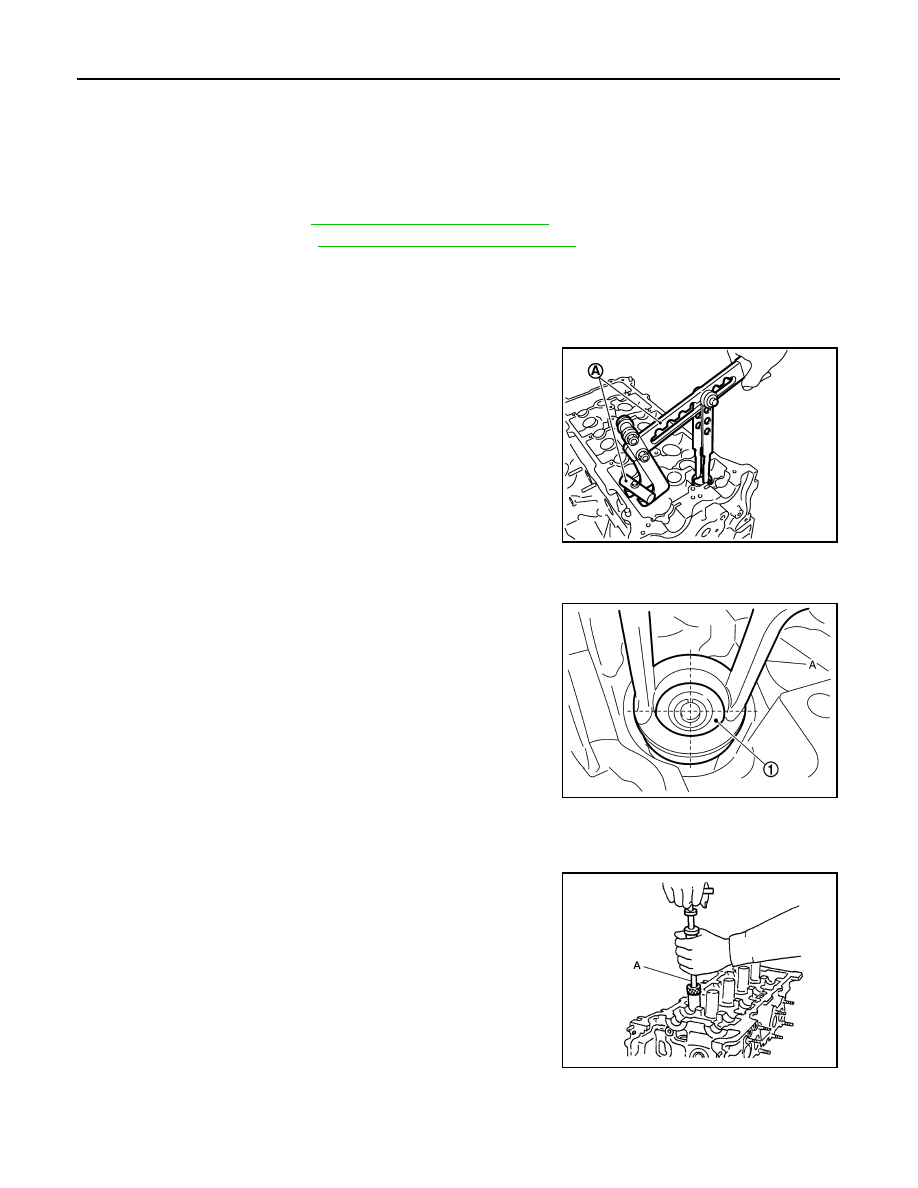

• Compress valve spring using suitable tool (A). Remove valve

collet with a magnet.

CAUTION:

• Be careful not to damage valve lifter holes.

• Install suitable tool (A) in the center of valve spring

retainer (1) to press it.

5. Remove valve spring retainer and valve spring (with valve spring seat).

CAUTION:

Do not remove valve spring seat from valve spring.

6. Remove valve oil seal using suitable tool (A).

INSTALLATION

1. Apply new engine oil to valve oil seal joint surface and seal lip.

PBIC3209J

JSBIA3390ZZ

ALBIA0863GB

OIL SEAL

EM-83

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

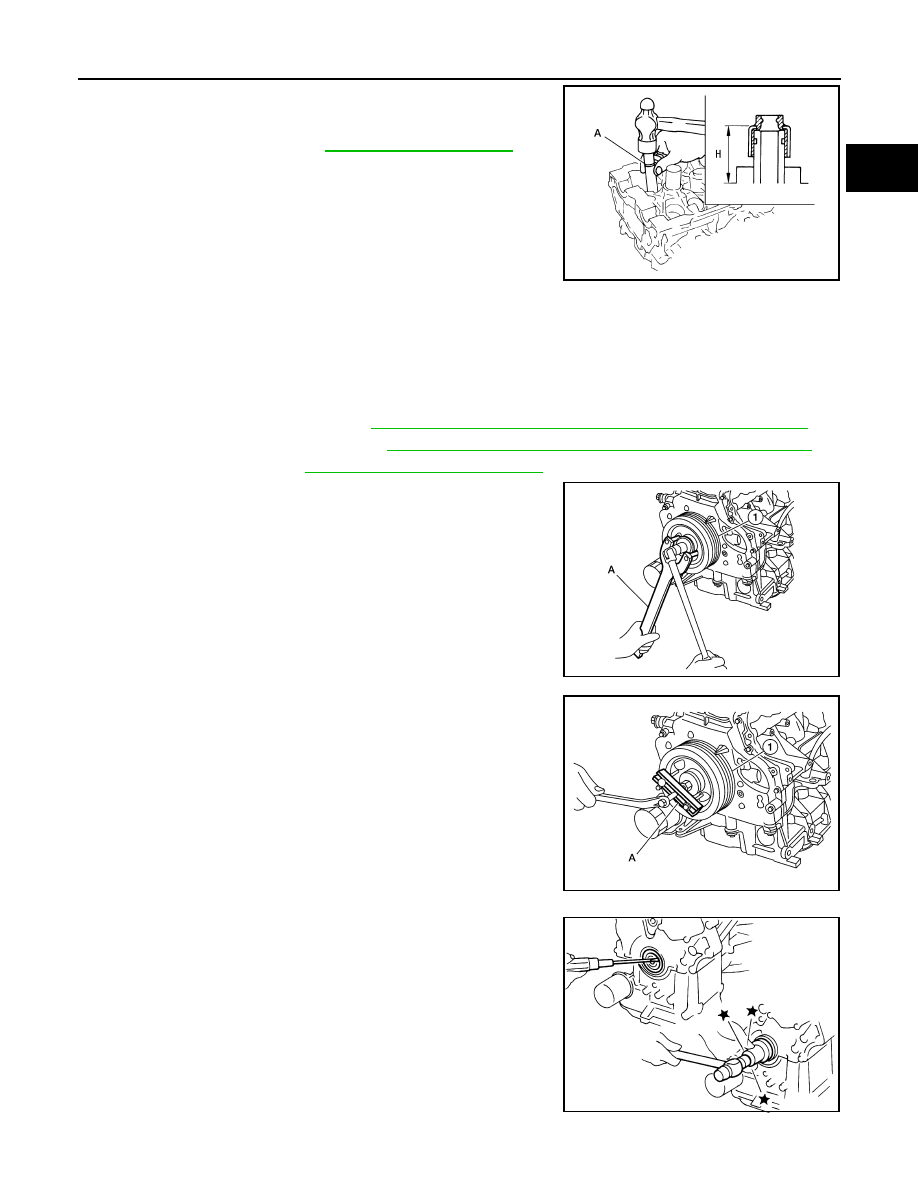

2. Press in valve oil seal to the height “H” as shown using suitable

tool (A).

3. Installation of the remaining components is in the reverse order of removal.

FRONT OIL SEAL
FRONT OIL SEAL : Removal and Installation

INFOID:0000000011279973

REMOVAL

1. Remove engine undercover. Refer to

EXT-37, "ENGINE UNDER COVER : Removal and Installation"

.

2. Remove front fender protector. Refer to

EXT-28, "FENDER PROTECTOR : Removal and Installation"

.

3. Remove drive belt. Refer to

EM-15, "Removal and Installation"

.

4. Remove crankshaft pulley (1) using the following procedure:
a. Hold the crankshaft pulley (1) using suitable tool (A), then

loosen and remove the crankshaft pulley bolt.

b. Attach suitable tool (A) in the threaded hole on crankshaft pulley

(1), and remove crankshaft pulley.

5. Remove front oil seal with a suitable tool.

CAUTION:

Do not damage front cover and crankshaft.

INSTALLATION

Height “H”

: Refer to

EM-122, "Cylinder Head"

ALBIA0864GB

ALBIA0857GB

ALBIA0858GB

SEM829E

EM-84

< REMOVAL AND INSTALLATION >

OIL SEAL

1. Apply new engine oil to seal lip.

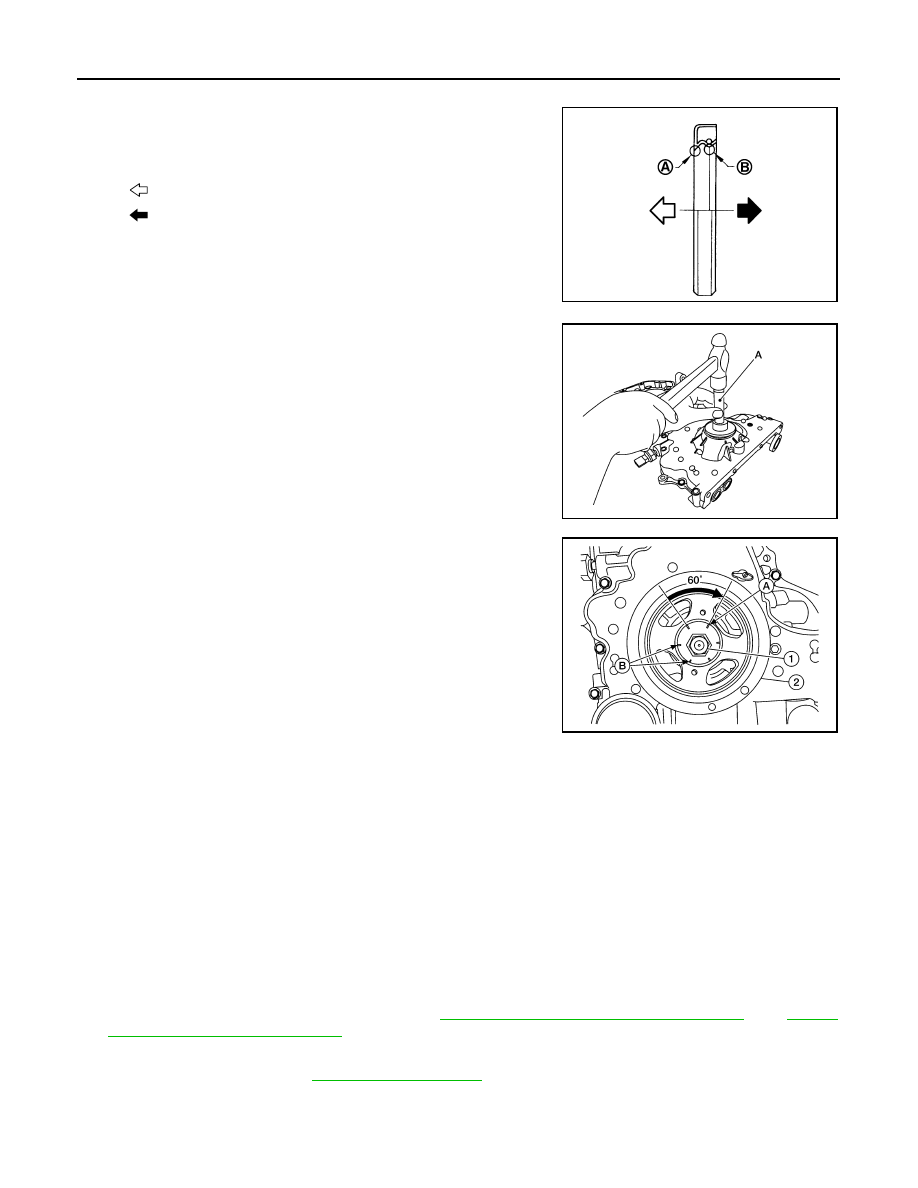

2. Install front oil seal so that each seal lip is oriented as shown.

• Press-fit front oil seal until it is flush with front end surface of

front cover using a suitable drift (A).

CAUTION:

• Do not damage front cover and crankshaft.

• Press-fit oil seal straight to avoid causing burrs or tilt-

ing.

• Do not touch the grease applied to the oil seal lip.

• Do not reuse oil seal.

3. Insert crankshaft pulley (2) by aligning with crankshaft key.

• Tap its center with a plastic hammer to insert.

• Do not tap the crankshaft pulley outer diameter.

4. Tighten crankshaft pulley bolt.

• Secure crankshaft pulley with suitable tool to tighten the bolt.

• Perform angle tightening with the following procedure.

a. Apply new engine oil to threads and seat surfaces of bolts.
b. Apply a paint mark (A) on the front cover, mating with any one of

six easy to recognize stamp marks on bolt flange (B).

c.

Tighten crankshaft bolt (1) to specification.

NOTE:

Check that the assembled unit does not interfere with adjacent components by turning the crankshaft in

the tightening direction.

5. Installation of the remaining components is in the reverse order of removal.

REAR OIL SEAL
REAR OIL SEAL : Removal and Installation

INFOID:0000000011279974

REMOVAL

1. Remove the engine and transaxle. Refer to

EM-86, "Removal and Installation (FWD)"

 and

EM-90,

"Removal and Installation (AWD)"

.

2. Separate engine from transaxle.
3. Remove drive plate. Refer to

EM-97, "Exploded View"

.

4. Remove rear oil seal with a suitable tool.

CAUTION:

Be careful not to damage crankshaft and cylinder block.

(A)

: Dust seal lip

(B)

: Oil seal lip

: Engine outside

: Engine inside

PBIC3485J

ALBIA0865GB

Step 1

: 42.1 N·m (4.3 kg-m, 31 ft-lb)

Step 2

: Turn crankshaft bolt (1) an additional 60

° +6°/

-0

°.

ALBIA0862GB
