• If two adjacent cylinders have respectively low compression pressure and their compression remains low

even after the addition of engine oil, the head gasket is leaking. In such a case, replace the cylinder head

gasket.

8. Install spark plug, ignition coil and harness connectors. Refer to

EM-19, "Removal and Installation"

.

EM-26

< REMOVAL AND INSTALLATION >

AIR CLEANER AND AIR DUCT

REMOVAL AND INSTALLATION

AIR CLEANER AND AIR DUCT

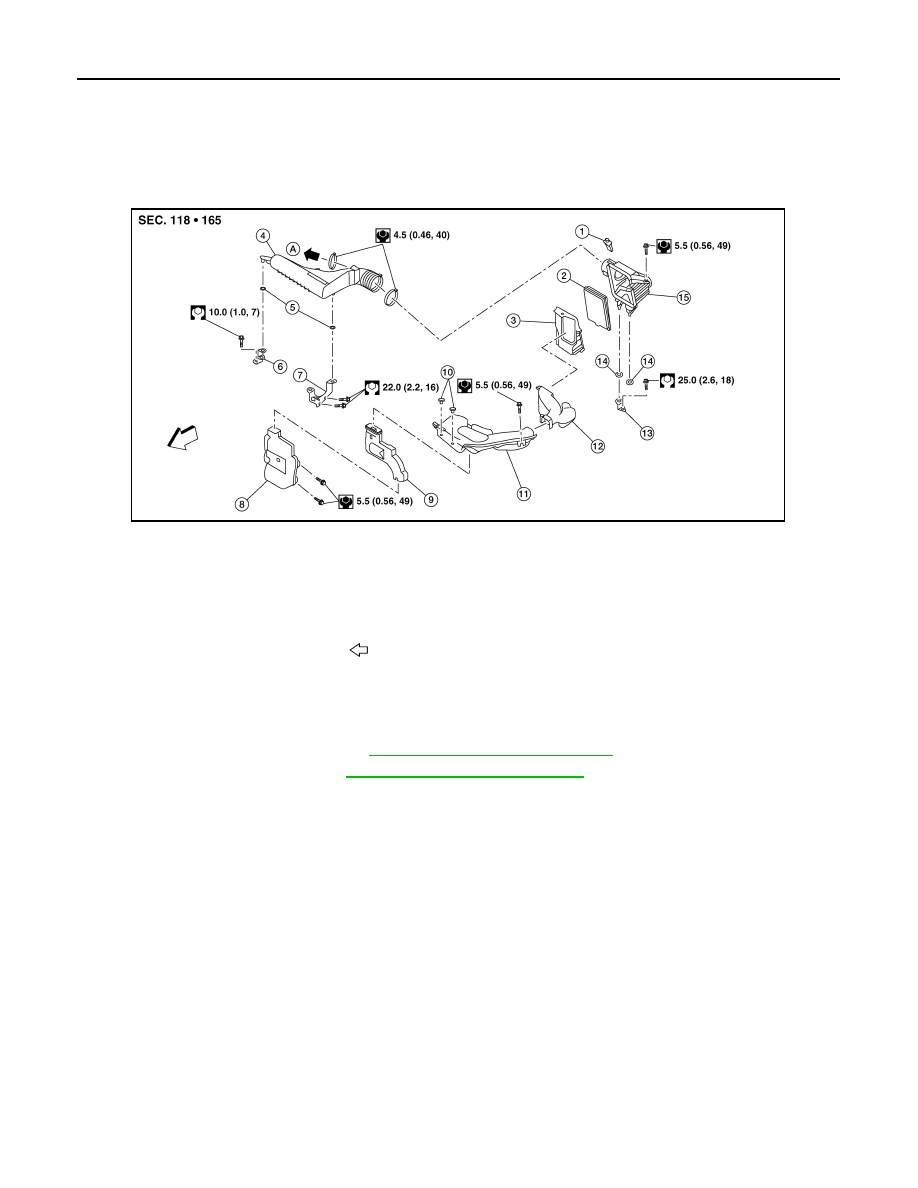

Exploded View

INFOID:0000000011279945

Removal and Installation

INFOID:0000000011279946

REMOVAL

1. Remove cowl top extension. Refer to

EXT-25, "Removal and Installation"

.

2. Remove air cleaner filter. Refer to

EM-18, "Removal and Installation"

.

3. Remove air duct assembly from air cleaner case (lower).
4. Remove air cleaner case (lower).
5. Disconnect harness connector from mass air flow sensor.
6. Remove air cleaner case (upper).
7. Remove mass air flow sensor from air cleaner case (upper) (if necessary).

CAUTION:

Handle the mass air flow sensor with care.

• Do not shock mass air flow sensor

• Do not disassemble mass air flow sensor

• Do not touch the internal sensor

1.

Mass air flow sensor

2.

Air cleaner filter

3.

Air cleaner case (lower)

4.

Air duct assembly (aft)

5.

Grommet

6.

Resonator bracket (front)

7.

Resonator bracket (rear)

8.

Resonator

9.

Air duct

10.

Mounting clip

11.

Air duct assembly (fore)

12.

Air cleaner case duct

13.

Air cleaner bracket

14.

Grommet

15.

Air cleaner case (upper)

A.

To Electric throttle control actuator

Front

AWBIA2315ZZ

AIR CLEANER AND AIR DUCT

EM-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

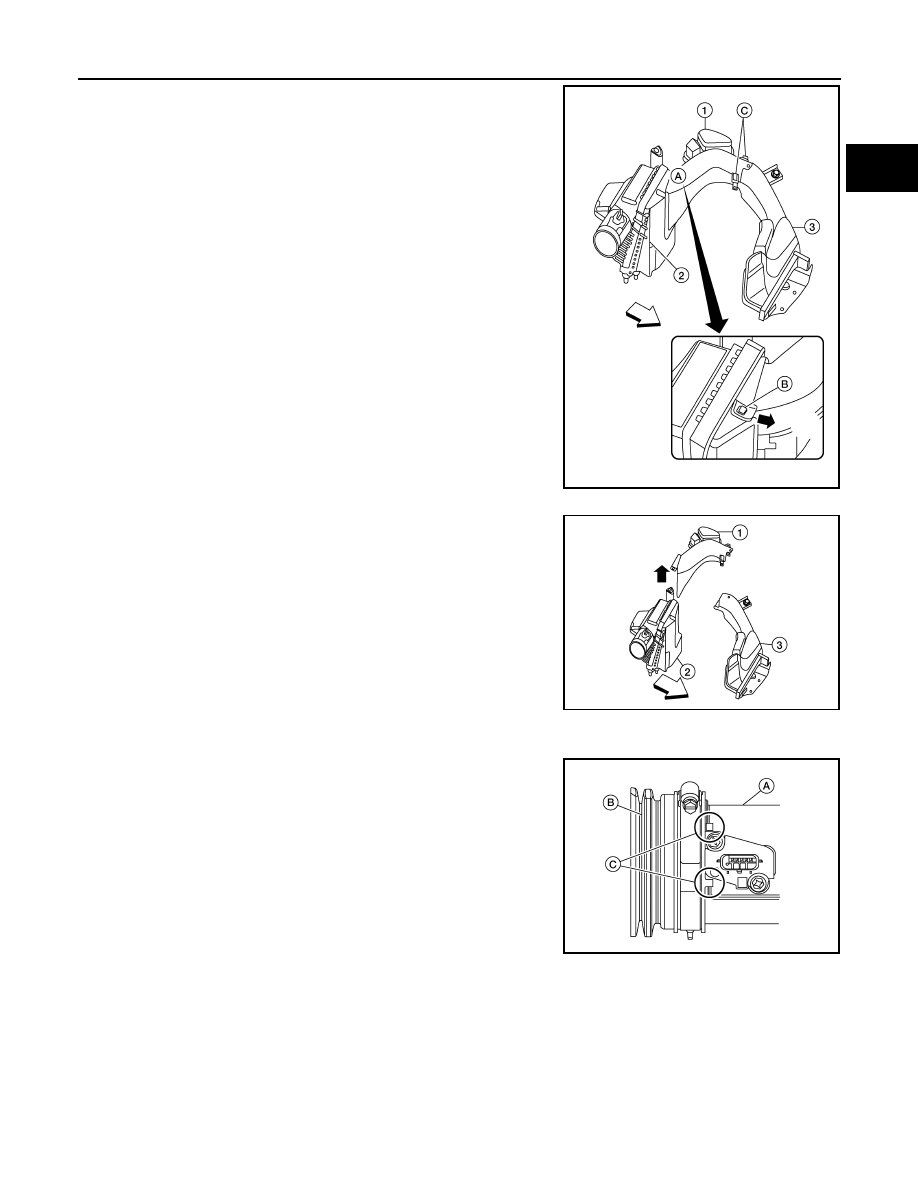

8. Separate air cleaner case (lower) (2) from air cleaner case duct

(1) and air duct assembly (fore) (3).

• Pull to the direction of the arrow and detach lock (B).

• Detach the snap fits (C).

• Lift up to separate the air cleaner case duct (1) from the air

cleaner case (lower) (2) and the air duct assembly (fore) (3).

INSTALLATION

Installation is in the reverse order of removal.

• Align mating marks (C) of air duct assembly (B) with air cleaner

case (upper) (A) as shown.

AWBIA2318ZZ

AWBIA2320ZZ

AWBIA1902ZZ

EM-28

< REMOVAL AND INSTALLATION >

AIR CLEANER AND AIR DUCT

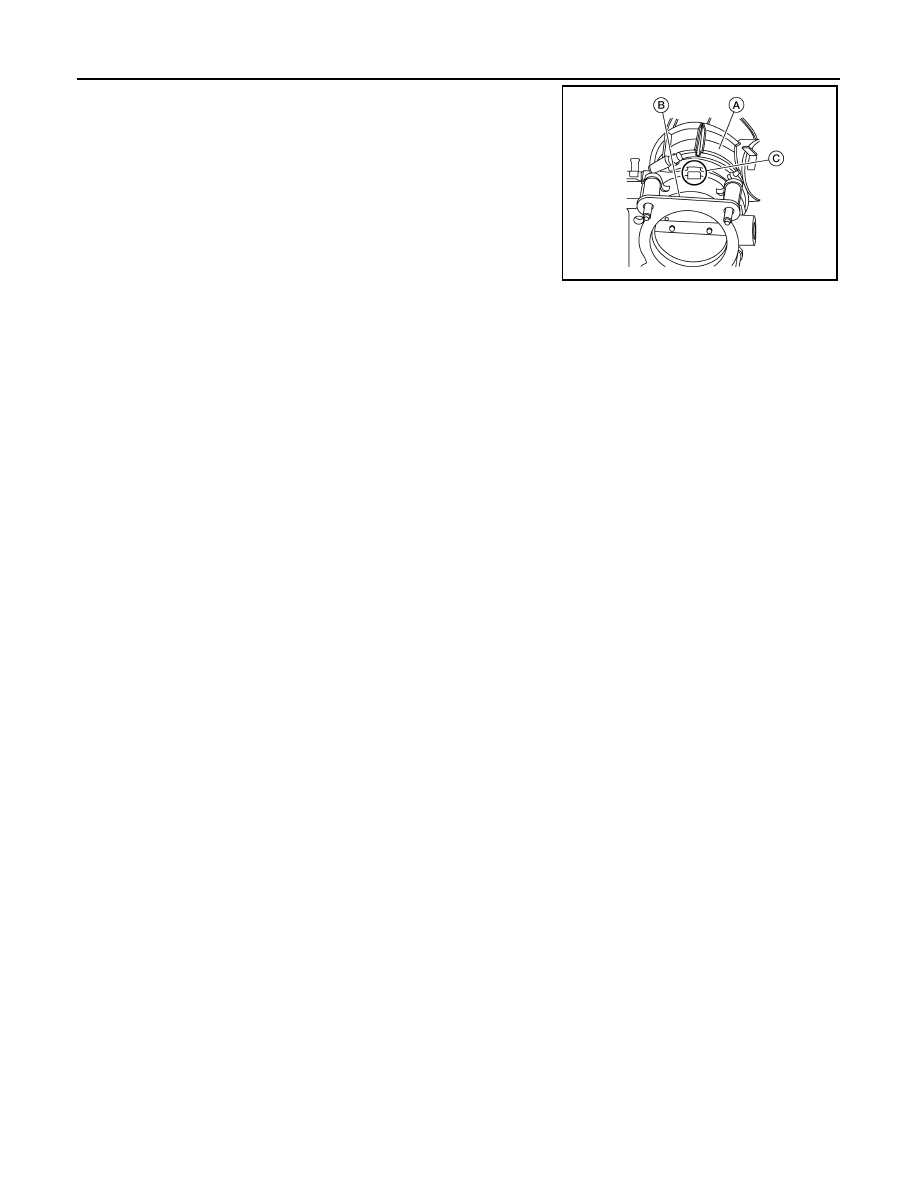

• Align mating marks (C) of air duct assembly (A) with electric throt-

tle control actuator (B) as shown.

Inspection

INFOID:0000000011279947

INSPECTION AFTER REMOVAL

Inspect air duct and resonator assembly for cracks or tears.

• If anything found, replace air duct and resonator assembly.

AWBIA1903ZZ
