Nissan Rogue. Manual - part 517





EC-336

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace error-detected parts.

5.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR SIGNAL CIRCUIT

1. Check the continuity between EVAP control system pressure sensor harness connector and ECM har-

ness connector.

2. Also check harness for short to ground and to power.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace error-detected parts.

6.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Check the EVAP control system pressure sensor. Refer to

EC-333, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace EVAP control system pressure sensor. Refer to

FL-22, "Removal and Installation"

.

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000011278047

1.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

1. Turn ignition switch OFF.

2. Remove EVAP control system pressure sensor with its harness connector connected from EVAP canister.

Always replace O-ring with a new one.

3. Install a vacuum pump to EVAP control system pressure sensor.

4. Turn ignition switch ON and check output voltage between ECM harness connector and ground under the

following conditions.

CAUTION:

• Always calibrate the vacuum pump gauge when using it.
• Do not apply below -93.3 kPa (-0.952 kg/cm

2

, -13.53 psi) or pressure over 101.3 kPa (1.033 kg/

cm

2

, 14.69 psi).

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace EVAP control system pressure sensor. Refer to

FL-22, "Removal and Installation"

.

+

−

Continuity

EVAP control system pres-

sure sensor

ECM

Connector

Terminal

Connector

Terminal

B111

2

E16

114

Existed

ECM

Condition

[Applied vacuum kPa (kg/cm

2

, psi)]

Voltage

Connector

+

−

Terminal

E16

114

124

Not applied

0.5 - 4.6 V

-26.7 (-0.272, -3.87)

2.1 to 2.5 V lower than above value

P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

EC-337

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

DTC Description

INFOID:0000000011278048

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Harness or connectors (EVAP control system pressure sensor circuit is shorted.)

• EVAP control system pressure sensor

FAIL-SAFE

Not applicable

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Always perform test at a temperature of 5

°C (41°F) or more.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

1. Start engine and warm it up to normal operating temperature.

2. Turn ignition switch OFF and wait at least 10 seconds.

3. Turn ignition switch ON.

4. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.

5. Make sure that “FUEL T/TMP SE” indication is more than 0

°C (32°F).

6. Start engine and wait at least 20 seconds.

7. Check 1st trip DTC.

With GST

1. Start engine and warm it up to normal operating temperature.

2. Set voltmeter probes to ECM harness connector terminals as per the following.

3. Make sure that the voltage is less than 4.2 V.

4. Turn ignition switch OFF and wait at least 10 seconds.

5. Start engine and wait at least 20 seconds.

6. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-338, "Diagnosis Procedure"

.

NO

>> INSPECTION END

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P0453

EVAP SYS PRES SEN
(Evaporative emission system pressure
sensor/switch high)

An excessively high voltage from the sensor is sent to ECM.

ECM

Voltage

Connector

+

−

Terminal

E16

114

124

Less than 4.2 V

EC-338

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

Diagnosis Procedure

INFOID:0000000011278049

1.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR FOR WATER

1. Turn ignition switch OFF.

2. Disconnect EVAP control system pressure sensor harness connector.

3. Check sensor harness connector for water.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness connector.

2.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY

1. Turn ignition switch ON.

2. Check the voltage between EVAP control system pressure sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between EVAP control system pressure sensor harness connector and ECM har-

ness connector.

4. Also check harness for short to ground and to power.
Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts

4.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between EVAP control system pressure sensor harness connector and ECM har-

ness connector.

4. Also check harness for short to power.

Water should not exist.

+

−

Voltage

(Approx.)

EVAP control system pressure sen-

sor

Connector

Terminal

B111

3

Ground

5 V

+

−

Continuity

EVAP control system pres-

sure sensor

ECM

Connector

Terminal

Connector

Terminal

B111

3

E16

113

Existed

+

−

Continuity

EVAP control system pres-

sure sensor

ECM

Connector

Terminal

Connector

Terminal

B111

1

E16

124

Existed

P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

EC-339

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace error-detected parts.

5.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR SIGNAL CIRCUIT

1. Check the continuity between EVAP control system pressure sensor harness connector and ECM har-

ness connector.

2. Also check harness for short to ground and to power.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace error-detected parts.

6.

CHECK RUBBER TUBE

1. Disconnect rubber tube connected to EVAP canister vent control valve.

2. Check the rubber tube for clogging.
Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Clean the rubber tube using an air blower, repair or replace rubber tube.

7.

CHECK EVAP CANISTER VENT CONTROL VALVE

Refer to

EC-324, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace EVAP canister vent control valve. Refer to

FL-21, "Removal and Installation"

.

8.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Refer to

EC-340, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace EVAP control system pressure sensor. Refer to

FL-22, "Removal and Installation"

.

9.

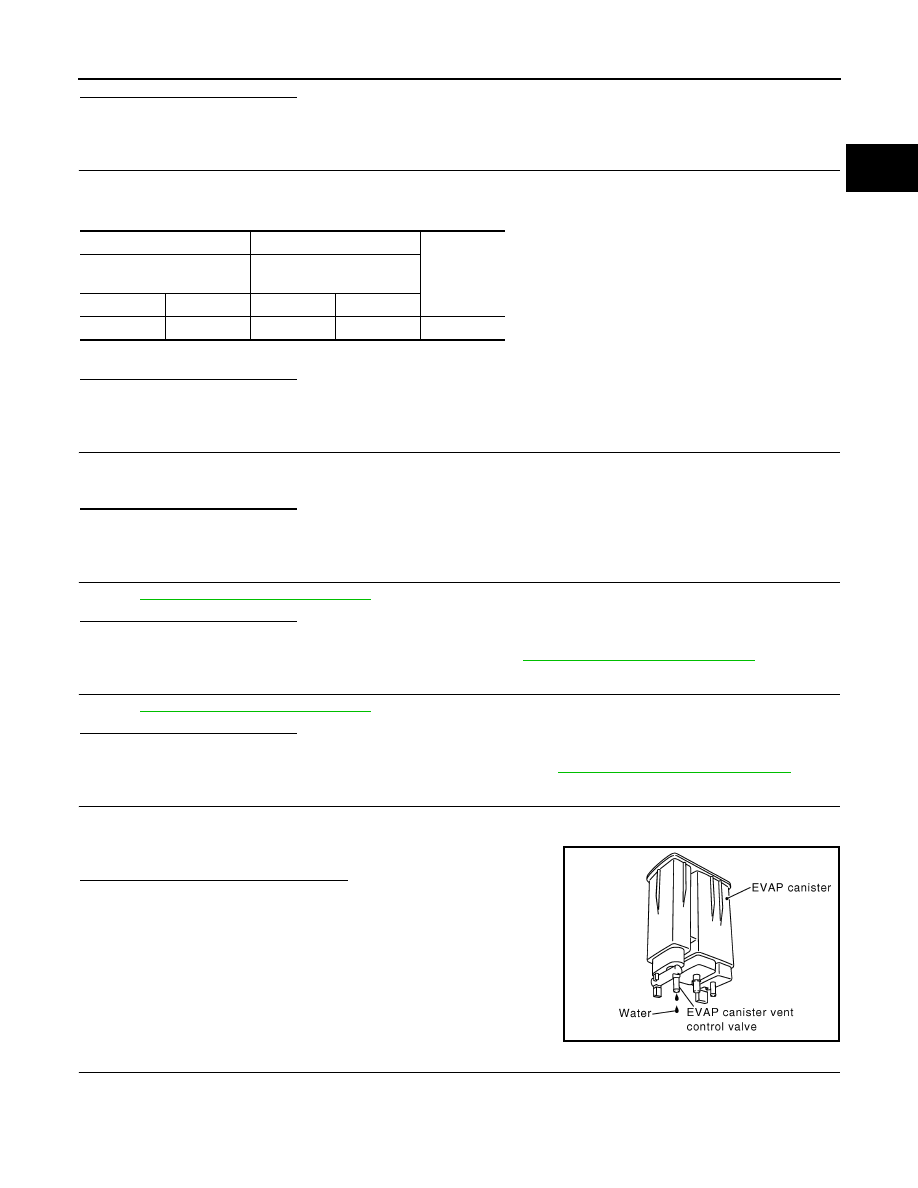

CHECK IF EVAP CANISTER IS SATURATED WITH WATER

1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor

attached.

2. Check if water will drain from the EVAP canister.
Does water drain from EVAP canister?

YES

>> GO TO 10.

NO

>> GO TO 12.

10.

CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor

attached.

The weight should be less than 1.9 kg (4.2 lb).

+

−

Continuity

EVAP control system pres-

sure sensor

ECM

Connector

Terminal

Connector

Terminal

B111

2

E16

114

Existed

PBIB1213E
