P0137 HO2S2

5. Let engine idle for 1 minute.

6. Make sure that “COOLAN TEMP/S” indicates more than 70

°C (158°F).

If not, warm up engine and go to next step when “COOLAN TEMP/S” indication reaches 70

°C (158°F).

7. Open engine hood.

8. Select “HO2S2 (B1) P1147” of “HO2S2” in “DTC WORK SUPPORT” mode of “ENGINE” using CONSULT.

9. Follow the instruction of CONSULT.

NOTE:

It will take at most 10 minutes until “COMPLETED” is displayed.

10. Touch “SELF-DIAG RESULT”.
Which is displayed on CONSULT screen?

OK

>> INSPECTION END

NG

>> Proceed to

EC-241, "Diagnosis Procedure"

.

CAN NOT BE DIAGNOSED>>GO TO 4.

4.

PERFORM DTC CONFIRMATION PROCEDURE AGAIN

1. Turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle).

2. Perform DTC CONFIRMATION PROCEDURE again.

>> GO TO 3.

5.

PERFORM COMPONENT FUNCTION CHECK-1

Without CONSULT

1. Start engine and warm it up to normal operating temperature.

2. Turn ignition switch OFF and wait at least 10 seconds.

3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

4. Let engine idle for 1 minute.

5. Check the voltage between ECM harness connector and ground as per the following condition.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 6.

6.

PERFORM COMPONENT FUNCTION CHECK-2

Check the voltage between ECM harness connector and ground as per the following condition.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 7.

7.

PERFORM COMPONENT FUNCTION CHECK-3

Check the voltage between ECM harness connector and ground as per the following condition.

ECM

Condition

Voltage

Connector

+

−

Terminal

F51

22

23

Revving up to 4,000 rpm under no
load at least 10 times

The voltage should be above 0.73 V
at least once during this procedure.

ECM

Condition

Voltage

Connector

+

−

Terminal

F51

22

23

Keeping engine speed at idle for 10
minutes

The voltage should be above 0.73 V
at least once during this procedure.

P0137 HO2S2

EC-241

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-241, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000011277986

1.

CLEAR THE MIXTURE RATIO SELF-LEARNING VALUE

1. Clear the mixture ratio self-learning value. Refer to

EC-146, "Work Procedure"

.

2. Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171 detected? Is it difficult to start engine?

YES

>> Perform trouble diagnosis for DTC P0171. Refer to

EC-263, "DTC Description"

.

NO

>> GO TO 2.

2.

CHECK HO2S2 GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect heated oxygen sensor 2 (HO2S2) harness connector.

3. Disconnect ECM harness connector.

4. Check the continuity between HO2S2 harness connector and ECM harness connector.

5. Also check harness for short to power.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace error-detected parts.

3.

CHECK HO2S2 INPUT SIGNAL CIRCUIT

1. Check the continuity between HO2S2 harness connector and ECM harness connector.

2. Check the continuity between HO2S2 harness connector and ground, or ECM harness connector and

ground.

ECM

Condition

Voltage

Connector

+

−

Terminal

F51

22

23

Coasting from 80 km/h (50 MPH) in
D position

The voltage should be above 0.73 V
at least once during this procedure.

+

−

Continuity

HO2S2

ECM

Connector

Terminal

Connector

Terminal

F21

1

F51

23

Existed

+

−

Continuity

HO2S2

ECM

Connector

Terminal

Connector

Terminal

F21

2

F51

22

Existed

+

−

Continuity

HO2S2

Connector

Terminal

F21

2

Ground

Not existed

EC-242

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P0137 HO2S2

3. Also check harness for short to power.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK HEATED OXYGEN SENSOR 2

Check the heated oxygen sensor 2. Refer to

EC-242, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

NO

>> GO TO 5.

5.

REPLACE HEATED OXYGEN SENSOR 2

Replace heated oxygen sensor 2.

CAUTION:

• Discard any sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard

surface such as a concrete floor; use a new one.

• Before installing new sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner

[commercial service tool (J-43897-18 or J43897-12)] and approved Anti-seize Lubricant (commercial

service tool).

>> INSPECTION END

Component Inspection

INFOID:0000000011277987

1.

INSPECTION START

Do you have CONSULT?
Do you have CONSULT?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK HEATED OXYGEN SENSOR 2

With CONSULT

1. Turn ignition switch ON and select “DATA MONITOR” mode of “ENGINE” using CONSULT.

2. Start engine and warm it up to normal operating temperature.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

5. Let engine idle for 1 minute.

6. Select “FUEL INJECTION” in “ACTIVE TEST” mode of “ENGINE” using CONSULT, and select “HO2S2

(B1)” as the monitor item with CONSULT.

7. Check “HO2S2 (B1)” at idle speed when adjusting “FUEL INJECTION” to

± 25%.

“HO2S2 (B1)” should be above 0.73 V at least once when the “FUEL INJECTION” is + 25%.

“HO2S2 (B1)” should be below 0.18 V at least once when the “FUEL INJECTION” is

− 25%.

+

−

Continuity

ECM

Connector

Terminal

F51

22

Ground

Not existed

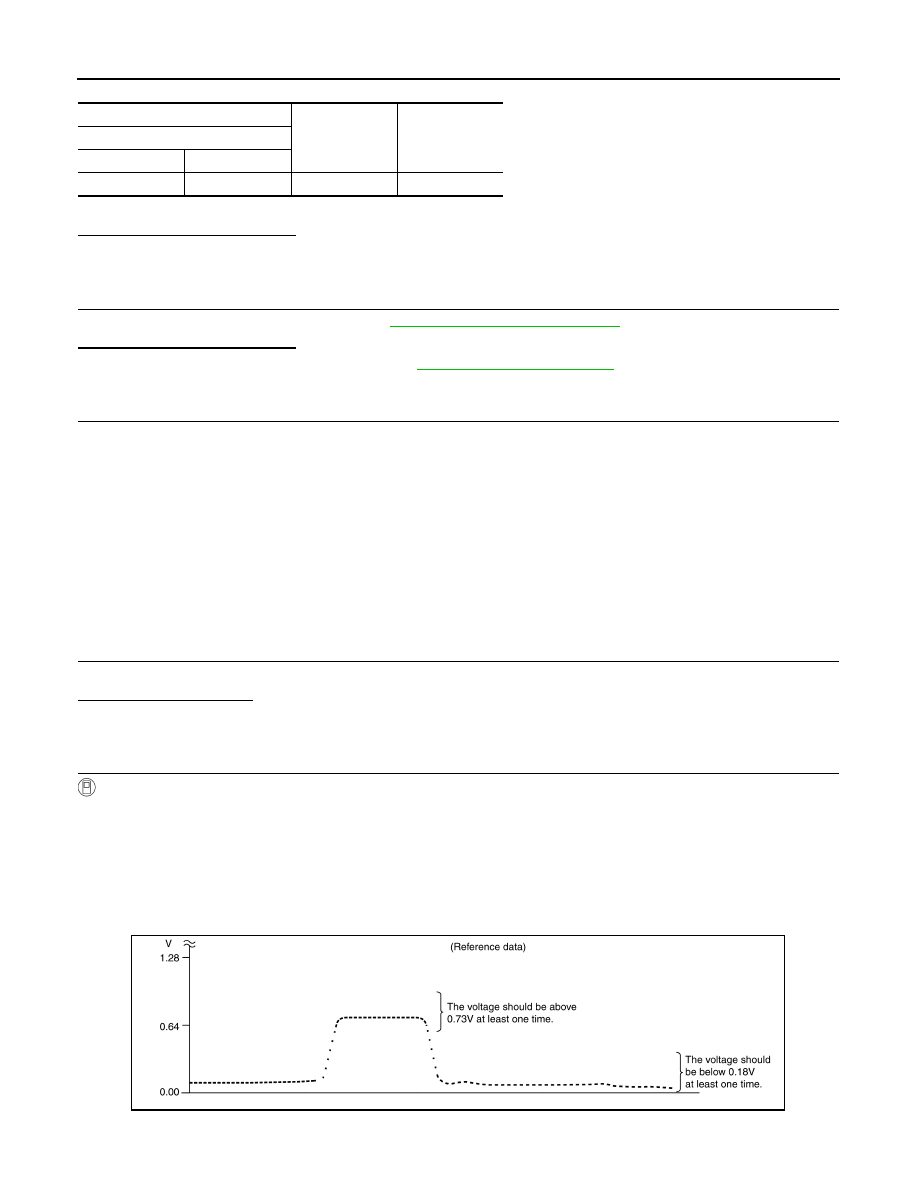

JPBIA5998GB

P0137 HO2S2

EC-243

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 6.

3.

CHECK HEATED OXYGEN SENSOR 2-1

Without CONSULT

1. Start engine and warm it up to normal operating temperature.

2. Turn ignition switch OFF and wait at least 10 seconds.

3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.

4. Let engine idle for 1 minute.

5. Check the voltage between ECM harness connector and ground as per the following condition.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 4.

4.

CHECK HEATED OXYGEN SENSOR 2-2

Check the voltage between ECM harness connector and ground as per the following condition.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 5.

5.

CHECK HEATED OXYGEN SENSOR 2-3

Check the voltage between ECM harness connector and ground as per the following condition.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 6.

6.

REPLACE HEATED OXYGEN SENSOR 2

Replace heated oxygen sensor 2. Refer to

EX-5, "Exploded View"

.

CAUTION:

ECM

Condition

Voltage

Connector

+

−

Terminal

F51

22

23

Revving up to 4,000 rpm under no
load at least 10 times

The voltage should be above 0.73 V
at least once during this procedure.
The voltage should be below 0.18 V
at least once during this procedure.

ECM

Condition

Voltage

Connector

+

−

Terminal

F51

22

23

Keeping engine speed at idle for 10
minutes

The voltage should be above 0.73 V
at least once during this procedure.
The voltage should be below 0.18 V
at least once during this procedure.

ECM

Condition

Voltage

Connector

+

−

Terminal

F51

22

23

Coasting from 80 km/h (50 MPH) in
D position

The voltage should be above 0.73 V
at least once during this procedure.
The voltage should be below 0.18 V
at least once during this procedure.
