EC-184

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P0014 EVT CONTROL

P0014 EVT CONTROL

DTC Description

INFOID:0000000011277933

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Crankshaft position sensor (POS)

• Camshaft position sensor (PHASE)

• Exhaust valve timing control position sensor

• Exhaust valve control solenoid valve

• Accumulation of debris to the signal pick-up portion of the camshaft

• Timing chain installation

• Foreign matter caught in the oil groove for exhaust valve timing control

FAIL-SAFE

Device fix mode

DTC CONFIRMATION PROCEDURE

1.

CHECK DTC PRIORITY

If DTC P0014 is displayed with DTC P0078 or P1078, first perform the trouble diagnosis for DTC P0078 or

P1078.
Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

EC-96, "DTC Index"

.

NO

>> GO TO 2.

2.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is between 10 V and 16 V at

idle.

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE-1

With CONSULT

1. Turn ignition switch ON and select “DATA MONITOR” mode of “ENGINE” using CONSULT.

2. Start engine and warm it up to the normal operating temperature.

3. Maintain the following conditions for at least 6 consecutive seconds. Hold the accelerator pedal as steady

as possible.

4. Let engine idle for 10 seconds.

5. Check 1st trip DTC.

With GST

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P0014

EXH/V TIM CONT-B1
(

″B″ Camshaft position - timing over-ad-

vanced or system performance bank 1)

There is a gap between angle of target and phase-control angle degree.

ENG SPEED

1,200 - 2,000 rpm (A constant rotation is maintained.)

COOLAN TEMP/S

More than 60

°C (140°F)

Selector lever

P or N position

P0014 EVT CONTROL

EC-185

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Follow the procedure “With CONSULT” above.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-185, "Diagnosis Procedure"

NO

>> GO TO 4.

4.

PERFORM DTC CONFIRMATION PROCEDURE-2

With CONSULT

1. Select “DATA MONITOR” mode of “ENGINE” using CONSULT.

2. Maintain the following conditions for at least 20 consecutive seconds.

CAUTION:

Always drive at a safe speed.

3. Check 1st trip DTC.

With GST

Follow the procedure “With CONSULT” above.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-185, "Diagnosis Procedure"

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000011277934

1.

CHECK DTC PRIORITY

If DTC P0014 is displayed with DTC P0078 or P1078, first perform the trouble diagnosis for DTC P0078 or

P1078.
Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

EC-96, "DTC Index"

.

NO

>> GO TO 2.

2.

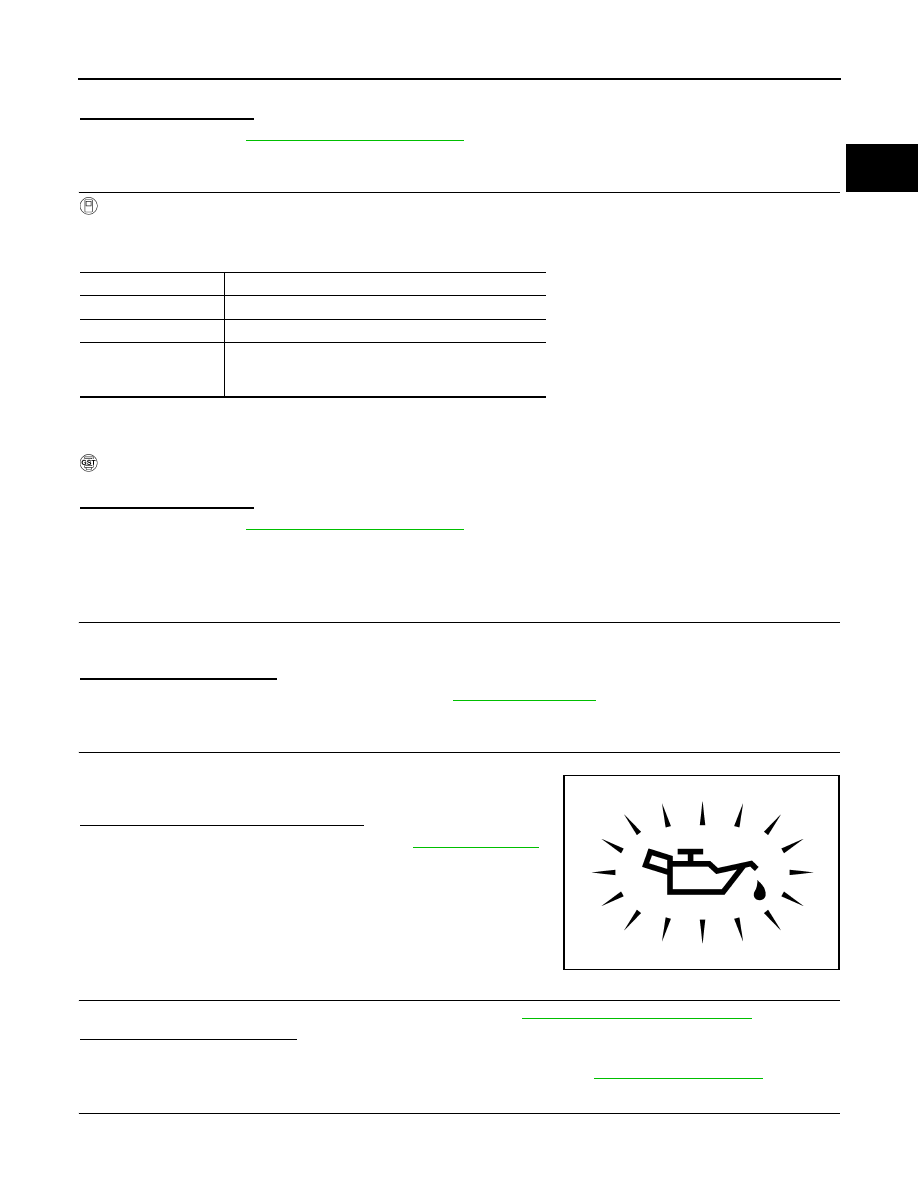

CHECK OIL PRESSURE WARNING LAMP

1. Start engine.

2. Check oil pressure warning lamp and confirm it is not illumi-

nated.

Is oil pressure warning lamp illuminated?

YES

>> Check the engine oil level. Refer to

LU-7, "Inspection"

.

NO

>> GO TO 3.

3.

CHECK EXHAUST VALVE TIMING CONTROL SOLENOID VALVE

Check the exhaust valve timing control solenoid valve. Refer to

EC-182, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace exhaust valve timing control solenoid valve. Refer to

EM-49, "Exploded View"

.

4.

CHECK CRANKSHAFT POSITION SENSOR (POS)

ENG SPEED

1,700 - 2,950 rpm (A constant rotation is maintained.)

COOLAN TEMP/S

More than 70

°C (158°F)

Selector lever

D position

Driving location uphill

Driving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)

PBIA8559J

EC-186

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P0014 EVT CONTROL

Check the crankshaft position sensor (POS). Refer to

EC-300, "Component Inspection (Crankshaft Position

sensor)"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace crankshaft position sensor (POS). Refer to

EM-97, "Exploded View"

.

5.

CHECK EXHAUST VALVE TIMING CONTROL POSITION SENSOR

Check the exhaust valve timing control position sensor. Refer to

EC-390, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace exhaust valve timing control position sensor. Refer to

EM-49, "Exploded View"

.

6.

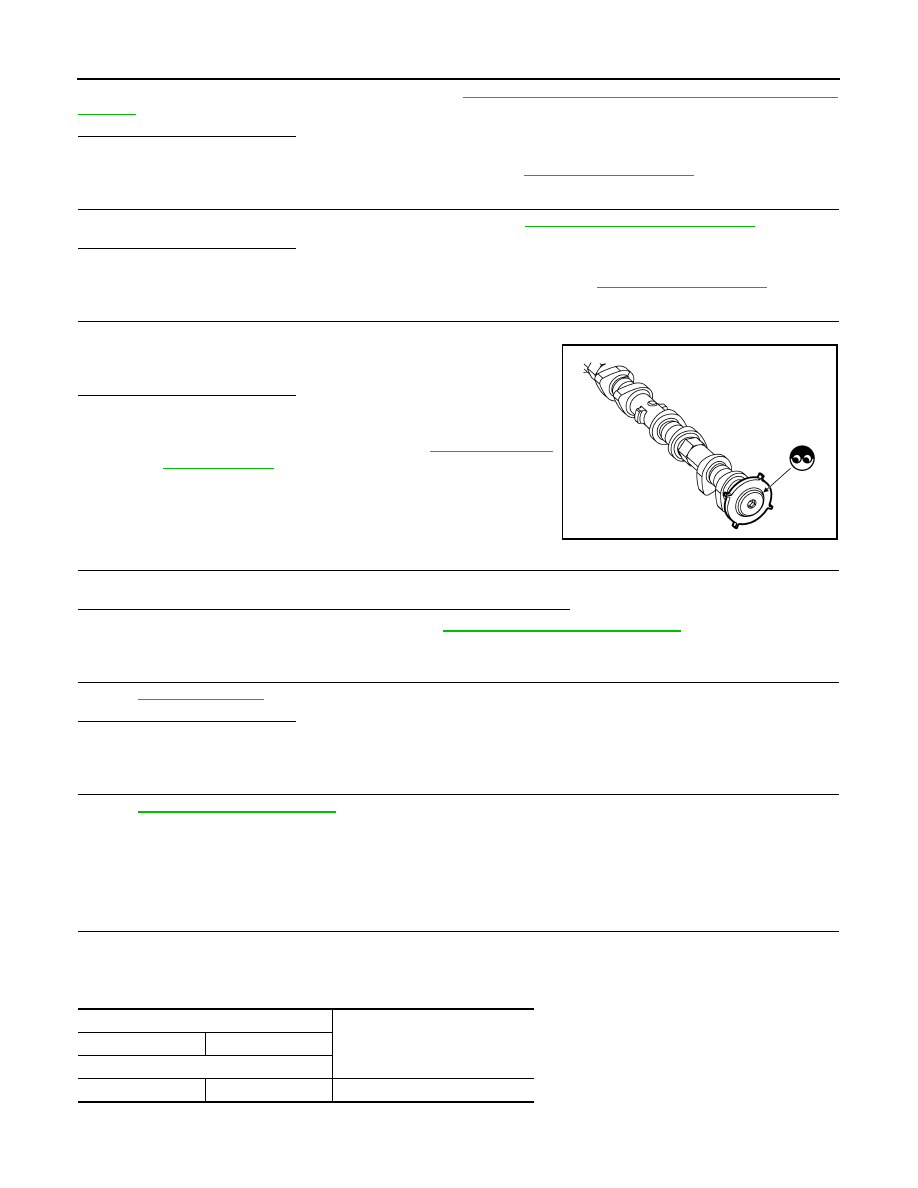

CHECK CAMSHAFT (EXH)

Check the following.

• Accumulation of debris to the signal plate of camshaft rear end

• Chipping signal plate of camshaft rear end
Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Remove debris and clean the signal plate of camshaft

rear end or replace camshaft. Refer to

EM-69, "Removal

and Installation"

.

7.

CHECK TIMING CHAIN INSTALLATION

Check service records for any recent repairs that may cause timing chain misaligned.
Are there any service records that may cause timing chain misaligned?

YES

>> Check timing chain installation. Refer to

EM-50, "Removal and Installation"

.

NO

>> GO TO 8.

8.

CHECK LUBRICATION CIRCUIT

Refer to

LU-7, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Clean lubrication line.

9.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000011277935

1.

CHECK EXHAUST VALVE TIMING CONTROL SOLENOID VALVE-1

1. Turn ignition switch OFF.

2. Disconnect exhaust valve timing control solenoid valve harness connector.

3. Check resistance between exhaust valve timing control solenoid valve terminals as per the following.

JPBIA5856ZZ

Exhaust valve timing control solenoid valve

Resistance

+

−

Terminal

1

 2

7.0 - 7.7

Ω [at 20°C (68°F)]

P0014 EVT CONTROL

EC-187

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace exhaust valve timing control solenoid valve. Refer to

EM-49, "Exploded View"

.

2.

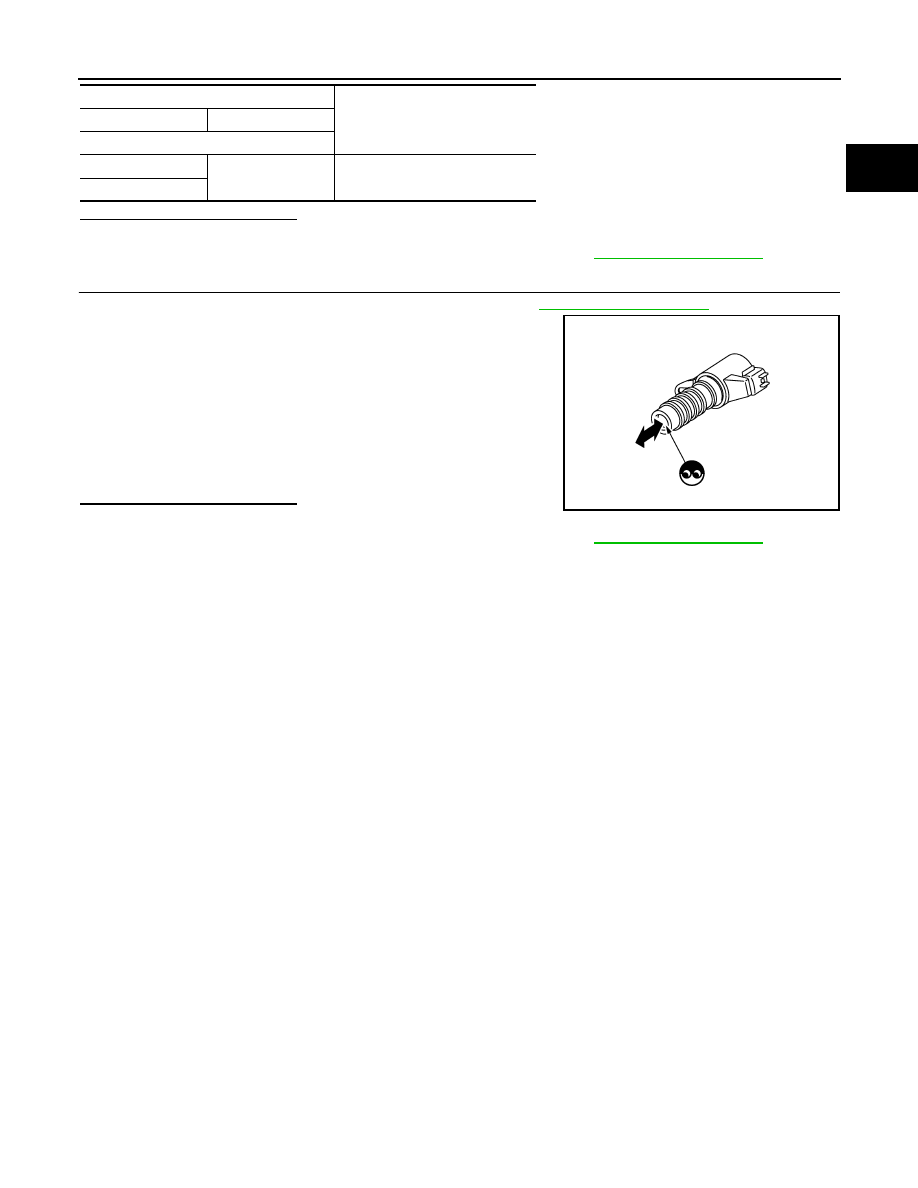

CHECK EXHAUST VALVE TIMING CONTROL SOLENOID VALVE-2

1. Remove exhaust valve timing control solenoid valve. Refer to

EM-49, "Exploded View"

.

2. Provide 12 V DC between exhaust valve timing control solenoid

valve terminals 1 and 2, and then interrupt it. Check that the

plunger moves as shown in the figure.

CAUTION:

Do not apply 12 V DC continuously for 5 seconds or more.

Doing so may result in damage to the coil in exhaust valve

timing control solenoid valve.

NOTE:

Always replace O-ring when exhaust valve timing control

solenoid valve is removed.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace exhaust valve timing control solenoid valve. Refer to

EM-49, "Exploded View"

.

1

Ground

∞ Ω

(Continuity should not exist)

2

Exhaust valve timing control solenoid valve

Resistance

+

−

Terminal

JMBIA0079ZZ
