IDLE AIR VOLUME LEARNING

IDLE AIR VOLUME LEARNING

Description

INFOID:0000000011277903

Idle Air Volume Learning is a function of ECM to learn the idle air volume that keeps each engine idle speed

within the specific range. It must be performed under any of the following conditions:

• Each time electric throttle control actuator or ECM is replaced.

• Idle speed or ignition timing is out of specification.

Work Procedure

INFOID:0000000011277904

1.

PRECONDITIONING

Make sure that all of the following conditions are satisfied.

Learning will be cancelled if any of the following conditions are missed for even a moment.

• Battery voltage: More than 12.9 V (At idle)

• Engine coolant temperature: 70 - 100

°C (158 - 212°F)

• Selector lever : P or N

• Electric load switch: OFF

(Air conditioner, headlamp, rear window defogger)

On vehicles equipped with daytime running light systems, set lighting switch to the 1st position to

light only small lamps.

• Steering wheel: Neutral (Straight-ahead position)

• Vehicle speed: Stopped

• Transmission: Warmed-up
-

With CONSULT

Drive vehicle until “ATF TENP SEN” in “DATA MONITOR” mode of “CVT” system indicates less than 0.9 V.

-

Without CONSULT

Drive vehicle for 10 minutes.

Do you have CONSULT?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

IDLE AIR VOLUME LEARNING

With CONSULT

1. Perform Accelerator Pedal Released Position Learning. Refer to

EC-142, "Work Procedure"

.

2. Perform Throttle Valve Closed Position Learning. Refer to

EC-143, "Work Procedure"

.

3. Start engine and warm it up to normal operating temperature.

4. Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode of “ENGINE”.

5. Touch “START” and wait 20 seconds.
Is “CMPLT” displayed on CONSULT screen?

YES

>> GO TO 4.

NO

>> GO TO 5.

3.

IDLE AIR VOLUME LEARNING

Without CONSULT

NOTE:

• It is better to count the time accurately with a clock.

• It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has

a malfunction.

1. Perform Accelerator Pedal Released Position Learning. Refer to

EC-142, "Work Procedure"

.

2. Perform Throttle Valve Closed Position Learning. Refer to

EC-143, "Work Procedure"

.

3. Start engine and warm it up to normal operating temperature.

4. Turn ignition switch OFF and wait at least 10 seconds.

5. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.

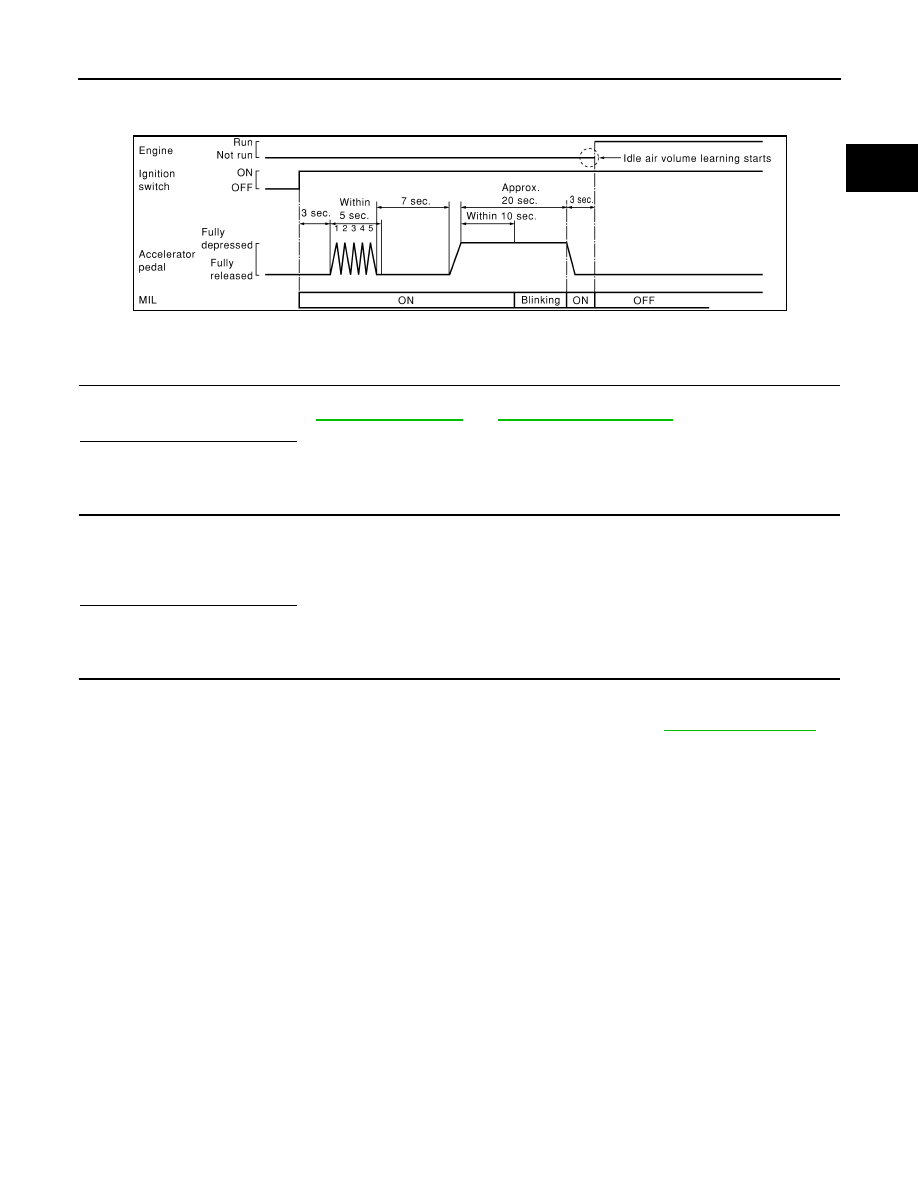

6. Repeat the following procedure quickly five times within 5 seconds.

-

Fully depress the accelerator pedal.

-

Fully release the accelerator pedal.

7. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 20 seconds until the MIL stops

blinking and turned ON.

IDLE AIR VOLUME LEARNING

EC-145

< BASIC INSPECTION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

8. Fully release the accelerator pedal within 3 seconds after the MIL turned ON.

9. Start engine and let it idle.

10. Wait 20 seconds.

>> GO TO 4

4.

CHECK IDLE SPEED AND IGNITION TIMING

Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifi-

cations. For specification, refer to

EC-503, "Idle Speed"

 and

EC-503, "Ignition Timing"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following

• Check that throttle valve is fully closed.

• Check PCV valve operation.

• Check that downstream of throttle valve is free from air leakage.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace malfunctioning part.

6.

DETECT MALFUNCTIONING PART

Engine component parts and their installation condition are questionable. Check and eliminate the cause of

the incident.

It is useful to perform “TROUBLE DIAGNOSIS - SPECIFICATION VALUE”. Refer to

EC-160, "Description"

.

If any of the following conditions occur after the engine has started, eliminate the cause of the incident and

perform Idle Air Volume Learning all over again:

• Engine stalls.

• Erroneous idle.

>> INSPECTION END

SEC897C

EC-146

< BASIC INSPECTION >

[QR25DE]

MIXTURE RATIO SELF-LEARNING VALUE CLEAR

MIXTURE RATIO SELF-LEARNING VALUE CLEAR

Description

INFOID:0000000011277905

This describes how to erase the mixture ratio self-learning value. For the actual procedure, follow the instruc-

tions in “Diagnosis Procedure”.

Work Procedure

INFOID:0000000011277906

1.

START

With CONSULT

1. Start engine and warm it up to normal operating temperature.

2. Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.

3. Clear mixture ratio self-learning value by touching “CLEAR”.

With GST

1. Start engine and warm it up to normal operating temperature.

2. Turn ignition switch OFF.

3. Disconnect mass air flow sensor harness connector.

4. Restart engine and let it idle for at least 5 seconds.

5. Stop engine and reconnect mass air flow sensor harness connector.

6. Select Service $03 with GST. Make sure DTC P0102 is detected.

7. Select Service $04 with GST to erase the DTC P0102.

>> END

FUEL PRESSURE

EC-147

< BASIC INSPECTION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

FUEL PRESSURE

Work Procedure

INFOID:0000000011277907

FUEL PRESSURE RELEASE

1.

FUEL PRESSURE RELEASE

With CONSULT

1. Turn ignition switch ON.

2. Perform “FUEL PRESSURE RELEASE” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.

3. Start engine.

4. After engine stalls, crank it two or three times to release all fuel pressure.

5. Turn ignition switch OFF.

Without CONSULT

1. Remove fuel pump fuse located in IPDM E/R. For the fuse number, refer to

EC-108, "Wiring Diagram"

. For

the fuse arrangement, refer to

PG-68, "IPDM E/R Terminal Arrangement"

.

2. Start engine.

3. After engine stalls, crank it two or three times to release all fuel pressure.

4. Turn ignition switch OFF.

5. Reinstall fuel pump fuse after servicing fuel system.

>> END

FUEL PRESSURE CHECK

CAUTION:

Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger.

NOTE:

• Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel

pressure cannot be completely released because this models do not have fuel return system.

• Use Fuel Pressure Gauge Kit [SST: (J-44321)] to check fuel pressure.

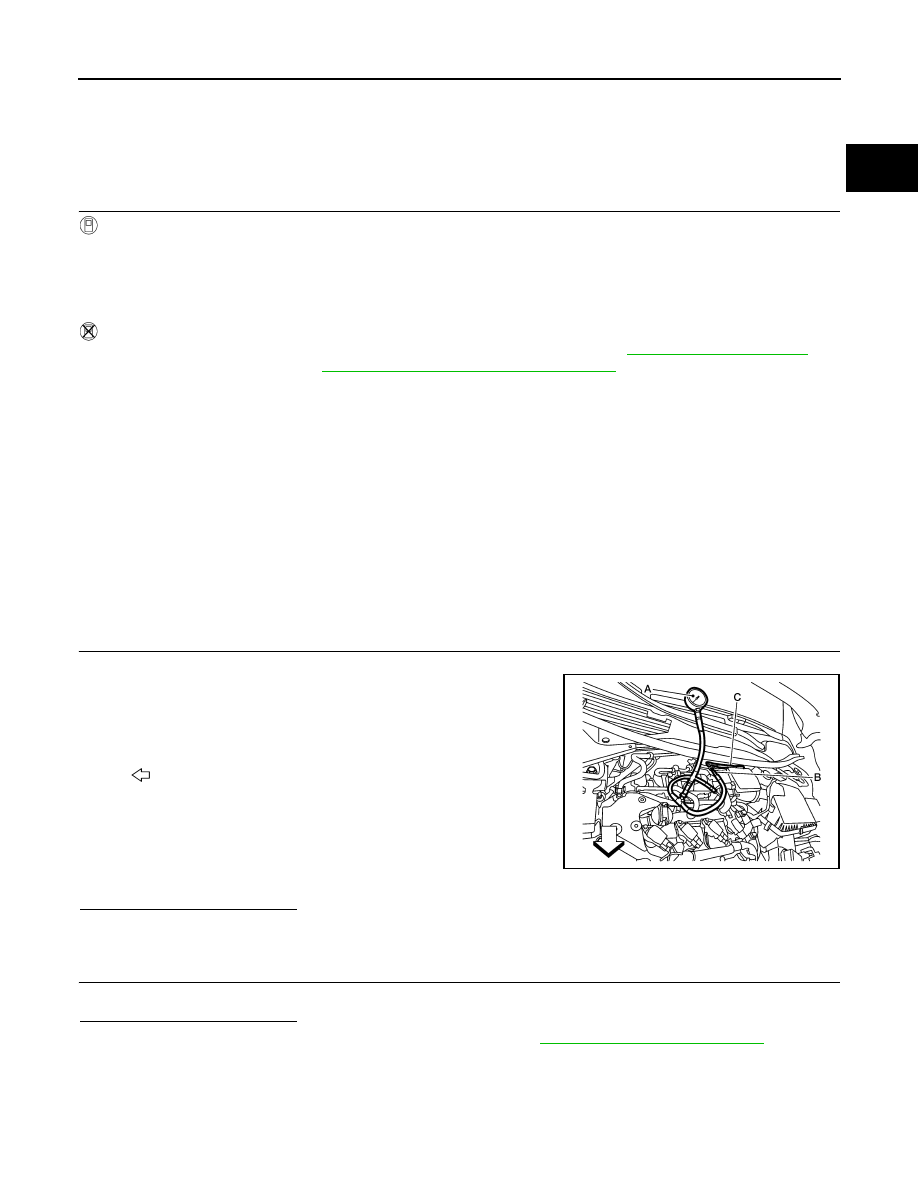

1.

FUEL PRESSURE CHECK

1. Release fuel pressure to zero.

2. Connect fuel tube adapter [SST:KV10120000] (B) to quick con-

nector.

3. Turn ignition switch ON and check for fuel leakage.

4. Start engine and check for fuel leakage.

5. Read the indication of fuel pressure gauge.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK FUEL HOSES AND FUEL TUBES

Check fuel hoses and fuel tubes for clogging.
Is the inspection result normal?

YES

>> Replace “fuel filter and fuel pump assembly”. Refer to

FL-5, "Removal and Installation"

.

NO

>> Repair or replace error-detected parts.

A

: Fuel pressure gauge

C

: Fuel feed hose

: Vehicle front

At idling : Approximately 350 kPa (3.57 kg/cm

2

, 51 psi)

ALBIA0811ZZ
