DLK-258

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR

Unit: mm (in)

1. Loosen back door hinge nuts (door side).
2. Lift up back door approximately 100 – 150 mm (3.94 – 5.91 in) height then close it lightly and check that it

is engaged firmly with back door closed.

3. Check the clearance and surface height according to the specifications provided.
4. Tighten back door hinge nuts to specified torque.

CAUTION:

• After installation, check back door open/close, lock/unlock operation.

• Check back door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-

purpose grease.

• After adjusting, apply touch-up paint (body color) to the head of rear door hinge bolts and nuts.

• Perform calibration of automatic back door position information. Refer to

DLK-110, "Work Proce-

dure"

.

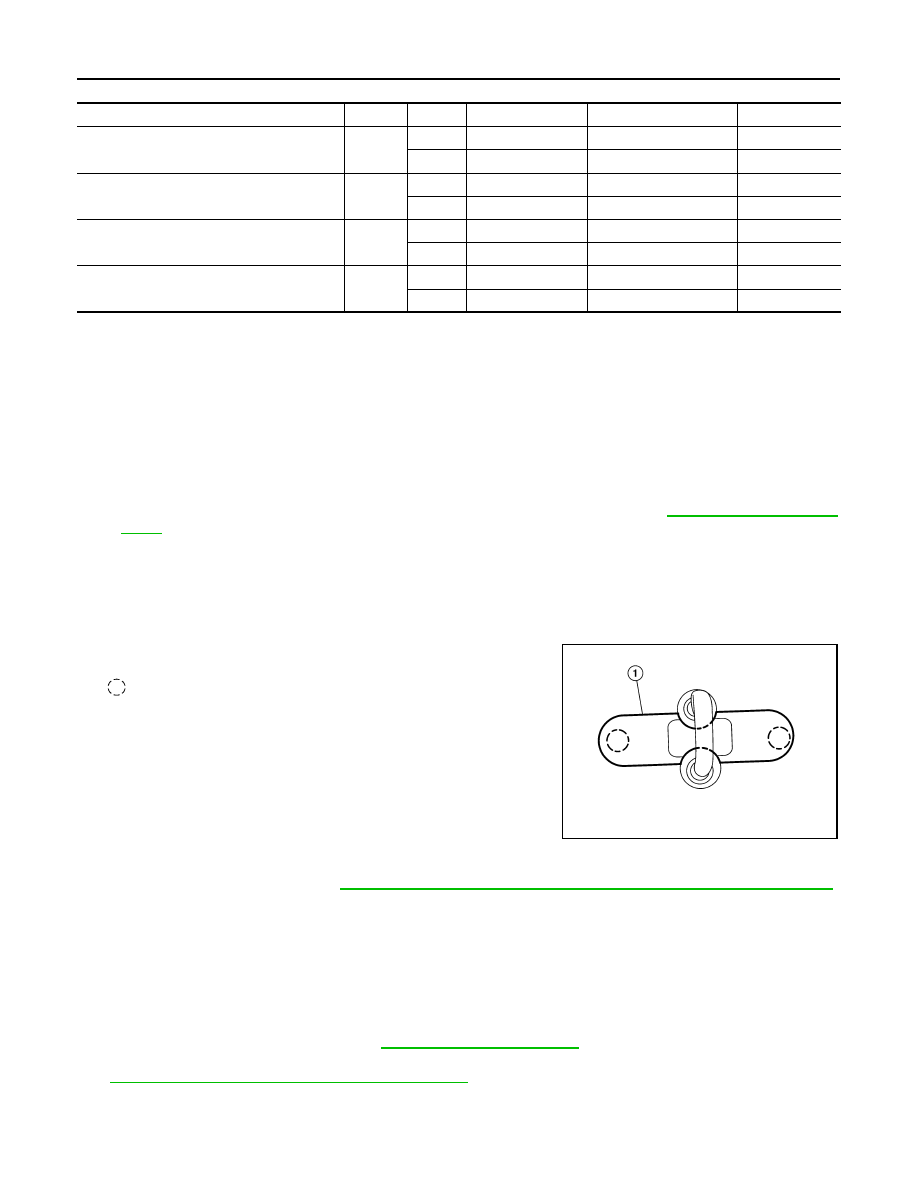

BACK DOOR STRIKER
BACK DOOR STRIKER : Removal and Installation

INFOID:0000000011279020

REMOVAL

1. Release back door striker cover (1) pawls using a suitable tool

and remove.

: Pawl

2. Remove back door welt. Refer to

DLK-259, "BACK DOOR WEATHER-STRIP : Removal and Installation"

.

3. Remove bolts and back door striker.

CAUTION:

• Do not reuse back door striker bolts.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse back door striker bolts.

• Tighten bolts to specification. Refer to

DLK-255, "Exploded View"

.

• After installation, check back door open/close operation. If necessary, adjust the door striker. Refer

to

DLK-259, "BACK DOOR STRIKER : Adjustment"

.

Portion

Section

Item

Measurement

Standard

Paraelleism

Roof panel – Rear spoiler

A – A

E

Clearance

7.0

± 2.0 (0.28 ± 0.08)

2.0 (0.08)

F

Surface height

1.7

± 2.0 (0.07 ± 0.08)

2.0 (0.08)

Side spoiler – Back door glass

B – B

G

Clearance

5.5

± 2.0 (0.22 ± 0.08)

2.0 (0.08)

H

Surface height

—

—

Rear combination lamp – Back-up lamp

C – C

J



Clearance

4.5

± 2.0 (0.18 ± 0.08)

2.0 (0.08)

K

Surface height

2.2

± 2.0 (0.09 ± 0.08)

2.0 (0.08)

Rear fender – Back door

D – D

M

Clearance

4.7

± 2.0 (0.19 ± 0.08)

2.0 (0.08)

N

Surface height

2.5

± 2.0 (0.10 ± 0.08)

2.0 (0.08)

ALKIA3411ZZ

2015 Rogue NAM

BACK DOOR

DLK-259

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

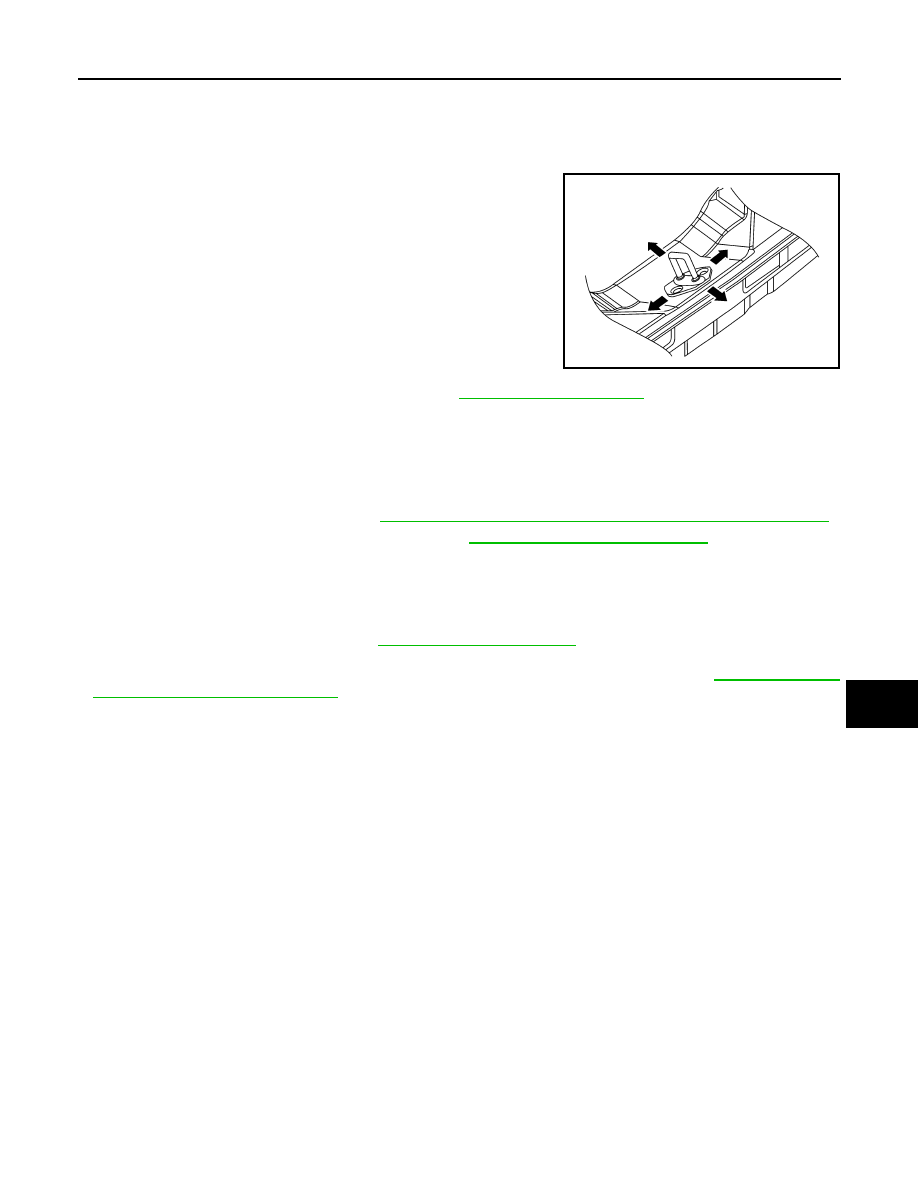

BACK DOOR STRIKER : Adjustment

INFOID:0000000011279021

DOOR STRIKER ADJUSTMENT

1. Loosen door striker bolts
2. Adjust door striker so that it becomes parallel with front door lock

insertion direction.

3. Tighten door striker bolts to specification. Refer to

DLK-255, "Exploded View"

.

BACK DOOR HINGE
BACK DOOR HINGE : Removal and Installation

INFOID:0000000011279022

REMOVAL

1. Remove back door assembly. Refer to

DLK-255, "BACK DOOR ASSEMBLY : Removal and Installation"

.

2. Partially remove the rear of the headlining. Refer to

INT-30, "Removal and Installation"

.

3. Remove nuts and back door hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten nuts to specification. Refer to

DLK-255, "Exploded View"

.

• Apply anticorrosive agent onto the surface between hinge and body side.

• After installation, perform the back door assembly adjustment procedure. Refer to

DLK-257, "BACK

DOOR ASSEMBLY : Adjustment"

.

BACK DOOR WEATHER-STRIP
BACK DOOR WEATHER-STRIP : Removal and Installation

INFOID:0000000011279023

REMOVAL

Carefully remove back door weather-strip from opening door joint.

INSTALLATION

1. Beginning with upper section, align weather-strip mark with vehicle center position mark and install

weather strip to the vehicle.

2. For the lower section, align weather-strip seam with center of back door striker.
NOTE:

Pull weather-strip gently to ensure that there are no loose sections.

ALKIA3218ZZ

2015 Rogue NAM

DLK-260

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

HOOD LOCK

HOOD LOCK

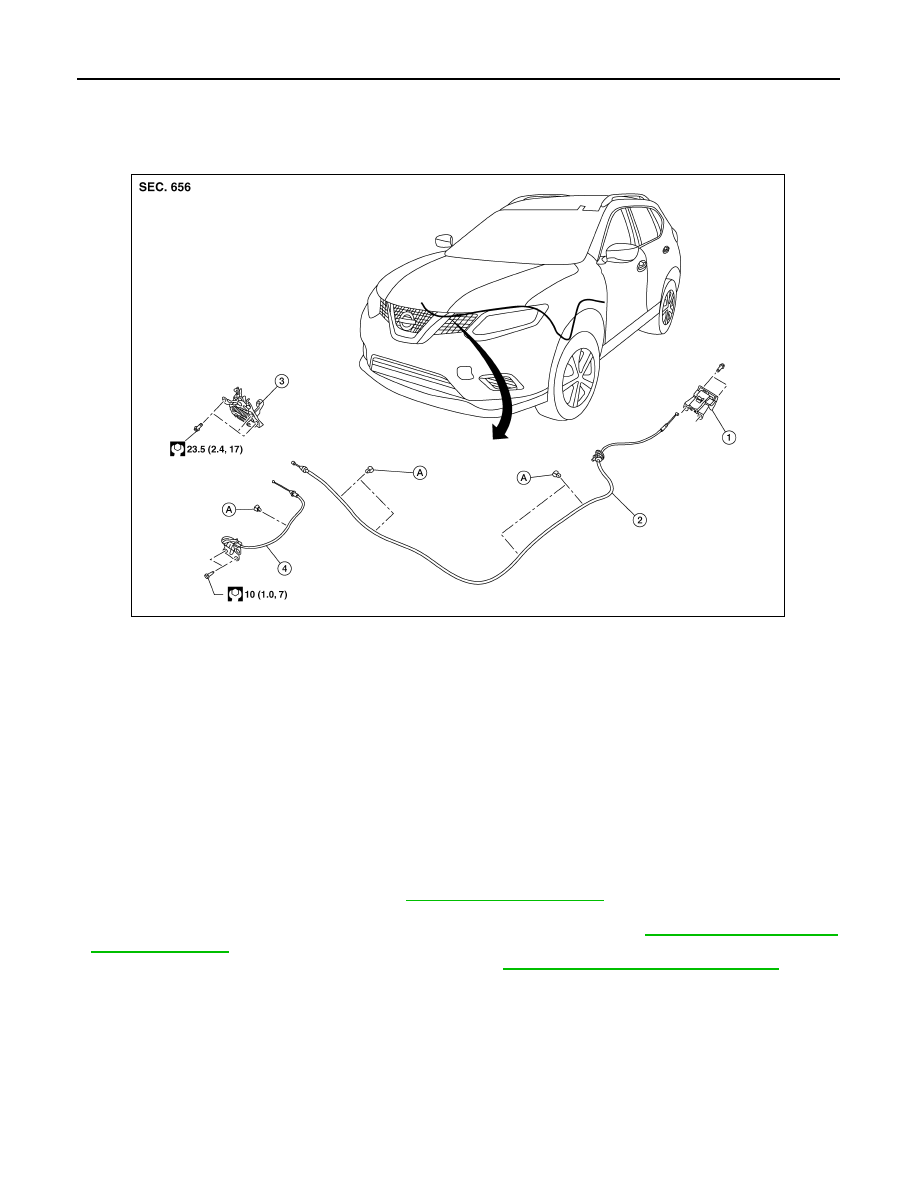

Exploded View

INFOID:0000000011279024

HOOD LOCK
HOOD LOCK : Removal and Installation

INFOID:0000000011279025

REMOVAL

1. Disconnect hood lock release cable and secondary latch cable from hood lock.
2. Remove bolts and hood lock.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten bolts to specified torque. Refer to

DLK-260, "Exploded View"

.

• Check that hood lock release cable and secondary latch cable are properly engaged with hood lock.

• After installation, perform hood assembly adjustment procedure. Refer to

DLK-241, "HOOD ASSEM-

BLY : Adjustment"

.

• After adjusting, perform hood lock inspection. Refer to

DLK-260, "HOOD LOCK : Inspection"

.

HOOD LOCK : Inspection

INFOID:0000000011279026

NOTE:

If the hood lock cable is bent or deformed, replace it.
1. Check that secondary latch is properly engaged with secondary striker with hoods own weight.
2. While operating hood lock release handle, carefully check that the front end of hood assembly is raised by

approximately 20.0 mm (0.79 in). Also check that hood lock release handle returns to the original position.

3. Check that hood lock release handle operates at 49 N (5.0 kg-m, 11.0 ft-lb) or below.

1.

Hood lock release handle

2.

Hood lock release cable

3.

Hood lock

4.

Secondary latch

A.

Clip

AWKIA2919ZZ

2015 Rogue NAM

HOOD LOCK

DLK-261

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4. Install so that static closing force of hood is 315-490 N (32.1-50.0 kg–m, 70.8-110.2 ft–lb).

NOTE:

• Do not exert vertical force on right side and left side of hood lock.

• Do not press simultaneously on both sides.

5. Check the hood lock lubrication condition. If necessary, apply a suitable multi-purpose grease to hood lock

assembly.

SECONDARY LATCH
SECONDARY LATCH : Removal and Installation

INFOID:0000000011279027

REMOVAL

1. Remove front grille. Refer to

EXT-23, "Removal and Installation"

.

2. Disconnect secondary latch cable from hood lock assembly.
3. Remove bolts and secondary latch.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten bolts to specified torque. Refer to

DLK-260, "Exploded View"

.

• Check that secondary latch cable is properly engaged with hood lock.

HOOD LOCK RELEASE CABLE
HOOD LOCK RELEASE CABLE : Removal and Installation

INFOID:0000000011279028

REMOVAL

1. Remove fender protector (LH). Refer to

EXT-28, "FENDER PROTECTOR : Removal and Installation"

.

2. Remove front grille. Refer to

EXT-23, "Removal and Installation"

.

3. Disconnect hood lock release cable from hood lock release handle and hood lock.
4. Release hood lock release cable clips using a suitable tool.
5. Remove grommet on the lower dash and carefully pull the hood lock release cable into the passenger

compartment.

CAUTION:

While pulling, be careful not to damage (peel) the outside of hood lock release cable.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Be careful not to bend cable too much, keep the radius 100 mm (3.94 in) or more.

• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet (at * mark) properly.

• Check that hood lock release cable is properly engaged with hood lock assembly.

• After installation, perform hood assembly adjustment procedure. Refer to

DLK-241, "HOOD ASSEM-

BLY : Adjustment"

.

• After adjusting, perform hood lock inspection. Refer to

DLK-260, "HOOD LOCK : Inspection"

.

HOOD LOCK RELEASE HANDLE

PIIB5801E
