DLK-254

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR

DOOR HINGE
DOOR HINGE : Removal and Installation

INFOID:0000000011279015

REMOVAL

1. Remove rear door assembly. Refer to

DLK-251, "DOOR ASSEMBLY : Removal and Installation"

.

2. Remove center pillar lower finisher (rear door lower hinge only). Refer to

INT-22, "CENTER PILLAR

LOWER FINISHER : Removal and Installation"

.

3. Remove rear door hinge bolts and nuts and rear door hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten nuts/bolts to specification. Refer to

DLK-251, "Exploded View"

.

• Apply anticorrosive agent onto the hinge mating surface.

• After installation, check rear door open/close and lock/unlock operation.

• After installation, perform the rear door adjustment procedure. Refer to

DLK-252, "DOOR ASSEMBLY

: Adjustment"

.

DOOR CHECK LINK
DOOR CHECK LINK : Removal and Installation

INFOID:0000000011279016

REMOVAL

1. Fully close the rear door window.
2. Remove rear door speaker. Refer to

AV-71, "Removal and Installation"

 (DISPLAY AUDIO),

AV-205,

"Removal and Installation"

 (NAVIGATION WITHOUT BOSE) or

AV-376, "Removal and Installation"

 (NAV-

IGATION WITH BOSE).

3. Remove rear door check link bolt (body side).
4. Remove rear door check link bolts (door side).
5. Remove rear door check link through the hole in rear door panel.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten bolts to specification. Refer to

DLK-251, "Exploded View"

.

• After installation, check rear door open/close and lock/unlock operation.

• Check rear door check link rotating point for poor lubrication. If necessary, apply a suitable multi-

purpose grease.

2015 Rogue NAM

BACK DOOR

DLK-255

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR

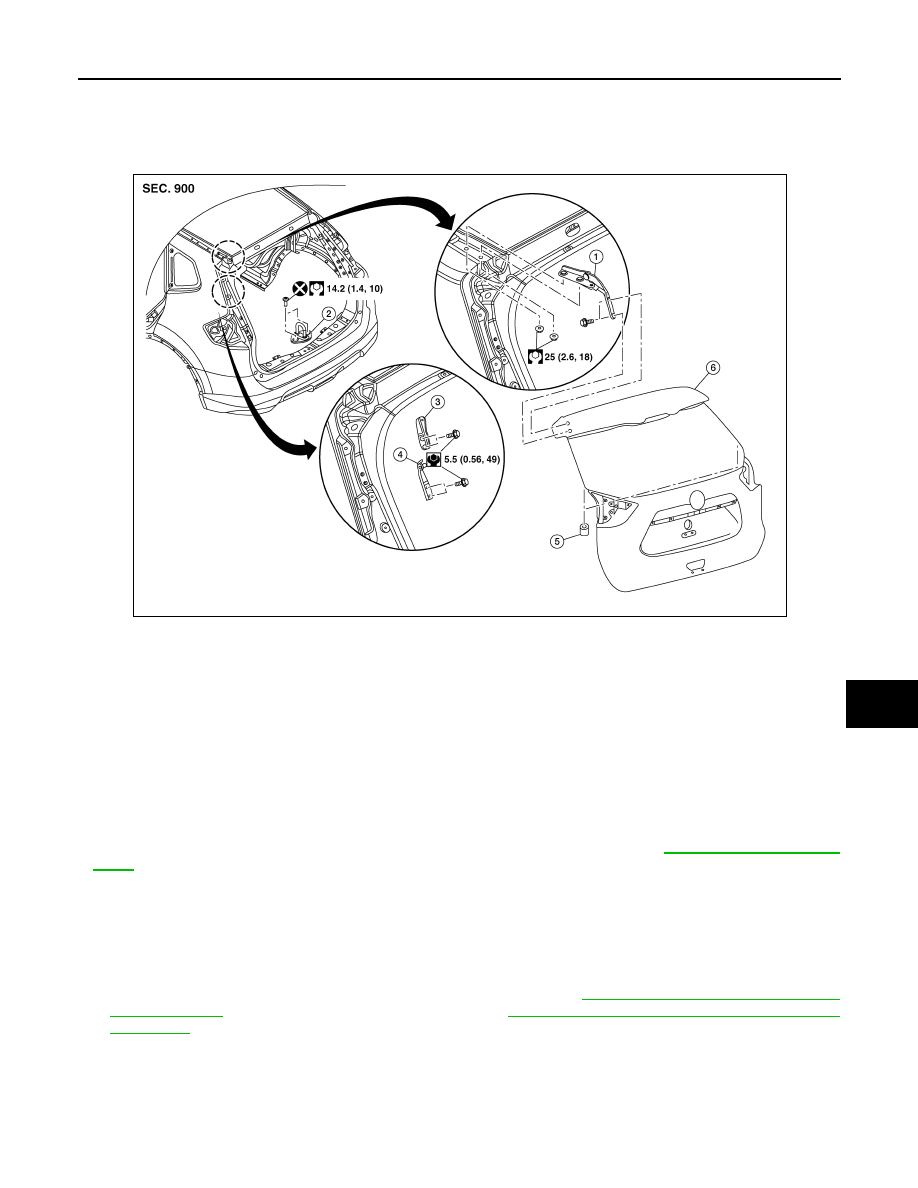

Exploded View

INFOID:0000000011279017

BACK DOOR ASSEMBLY
BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000011279018

CAUTION:

• Use two people when removing or installing the back door due to its heavy weight.

• Use shop cloths to protect surrounding components from damage during removal and installation of

back door.

• Perform calibration of automatic back door position information. Refer to

DLK-110, "Work Proce-

dure"

.

REMOVAL

1. Support the back door assembly using a suitable tool.

WARNING:

Bodily injury may occur if back door assembly is not supported properly when removing the back

door spindle unit.

2. Remove spindle units (LH/RH) or back door stays (LH/RH). Refer to

DLK-270, "SPINDLE UNIT : Removal

and Installation"

 (WITH AUTOMATIC BACK DOOR) or

DLK-271, "BACK DOOR STAY : Removal and

Installation"

 (WITHOUT AUTOMATIC BACK DOOR).

1.

Back door hinge

2.

Back door striker

3.

Spindle unit hinge (with automatic
back door)

4.

Back door stay hinge

5.

Bumper rubber

6.

Back door

AWKIA2930ZZ

2015 Rogue NAM

DLK-256

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR

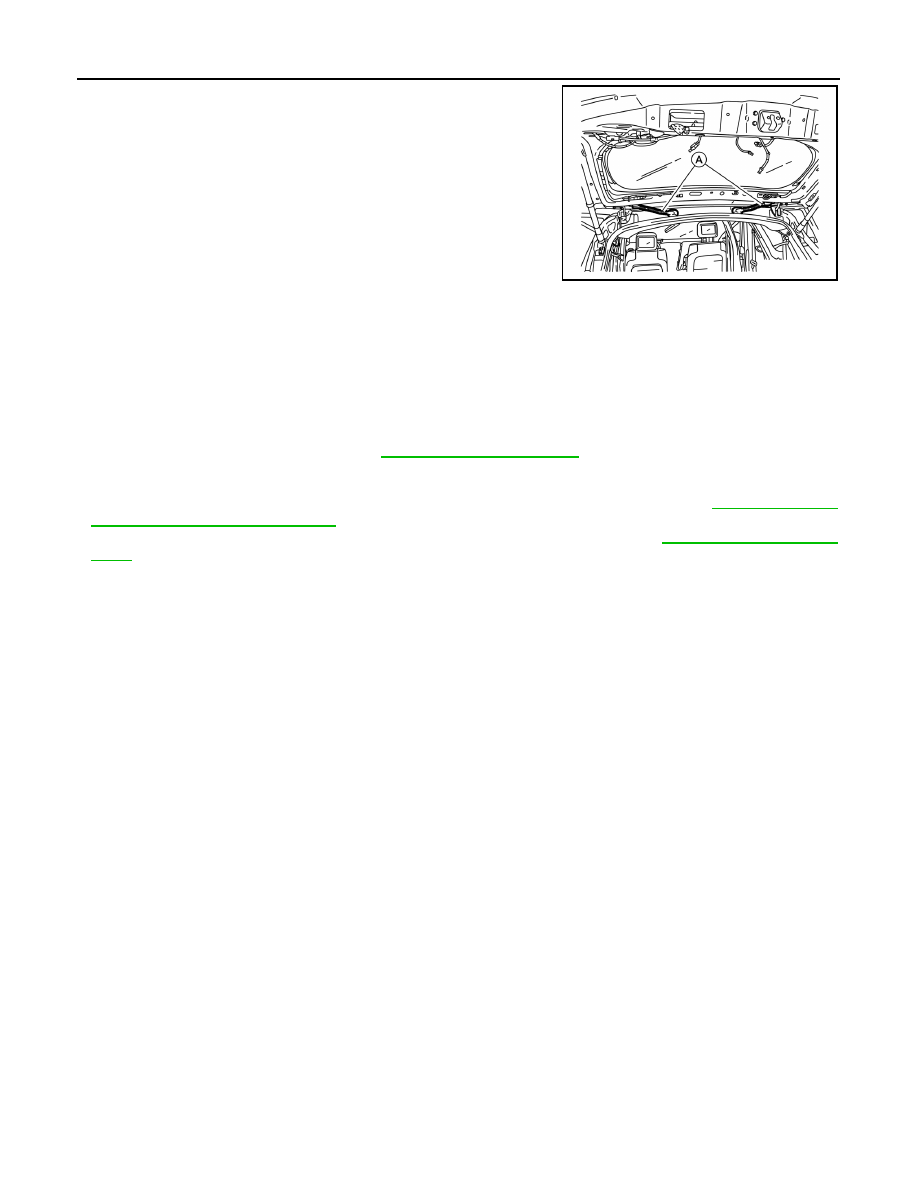

3. Disconnect harness connectors (A) from back door.

4. Remove back door harness grommet, then pull harness from the back door.
5. Disconnect washer tube.
6. Remove washer tube grommet and washer tube from the back door.
7. Remove back door hinge bolts (door side) and back door assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten bolts to specification. Refer to

DLK-255, "Exploded View"

.

• Apply anticorrosive agent onto the surface between hinge and door side.

• When reusing stud ball, always apply locking sealant before installing stud ball to back door.

• After installation, perform the back door assembly adjustment procedure. Refer to

DLK-257, "BACK

DOOR ASSEMBLY : Adjustment"

.

• Perform calibration of automatic back door position information. Refer to

DLK-110, "Work Proce-

dure"

.

ALKIA2469ZZ

2015 Rogue NAM

BACK DOOR

DLK-257

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

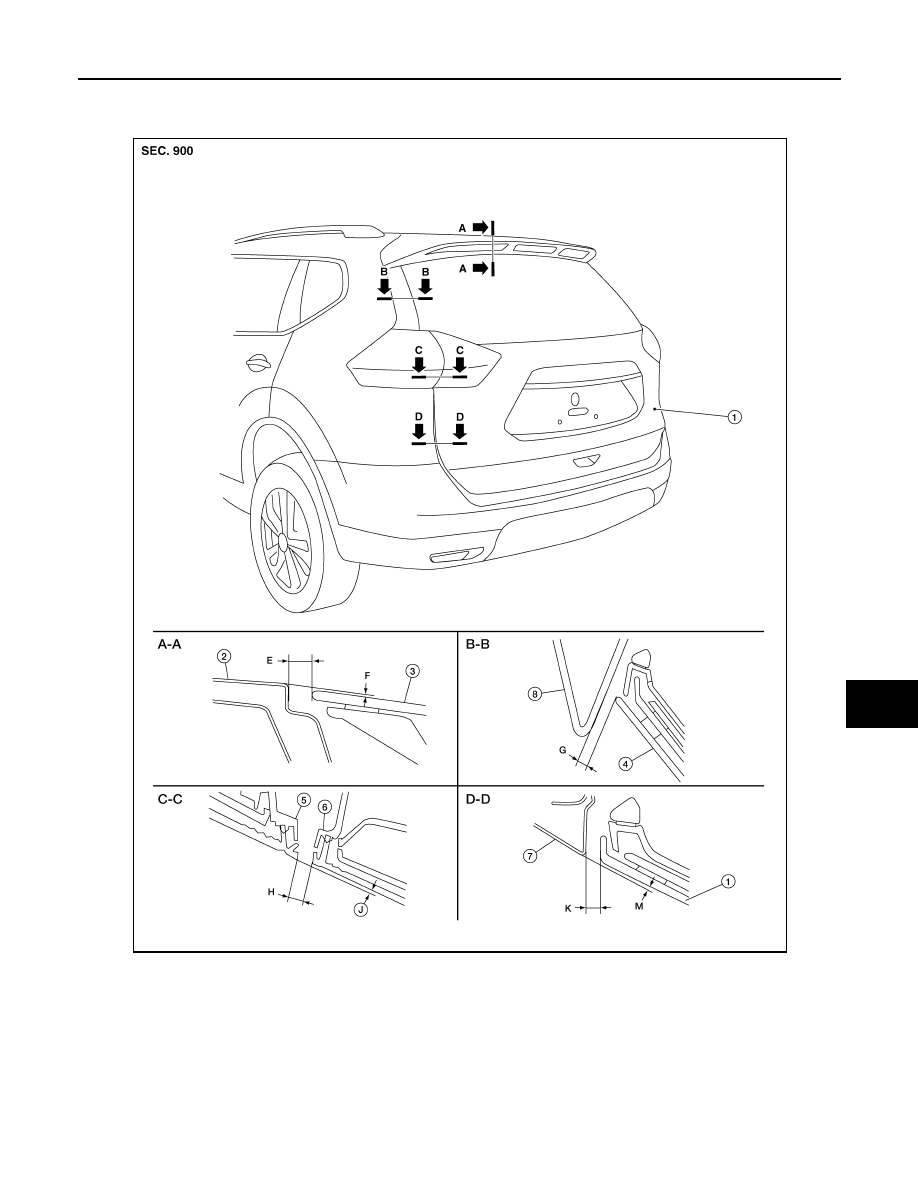

BACK DOOR ASSEMBLY : Adjustment

INFOID:0000000011279019

Check the clearance and the surface height between back door and each part by visual inspection and tactile

feel. If the clearance and the surface height are out of specification, adjust them according to the adjustment

procedure.

1.

Back door assembly

2.

Roof panel

3.

Rear spoiler

4.

Back door glass

5.

Rear combination lamp

6.

Back-up lamp

7.

Rear fender

8.

Side spoiler

AWKIA2918ZZ
