Nissan Rogue. Manual - part 350





DLK-242

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

HOOD

Unit: mm (in)

HEIGHT ADJUSTMENT

1. Loosen the hood lock assembly bolts.
2. Adjust the surface height of hood assembly to front grille and front fender according to the specified val-

ues by rotating hood bumper rubber.

3. Temporarily tighten hood lock assembly bolts.

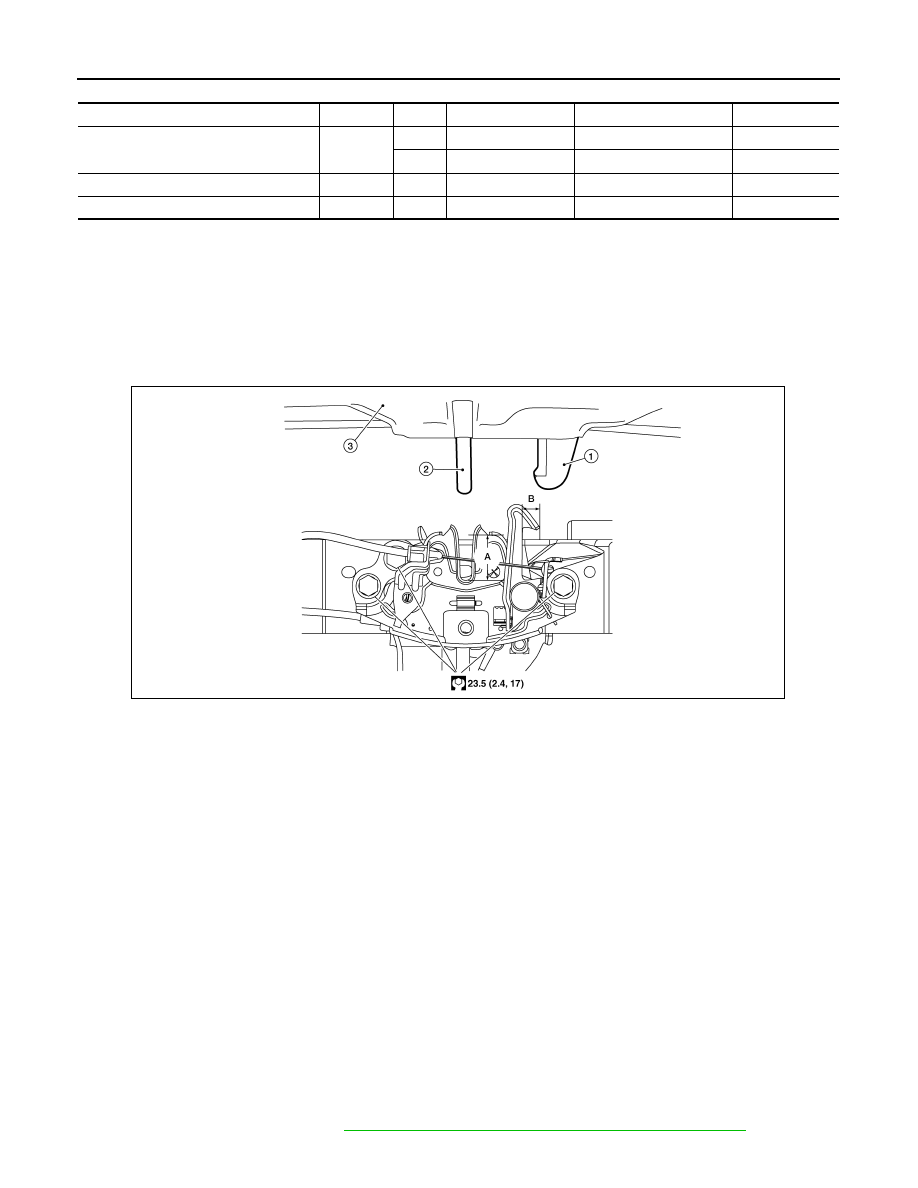

4. Adjust (A) and (B) as shown to the following value with hood's own weight by dropping it from approxi-

mately 200 mm (7.87 in) height or by pressing hood lightly [approximately 29 N (3.0 kg, 6.5 lb)].

5. After adjustment, tighten hood hinge nuts and bolts to the specified torque.

CAUTION:

• Check hood hinge rotating part for poor lubrication. If necessary, apply a suitable multi-purpose

grease.

• After adjusting, apply touch-up paint (body color) to the head of hood hinge bolts and nuts.

CLEARANCE ADJUSTMENT

1. Loosen hood hinge nuts and bolts.
2. Loosen the hood lock assembly bolts.
3. Adjust the hood assembly so the clearance measurements are within specifications.
4. Tighten the hood hinge nuts and bolts to specified torque.
5. Tighten the hood lock assembly bolts to specified torque.

HOOD HINGE
HOOD HINGE : Removal and Installation

INFOID:0000000011278998

REMOVAL

1. Remove hood assembly. Refer to

DLK-240, "HOOD ASSEMBLY : Removal and Installation"

.

Portion

Section

Item

Measurement

Standard

Parallelism

Hood - Fender

A - A

D

Surface height

0.0

± 1.0 (0.0 ± 0.04)

 1.4 (0.06)

E

Clearance

3.5

± 1.5 (0.14 ± 0.04)

1.4 (0.06)

Fender - Front combination lamp

B - B

F

Clearance

9.0

± 2.0 (0.35 ± 0.08)

 2.0 (0.08)

Hood - Front combination lamp

C - C

G

Clearance

1.9

± 1.1 (0.07 ± 0.04)

1.5 (0.06)

1.

Secondary striker

2.

Primary striker

3.

Hood assembly

A.

20 mm (0.79 in)

B.

6.8 mm (0.27 in)

AWKIA2925ZZ

2015 Rogue NAM

HOOD

DLK-243

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2. Remove front fender. Refer to

DLK-245, "Removal and Installation"

.

3. Remove hood hinge bolts, and then remove hood hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Before installing the hood hinge, apply anticorrosive agent onto the surface of the vehicle.

• After installation, perform hood assembly adjustment procedure. Refer to

DLK-241, "HOOD ASSEM-

BLY : Adjustment"

.

2015 Rogue NAM

DLK-244

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

RADIATOR CORE SUPPORT

RADIATOR CORE SUPPORT

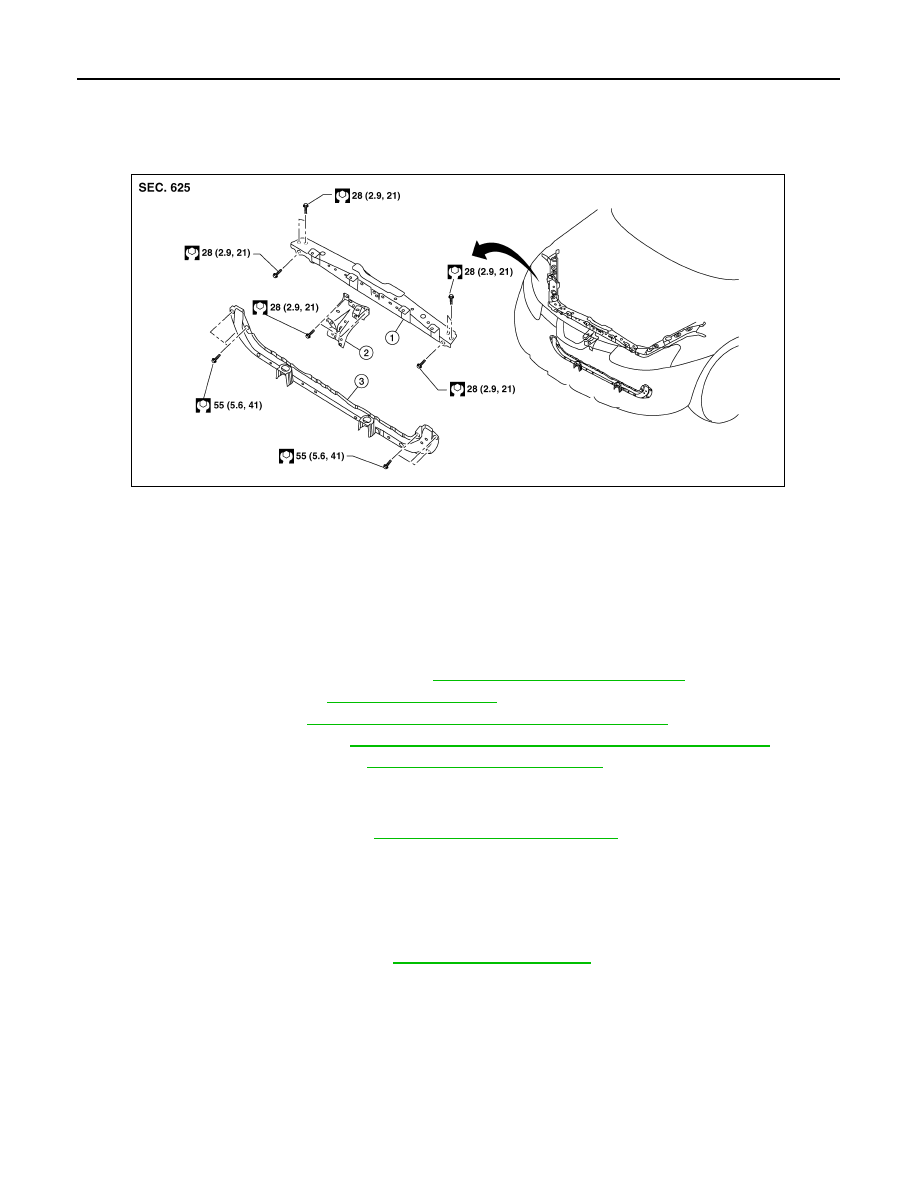

Exploded View

INFOID:0000000011278999

Removal and Installation

INFOID:0000000011279000

CAUTION:

When removing radiator core support upper, be careful not to damage the painted surface.

REMOVAL

Radiator Core Upper Support

1. Remove front combination lamp (LH). Refer to

EXL-119, "Removal and Installation"

.

2. Remove front air duct. Refer to

EM-26, "Exploded View"

.

3. Remove hood lock. Refer to

DLK-260, "HOOD LOCK : Removal and Installation"

.

4. Remove secondary latch. Refer to

DLK-261, "SECONDARY LATCH : Removal and Installation"

.

5. Remove crash zone sensor. Refer to

SR-22, "Removal and Installation"

.

6. Remove bolts and radiator core upper support.

Radiator Core Lower Support

1. Remove front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

2. Support the radiator using a suitable tool.
3. Remove bolts and radiator core lower support.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Tighten bolts to specified torque. Refer to

DLK-244, "Exploded View"

.

1.

Radiator core upper support

2.

Secondary latch bracket

3.

Radiator core lower support

ALKIA3498ZZ

2015 Rogue NAM

FRONT FENDER

DLK-245

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT FENDER

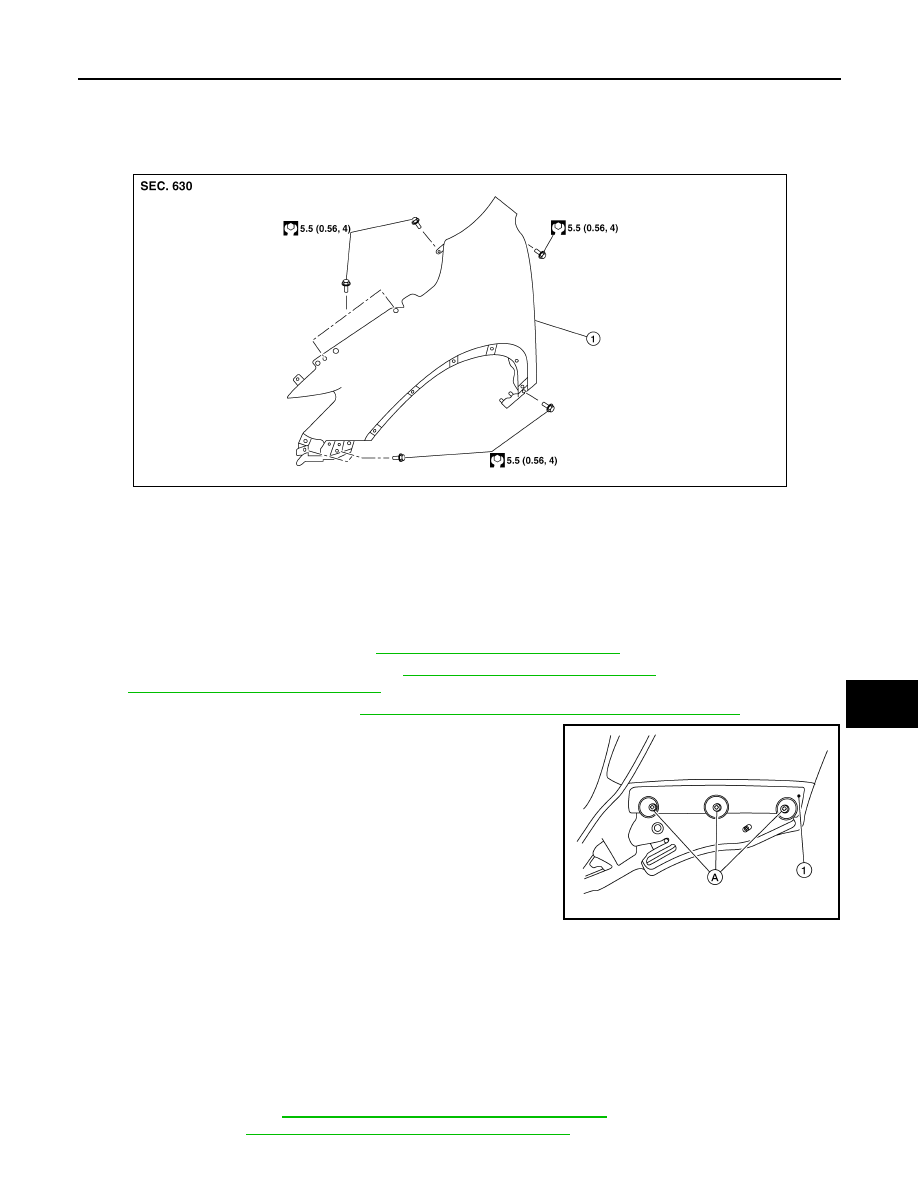

Exploded View

INFOID:0000000011279001

Removal and Installation

INFOID:0000000011279002

CAUTION:

Use a shop cloths to protect the body from being damaged during removal and installation.

REMOVAL

1. Remove front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

2. Remove front combination lamp. Refer to

EXL-119, "Removal and Installation"

 (HALOGEN HEADLAMP)

or

EXL-266, "Removal and Installation"

. (LED HEADLAMP).

3. Remove center mudguard. Refer to

EXT-35, "Removal and Installation - Center Mudguard"

.

4. Remove screws (A) and front fender bracket (1).

5. Remove bolts and front fender.

CAUTION:

Use care when removing the front fender. The front fender baffle foam adheres the front fender to

the body side outer. Carefully release the baffle foam or damage to the front fender may occur.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation apply touch up paint (body color) to the head of front fender bolts.

• After installation, adjust the following components as necessary:

- Hood assembly: Refer to

DLK-241, "HOOD ASSEMBLY : Adjustment"

.

- Front door: Refer to

DLK-248, "DOOR ASSEMBLY : Adjustment"

.

1.

Front fender

AWKIA2926ZZ

ALKIA3354ZZ

2015 Rogue NAM
