DLK-238

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

SQUEAK AND RATTLE TROUBLE DIAGNOSES

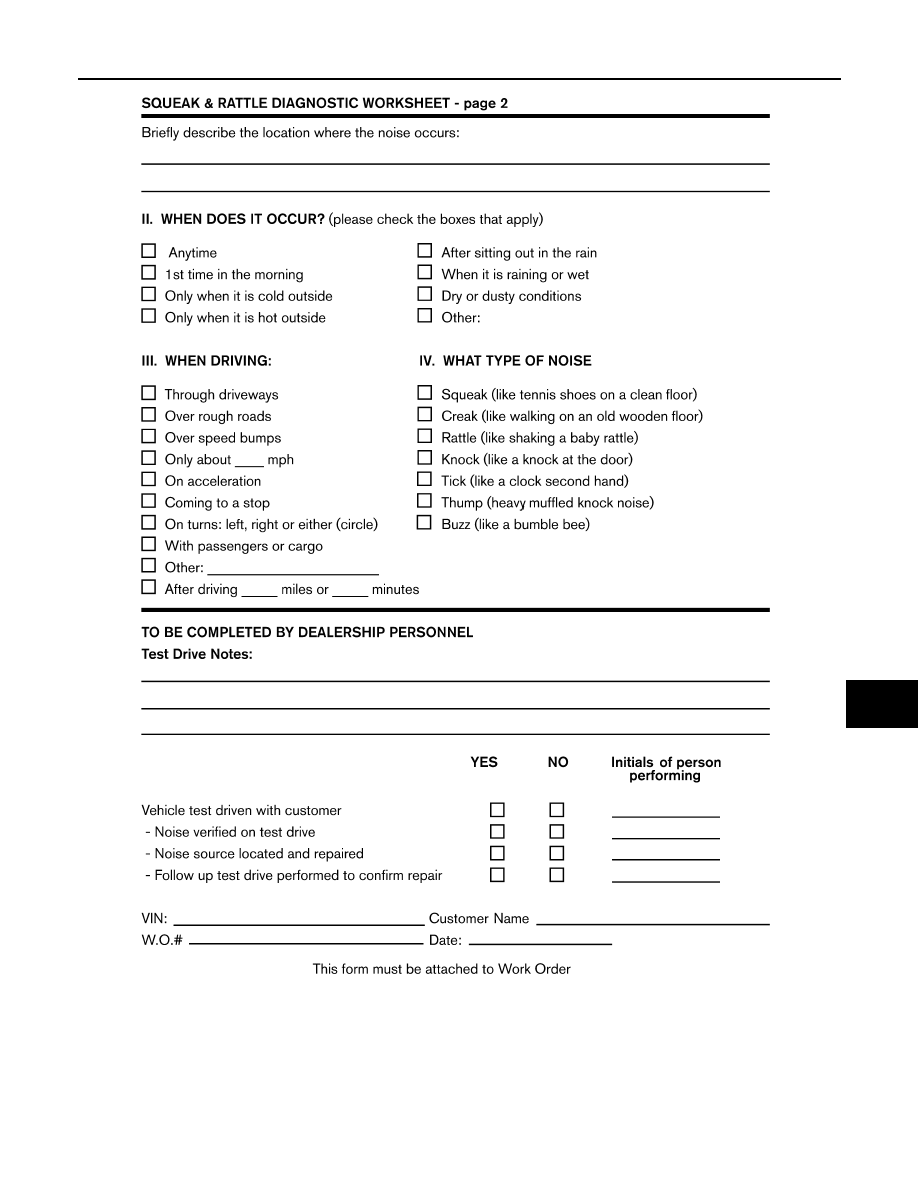

Diagnostic Worksheet

INFOID:0000000011278994

LAIA0072E

2015 Rogue NAM

SQUEAK AND RATTLE TROUBLE DIAGNOSES

DLK-239

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

LAIA0071E

2015 Rogue NAM

DLK-240

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

HOOD

REMOVAL AND INSTALLATION

HOOD

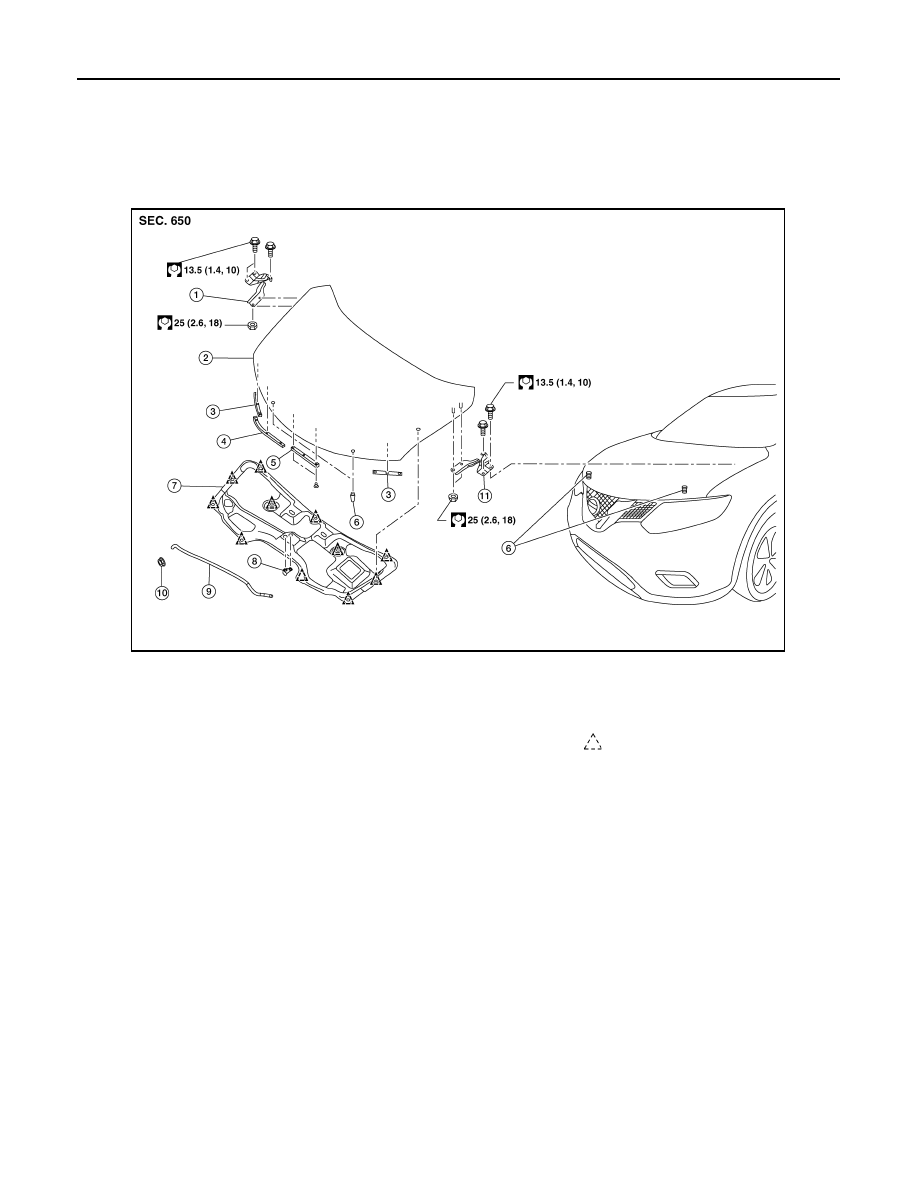

Exploded View

INFOID:0000000011278995

HOOD ASSEMBLY
HOOD ASSEMBLY : Removal and Installation

INFOID:0000000011278996

CAUTION:

• Use two people when removing or installing hood assembly due to its heavy weight.

• Use protective tape or shop cloths to protect surrounding components from damage during removal

and installation of hood assembly.

REMOVAL

1. Support the hood assembly using a suitable tool.

WARNING:

Bodily injury may occur if hood assembly is not supported properly when removing hood assem-

bly.

1.

Hood hinge (RH)

2.

Hood

3.

Hood side seal

4.

Hood front seal

5.

Hood center seal

6.

Bumper rubber

7.

Hood insulator

8.

Hood rod clamp

9.

Hood support rod

10. Hood rod grommet

11. Hood hinge (LH)

Clip

AWKIA2924ZZ

2015 Rogue NAM

HOOD

DLK-241

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2. Remove hood hinge to hood nuts (A) and hood assembly.

NOTE:

RH side shown; LH similar.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Before installing the hood hinge, apply anticorrosive agent onto the surface of the vehicle.

• After installation, perform the hood assembly adjustment procedure. Refer to

DLK-241, "HOOD

ASSEMBLY : Adjustment"

.

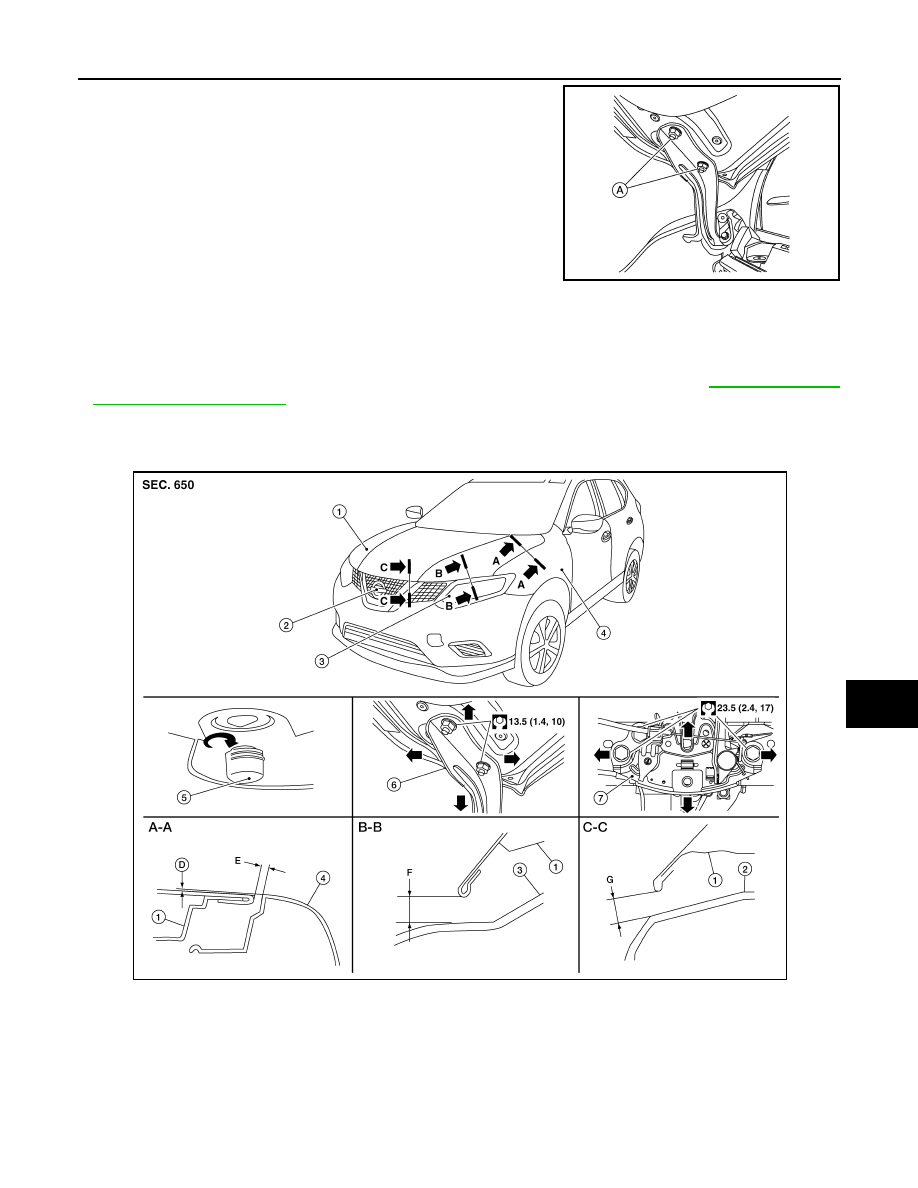

HOOD ASSEMBLY : Adjustment

INFOID:0000000011278997

Check the clearance and the surface height between hood and each part by visual inspection and tactile feel.

If the clearance and the surface height are out of specification, adjust them according to the adjustment proce-

dures.

ALKIA3338ZZ

1.

Hood assembly

2.

Front grille

3.

Front combination lamp

4.

Fender

5.

Bumper rubber

6.

Hood hinge

7.

Hood lock

AWKIA2916ZZ
