ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000011277724

ECU

Reference

BCM (with Intelligent Key system)

BCS-28, "Reference Value"



BCS-46, "Fail Safe"



BCS-46, "DTC Inspection Priority Chart"



BCS-47, "DTC Index"

BCM (without Intelligent Key system)

BCS-96, "Reference Value"





BCS-107, "Fail Safe"



BCS-107, "DTC Inspection Priority Chart"



BCS-108, "DTC Index"

DEF-14

< WIRING DIAGRAM >

REAR WINDOW DEFOGGER SYSTEM

WIRING DIAGRAM

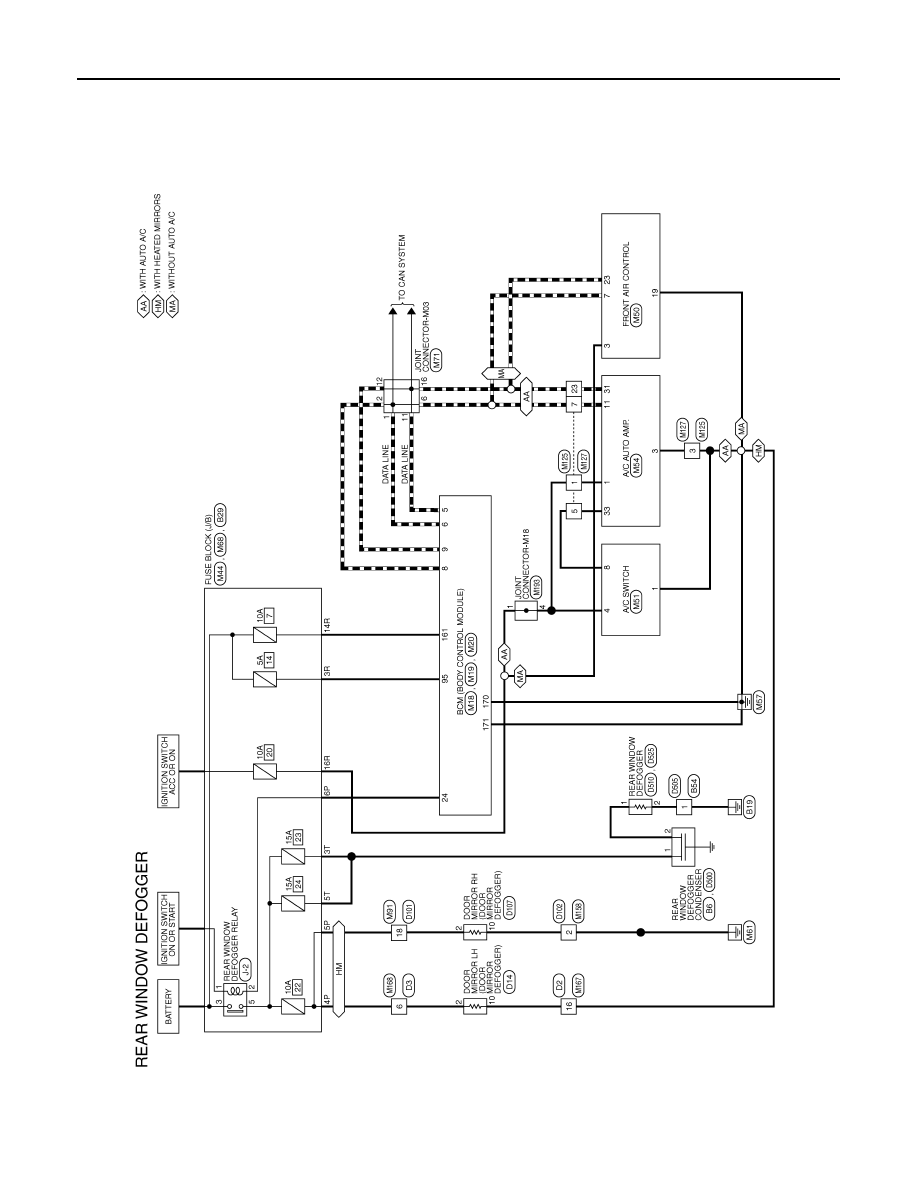

REAR WINDOW DEFOGGER SYSTEM

Wiring Diagram

INFOID:0000000011277725

AALWA1040GB

REAR WINDOW DEFOGGER SYSTEM

DEF-15

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

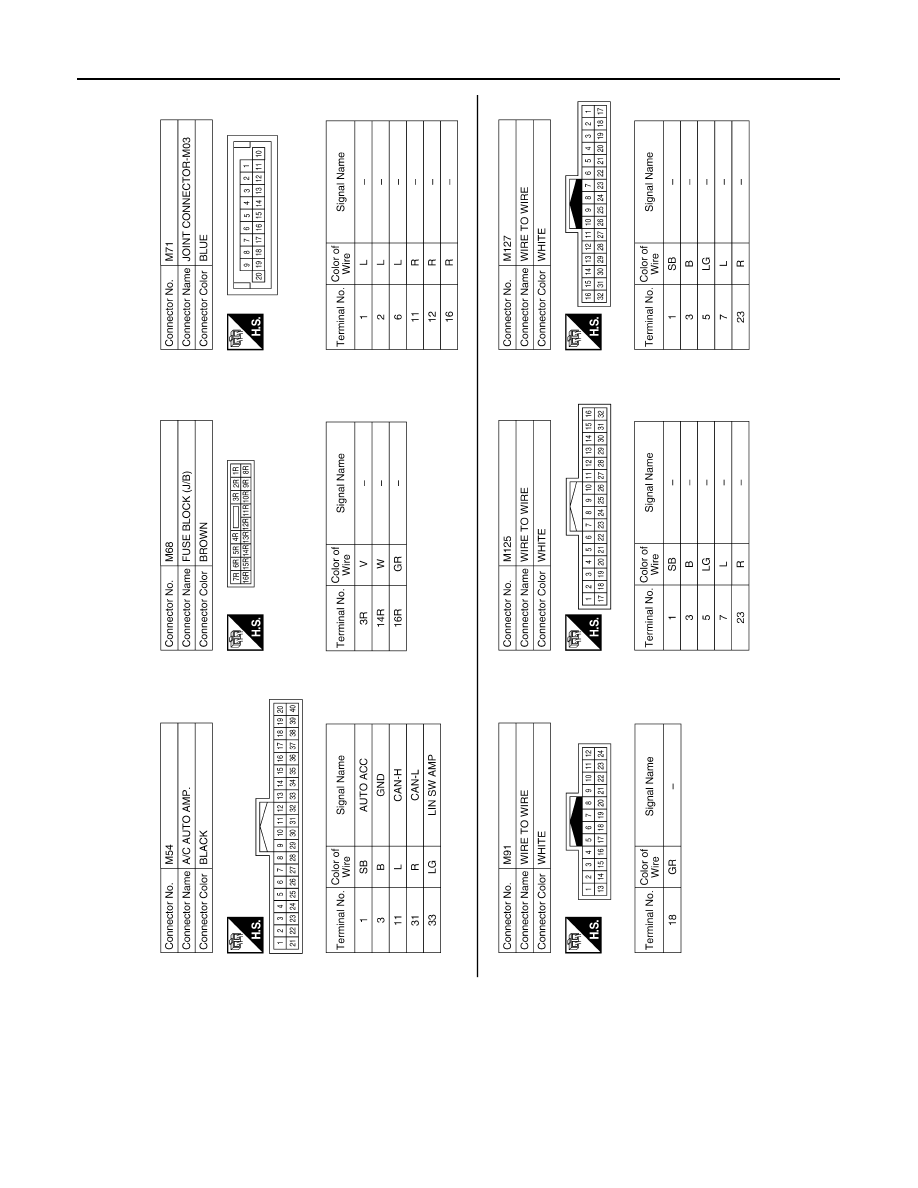

AALIA2107GB

DEF-16

< WIRING DIAGRAM >

REAR WINDOW DEFOGGER SYSTEM

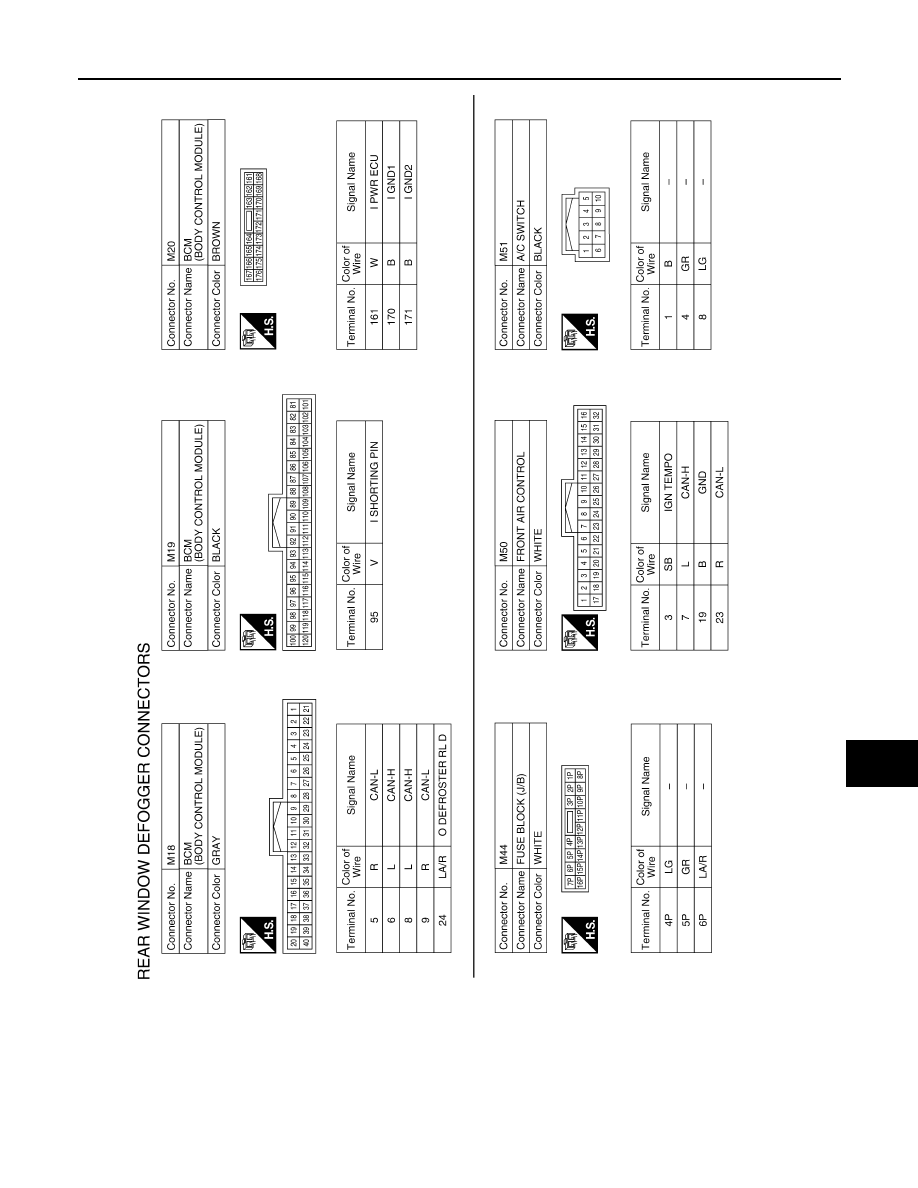

AALIA2108GB
