PREPARATION

DEF-5

< PREPARATION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000011377300

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

—

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

DEF-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

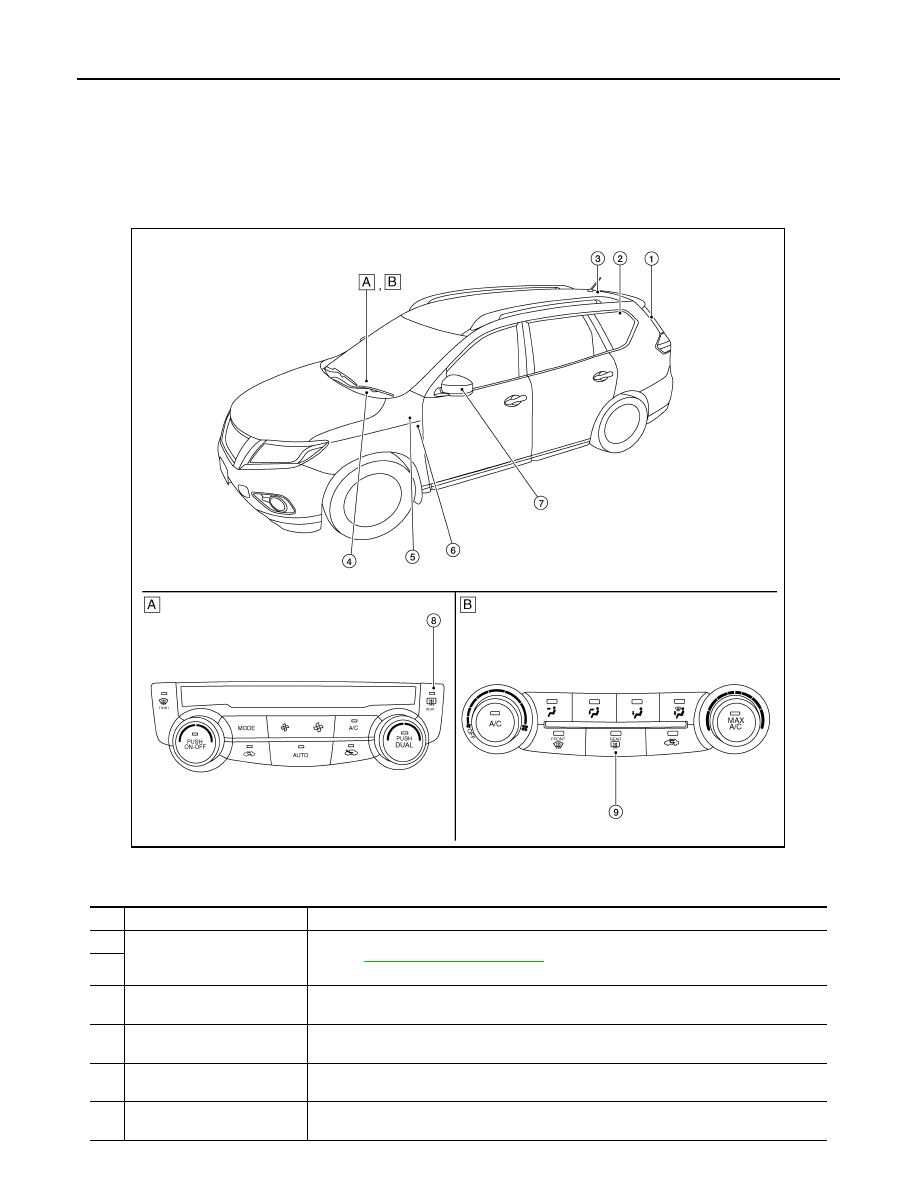

Component Parts Location

INFOID:0000000011277716

A.

A/C switch (auto A/C)

B.

Front air control (manual A/C)

No.

Component

Description

1.

Rear window defogger con-
nector
(Rear window defogger)

Refer to

DEF-7, "Rear window defogger"

.

2.

3.

Rear window defogger con-
denser

Removes the noise that is generated when rear window defogger turns ON/OFF.

4.

A/C auto amp.

1

• Displays the rear window defogger ON to the display when detecting the operation of the

rear window defogger.

5.

BCM

• Operates the rear window defogger with the operation of rear window defogger switch.
• Performs the timer control of rear window defogger.

6.

Rear window defogger relay

• Operates the rear window defogger and the door mirror defogger with the control signal

from BCM.

ALLIA1538ZZ

COMPONENT PARTS

DEF-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

1:

With auto A/C

2:

With manual A/C

3:

With heated mirrors

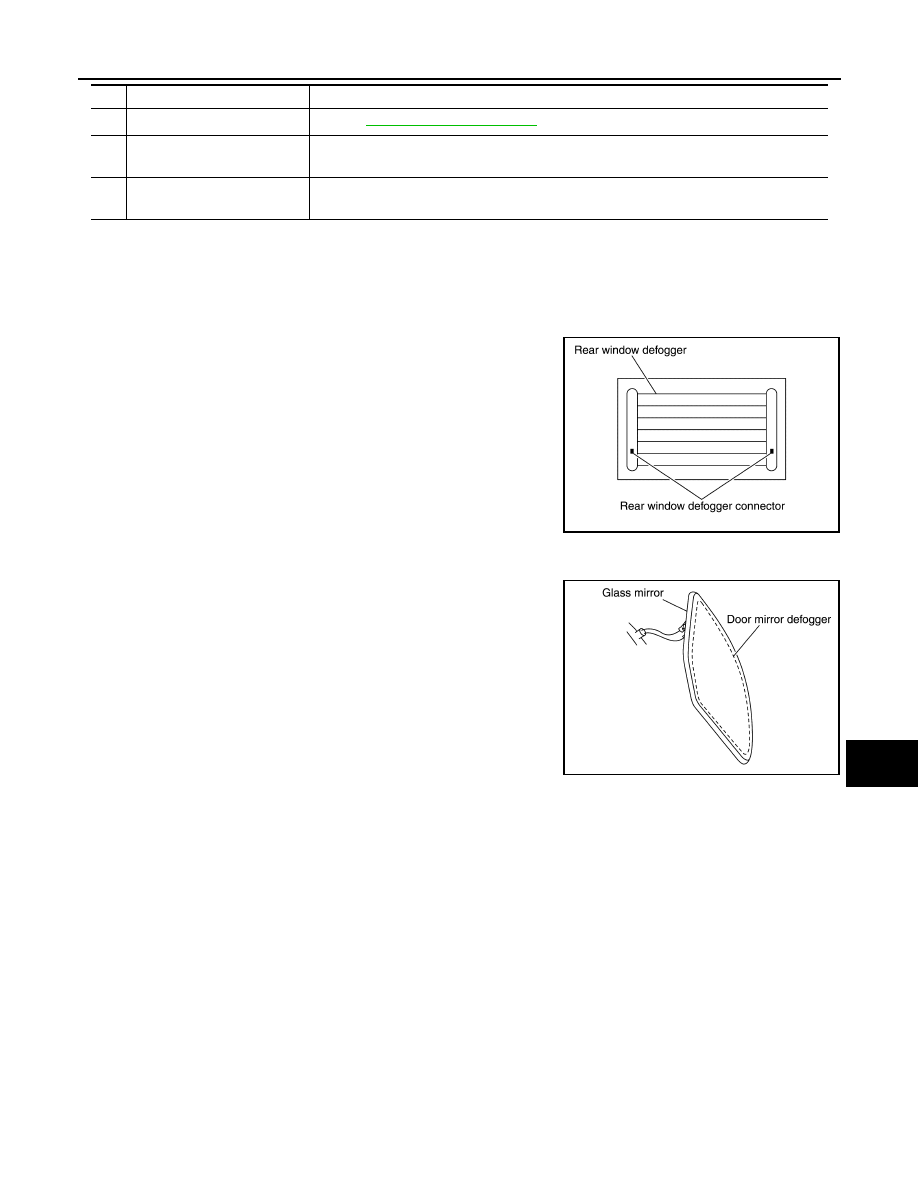

Rear window defogger

INFOID:0000000011277717

Heats the heating wire with the power supply from the rear window

defogger relay to prevent the rear window from fogging up.

Door mirror defogger

INFOID:0000000011277718

Heats the heating wire with the power supply from the rear window

defogger relay to prevent the door mirror from fogging up.

7.

Door mirror defogger

3

Refer to

DEF-7, "Door mirror defogger"

.

8.

A/C switch

1

 (rear window de-

fogger switch)

• The rear window defogger switch is turned ON.
• Turns the indicator lamp ON when detecting the operation of rear window defogger.

9.

Front air control

2

 (rear window

defogger switch)

• The rear window defogger switch is turned ON.
• Turns the indicator lamp ON when detecting the operation of rear window defogger.

No.

Component

Description

JMLIA2595GB

JMLIA2596GB

DEF-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

System Description

INFOID:0000000011277719

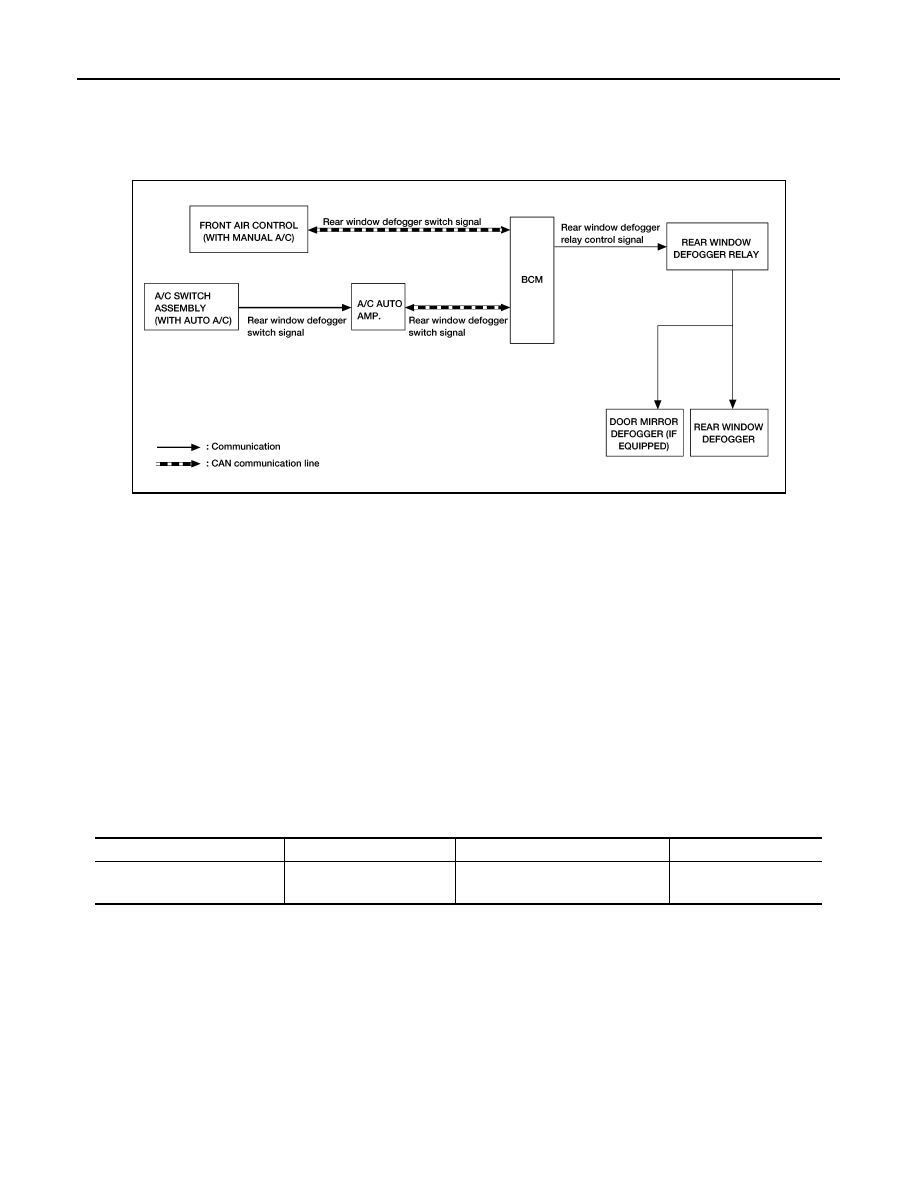

SYSTEM DIAGRAM

OPERATION DESCRIPTION

• When rear window defogger switch is turned ON while ignition switch is ON, the rear window defogger

switch transmits rear window defogger switch signal to BCM.

• BCM turns rear window defogger relay ON when rear window defogger switch signal is received.

• Rear window defogger and door mirror defogger (with door mirror defogger) are supplied with power and

operate when rear window defogger relay turns ON.

• Rear window defogger ON is displayed when front air control (manual A/C) or A/C switch (auto A/C)

receives signals.

TIMER FUNCTION

• BCM turns rear window defogger relay ON for approximately 15 minutes when rear window defogger switch

is turned ON while ignition switch is ON. It makes rear window defogger and door mirror defogger (with door

mirror defogger) operate.

• Timer is canceled after pressing rear window defogger switch again during timer operation. Then BCM turns

rear window defogger relay OFF. The same reaction also occurs during timer operation, if the ignition switch

is turned OFF.

INPUT/OUTPUT SIGNAL CHART

*: With door mirror defogger

ALLIA1379GB

Switch

Input signal to BCM

BCM function

Actuator

Rear window defogger switch

Defogger switch signal

Rear window defogger and door

mirror defogger

*

 control

Rear window defogger

Door mirror defogger

*
