SIDE CAMERA

Removal and Installation

INFOID:0000000011277336

REMOVAL

1. Remove door mirror rear finisher. Refer to

MIR-26, "Removal and Installation"

.

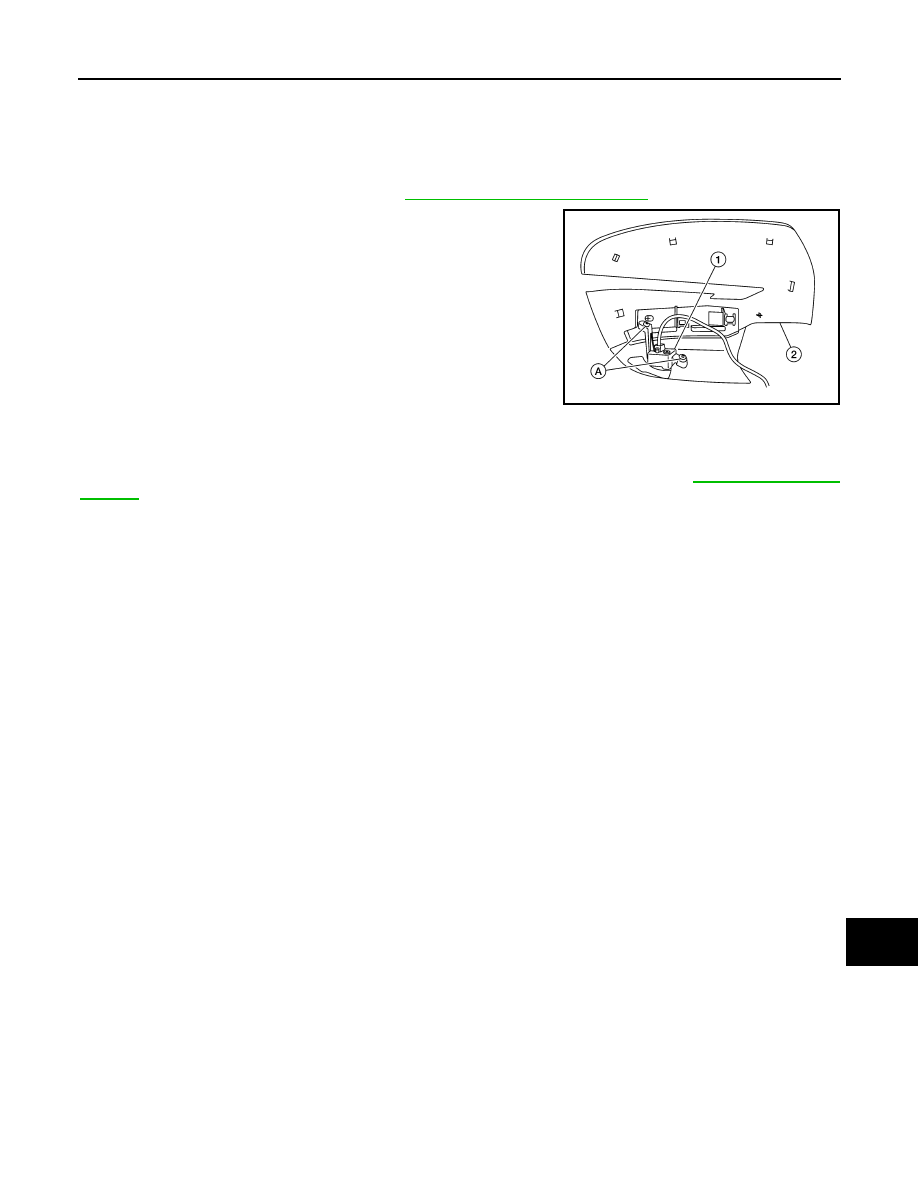

2. Remove screws (A) and side camera (1) from door mirror fin-

isher (2).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform camera image calibration (if equipped with around view camera). Refer to

DAS-89, "Work Pro-

cedure"

.

AWOIA0094ZZ

DAS-172

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

BSW INDICATOR

BSW INDICATOR

Removal and Installation

INFOID:0000000011277337

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Release the door mirror corner finisher using a suitable tool. Refer to

MIR-22, "Exploded View"

.

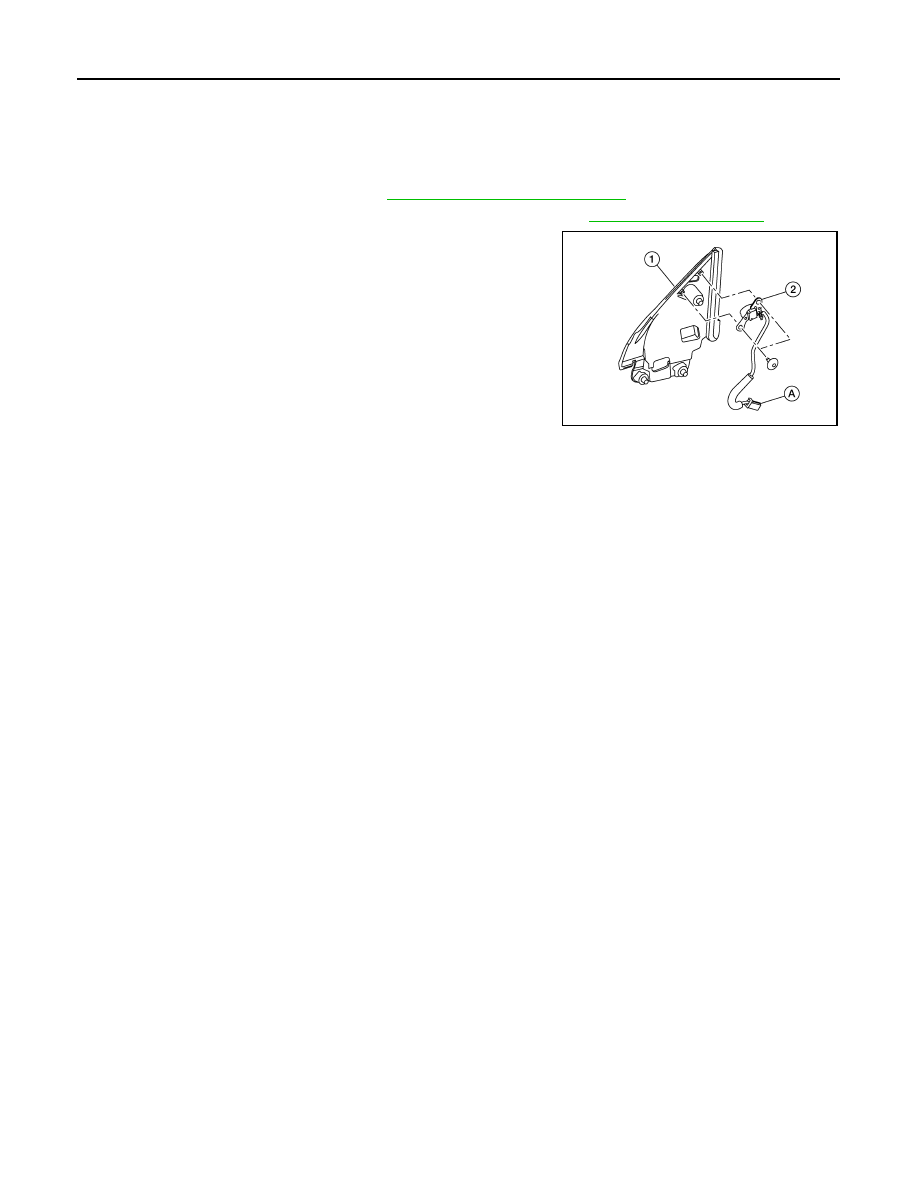

3. Disconnect the harness connector (A), release the harness clip

and remove the door mirror corner finisher (1).

4. Remove screws and blind spot warning indicator (2).

INSTALLATION

Installation is in the reverse order of removal.

AWOIA0071ZZ

DAS

AROUND VIEW MONITOR CONTROL UNIT

DAS-173

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

AROUND VIEW MONITOR CONTROL UNIT

Exploded View

INFOID:0000000011277338

Removal and Installation

INFOID:0000000011277339

REMOVAL

CAUTION:

Before replacing around view monitor control unit, save or print current vehicle specification with

CONSULT configuration before replacement. Refer to

DAS-86, "Work Procedure"

.

1. Remove glove box assembly. Refer to

IP-24, "Removal and Installation"

.

2. Remove around view monitor control unit screws.
3. Disconnect the harness connector from the around view monitor control unit and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Replace the around view monitor control unit if it has been dropped or sustained an impact.

• When replacing around view monitor control unit, you must perform "After Replace ECU" with CON-

SULT. Refer to

DAS-86, "Work Procedure"

.

• Perform camera image calibration. Refer to

DAS-89, "Work Procedure"

.

AWNIA3694ZZ

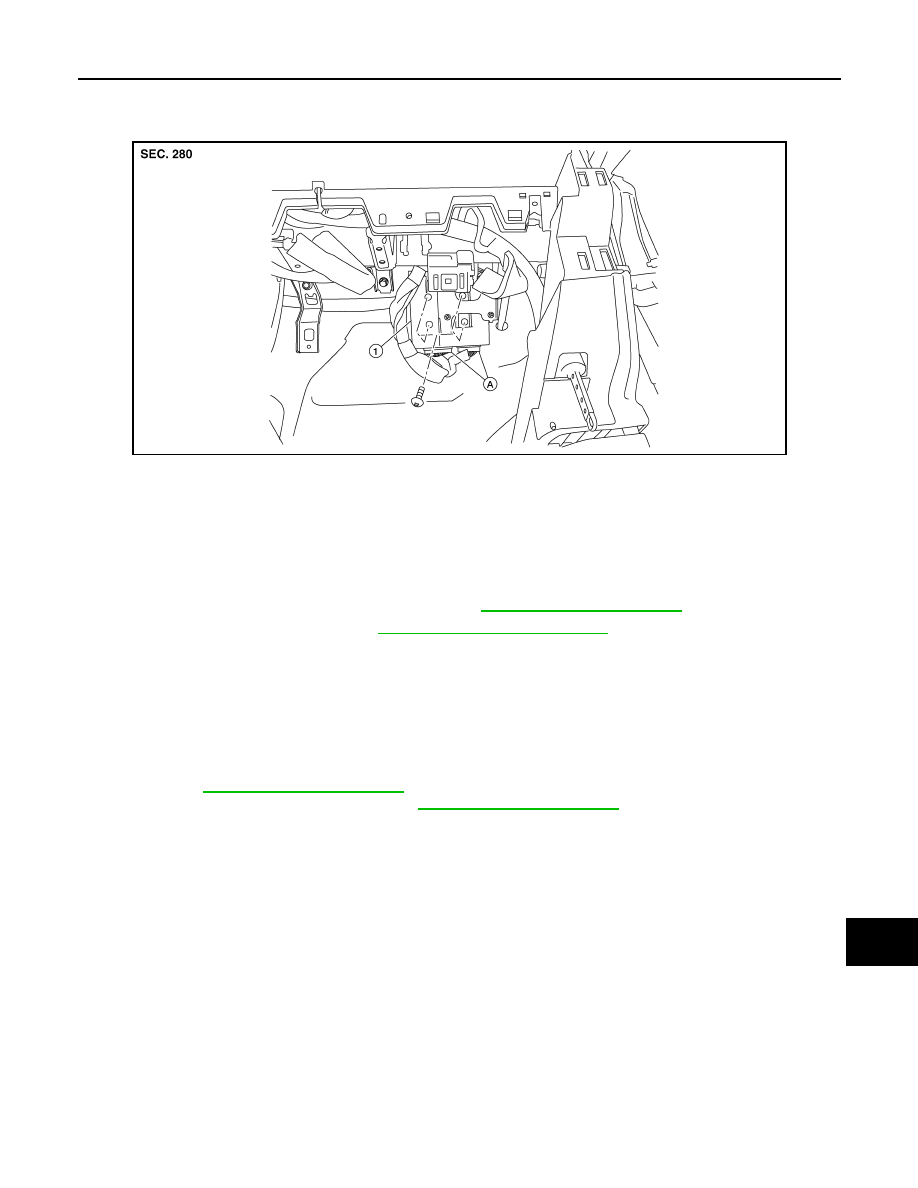

1.

Around view monitor control unit A. Harness connector

DAS-174

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

WARNING SYSTEMS SWITCH

WARNING SYSTEMS SWITCH

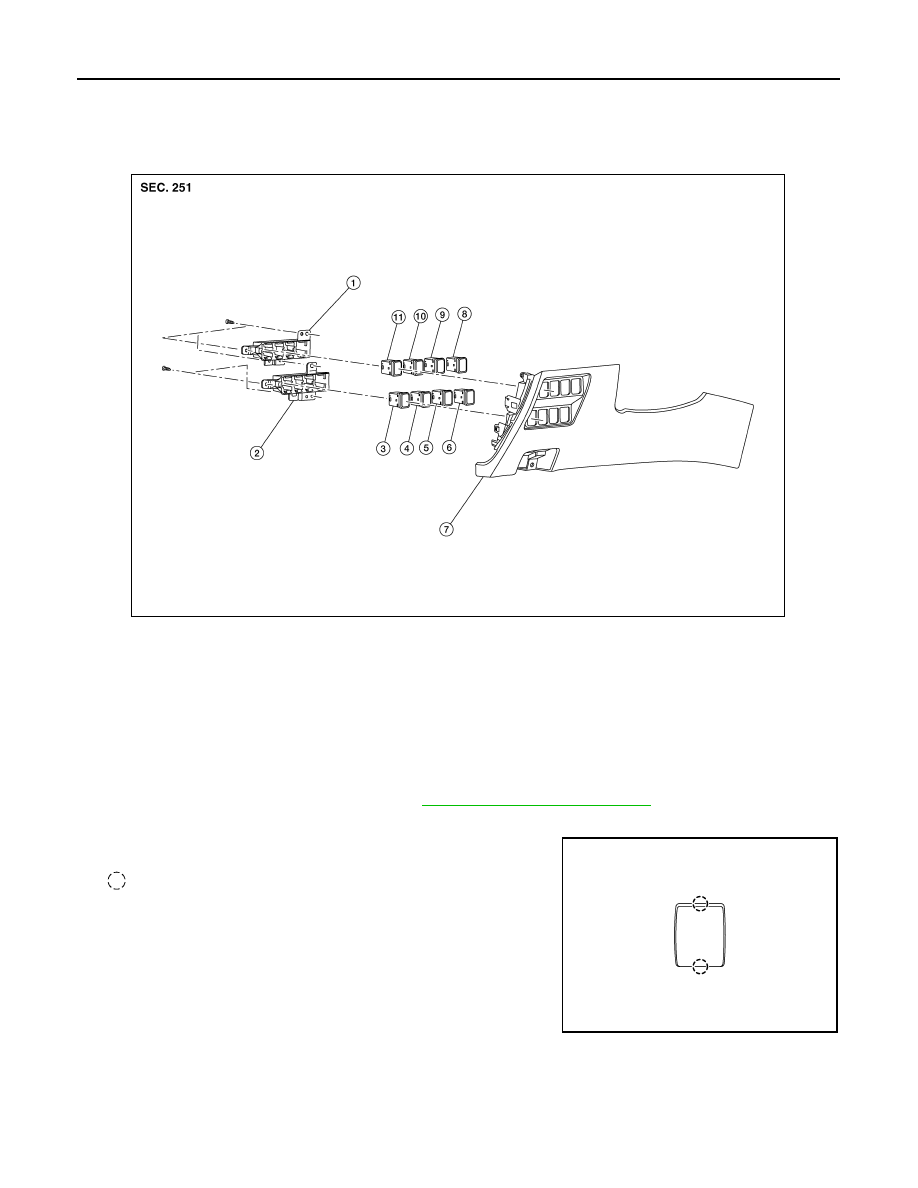

Exploded View

INFOID:0000000011485227

Removal and Installation

INFOID:0000000011277340

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-23, "Removal and Installation"

.

2. Remove screws and upper switch carrier, then remove screws and lower switch carrier.
3. Release pawls using suitable tool, then remove warning sys-

tems switch from the lower switch carrier.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

1.

Upper switch carrier

2.

Lower switch carrier

3. blank

4.

Warning systems switch

5.

AWD lock switch

6. Hill decent control switch

7.

Instrument lower panel LH

8.

Automatic back door main switch

9. Automatic back door switch

10. Sport mode switch

11. VDC OFF switch

ALJIA1521ZZ
