WASHER SWITCH

WW-43

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

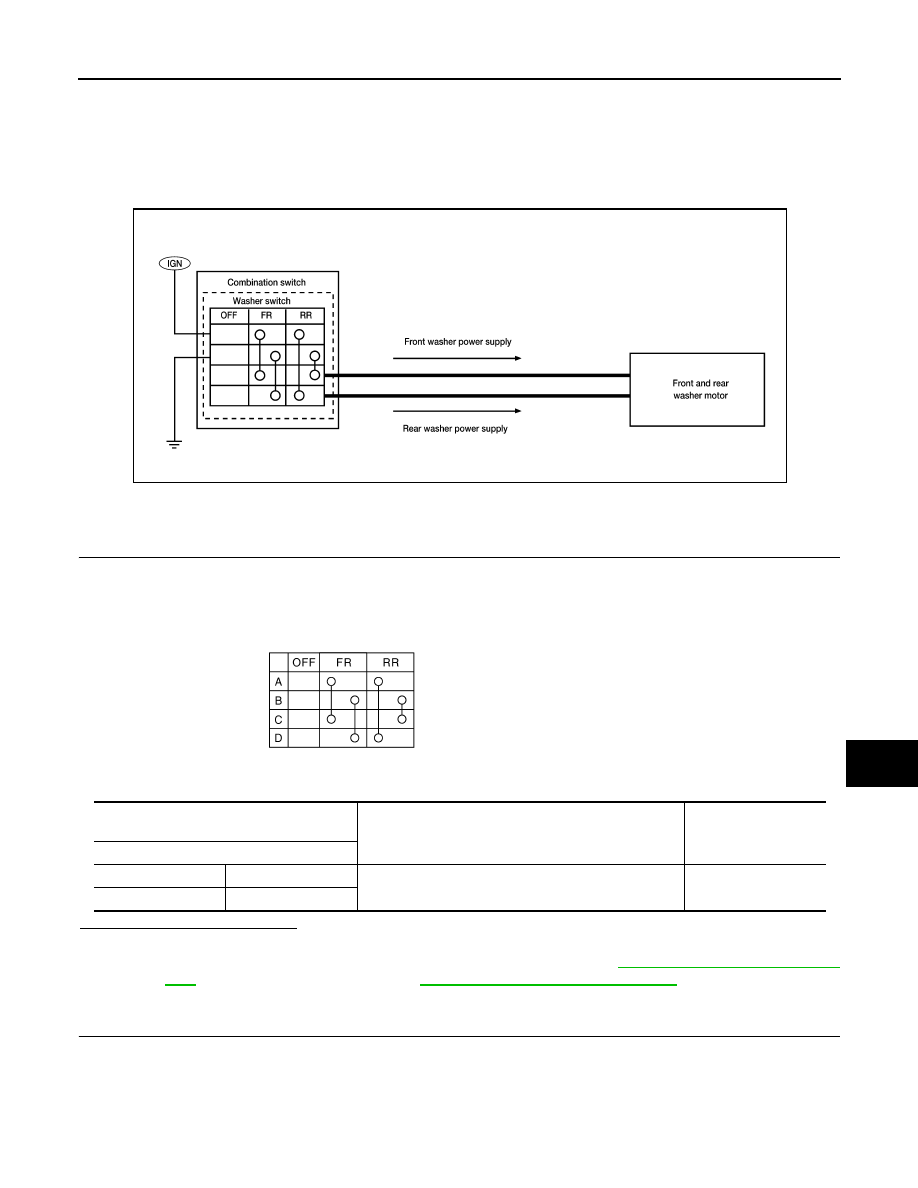

WASHER SWITCH

Description

INFOID:0000000011280400

• Washer switch is integrated with the combination switch.

• Combination switch (wiper and washer switch) switches polarity between front washer operating and rear

washer operating to supply power and ground to the front and rear washer motor.

Component Inspection

INFOID:0000000011280401

1.

 CHECK FRONT WASHER SWITCH

1. Turn the ignition switch OFF.

2. Disconnect combination switch (wiper and washer switch).

3. Check continuity between the combination switch (wiper and washer switch) terminals.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace combination switch (wiper and washer switch). Refer to

BCS-76, "Removal and Installa-

tion"

 (with Intelligent Key system) or

BCS-136, "Removal and Installation"

 (without Intelligent Key

system).

2.

 CHECK REAR WASHER SWITCH

1. Check continuity between the combination switch (wiper and washer switch) terminals.

ALLIA0350GB

A: Terminal 4
B: Terminal 6
C: Terminal 3

D: Terminal 1

JPLIA0164GB

Combination switch (wiper and washer

switch)

Condition

Continuity

Terminal

1

6

Front washer switch ON

Yes

3

4

WW-44

< DTC/CIRCUIT DIAGNOSIS >

WASHER SWITCH

Is the inspection result normal?

YES

>> Wiper and washer switch is normal.

NO

>> Replace combination switch (wiper and washer switch). Refer to

BCS-76, "Removal and Installa-

tion"

 (with Intelligent Key system) or

BCS-136, "Removal and Installation"

 (without Intelligent Key

system).

A: Terminal 4
B: Terminal 6
C: Terminal 3

D: Terminal 1

JPLIA0164GB

Combination switch (wiper and washer

switch)

Condition

Continuity

Terminal

1

4

Rear washer switch ON

Yes

6

3

REAR WIPER MOTOR CIRCUIT

WW-45

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

REAR WIPER MOTOR CIRCUIT

Component Function Check

INFOID:0000000011280402

1.

 CHECK REAR WIPER ON OPERATION

CONSULT ACTIVE TEST

1. Select “RR WIPER” in “Active Test” of “BCM”.

2. While operating the test item, check rear wiper operation.

Is rear wiper operation normal?

YES

>> Rear wiper motor circuit is normal.

NO

>> Refer to

WW-45, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000011280403

Regarding Wiring Diagram information, refer to

WW-26, "Wiring Diagram"

.

1.

 CHECK REAR WIPER MOTOR OUTPUT VOLTAGE

CONSULT ACTIVE TEST

1. Turn the ignition switch OFF.

2. Disconnect rear wiper motor.

3. Turn the ignition switch ON.

4. Select “RR WIPER” in “Active Test” of “BCM”.

5. While operating the test item, check voltage between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

 CHECK REAR WIPER MOTOR GROUND CIRCUIT

1. Turn the ignition switch OFF.

2. Check continuity between rear wiper motor harness connector and ground.

Is the inspection result normal?

YES

>> Replace rear wiper motor. Refer to

WW-73, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

 CHECK REAR WIPER MOTOR OPEN CIRCUIT

Check continuity between BCM harness connector and rear wiper motor harness connector.

ON

: Rear wiper ON operation

OFF

: Stop the rear wiper.

BCM

Ground

Test item

Voltage

(Approx.)

Connector

Terminal

REAR WIPER

B16

55

ON

Battery voltage

OFF

0V

Rear wiper motor

Ground

Continuity

Connector

Terminal

D506

3

Yes

WW-46

< DTC/CIRCUIT DIAGNOSIS >

REAR WIPER MOTOR CIRCUIT

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

 CHECK REAR WIPER MOTOR SHORT CIRCUIT

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Repair or replace harness.

NO

>> Replace BCM. Refer to

BCS-75, "Removal and Installation"

 (with Intelligent Key system) or

BCS-

135, "Removal and Installation"

 (without Intelligent Key system).

BCM

Rear wiper motor

Continuity

Connector

Terminal

Connector

Terminal

B23

147

D506

1

Yes

BCM

Ground

Continuity

Connector

Terminal

B16

55

No
