Nissan Rogue. Manual - part 1234





WT-12

< SYSTEM DESCRIPTION >

SYSTEM

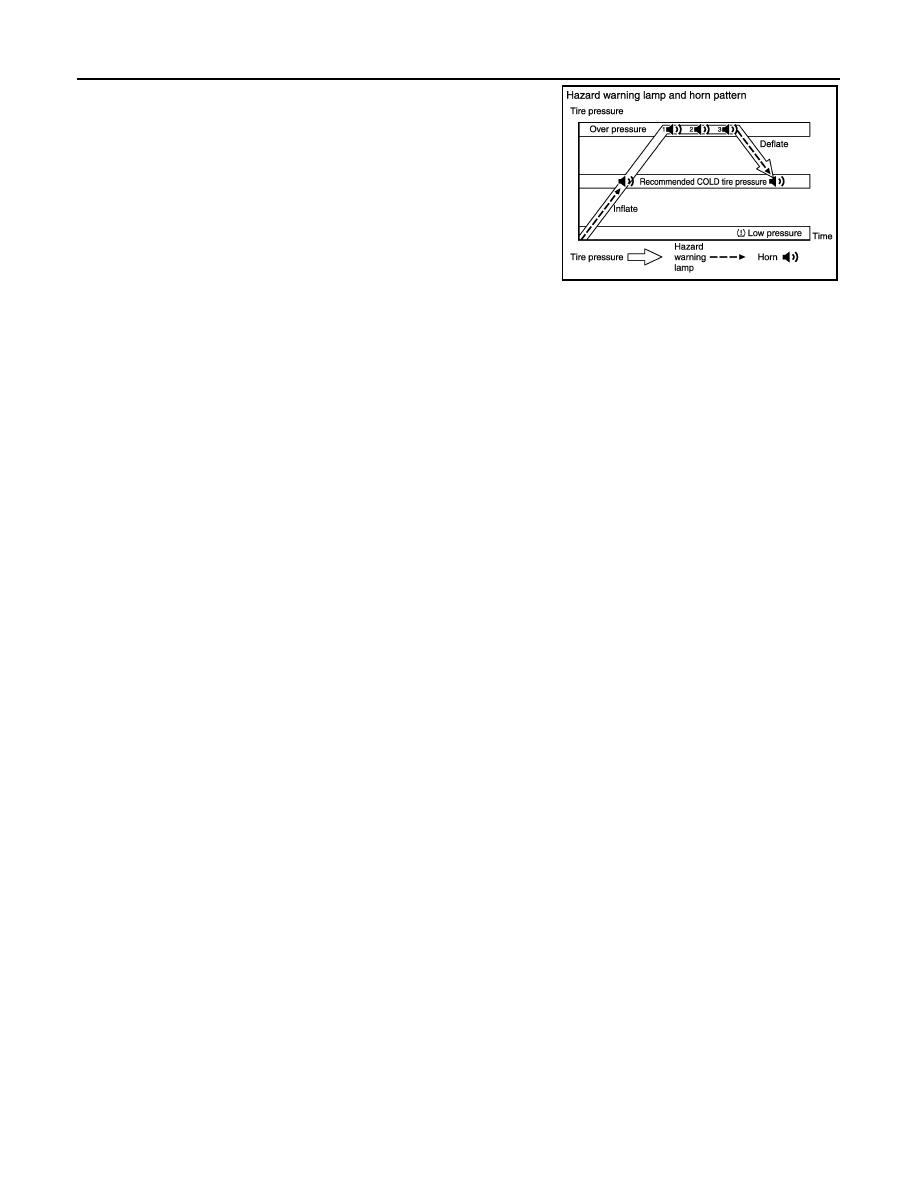

• The hazard warning lamps blink when the recommended COLD

tire pressure has been reached. After the recommended COLD tire

pressure has been reached, the horn sounds once and the hazard

warning lamps stop blinking.

• If the tire pressure value is equal to or greater than 30 kPa (0.31

kg/cm

2

, 4 psi) more than the recommended COLD tire pressure,

the hazard warning lamps flash and horn sounds three times.

• To return the tire to the recommended COLD tire pressure, deflate

the tire until the horn sounds once and the hazard warning lamps

stop blinking.

JSEIA0214GB

DIAGNOSIS SYSTEM (TIRE PRESSURE MONITORING SYSTEM)

WT-13

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

DIAGNOSIS SYSTEM (TIRE PRESSURE MONITORING SYSTEM)

CONSULT Function

INFOID:0000000011378233

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

ACTIVE TEST

ECU IDENTIFICATION

BCM part number can be read.

SELF DIAGNOSTIC RESULT

NOTE:

Before performing Self Diagnostic Result, be sure to register the tire pressure sensor ID or the actual malfunc-

tion may be different from that displayed on CONSULT.

Refer to following:

WT-16, "DTC Index"

.

FREEZE FRAME DATA (FFD)

The following vehicle status is recorded when DTC is detected and is displayed on CONSULT.

DATA MONITOR

NOTE:

The following table includes information (items) inapplicable to this vehicle. For information (items) applicable

to this vehicle, refer to CONSULT display items.

Diagnosis mode

Function Description

Self Diagnostic Result

• Retrieve DTC from BCM and display diagnostic items.
• Self-diagnostic results and freeze frame data can be read and erased quickly.

Data Monitor

Monitor the input/output signal of the BCM in real time.

Work support

This mode enables a technician to adjust some devices faster and more accurately.

Active Test

Send the drive signal from CONSULT to the actuator. The operation check can be performed.

ECU identification

Parts number of BCM can be read.

Configuration

• Read and save the vehicle specification (TYPE ID).
• Write the vehicle specification (TYPE ID) when replacing BCM.

Test Item

Description

ID REGIST WARNING

This test is able to check ID regist warning chime operation [On/Off].

WARNING LAMP

This test is able to check tire pressure warning lamp operation [On/Off].

FLASHER

This test is able to check turn signal lamp operation [On/Off].

HORN

This test is able to check horn operation [On/Off].

Item name

Display item

WARNING AIR PRESSURE FL

Warning air pressure front left

WARNING AIR PRESSURE FR

Warning air pressure front right

WARNING AIR PRESSURE RR

Warning air pressure rear right

WARNING AIR PRESSURE RL

Warning air pressure rear left

AIR PRESS FL

Air pressure front left

AIR PRESS FR

Air pressure front right

AIR PRESS RR

Air pressure rear right

AIR PRESS RL

Air pressure rear left

WT-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (TIRE PRESSURE MONITORING SYSTEM)

WORK SUPPORT

Monitor Item (Unit)

Description

AIR PRESS FL (kPa, kgf/cm

2

 or Psi)

Indicates air pressure of front left tire.

AIR PRESS FR (kPa, kgf/cm

2

 or Psi)

Indicates air pressure of front right tire.

AIR PRESS RR (kPa, kgf/cm

2

 or Psi)

Indicates air pressure of rear right tire.

AIR PRESS RL (kPa, kgf/cm

2

 or Psi)

Indicates air pressure of rear left tire.

WARNING AIR PRESSURE FL (kPa, kgf/cm

2

 or Psi)

Indicates warning air pressure front left tire.

WARNING AIR PRESSURE FR (kPa, kgf/cm

2

 or Psi)

Indicates warning air pressure front right tire.

WARNING AIR PRESSURE RR (kPa, kgf/cm

2

 or Psi) Indicates warning air pressure rear right tire.

WARNING AIR PRESSURE RL (kPa, kgf/cm

2

 or Psi)

Indicates warning air pressure rear left tire.

VHCL SPEED SE (km/h)

Vehicle speed from the ABS actuator and electric unit (control unit) is displayed.

LOW TIRE PRESSURE W/L (Off/On)

Indicates condition of low tire pressure warning lamp in combination meter.

BUZZER 2 (Off/On)

Indicates condition of buzzer in combination meter.

HORN (Off/On)

Indicates condition of horn.

HAZARD (Off/On)

Indicates condition of hazard.

Support Item

Description

ID REGIST

Refer to

WT-26, "Description"

.

TIRE PRESSURE MONITORING SYSTEM

WT-15

< ECU DIAGNOSIS INFORMATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

ECU DIAGNOSIS INFORMATION

TIRE PRESSURE MONITORING SYSTEM

Reference Value

INFOID:0000000011378235

VALUES ON THE DIAGNOSIS TOOL

CAUTION:

The reference values in the table below come from the control unit calculation data. The normal values

may in some cases be displayed even though the power circuit (harness) is open or shorted.

NOTE:

The following table includes information (items) inapplicable to this vehicle. For information (items) applicable

to this vehicle, refer to CONSULT display items.

TERMINAL LAYOUT

Refer to

BCS-28, "Reference Value"

 (with Intelligent Key system) or

BCS-96, "Reference Value"

 (without Intel-

ligent Key system).

PHYSICAL VALUES

Refer to

BCS-28, "Reference Value"

 (with Intelligent Key system) or

BCS-96, "Reference Value"

 (without Intel-

ligent Key system).

DTC Inspection Priority Chart

INFOID:0000000011378236

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority

chart.

Monitor item

Data monitor

Condition

Reference values for normal operation

AIR PRESS FL

• Drive at a speed of 40 km/h (25 MPH)

or more then drive normally for 10 min-
utes.

• Turn the ignition switch ON and use the

activation tool to transmit the registra-
tion signal.

Tire pressure (kPa), (kgf/cm

2

) or (Psi)

AIR PRESS FR

AIR PRESS RR

AIR PRESS RL

WARNING AIR PRESSURE FL

Ignition switch ON

Indicates warning air pressure front left tire (kPa),
(kgf/cm

2

) or (Psi)

WARNING AIR PRESSURE FR

Ignition switch ON

Indicates warning air pressure front right tire (kPa),
(kgf/cm

2

) or (Psi)

WARNING AIR PRESSURE RR

Ignition switch ON

Indicates warning air pressure rear right tire (kPa),
(kgf/cm

2

) or (Psi)

WARNING AIR PRESSURE RL

Ignition switch ON

Indicates warning air pressure rear left tire (kPa), (kgf/
cm

2

) or (Psi)

VHCL SPEED SE

Drive the vehicle.

Vehicle speed (km/h) or (MPH)

LOW TIRE PRESSURE W/L

Ignition switch ON

Low tire pressure warning lamp ON: On
Low tire pressure warning lamp OFF: Off

BUZZER 2

Ignition switch ON

Combination meter buzzer ON: On
Combination meter buzzer OFF: Off

HORN

Ignition switch ON

Horn ON: On
Horn OFF: Off

HAZARD

Ignition switch ON

Hazard lamp ON: On
Hazard lamp OFF: Off

Priority

Detected items (DTC)

1

C1769 CONFIG SETTING

2

C1734 CONTROL UNIT
