Nissan Rogue. Manual - part 1233





WT-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

Tire Pressure Sensor

INFOID:0000000011280489

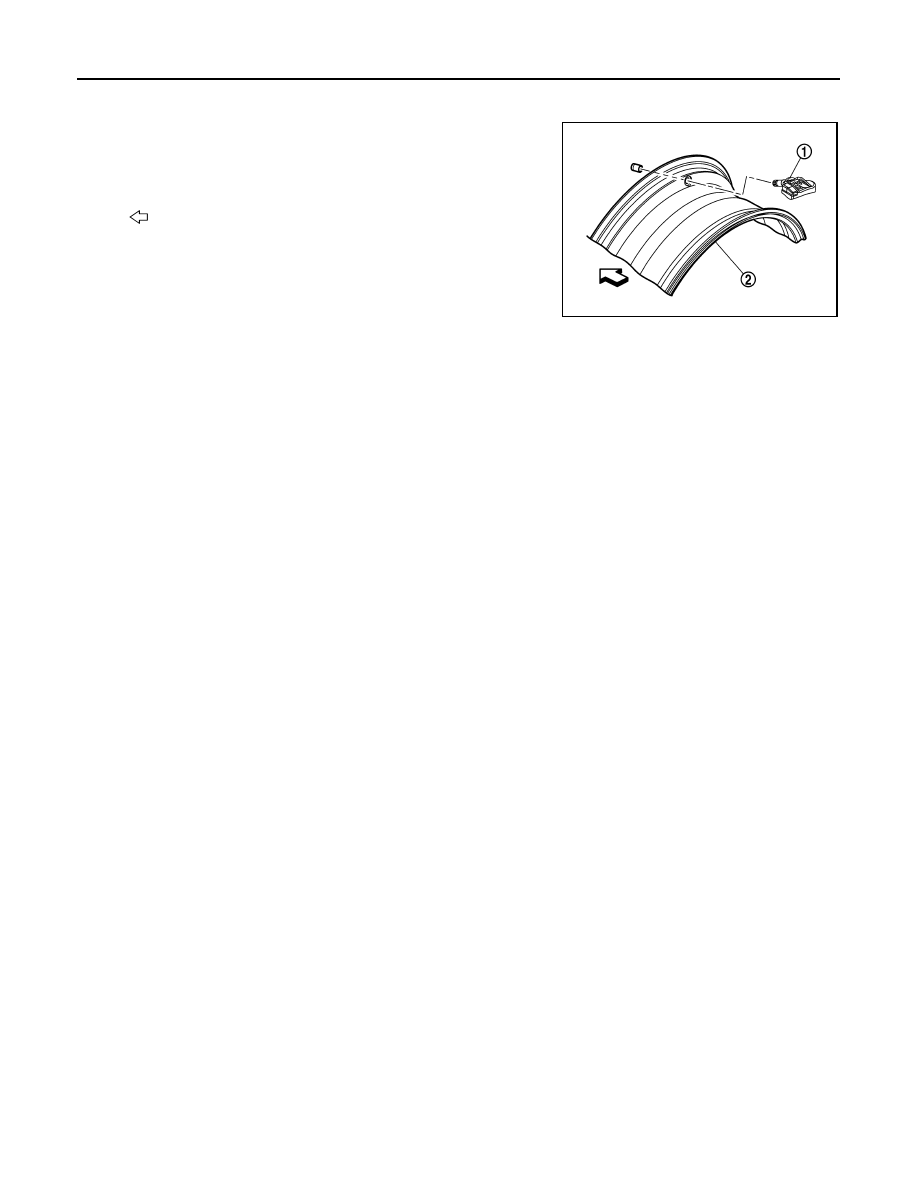

The tire pressure sensor (1) integrated with the valve is installed in

each wheel (2), and transmits the detected tire pressure and temper-

ature signal in the form of the radio wave. The radio signal is

received by the BCM (tire pressure receiver).

: Outside

JSEIA0747ZZ

SYSTEM

WT-9

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

SYSTEM

System Description

INFOID:0000000011280490

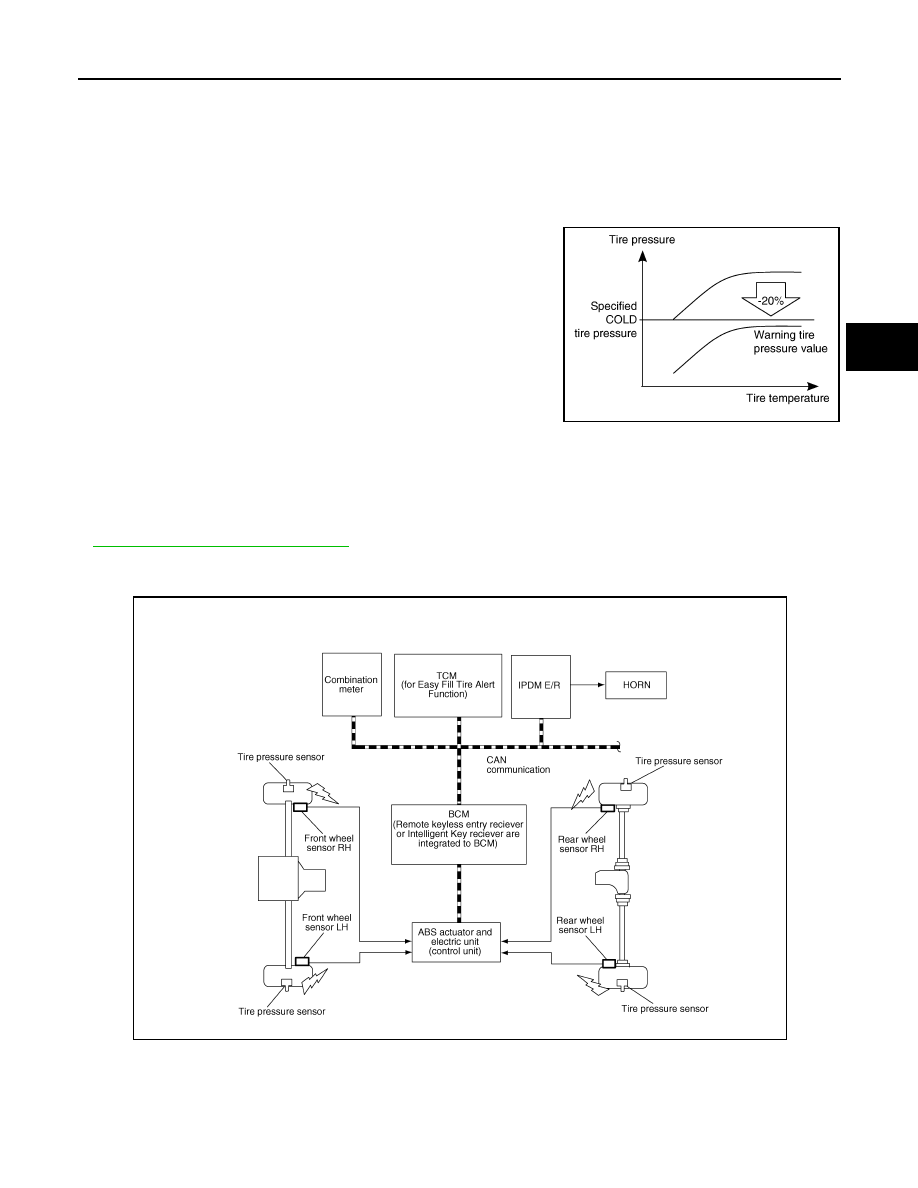

• During driving, the TPMS (Tire Pressure Monitoring System) receives the signal transmitted from tire pres-

sure sensor installed in each wheel. The BCM of this system has pressure judgment and trouble diagnosis

functions. When the TPMS (Tire Pressure Monitoring System) detects low inflation pressure or another

unusual symptom, the low tire pressure warning lamp in the combination meter comes on.

• Tire pressure varies as per the change in tire temperature. There-

fore, warning tire pressure value is varied as per the change in tire

temperature.

• If the tire pressure is less than the warning tire pressure value, the

low tire pressure warning lamp illuminates.

• Location of wheel is specified due to the synchronism of wheel sensor position and tire pressure sensor

position.

• Activates the TPMS (Tire Pressure Monitoring System) when the vehicle speed is 40 km/h (25 MPH) or

more.

• The tire pressure monitoring system (TPMS) has Easy Fill Tire alert function to aid in tire inflation. Refer to

WT-11, "Easy Fill Tire Alert Function"

.

SYSTEM DIAGRAM

INPUT/OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

JMEIA0240GB

ALEIA0195GB

WT-10

< SYSTEM DESCRIPTION >

SYSTEM

LOW TIRE PRESSURE WARNING LAMP INDICATION CONDITION

Uses CAN communication from the BCM to illuminate the low tire pressure warning lamp on the combination

meter.

LOW TIRE PRESSURE LOCATION INDICATOR

The low tire pressure location indicator is displayed in the information display of combination meter with the

low tire pressure warning lamp and warning message under the following conditions:

• Tire pressure is low.

• Tire goes flat.

Component parts

Signal item

BCM

Mainly transmits the following signals to combination meter via CAN communication.
• Low tire pressure warning lamp signal
• Low tire pressure wheel location signal
• TPMS malfunction warning lamp signal
Mainly receives the following signal from ABS actuator and electric unit (control unit) via CAN
communication.
• Vehicle speed signal (ABS)

Combination meter

Mainly receives the following signals from BCM via CAN communication.
• Low tire pressure warning lamp signal
• Low tire pressure wheel location signal
• TPMS malfunction warning lamp signal

ABS actuator and electric unit (con-
trol unit)

Mainly transmits the following signal to BCM via CAN communication:
• Vehicle speed signal (ABS)

TCM

Mainly transmits the following signal to BCM via CAN communication:
• Shift position signal (P range signal)

IPDM E/R

Mainly receives the following signal from BCM via CAN communication:
• Horn reminder signal

Name

Design

Layout

Low tire pressure warning lamp

Refer to

MWI-7, "METER SYSTEM : Design"

.

Condition

Low tire pressure warning lamp

Ignition switch OFF

OFF

Ignition switch ON
(System normal)

Warning lamp turns on for 1 second, then turns off.

Low tire pressure

ON

Configuration not performed in tire pressure monitoring system

Warning lamp blinks 1 min., then turns on.

Tire pressure sensor ID not registered in BCM

Tire pressure monitoring system malfunction
(Other diagnostic item)

SYSTEM

WT-11

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

TIRE PRESSURE DISPLAY

The adoption of this function allows tire pressure indication on the information display installed to the combina-

tion meter.

HAZARD WARNING LAMP INDICATION CONDITION

The hazard warning lamp blinks under the following conditions:

• When ID registration is completed. Refer to

WT-26, "Work Procedure"

.

• During the use of the Easy Fill Tire Alert function.

HORN CONTROL CONDITION

During the use of Easy Fill Tire Alert function.

Easy Fill Tire Alert Function

INFOID:0000000011280491

• This function operates only when the select lever position is in P-range with the ignition switch ON.

NOTE:

The Easy Fill tire alert function is recommended to use with the ignition switch ON.

NOTE:

When beginning tire inflation, it takes a few seconds for the Easy fill tire alert to function. If there is no

response for approximately 15 seconds or more, cancel the Easy fill tire alert function and move the vehicle

approximately 1 m (3.2 ft) backward or forward to try again.

• The Easy fill tire alert function operates only when the select lever position is in P-range with the ignition

switch ON.

• This function informs the driver with a visual and audible indication that the recommended COLD tire pres-

sure has been reached.

Design

Massage

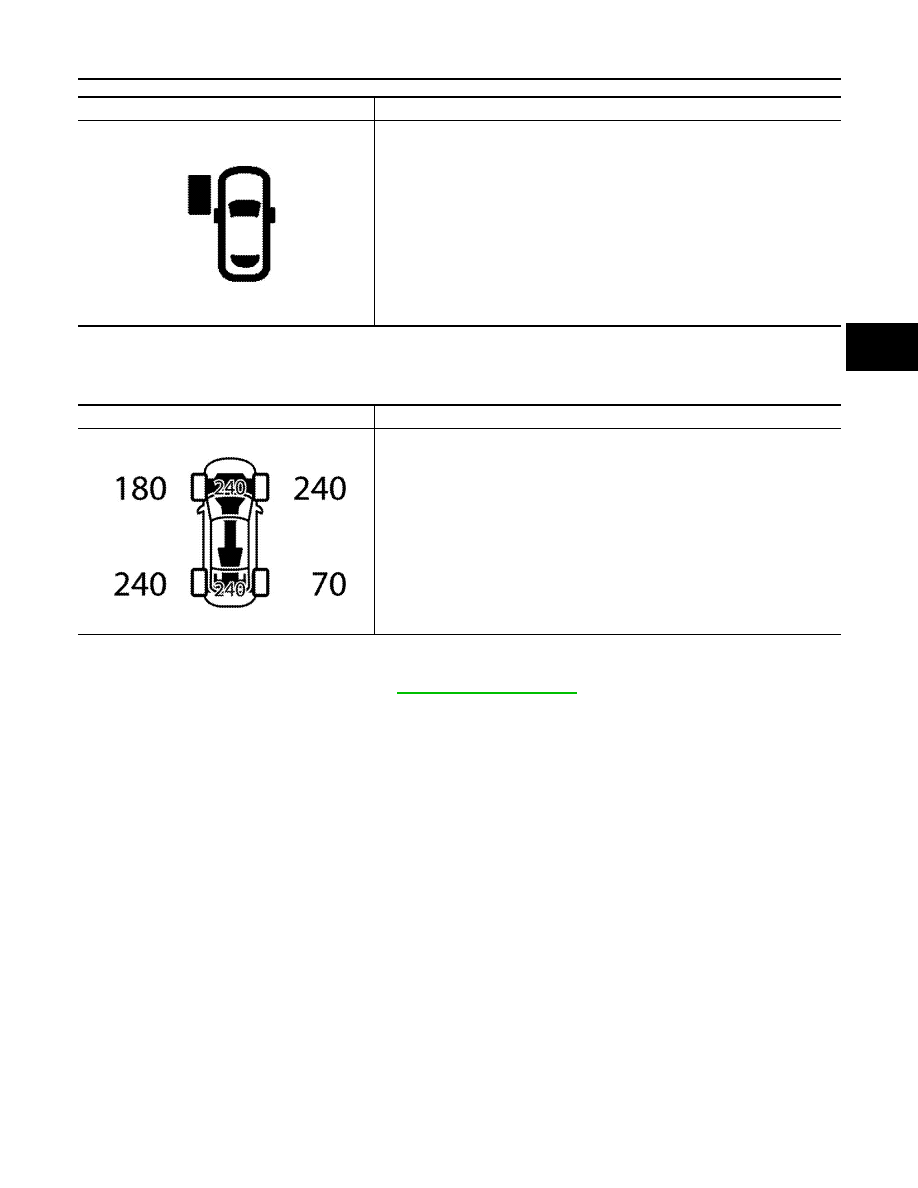

Tire Pressure Low Add Air

JMEIA0247ZZ

Design

Description

• Tire pressure of each tire is displayed at side of each tire.
• Setting tire pressure of front and rear tires are displayed between front/rear

tires.

JMEIA0248ZZ
