DIAGNOSIS AND REPAIR WORK FLOW

WCS-37

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000011276471

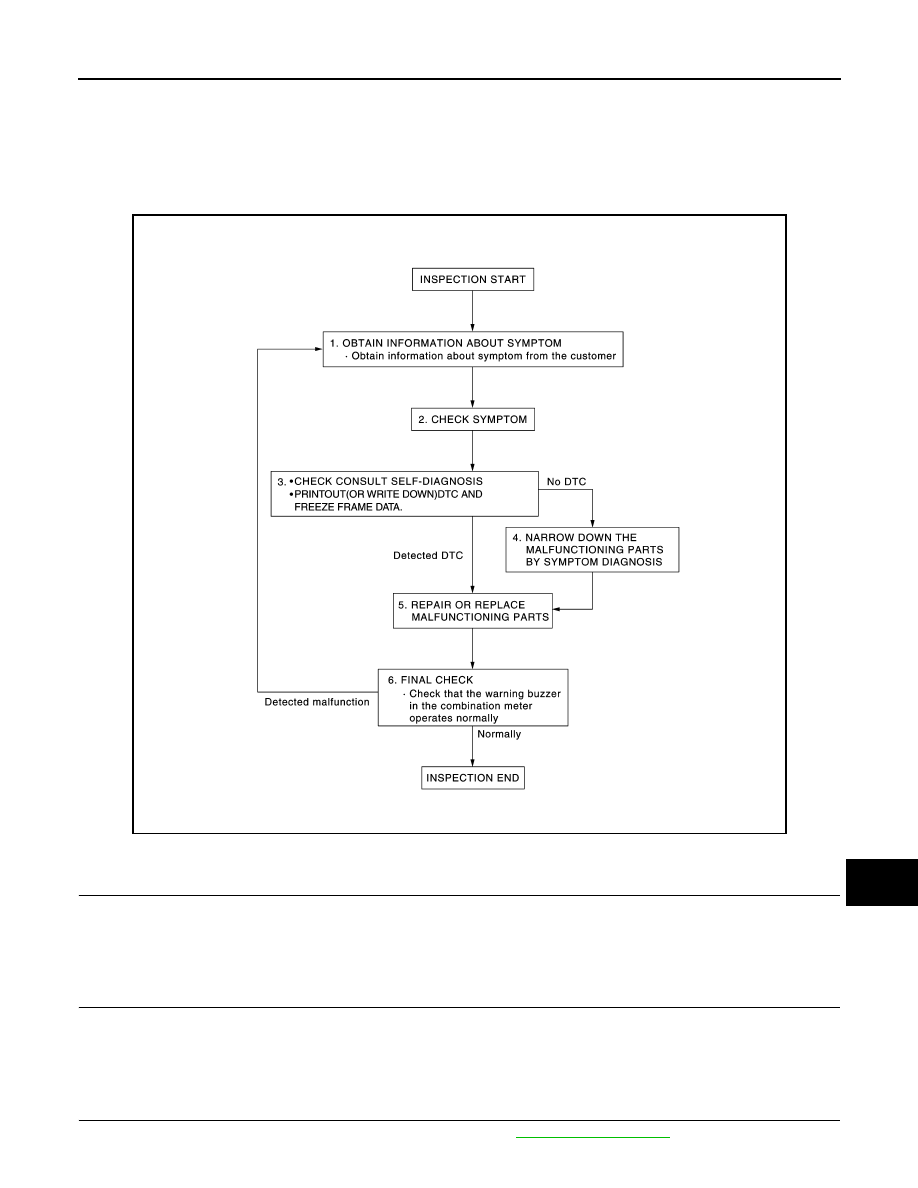

OVERALL SEQUENCE

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under

which the malfunction occurred.

>> GO TO 2.

2.

CHECK SYMPTOM

• Check the symptom based on the information obtained from the customer.

• Check if any other malfunctions are present.

>> GO TO 3.

3.

CHECK CONSULT SELF-DIAGNOSIS RESULTS

1. Connect CONSULT and perform "self-diagnosis". Refer to

WCS-28, "DTC Index"

.

JSNIA4485GB

WCS-38

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

2. When DTC is detected, follow the instructions below:

-

Record DTC and Freeze Frame Data.

Are self-diagnosis results normal?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

NARROW DOWN MALFUNCTIONING PARTS BY SYMPTOM DIAGNOSIS

Perform symptom diagnosis and narrow down the malfunctioning parts.

>> GO TO 5.

5.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace malfunctioning parts.

NOTE:

If DTC is displayed, erase DTC after repairing or replacing malfunctioning parts.

>> GO TO 6.

6.

FINAL CHECK

Check that the warning buzzer in the combination meter operates normally.
Does it operate normally?

YES

>> Inspection End.

NO

>> GO TO 1.

WCS

POWER SUPPLY AND GROUND CIRCUIT

WCS-39

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

COMBINATION METER
COMBINATION METER : Diagnosis Procedure

INFOID:0000000011386496

Regarding Wiring Diagram information, refer to

MWI-33, "Wiring Diagram"

.

1.

CHECK FUSES

Check that the following fuses are not blown.

Is the fuse blown?

YES

>> Replace the blown fuse after repairing the affected circuit.

NO

>> GO TO 2.

2.

CHECK POWER SUPPLY CIRCUIT

1. Disconnect combination meter connector.

2. Check voltage between combination meter harness connector M77 terminals 45, 46 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connector.

3.

CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace harness or connector.

BCM (BODY CONTROL SYSTEM) (WITH INTELLIGENT KEY SYSTEM)
BCM (BODY CONTROL SYSTEM) (WITH INTELLIGENT KEY SYSTEM) : Diagnosis
Procedure

INFOID:0000000011386497

Regarding Wiring Diagram information, refer to

BCS-50, "Wiring Diagram"

.

Unit

Power source

Fuse No.

Combination meter

Battery 13

Ignition switch ON or START

31

Combination meter

Ground

Ignition switch position

Connector

Terminal

OFF

ON

START

M77

45

(–)

Battery voltage

Battery voltage

Battery voltage

46

0V

Battery voltage

Battery voltage

Combination meter

Ground

Continuity

Connector

Terminal

M76

1

(–)

Yes

M77

52

WCS-40

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

1.

 CHECK FUSE

Check that the following fuse is not blown.

Is the fuse blown?

YES

>> Replace the blown fuse after repairing the affected circuit.

NO

>> GO TO 2.

2.

 CHECK POWER SUPPLY CIRCUIT

1. Disconnect BCM connector M20.

2. Check voltage between BCM connector M20 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

 CHECK GROUND CIRCUIT

Check continuity between BCM connector M20 and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace harness or connectors.

BCM (BODY CONTROL SYSTEM) (WITHOUT INTELLIGENT KEY SYSTEM)
BCM (BODY CONTROL SYSTEM) (WITHOUT INTELLIGENT KEY SYSTEM) : Diag-
nosis Procedure

INFOID:0000000011386498

Regarding Wiring Diagram information, refer to

BCS-110, "Wiring Diagram"

.

1.

 CHECK FUSE

Check that the following fuse is not blown.

Is the fuse blown?

YES

>> Replace the blown fuse after repairing the affected circuit.

NO

>> GO TO 2.

2.

 CHECK POWER SUPPLY CIRCUIT

1. Disconnect BCM connector M20.

2. Check voltage between BCM connector M20 and ground.

Terminal No.

Signal name

Fuse No.

161

BCM power supply

7 (10A)

BCM

Ground

Voltage

(Approx.)

Connector

Terminal

M20

161

—

Battery voltage

BCM

Ground

Continuity

Connector

Terminal

M20

170

—

Yes

171

Terminal No.

Signal name

Fuse No.

161

BCM power supply

7 (10A)
