Nissan Rogue. Manual - part 120

BCS-86

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

SHIPPING MODE CONTROL SYSTEM
SHIPPING MODE CONTROL SYSTEM : System Description

INFOID:0000000011280239

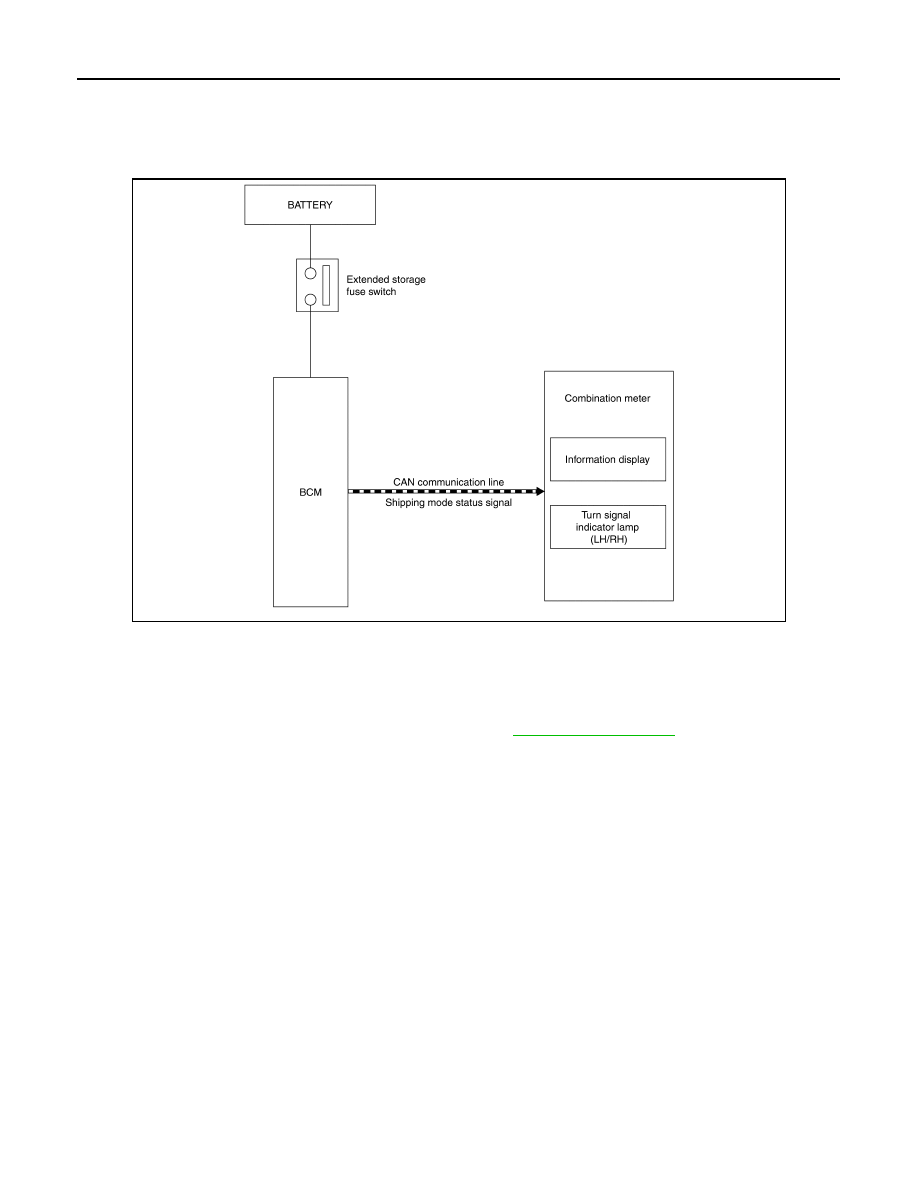

SYSTEM DIAGRAM

DESCRIPTION

• BCM switches the status (shipping mode or normal mode) by itself according to the extended storage fuse

switch condition, and transmits shipping mode status signal to combination meter and each unit via CAN

communication.

• When shipping mode function operates, each control unit does not detect DTCs.

• BCM control functions are limited in shipping mode. Refer to

BCS-134, "Description"

.

• The combination meter displays extended storage fuse warning message* on the information display, and

turns the turn signal indicator lamp (LH/RH) ON, when BCM is in shipping mode.

*: When shipping mode function operates, “SHIPPING MODE ON PUSH STORAGE FUSE” is displayed.

JMMIA1403GB

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-87

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000011280240

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

DOOR LOCK
DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)

INFOID:0000000011280241

SELF DIAGNOSTIC RESULT

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

Exterior lamp

HEADLAMP

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

Back door open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

BCS-88

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

Refer to

BCS-108, "DTC Index"

.

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

* : Initial setting

REAR DEFOGGER
REAR DEFOGGER : CONSULT Function (BCM - REAR DEFOGGER)

INFOID:0000000011280242

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

Monitor Item [Unit]

Description

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

DOOR SW-RR [On/Off]

Indicates condition of rear door switch RH.

DOOR SW-RL [On/Off]

Indicates condition of rear door switch LH.

DOOR SW-BK [On/Off]

Indicates condition of back door switch.

CDL LOCK SW [On/Off]

Indicates condition of lock signal from door lock and unlock switch.

CDL UNLOCK SW [On/Off]

Indicates condition of unlock signal from door lock and unlock switch.

KEY CYL LK-SW [On/Off]

Indicates condition of lock signal from door key cylinder switch.

KEY CYL UN-SW [On/Off]

Indicates condition of unlock signal from door key cylinder switch.

Test Item

Description

DOOR LOCK

This test is able to check door lock operation [ALL LOCK/ALL UNLK].

Support Item

Setting

Description

DOOR LOCK-UNLOCK SET

On*

Automatic door locks function ON.

Off

Automatic door locks function OFF.

AUTO UNLOCK TYPE

MODE2

Driver door only unlocks automatically.

MODE1*

All doors unlock automatically.

AUTO LOCK FUNCTION

MODE3

This mode is not used.

MODE2

Doors lock automatically when shifted out of P (park).

MODE1*

Doors lock automatically when vehicle speed reaches 24 km/h (15 mph).

Off

—

AUTO UNLOCK FUNCTION

MODE3

This mode is not used.

MODE2

Doors unlock automatically when shifted into P (park).

MODE1*

Doors unlock automatically when ignition is switched from ON to OFF.

Off

—

Monitor Item [Unit]

Description

REAR DEF SW [On/Off]

Indicates condition of rear window defogger switch.

Test Item

Description

REAR DEFOGGER

This test is able to check rear window defogger operation [Off/On].

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-89

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

* : Initial setting

BUZZER
BUZZER : CONSULT Function (BCM - BUZZER)

INFOID:0000000011280243

DATA MONITOR

ACTIVE TEST

INT LAMP
INT LAMP : CONSULT Function (BCM - INT LAMP)

INFOID:0000000011280244

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

Support Item

Setting

Description

SET R-DEF TIMER

MODE3

Rear defogger turns OFF after 1 minute.

MODE2

Rear defogger remains ON until turned OFF.

MODE1*

Rear defogger turns OFF after 15 minutes.

Monitor Item [Unit]

Description

TAIL LAMP SW [On/Off]

Indicates condition of combination switch.

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

CDL LOCK SW [On/Off]

Indicates condition of lock signal from door lock and unlock switch.

Test Item

Description

SEAT BELT WARN TEST

This test is able to check seat belt warning chime operation [On/Off].

LIGHT WARN ALM

This test is able to check light warning chime operation [On/Off].

REVERSE WARNING

This test is able to check reverse warning chime operation [On/Off].

ID REGIST WARNING

This test is able to check TPMS sensor ID regist warning chime operation [On/Off].

Monitor Item [Unit]

Description

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

DOOR SW-RR [On/Off]

Indicates condition of rear door switch RH.

DOOR SW-RL [On/Off]

Indicates condition of rear door switch LH.

DOOR SW-BK [On/Off]

Indicates condition of back door switch.

CDL LOCK SW [On/Off]

Indicates condition of lock signal from door lock and unlock switch.

CDL UNLOCK SW [On/Off]

Indicates condition of unlock signal from door lock and unlock switch.

KEY CYL LK-SW [On/Off]

Indicates condition of lock signal from door key cylinder switch.

KEY CYL UN-SW [On/Off]

Indicates condition of unlock signal from door key cylinder switch.

RKE-LOCK [On/Off]

Indicates condition of lock signal from Intelligent Key.

RKE-UNLOCK [On/Off]

Indicates condition of unlock signal from Intelligent Key.

Test Item

Description

INT LAMP

This test is able to check interior room lamp operation [On/Off].
