BCS-78

< PREPARATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

PREPARATION

PREPARATION

PREPARATION

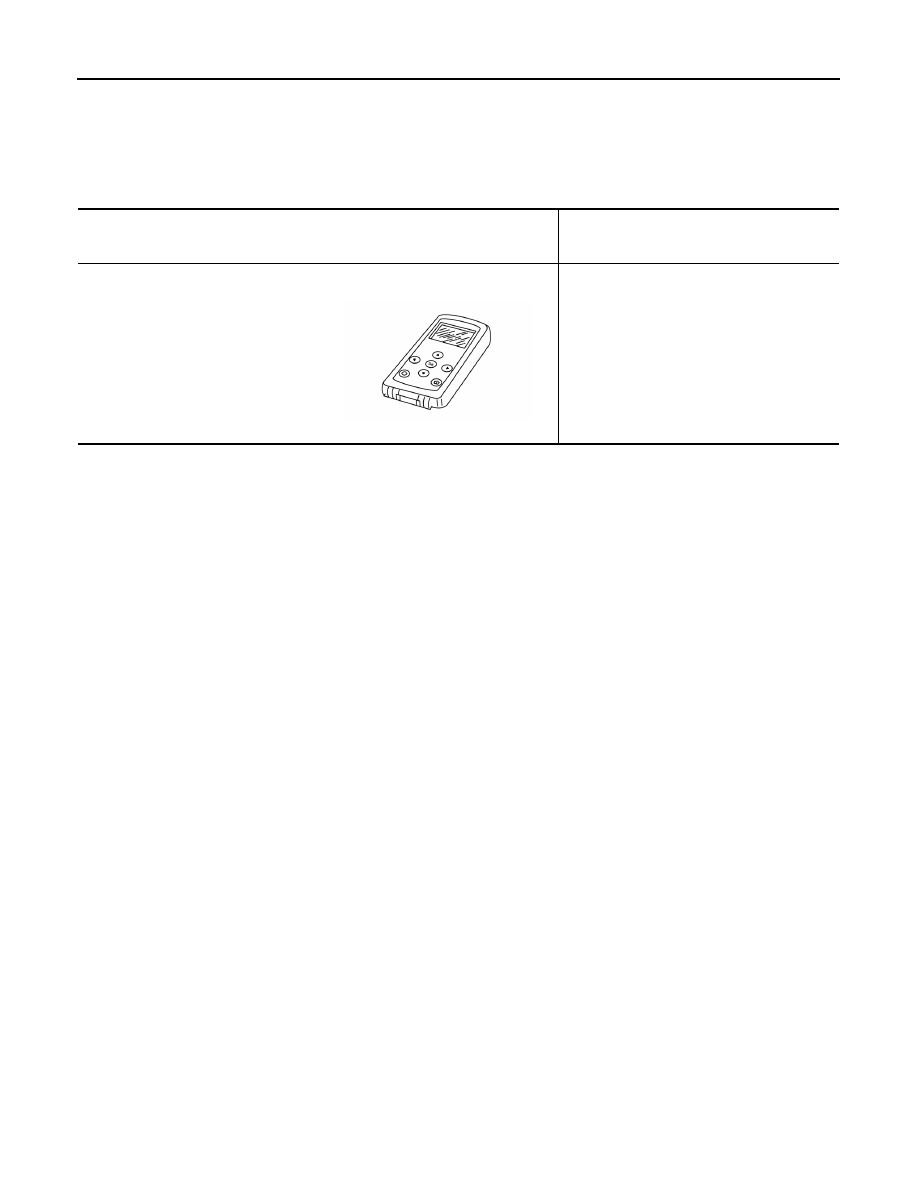

Special Service Tool

INFOID:0000000011280232

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

—

(J-50190)
Signal Tech II

• Activate and display TPMS transmitter IDs
• Display tire pressure reported by the TPMS

transmitter

• Read TPMS DTCs
• Register TPMS transmitter IDs
• Check Intelligent Key relative signal

strength

• Confirm vehicle Intelligent Key antenna sig-

nal strength

• Compatible with future sensors
• Equipped with a display

ALEIA0131ZZ

BCS

COMPONENT PARTS

BCS-79

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM DESCRIPTION

COMPONENT PARTS

BODY CONTROL SYSTEM

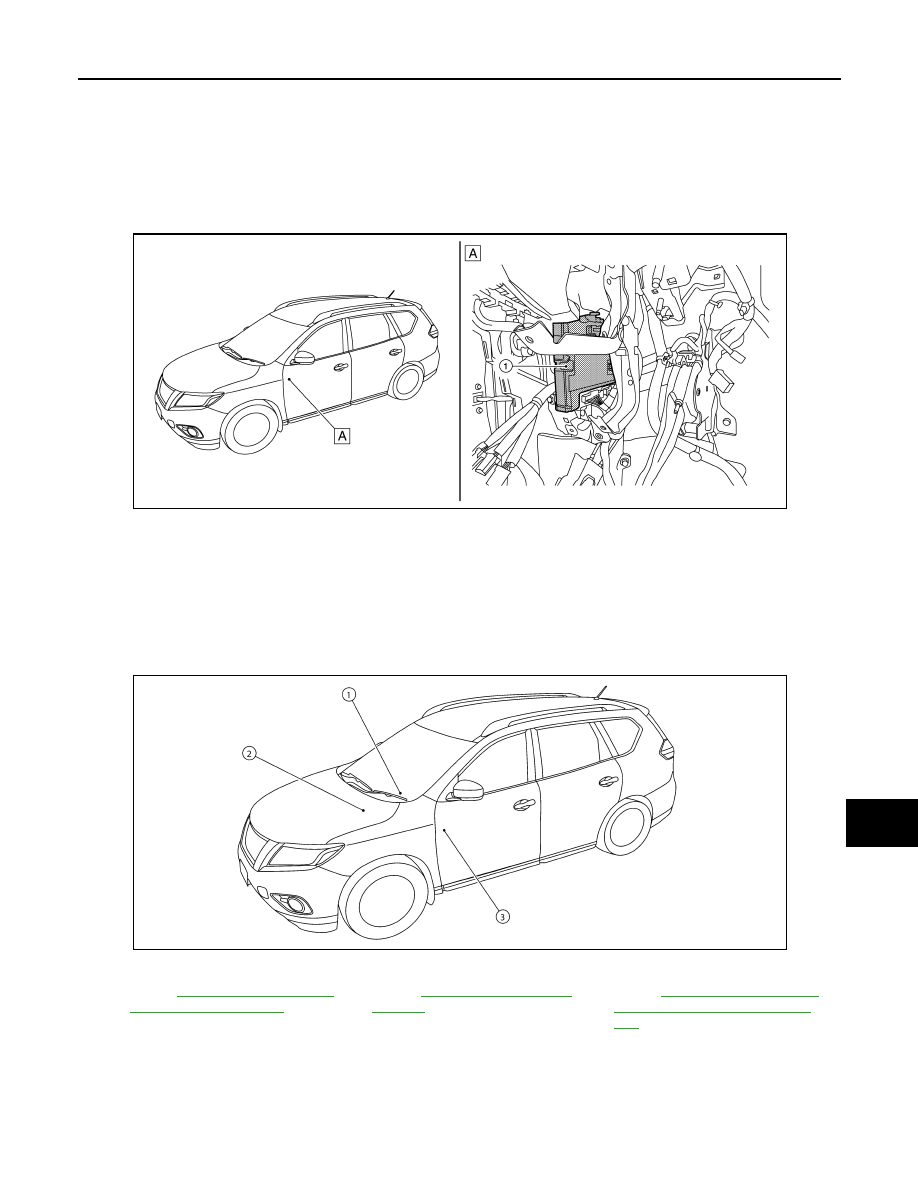

BODY CONTROL SYSTEM : Component Parts Location

INFOID:0000000011280233

POWER CONSUMPTION CONTROL SYSTEM
POWER CONSUMPTION CONTROL SYSTEM : Component Parts Location

INFOID:0000000011280234

1.

BCM

A.

Behind instrument panel (LH)

ALMIA0707ZZ

1.

Combination meter
Refer to

MWI-6, "METER SYSTEM :

Component Parts Location"

.

2.

IPDM E/R
Refer to

PCS-6, "Component Parts

Location"

.

3.

BCM
Refer to

BCS-79, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

.

ALMIA0708ZZ

BCS-80

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

SYSTEM

BODY CONTROL SYSTEM
BODY CONTROL SYSTEM : System Description

INFOID:0000000011280235

OUTLINE

• BCM (body control module) controls various electrical components. It receives the information required from

CAN communication and the signals received from each switch and sensor.

• BCM has a combination switch reading function for reading the status of combination switches (light, turn

signal, wiper and washer) in addition to functions for controlling the operation of various electrical compo-

nents. It also has a signal transmission function for other systems, and a power consumption control function

that reduces the power consumption with the ignition switch OFF.

• BCM is equipped with a diagnosis function that operates with CONSULT and allows for various settings to

be changed.

BCM FUNCTION LIST

System

Refer to

Combination switch reading system

BCS-81, "COMBINATION SWITCH READING SYSTEM : System
Description"

Signal buffer system

BCS-84, "SIGNAL BUFFER SYSTEM : System Description"

Power consumption control system

BCS-84, "POWER CONSUMPTION CONTROL SYSTEM : Sys-
tem Description"

Headlamp system

EXL-12, "HEADLAMP SYSTEM : System Description"

 (halogen

headlamp)

Daytime light system

EXL-14, "DAYTIME RUNNING LIGHT SYSTEM : System De-
scription"

 (halogen headlamp)

Turn signal and hazard warning lamps system

EXL-15, "TURN SIGNAL AND HAZARD WARNING LAMP SYS-
TEM : System Description"

 (halogen headlamp)

Parking, license plate and tail lamps system

EXL-15, "PARKING, LICENSE PLATE, SIDE MARKER AND TAIL
LAMP SYSTEM : System Description"

 (halogen headlamp)

Exterior lamp battery saver system

EXL-18, "EXTERIOR LAMP BATTERY SAVER SYSTEM : System
Description"

 (halogen headlamp)

Interior room lamp control system

INL-7, "INTERIOR ROOM LAMP CONTROL SYSTEM : System
Description"

Interior room lamp battery saver system

INL-9, "INTERIOR ROOM LAMP BATTERY SAVER SYSTEM :
System Description"

Front wiper and washer system

WW-8, "FRONT WIPER AND WASHER SYSTEM : System De-
scription"

Rear wiper and washer system

WW-10, "REAR WIPER AND WASHER SYSTEM : System De-
scription"

Warning chime system

WCS-6, "WARNING CHIME SYSTEM : System Description"

Door lock system

DLK-293, "POWER DOOR LOCK SYSTEM : System Description"

Back door open system

Nissan vehicle immobilizer system (NVIS)

SEC-123, "NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS :
System Description"

Vehicle security system

SEC-124, "VEHICLE SECURITY SYSTEM : System Description"

Panic alarm

Rear window defogger system

DEF-8, "System Description"

Power window system

PWC-9, "System Description"

Remote keyless entry system

DLK-294, "REMOTE KEYLESS ENTRY SYSTEM : System De-
scription"

BCS

SYSTEM

BCS-81

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMBINATION SWITCH READING SYSTEM
COMBINATION SWITCH READING SYSTEM : System Description

INFOID:0000000011280236

SYSTEM DIAGRAM

OUTLINE

• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the

status of each switch.

• BCM has a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5) and reads

a maximum of 20 switch states.

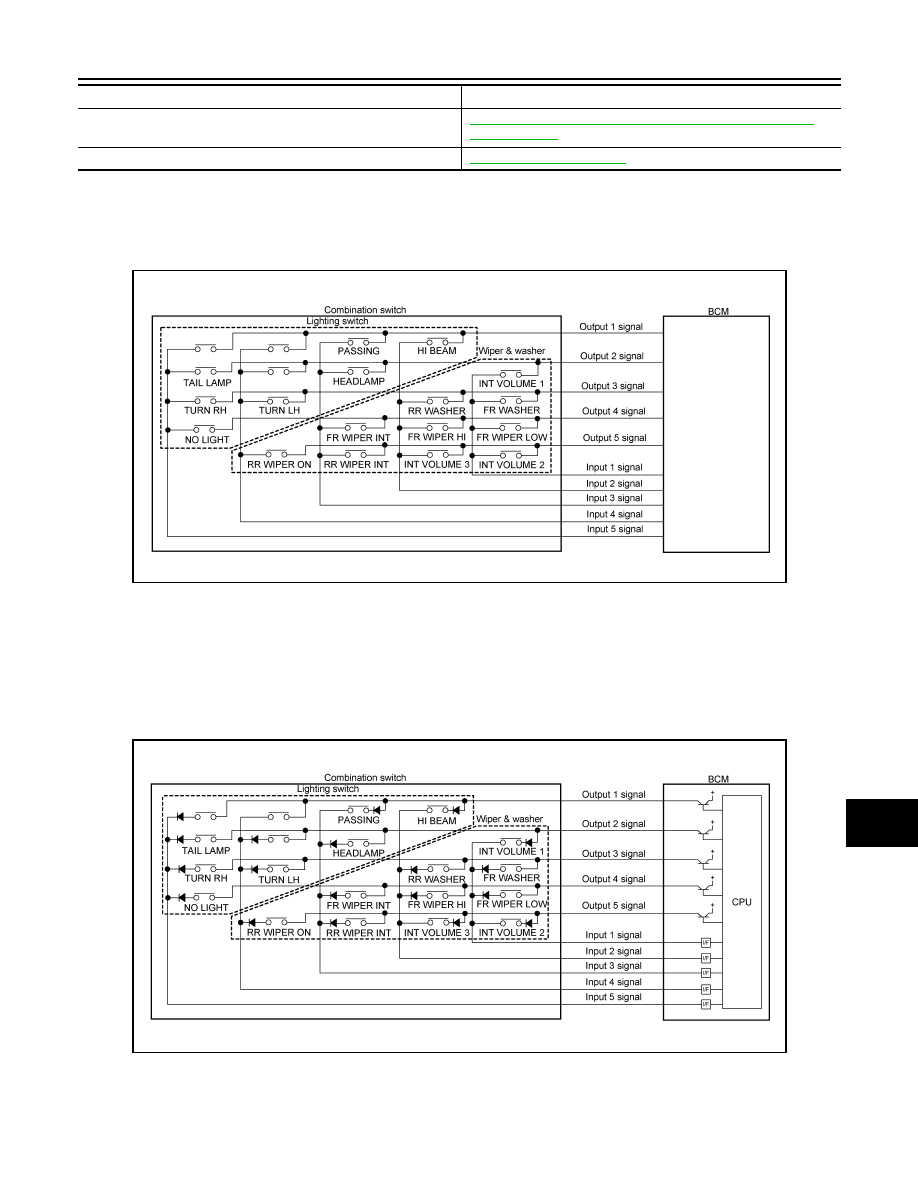

COMBINATION SWITCH MATRIX

Combination switch circuit

RAP (retained accessory power) system

BCS-94, "RETAINED PWR : CONSULT Function (BCM - RE-
TAINED PWR)"

TPMS (tire pressure monitoring system)

WT-9, "System Description"

System

Refer to

AWMIA1521GB

AWMIA1522GB
